- Original article
- Open Access
Effects of compound probiotics and aflatoxin-degradation enzyme on alleviating aflatoxin-induced cytotoxicity in chicken embryo primary intestinal epithelium, liver and kidney cells
AMB Express volume 11, Article number: 35 (2021)
Aflatoxin B1 (AFB1) is one of the most dangerous mycotoxins for humans and animals. This study aimed to investigate the effects of compound probiotics (CP), CP supernatant (CPS), AFB1-degradation enzyme (ADE) on chicken embryo primary intestinal epithelium, liver and kidney cell viabilities, and to determine the functions of CP + ADE (CPADE) or CPS + ADE (CPSADE) for alleviating cytotoxicity induced by AFB1. The results showed that AFB1 decreased cell viabilities in dose-dependent and time-dependent manners. The optimal AFB1 concentrations and reactive time for establishing cell damage models were 200 µg/L AFB1 and 12 h for intestinal epithelium cells, 40 µg/L and 12 h for liver and kidney cells. Cell viabilities reached 231.58% (p < 0.05) for intestinal epithelium cells with CP addition, 105.29% and 115.84% (p < 0.05) for kidney and liver cells with CPS additions. The further results showed that intestinal epithelium, liver and kidney cell viabilities were significantly decreased to 87.12%, 88.7% and 84.19% (p < 0.05) when the cells were exposed to AFB1; however, they were increased to 93.49% by CPADE addition, 102.33% and 94.71% by CPSADE additions (p < 0.05). The relative mRNA abundances of IL-6, IL-8, TNF-α, iNOS, NF-κB, NOD1 (except liver cell) and TLR2 in three kinds of primary cells were significantly down-regulated by CPADE or CPSADE addition, compared with single AFB1 group (p < 0.05), indicating that CPADE or CPSADE addition could alleviate cell cytotoxicity and inflammation induced by AFB1 exposure through suppressing the activations of NF-κB, iNOS, NOD1 and TLR2 pathways.
AFB1 decreased chicken embryo primary intestinal epithelium, liver and kidney cell viabilities in dose-dependent and time-dependent manners.
CPADE or CPSADE was able to relieve cell damages exposed to AFB1.
CPADE or CPSADE addition could alleviate cell cytotoxicity and inflammation induced by AFB1 through suppressing the activations of NF-κB, iNOS, NOD1 and TLR2 pathways.
Mycotoxins are toxigenic fungal secondary metabolites that mainly produced by Aspergillus, Penicillium and Fusarium to have great threat to human and animal health globally. The Food and Agriculture Organization (FAO) showed that approximately 25% of worldwide agricultural raw materials were contaminated with mycotoxins, leading to health problems and enormous economic losses (FAO 2013). So far, at least 400 kinds of mycotoxins such as aflatoxins, zearalenone, deoxynivalenol, fumonisin, patulin, T-2 toxin and ochratoxins have been identified (Cimbalo et al. 2020). There are more than 20 types of aflatoxins including aflatoxin B1 (AFB1), B2, G1, G2 and M1, among them AFB1 is the most toxic mycotoxin with high frequency of contamination in various cereals such as nuts, corn and rice (Negash 2018). AFB1 is able to cause poor feed efficacy, hepatotoxic, carcinogenic, teratogenic, immunosuppressive and other devastating effects on humans and animals (Meissonnier et al. 2008; Trebak et al. 2015; Zhang et al. 2016). Therefore, it is classified as the category one carcinogen by the International Agency for Research on Cancer (IARC 2012).
Poultry is more sensitive to AFB1 than the other kinds of animals. AFB1 residues in poultry body will cause potential health hazard for humans and itself (Peng et al. 2014). It is known that moldy food contains large amounts of AFB1, especially in moldy peanuts and cereals. In poultry farming, AFB1 can severely affect the immune system to cause immunosuppression (Liu et al. 2016). AFB1 can also cause apoptosis, gross and histopathological lesions in different organs, especially in liver, kidney, muscles and bursa of Fabricius (Chen et al. 2014; Peng et al. 2014). It was reported that AFB1 intoxication could increase mortality, liver and kidney pathology, and decrease bodyweight and feed intake for broilers (Saleemi et al. 2019). Therefore, it is necessary to develop effective detoxification strategies to increase AFB1 degradation and alleviate AFB1-induced inflammatory and immunosuppression in chickens.
Up to date, several strategies have been reported to alleviate AFB1 toxicity including physical, chemical and biological methods. The physical detoxification methods (absorption, heating and irradiation) and chemical detoxification methods (ammonization, solvent extraction and oxidation) have many defects such as nutritional losses, expensive equipment requirement and low efficiency (Gregorio et al. 2014; Arzandeh and Jinap 2015; Zhu et al. 2016). It was found that the biological method was more effective to degrade mycotoxins than other ones (Das et al. 2014; Melvin et al. 2014; Fernández et al. 2015). Many species of microbes such as bacteria, molds and yeasts have demonstrated the capability to alleviate AFB1 toxicity, due to their metabolic transformation or adsorption ability for AFB1. It was reported that addition of lactic acid bacteria and S. cerevisiae to AFB1-contaminated diet could reduce AFB1 residues and prevent degenerative changes in the liver and kidney of broilers (Śliżewska et al. 2019). Aspergillus oryzae has been reported to be able to degrade AFB1 (Alberts et al. 2009). The other reports showed that the cooperation of compound probiotics (CP) and AFB1-degradation enzyme (ADE) could degrade AFB1 effectively (Zuo et al. 2013; Huang et al. 2019).
It was reported that liver and kidney were the primary target organs attacked by AFB1 (Gholami-Ahangaran et al. 2016; Pérez-Acosta et al. 2016). In addition, the small intestine is the physical barrier which usually first contacts with and absorbs AFB1, as a result intestinal heath is seriously influenced by AFB1 (Pinton and Oswald 2014). However, the optimal strategies for alleviating the negative effects of AFB1 on intestine, liver and kidney cells of chickens have not been reported. Therefore, small intestine, liver and kidney cells of chickens were selected in this study to investigate the toxic effects of AFB1 on chicken embryo primary cells, and explore the efficacy of CPADE or CPSADE for alleviating AFB1-induced cytotoxicity and inflammatory of chickens.
Materials and methods
Chemicals and AFB1 preparation
Phosphate-buffered saline (PBS), 0.25% pancreatin with ethylenediaminetetraacetic acid (EDTA), collagenase (C8140, 246 U/mg), neutral protease (D6430, 0.5 U/mg), penicillin–streptomycin and thiazolyl blue tetrazolium bromide (MTT) were purchased from Beijing Solarbio Biotechnology Co., Ltd. Beijing, China. Collagenase and protease were dissolved in PBS to make 3000 U/mL and 0.5 U/mL, respectively. Percoll separation solution was diluted with PBS to 50%. Dulbecco’s Modified Eagle Medium/Nutrient Mixture F-12 (DMEM/F12 at 1/1), M199 medium and fetal bovine serum (FBS) were purchased from Biological Industries (Kibbutz Beit-Haemek, Israel). Aflatoxin B1 was purchased from Sigma-Aldrich (St. Louis, MO, U.S.), dissolved in 50% methanol to make 8 μg/mL AFB1 concentration as the stock solution, filtered with 0.22 μm membrane high-flow filter (Sartorius Stedim Biotech Gmbh, Goettingen, Germany), and stored at 4 °C for the following experiment.
Probiotics and AFB1-degrading enzyme preparation
Based on the previous research in our laboratory, four species of microorganisms with high AFB1-degrading abilities including Bacillus subtilis (B. subtilis, CGMCC1.0504), Enterococcus faecalis (E. faecalis, CGMCC1.2135), Candida utilis (C. utilis, CGMCC2.0615) and Lactobacillus casein (L. casein, CGMCC1.2884) were selected, which were purchased from China General Microbiological Culture Collection Center (CGMCC), Beijing, China. The microbes were incubated to more than 1.0 × 109 CFU/mL according to the published protocols (Huang et al. 2018). After centrifugation at 4 °C and 12,000×g for 10 min, the microbes and supernatants were collected, respectively. The supernatants were filtered through 0.22 µm membrane to remove the microbes, and then diluted to the final concentrations required by experiment design with cell media for subsequent experiments. The microbes were also adjusted to the different concentrations with cell media. Based on the previous results obtained with response surface regression design in our laboratory in vitro, the optimal final counts of B. subtilis, L. casein, E. faecalis and C. utilis for AFB1-degradation were 1.0 × 105, 1.0 × 105, 1.0 × 107 and 1.0 × 105 CFU/mL to make the basal compound probiotics (CP). In order to measure the effects of different CP concentrations on cell viability or alleviating AFB1-induced cytotoxicity, the final counts of B. subtilis, L. casein, E. faecalis and C. utilis in CP were further designed as 1.0 × 102, 1.0 × 102, 1.0 × 104 and 1.0 × 102 CFU/mL to make CP1; 1.0 × 103, 1.0 × 103, 1.0 × 105 and 1.0 × 103 CFU/mL to make CP2; 1.0 × 104, 1.0 × 104, 1.0 × 106 and 1.0 × 104 CFU/mL to make CP3; 1.0 × 105, 1.0 × 105, 1.0 × 107 and 1.0 × 105 CFU/mL to make CP4; 1.0 × 106, 1.0 × 106, 1.0 × 108 and 1.0 × 106 CFU/mL to make CP5, respectively. Their corresponding supernatants were combined together to make CPS1, CPS2, CPS3, CPS4 and CPS5.
The AFB1-degradating enzyme was extracted from solid-state fermentation of Aspergillus oryzae (A. oryzae, CGMCC3.4437) according to the previous protocol (Huang et al. 2019). The crude enzyme solution of 10% AFB1-degrading enzyme was diluted with cell medium and stored at 4 °C for further use. The AFB1-degrading enzyme activity in 10% crude enzyme solution was determined to be 51 U/mL according to the previous protocol (Gao et al. 2011).
Primary chicken embryo intestinal epithelium, liver and kidney cell preparation
The 14-day-old fertilized chicken eggs were purchased from Kaifeng Breeding Chicken Co., Ltd. Kaifeng, China, which were cleaned by 75% alcohol, placed in a vertical-flow clean bench ultra-clean, and handled with ultraviolet irradiation for 20 min. The air chamber of embryo was carefully broken with the tweezers, the chicken embryo was taken out and quickly decapitated, followed by taking out small intestine, liver and kidney tissues, and rinsed in PBS containing 1% penicillin (10,000 U/mL)-streptomycin (10 mg/mL) (Beijing Solarbio Biotechnology Co., Ltd. Beijing, China).
The mesentery of small intestine was carefully exfoliated in PBS solution, cut into 1 mm size, put into 5 mL centrifuge tube, and washed with PBS until the supernatant was clear. After removing the washing solution, 1 mL 0.25% pancreatin was added to digest the tissues at 37 °C for 10 min with shaking once every 2 min. The tissues were centrifuged at 1000 r/min for 5 min to remove supernatant, and then 2 mL DMEM/F12 medium supplemented with 10% FBS and 1% penicillin–streptomycin were added. The filtrate was collected using 200-mesh sieve, and the cells were cultured in a 5% CO2 incubator at 37 °C for 2 h. The supernatant was removed after centrifuged with 1000 r/min for 10 min, the cells were adjusted to 5.0 × 105 cells/mL with DMEM/F12 supplemented with 2.5% FBS and 1% penicillin–streptomycin. 0.2 mL or 2 mL cells were put in a 96-well or 12-well culture plate, and cultured at 37 °C in a 5% CO2 incubator. The incubating cell medium was replaced every 2 days.
Liver cells were prepared as above and modified as following: 1 mL collagen protease and 1 mL neutral protease were added to digest the tissues at 37 °C for 30 min with shaking once every 3 min. Then 2 mL M199 medium supplemented with 10% FBS and 1% penicillin–streptomycin were added. After shaking up and down, the filtrates were collected with a 200-mesh sieve, and then centrifuged with 1000 r/min for 10 min to remove the supernatant. 1.5 mL M199 medium supplemented with 10% FBS and 1% penicillin–streptomycin were added to the centrifuge tube, and then 3 mL 50% percoll separation solution were added and mixed well, centrifuged for 15 min at 3000 r/min. After centrifugation, the upper layer was removed, and the middle layer was taken out and put into a new centrifuge tube, then equivalent volume M199 medium was added to the new centrifuge tube, centrifuged for 10 min at 1000 r/min. At last the liver cells were resuspended with M199 medium supplemented with 10% FBS and 1% penicillin–streptomycin, adjusted and cultured as above. Kidney cells were prepared with the same protocol as liver cells, modified by using DMEM/F12 medium to replace M199 medium.
Cell viability assay and experimental design
Three kinds of primary cells were seeded into 96-well plates. Cell viability was measured by MTT assay every 2 days (Fotakis and Timbrell 2005). The growth curves of three kinds of cells were plotted with time as the abscissa and absorbance value as the ordinate. The following experiments were carried out in the logarithmic phase of cells. The experimental designs were as follows:
Effect of different AFB1 concentrations on cell damage: three kinds of cells were seeded into 96-well plates with a density of 5.0 × 105 cells/mL, cultured to their logarithmic phases, followed by removing the culture medium and washing twice with PBS, and subsequently incubated with different concentrations of AFB1 for 6, 12, 24 and 48 h, respectively. AFB1 concentrations were 0, 40, 80, 120, 160 and 200 µg/L for intestinal epithelium cells; 0, 10, 20, 40 and 80 µg/L for the liver and kidney cells. AFB1 was diluted with the corresponding cell media without serum and antibiotics.
Effect of CP or CPS on cell viability: the cells were prepared as above. CP and CPS were diluted with the corresponding cell media without serum and antibiotics. The cells were incubated with the different concentrations of CP or CPS for 12, 24 and 48 h, respectively.
Effect of ADE on cell viability: ADE was diluted with the cell medium without serum and antibiotics to make the final concentrations at 0, 0.0001%, 0.001%, 0.01%, 0.1% and 1%, which was incubated with cells for 6, 12, 24 and 48 h, respectively.
The functions of CPADE and CPSADE for alleviating cytotoxicity: The cell culture was 12 h. The detail design was listed in Table 1. The previous report in our laboratory showed that CPADE and CPSADE were more effective than CP, CPS and ADE for degrading AFB1 (Huang et al. 2018); therefore, CP, CPS and ADE were not considered for alleviating cytotoxicity induced by AFB1 in this study.
At the end of above cell incubations, each well was added with 10 µL 5 mg/mL MTT and incubated for 4 h. Then the cell supernatants were removed and 150 µL DMSO was added to each well. Thereafter, the plates were shaken for 10 min at room temperature. The absorbances (A) were determined at 490 nm wavelength with a reference wavelength of 630 nm by an ELx 800 microplate reader (BIO-TEK Instruments Inc., Winooski, VT, USA). The cell viability (%) = (A490nm − A630nm value in the experimental groups)/(A490nm − A630nm in the control groups) × 100%.
Reverse transcription PCR and quantitative real-time PCR
The primary intestinal epithelium, liver and kidney cells were seeded with a density of 5.0 × 105 cells/mL in 12-well culture plates and allowed to adhere for 24 h, respectively. After four treatments (Control, AFB1, CPADE or CPSADE, CPADE or CPASDE + AFB1) for three kinds of primary cells for 12 h respectively, total RNA was extracted using Trizol (Invitrogen, Carlsbad, CA, USA) according to the standard manufacturer’s instructions, and then dissolved in 50 µL RNase-free water, stored at − 80 °C. The quality and concentration of RNA samples were measured by NanoDrop ND-1000 Spectrophotometer (Nano-Drop Technologies, Wilmington, DE, U.S.). Approximately 1 µg total RNA from each sample was reversely transcribed into cDNA by TB GREEN kit (TaKaRa, Dalian, China). Quantitative RT-PCR was performed with CFX Connect™ Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). All the primers used in this study were listed in Table 2. The β-actin was used as a house-keeping gene, and the relative gene abundances in chicken embryo primary intestinal epithelium, liver and kidney cells were analyzed using the 2−ΔΔCT method (Livak and Schmittgen 2001).
All experimental data were presented as means ± standard deviations. The data were analyzed using one-way analysis of variance (ANOVA) by the Duncan method with SPSS 20.0 software (Sishu Software, Shanghai Co., Ltd. Shanghai, China). All graphs were generated using GraphPad Prism 8. Differences were considered as statistically significance at p < 0.05.
The growth curves of primary intestinal epithelium, liver and kidney cells of chicken embryo
Figure 1 demonstrated that the logarithmic growth phases of intestinal epithelium, liver and kidney cells appeared during the incubation periods of 8–12, 6–12 and 6–12 days, and reached the logarithmic peak on the 10th, 12th and 6th day, respectively (p < 0.05).
Effects of AFB1 on the viabilities of primary intestinal epithelium, liver and kidney cells
Table 3 showed that AFB1 decreased cell viability in dose-dependent and time-dependent manners. The higher AFB1 concentrations and longer incubation time caused more serious damages for three kinds of cells. AFB1 had insignificant effect on intestinal epithelium cell viability when its concentration was below 80 μg/L within 48 h incubation (p > 0.05); however, it was significantly influenced when AFB1 concentration were more than 80 μg/L (p < 0.05), especially under the condition that the incubation time was 48 h. Liver and kidney cells of chicken embryo were more sensitive to AFB1 than intestinal epithelium cells. They were significantly influenced by 80 μg/L AFB1 within 6 h incubation, 40 μg/L AFB1 within 12 h incubation, 20 μg/L AFB1 within 24 h incubation, 10 μg/L AFB1 within 48 h incubation (p < 0.05), compared with the control group. After considering the above results, AFB1 concentrations and reaction time were confirmed as 200 μg/L and 12 h for intestinal epithelium cells, 40 μg/L AFB1 and 12 h for liver and kidney cells in the subsequent experiments.
Effects of CP or CPS on the viabilities of three kinds of primary cells
Table 4 showed that different concentrations of CP and CPS had different effects on three kinds of cell viabilities. The relative cell viabilities reached 231.58%, 163.33% and 138.32% (p < 0.05) for intestinal epithelium, liver and kidney cells at CP2 levels for 12 h incubation, respectively; which reached 136.13% and 115.84% (p < 0.05) at CPS4 levels after 12 h incubation for intestinal epithelium and liver cells, 105.29% (p < 0.05) at CPS3 levels after 12 h incubation for kidney cells. According to the above results, the optimal incubation time was selected as 12 h in the subsequent experiment. In general, the liver and kidney cells can’t directly contact with microbes; therefore, CPS was selected in the subsequent experiments for liver and kidney cell incubations.
Effects of ADE on viability of three kinds of primary cells
Figure 2 showed that the relative viabilities of three kinds of cells were significantly decreased (p < 0.05) when ADE concentrations were between 0.01 and 1%; however, the cell viabilities were significantly increased when ADE concentrations were between 0.001 and 0.0001% (p < 0.05). Therefore, the optimal ADE content was selected as 0.001% in the subsequent experiment.
Effects of CPADE or CPSADE on alleviating viabilities of three primary cells induced by AFB1

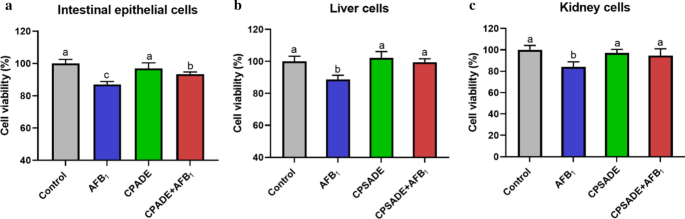

Figure 3 showed that the relative viabilities of intestinal epithelium, liver and kidney cells induced by AFB1 were significantly decreased to 87.12%, 88.7% and 84.19% (p < 0.05), whereas CPADE or CPSADE addition significantly increased the cell viabilities to 93.49%, 102.33% and 94.71% (p < 0.05), respectively.
Effects of CPDE or CPSADE on mRNA abundances of some genes related with cytokines and signal pathways in the three kinds of primary cells induced by AFB1
Figure 4 indicated that AFB1 exposures during intestinal epithelium, liver and kidney cell incubations could up-regulate the mRNA abundances of some genes such as IL-6, IL-8, TNF-α (except for liver), NF-κBp65, iNOS, NOD1 (except for liver) and TLR2 (p < 0.05); however, CPADE or CPSADE addition could retrieve the above results. It could be concluded that CPADE or CPSADE addition was able to alleviate cell inflammation induced by AFB1 through positively regulating some signal pathways.
Aflatoxins are the ubiquitous dietary contaminants all over the world, which lead to low feed intake, low efficiency and substantial economic losses (Tedesco et al. 2004). Aflatoxin B1 is frequently detected in cereals, feedstuffs and diets to cause liver damage and immune inhibition of domestic animals (Kraieski et al. 2016; Yuan et al. 2016). AFB1 residues in domestic animal products will be harmful to human and public health. Liver is the main target organ of AFB1, but AFB1 is also detected in kidney and intestinal tract of animals. Therefore, it is necessary to find an effective and safe method to alleviate AFB1 for animal and human. Nowadays, probiotics have been widely used to degrade mycotoxins. It was reported that Bacillus subtilis could germinate in intestinal tract, and reduce AFB1 absorption and residues in the internal organs of broilers (Salem et al. 2018). The compound probiotics of B. subtilis, L. casei and C. utilis were reported to increase production performance, alleviate histological lesions, degrade mycotoxins and decrease mycotoxin residues in broilers (Chang et al. 2020). In order to increase the efficiency of alleviating AFB1-induced cell damage, the compound probiotics was combined with AFB1-degrading enzyme in this study.
This result showed that the viabilities of three kinds of primary cells were decreased with increasing AFB1 concentrations and incubation time, suggesting that both of them are the main factors for determining the extent of AFB1 toxicity. In general, liver and kidney cells are more sensitive to AFB1 than intestinal cells, which may be related to the different responses from the different cell types and organs (Zain 2011). AFB1 can be metabolized to high reactive metabolites by cytochrome P450 enzyme system in liver cells, resulting in formation of AFB1-DNA adducts to cause carcinogenesis and mutations (Valeria et al. 2020; Owumi et al. 2020). The kidney cells can be directly damaged by AFB1 through increasing cell apoptosis and death (Li et al. 2019). For the intestinal epithelium cells, AFB1 damage was mainly presented from barrier function loss and inflammatory response (Hernández-Ramírez et al. 2019). Because intestinal epithelium cells usually contact with AFB1 directly, the long-term adaptation makes them be insensitive to AFB1 than liver and kidney cells. The addition of compound probiotics and mycotoxin-degrading enzyme could contribute to cell proliferations and alleviate the toxicity induced by AFB1, which might be from mycotoxin biodegradation (Huang et al. 2018). It was found that the different concentrations of CP or CPS at different reaction time had different effects on the viabilities of three kinds of cells; therefore, the optimal CP or CPS concentrations and reaction time were selected for improving viabilities of different cell types. It was also indicated that CP was more effective than CPS for increasing cell viabilities, maybe due to the interaction between primary cells and microbes.
The previous researches have indicated that lactic acid bacteria can synthesize a wide variety of polysaccharides during their growth process (Round et al. 2011; Poole et al. 2018). These polysaccharides can be classified into two kinds, one kind can be tightly linked to the cell surface forming the capsular polysaccharides, which are loosely attached to the extracellular surface, or secreted to the environment as exopolysaccharides (Castro-Bravo et al. 2018). Capsular polysaccharide adhesion to intestinal epithelial cells is believed to help probiotic bacteria to transiently colonize and persist on epithelial cells for decreasing the colonization of intestinal pathogens (Castro-Bravo et al. 2018). Another kind is called extracellular polysaccharides, which can modulate intestinal immunity and reduce the secretion of proinflammatory cytokines (Laiño et al. 2016). Enterococcus faecalis can directly produce extracellular polysaccharide (Rossi et al. 2015), which may be the reason why CP is able to improve cell vitality more than CPS in this study. However, the long-term incubation of CP or CPS was harmful to cells, the reason may be due to the secondary metabolites produced by probiotics to influence cell growth.
Aspergillus oryzae can produce many kinds of enzymes such as protease and amylase except for AFB1-degradation enzyme, which may affect cell paste and growth. The reason why high ADE concentrations could influence cell viability might be due to the high levels of enzymes existing in ADE to damage cells, so low ADE concentration was selected in this study. It was reported that supplementation of L. bulgaricus or L. rhamnosus could produce significant protective effect against AFB1-induced liver damage and inflammatory response (Chen et al. 2019). Moreover, the addition of compound probiotics and mycotoxin-degradation enzyme could prevent broilers from damages induced by AFB1 (Zuo et al. 2013). In this study, four kinds of compound probiotics plus AFB1-degradation enzyme additions significantly increased the cell viability induced by AFB1, inferring that CPDE or CPSADE could alleviate the toxicology induced by AFB1 in three kinds of primary cells.
The previous studies have demonstrated that AFB1 exposure can induce inflammation response in different cells and organs (Zhang et al. 2019; Wang et al. 2019; Zhao et al. 2019). Inflammation is a response against infection, illness and injury by the excessive expressions of chemokines and inflammatory cytokines such as TNF-α, IL-6 and IL-8 (Barutta et al. 2015; Guo et al. 2015). TNF-α is a proinflammatory cytokine, which can stimulate various kinds of cells to produce chemokines to cause tissue damage and inflammation response (Shanmugam et al. 2016). It can be speculated that the degree of AFB1-induced damage may be decreased by suppressing the overexpression of inflammatory cytokines. In this study, AFB1 exposure significantly up-regulated the mRNA abundances of IL-6, IL-8 and TNF-α in the three kinds of primary cells, but CPADE or CPSADE addition significantly down-regulated their mRNA abundances in the intestinal and kidney cells except for TNF-α in liver cells, indicating that probiotic combined with ADE could suppress gene expressions of some pro-inflammatory cytokines such as IL-6 and IL-8 (Weninger and Andrian 2003).
NF-κB is an important nuclear transcription factor and a major regulator for anti-inflammatory. The activated NF-κB plays a vital role in inflammatory response by regulating multiple cytokines (Zhang et al. 2018). In response to the inflammation cytokines, inducible nitric oxide synthase (iNOS) can catalyze the production of NOD which is a potent pro-inflammatory mediator (Surh et al. 2001). NOD1 is an innate immune sensor, which consists of a C-terminal leucine-rich region (LRR), central NOD and N-terminal caspase-activating domain (CARD) (Ma et al. 2020). NOD1 plays an important role in response to pathogen infection to induce activation of intracellular signaling pathway, leading to pro-inflammatory response (Caruso et al. 2014; Robertson et al. 2016). Several studies have showed that TLRs and NODs can participate in production of pro-inflammatory molecules to enhance immune responses (Van-Heel et al. 2005; Fritz et al. 2005). It was reported that NLRs, NOD1 and NOD2 had the similar domain architectures and functions, but had the different CARD domain numbers (Trindade and Chen 2020). It was confirmed that NOD1 and NOD2 could activate the classical NF-κB and MAPK pathways related to cell inflammation and apoptosis (Seger and Wexler 2016).
TLRs play the vital roles in innate immune system. The effects of different mycotoxins on gene expression of TLR2, TLR4 and TLR7 have been reported (Chen et al. 2013). It was reported that 600 μg/kg AFB1 in broiler diet could simultaneously down-regulate the expressions of TLR2, TLR4 and TLR7 genes in the intestinal tissues of broilers, and decrease the expressions of cytokines such as IFN-γ and TNF-α to reduce the innate immunity of broilers (Wang et al. 2018). However, another research showed that mixed aflatoxins B and G could up-regulate TLR2 and TLR4 transcripts (Malvandi et al. 2013), corresponding with this study, which may due to the dose-dependent effect of aflatoxins (Peng et al. 2016).
In this study, AFB1 exposure could up-regulate NF-κBp65, iNOS, NOD1 and TLR2 mRNA abundances in intestinal, kidney and liver cells to cause to the multiple inflammatory pathway responses, in agreement with the previous report (Yan et al. 2020); however, CPADE or CPADE addition could down-regulate their mRNA abundances except for NOD1 and TNF-α in liver cells, indicating that CPADE or CPADE was able to alleviate cell inflammations and damages induced by AFB1 through suppressing the pathway activations of NF-κB, iNOS, NOD1 and TLRs.
It can be concluded that CPADE or CPSADE is able to alleviate AFB1-induced cytotoxicity and inflammation of chicken embryo primary intestinal epithelium, liver and kidney cells by down-regulating mRNA abundances of inflammation cytokines through suppressing the activations of NF-κB, iNOS, NOD1 and TLRs signal pathways. These findings provide insights into the future development of strategies for CPADE or CPSADE to protect the primary cells from AFB1-induced damages.
Availability of data and materials
All the data presented in the manuscript will be provided upon request.
Inducible nitric oxide synthase
Nuclear factor kappa B p65
Tumor necrosis factor α
Nucleotide-binding oligomerization domain containing 1
Toll like receptor 2
Cell-free compound probiotic supernatant
Compound probiotics plus AFB1-degradation enzyme
Cell-free compound probiotics supernatant plus AFB1-degradation enzyme
Alberts JF, Gelderblom WCA, Botha A, van Zyl WH (2009) Degradation of aflatoxin B1 by fungal laccase enzymes. Int J Food Microbiol 135:47–52. https://doi.org/10.1016/j.ijfoodmicro.2009.07.022
Arzandeh S, Jinap S (2015) Effect of initial aflatoxin concentration, heating time and roasting temperature on aflatoxin reduction in contaminated peanuts and process optimisation using response surface modelling. Int J Food Sci Technol 46:485–491. https://doi.org/10.1111/j.1365-2621.2010.02514.x
Barutta F, Bruno G, Grimaldi S, Gruden G (2015) Inflammation in diabetic nephropathy: moving toward clinical biomarkers and targets for treatment. Endocrine 48:730–742. https://doi.org/10.1007/s12020-014-0437-1
Caruso R, Warner N, Inohara N, Nunez G (2014) NOD1 and NOD2: signaling, host defense, and inflammatory disease. Immunity 41:898–908. https://doi.org/10.1016/j.immuni.2014.12.010
Castro-Bravo N, Wells JM, Margolles A, Ruas-Madiedo P (2018) Interactions of surface exopolysaccharides from bifidobacterium and lactobacillus within the intestinal environment. Front Microbiol 9:2426. https://doi.org/10.3389/fmicb.2018.02426
Chang J, Wang T, Wang P, Yin QQ, Liu CQ, Zhu Q, Lu FS, Gao TZ (2020) Compound probiotics alleviating aflatoxin B1 and zearalenone toxic effects on broiler production performance and gut microbiota. Ecotoxicol Environ Saf 194:110420. https://doi.org/10.1016/j.ecoenv.2020.110420
Chen J, Chen K, Yuan S, Peng X, Fang J, Wang F, Cui H, Chen Z, Yuan J, Geng Y (2013) Effects of aflatoxin b1on oxidative stress markers and apoptosis of spleens in broilers. Toxicol Ind Health 32:278–284. https://doi.org/10.1177/0748233713500819
Chen K, Fang J, Peng X, Cui H, Chen J, Wang F, Chen Z, Zuo Z, Deng J, Lai W, Zhou Y (2014) Effect of selenium supplementation on aflatoxin B1-induced histopathological lesions and apoptosis in bursa of Fabricius in broilers. Food Chem Toxicol 74:91–97. https://doi.org/10.1016/j.fct.2014.09.003
Chen YY, Li RR, Chang QC, Dong ZH, Yang HM, Xu C (2019) Lactobacillus bulgaricus or Lactobacillus rhamnosus suppresses NF-κB signaling pathway and protects against AFB1-induced hepatitis: a novel potential preventive strategy for aflatoxicosis. Toxins 11:17. https://doi.org/10.3390/toxins11010017
Cimbalo A, Alonso-Garrido M, Font G, Manyes L (2020) Toxicity of mycotoxins in vivo on vertebrate organisms: a review. Food Chem Toxicol 137:111161. https://doi.org/10.1016/j.fct.2020.111161
Das A, Bhattacharya S, Palaniswamy M, Angayarkanni J (2014) Biodegradation of aflatoxin B1 in contaminated rice straw by Pleurotus ostreatus MTCC 142 and Pleurotus ostreatus GHBBF10 in the presence of metal salts and surfactants. World J Microbiol Biotechnol 30:2315–2324. https://doi.org/10.1007/s11274-014-1657-5
FAO—Food and Agriculture Organization of the United Nations (2013) Mycotoxins. Food safety and quality. http://www.fao.org/food/food-safety-quality/a-z-index/mycotoxins/en/. Accessed 22 Jan 2013
Fernández JMG, Dalcero AM, Magnoli CE (2015) In vitro aflatoxin B1 binding capacity by two Enterococcus faecium strains isolated from healthy dog faeces. J Appl Microbiol 118:574–582. https://doi.org/10.1111/jam.12726
Fotakis G, Timbrell JA (2005) In vitro cytotoxicity assays: comparison of LDH, neutral red, MTT and protein assay in hepatoma cell lines following exposure to cadmium chloride. Toxicol Lett 160:171–177. https://doi.org/10.1016/j.toxlet.2005.07.001
Fritz JH, Girardin SE, Fitting C, Werts C, Mengin-Lecreulx D, Caroff M, Cavaillon JM, Philpott DJ, Adib-Conquy M (2005) Synergistic stimulation of human monocytes and dendritic cells by Toll-like receptor 4 and NOD1- and NOD2- activating agonists. Eur J Immunol 35:2459–2470. https://doi.org/10.1002/eji.200526286
Gao X, Ma QG, Zhao HL, Lei YP, Shan YJ, Ji C (2011) Isolation of Bacillus subtilis: screening for aflatoxins B1, M1 and G1 detoxification. Eur Food Res Technol 232:957–962. https://doi.org/10.1007/s00217-011-1463-3
Gholami-Ahangaran M, Rangsaz N, Azizi S (2016) Evaluation of turmeric (Curcuma longa) effect on biochemical and pathological parameters of liver and kidney in chicken aflatoxicosis. Pharm Biol 54:780–787. https://doi.org/10.3109/13880209.2015.1080731
Gregorio M, Neef D, Jager A, Corassin C, Carão Á, Albuquerque R, Azevedo A, Oliveira C (2014) Mineral adsorbents for prevention of mycotoxins in animal feeds. Toxin Rev 33:125–135. https://doi.org/10.3109/15569543.2014.905604
Guo SS, Li CW, Liu D, Guo YM (2015) Inflammatory responses to a Clostridium perfringens type A strain and α-toxin in primary intestinal epithelial cells of chicken embryos. Avian Pathol 44:81–91. https://doi.org/10.1080/03079457.2015.1005573
Hernández-Ramírez JO, Nava-Ramírez MJ, Merino-Guzmán R, Téllez-Isaías G, Vázquez-Durán A, Méndez-Albores A (2019) The effect of moderate-dose aflatoxin B1 and Salmonella enteritidis infection on intestinal permeability in broiler chickens. Mycotoxin Res 36:31–39. https://doi.org/10.1007/s12550-019-00367-7
Huang WW, Chang J, Wang P, Liu CQ, Yin QQ, Zhu Q, Lu FS, Gao TZ (2018) Effect of the combined compound probiotics with mycotoxin-degradation enzyme on detoxifying aflatoxin B1 and zearalenone. J Toxicol Sci 43:377–385. https://doi.org/10.2131/jts.43.377
Huang WW, Chang J, Wang P, Liu CQ, Yin QQ, Song AD, Gao TZ, Dang XW, Lu FS (2019) Effect of compound probiotics and mycotoxin degradation enzymes on alleviating cytotoxicity of swine jejunal epithelial cells induced by aflatoxin B1 and zearalenone. Toxins 11:12. https://doi.org/10.3390/toxins11010012
IARC—International Agency for Research on Cancer (2012) Aflatoxins. In: Chemical agents and related occupations, vol. 100F. A review of human carcinogens, pp 225–248. https://monographs.iarc.fr/ENG/Monographs/vol100F/mono100F.pdf
Kraieski AL, Hayashi RM, Sanches A, Almeida GC, Santin E (2016) Effect of aflatoxin experimental ingestion and Eimeira vaccine challenges on intestinal histopathology and immune cellular dynamic of broilers: applying an Intestinal Health Index. Poult Sci 96:1078–1087. https://doi.org/10.3382/ps/pew397
Laiño J, Villena J, Kanmani P, Kitazawa H (2016) Immunoregulatory effects triggered by lactic acid bacteria exopolysaccharides: new insights into molecular interactions with host cells. Microorganisms 4:27. https://doi.org/10.3390/microorganisms4030027
Li HY, Li SL, Yang HG, Wang YZ, Wang JQ, Zheng N (2019) l-Proline alleviates kidney injury caused by AFB1 and AFM1 through regulating excessive apoptosis of kidney cells. Toxins 11:226. https://doi.org/10.3390/toxins11040226
Liu T, Ma Q, Zhao L, Jia R, Zhang J, Ji C, Wang X (2016) Protective effects of sporoderm-broken spores of ganderma lucidum on growth performance, antioxidant capacity and immune function of broiler chickens exposed to low level of aflatoxin B1. Toxins 8:278. https://doi.org/10.3390/toxins8100278
Livak KJ, Schmittgen TD (2001) Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 25:402–408. https://doi.org/10.1006/meth.2001.1262
Ma XM, Qiu YM, Zhu LH, Zhao YX, Lin YK, Ma DP, Qin ZZ, Sun CY, Shen XC, Li T, Han LH (2020) NOD1 inhibits proliferation and enhances response to chemotherapy via suppressing SRC-MAPK pathway in hepatocellular carcinoma. J Mol Med 98:221–232. https://doi.org/10.1007/s00109-019-01868-9
Malvandi AM, Mehrzad J, Saleh-moghaddam M (2013) Biologically relevant doses of mixed aflatoxins B and G up-regulate MyD88, TLR2, TLR4 and CD14 transcripts in human PBMCs. Immunopharmacol Immunotoxicol 35:528–532. https://doi.org/10.3109/08923973.2013.803572
Meissonnier GM, Pinton P, Laffitte J, Cossalter AM, Gong YY, Wild CP, Bertin G, Galtier P, Oswald IP (2008) Immunotoxicity of aflatoxin B1: impairment of the cell-mediated response to vaccine antigen and modulation of cytokine expression. Toxicol Appl Pharmacol 231:142–149. https://doi.org/10.1016/j.taap.2008.04.004
Melvin SS, Akella S, Alka M (2014) Degradation and detoxification of aflatoxin B1 by Pseudomonas putida. Int Biodeter Biodegr 86:202–209. https://doi.org/10.1016/j.ibiod.2013.08.026
Negash D (2018) A review of aflatoxin: occurrence, prevention, and gaps in both food and feed safety. J Nutr Health Food Eng 8:190–197. https://doi.org/10.15406/jnhfe.2018.08.00268
Owumi S, Najophe ES, Farombi EO, Oyelere AK (2020) Gallic acid protects against aflatoxin B1-induced oxidative and inflammatory stress damage in rats kidneys and liver. J Food Biochem 44:e13316. https://doi.org/10.1111/jfbc.13316
Peng X, Zhang K, Bai S, Ding X, Zeng Q, Yang J, Fang J, Chen K (2014) Histological lesions, cell cycle arrest, apoptosis and T cell subsets changes of spleen in chicken fed aflatoxin-contaminated corn. Int J Environ Res Public Health 11:8567–8580. https://doi.org/10.3390/ijerph110808567
Peng X, Chen K, Chen J, Fang J, Cui H, Zuo Z, Deng J, Chen Z, Geng Y, Lai W (2016) Aflatoxin B1 affects apoptosis and expression of Bax, Bcl-2, and Caspase-3 in Thymus and Bursa of Fabricius in broiler chickens. Environ Toxicol 31:1113–1120. https://doi.org/10.1002/tox.22120
Pérez-Acosta JA, Burgos-Hernandez A, Velázquez-Contreras CA, Márquez-Ríos E, Torres-Arreola W, Arvizu-Flores AA, Ezquerra-Brauer JM (2016) An in vitro study of alkaline phosphatase sensitivity to mixture of aflatoxin B1 and fumonisin B1 in the hepatopancreas of coastal lagoon wild and farmed shrimp Litopenaeus vannamei. Mycotoxin Res 32:117–125. https://doi.org/10.1007/s12550-016-0246-x
Pinton P, Oswald IP (2014) Effect of deoxynivalenol and other type B trichothecenes on the intestine: a review. Toxins 6:1615–1643. https://doi.org/10.3390/toxins6051615
Poole J, Day CJ, Itzstein VM, Paton JC, Jennings MP (2018) Glycointeractions in bacterial pathogenesis. Nat Rev Micribiol 16:440–452. https://doi.org/10.1038/s41579-018-0007-2
Robertson SJ, Geddes K, Maisonneuve C, Streutker CJ, Philpott J (2016) Resilience of the intestinal microbiota following pathogenic bacterial infection is independent of innate immunity mediated by NOD1 or NOD2. Microbes Infect 18:460–471. https://doi.org/10.1016/j.micinf.2016.03.014
Rossi O, Khan MT, Schwarzer M, Hudcovic T, Srutkova D, Duncan SH, Stolte EH, Kozakova H, Flint HJ, Samaom JN, Harmsen HJM, Wells JM (2015) Faecalibacterium prausnitzii strain HTF-F and its extracellular polymeric matrix attenuate clinical parameters in DSS-induced colitis. PLoS ONE 10:e0123013. https://doi.org/10.1371/journal.pone.0123013
Round JL, Lee SM, Li J, Tran G, Jabri B, Chatila TA, Mazmanian SK (2011) The toll-like receptor 2 pathway establishes colonization by a commensal of the human microbiota. Science 332:974–977. https://doi.org/10.1126/science.1206095
Saleemi MK, Ashraf K, Gul ST, Naseem MN, Sajid MS, Mohsin M, He C, Zubair M, Khrar A (2019) Toxicopathological effects of feeding aflatoxins B1 in broilers and its ameliosration with indigenous mycotoxin binder. Ecotoxicol Environ Saf 187:109712. https://doi.org/10.1016/j.ecoenv.2019.109712
Salem R, El-Habashi N, Fadl SE, Sakr OA, Elbialy ZI (2018) Effect of probiotic supplement on aflatoxicosis and gene expression in the liver of broiler chicken. Environ Toxicol Pharmacol 60:118–127. https://doi.org/10.1016/j.etap.2018.04.015
Seger R, Wexler S (2016) The MAPK signaling cascades. Encycl Cell Biol 3:122–127. https://doi.org/10.1016/B978-0-12-394447-4.30014-1
Shanmugam G, Narasimhan M, Sakthivel R, Kumar RR, Davidson C, Palaniapoan S, Claycomb WW, Hoidal JR, Darley-Usmar VM, Rajasekaran NS (2016) A biphasic effect of TNF-α in regulation of the Keap1/Nrf2 pathway in cardiomyocytes. Redox Biol 9:77–89. https://doi.org/10.1016/j.redox.2016.06.004
Śliżewska K, Cukrowska B, Smulikowska S, Cielecka-Kuszyk J (2019) The effect of probiotic supplementation on performance and the histopathological changes in liver and kidneys in broiler chickens fed diets with aflatoxin B1. Toxins 11:112. https://doi.org/10.3390/toxins11020112
Surh YJ, Chun KS, Cha HH, Han SS, Keum YS, Park KK, Lee SS (2001) Molecular mechanisms underlying chemopreventive activities of anti-inflammatory phytochemicals: down-regulation of COX-2 and iNOS through suppression of NF-kappa B activation. Mutat Res 480:243–268. https://doi.org/10.1016/S0027-5107(01)00183-X
Tedesco D, Steidler S, Galletti S, Tameni M, Sonzogni O, Ravarotto L (2004) Efficacy of silymarin-phospholipid complex in reducing the toxicity of aflatoxin B1 in broiler chicks. Poult Sci 83:1839–1843. https://doi.org/10.1093/ps/83.11.1839
Trebak F, Alaoui A, Alexandre D, El Ouezzani S, Anouar Y, Chartrel N, Magoul R (2015) Impact of aflatoxin B1 on hypothalamic neuropeptides regulating feeding behavior. Neurotoxicology 49:165–173. https://doi.org/10.1016/j.neuro.2015.06.008
Trindade BC, Chen GY (2020) NOD1 and NOD2 in inflammatory and infectious diseases. Immunol Rev 297:139–161. https://doi.org/10.1111/imr.12902
Valeria P, Alejandra M, Analía F, Andrea C, Matías C, Cecilia M, Mariana M, Lilia C (2020) A Saccharomyces cerevisiae RC016-based feed additive reduces liver toxicity, residual aflatoxin B1 levels and positively influences intestinal morphology in broiler chickens fed chronic aflatoxin B1-contaminated diets. Anim Nutr 6:31–38. https://doi.org/10.1016/j.aninu.2019.11.006
Van-Heel DA, Ghosh S, Butler M, Butler M, Hunt K, Foxwell BMJ, Mengin-Lecreulx D, Playford RJ (2005) Synergistic enhancement of toll-like receptor responses by NOD1 activation. Eur J Immunol 35:2471–2476. https://doi.org/10.1002/eji.200526296
Wang F, Zuo Z, Chen K, Gao C, Yang Z, Zhao S, Li J, Song H, Peng X, Fang J (2018) Histopathological injuries, ultrastructural changes, and depressed TLR expression in the small intestine of broiler chickens with aflatoxin B1. Toxins 10:4. https://doi.org/10.3390/toxins10040131
Wang XH, Li W, Wang XH, Han MY, Muhammad I, Zhang XY, Sun XQ, Cui XX (2019) Water-soluble substances of wheat: a potential preventer of aflatoxin B1-induced liver damage in broilers. Poult Sci 98:136–149. https://doi.org/10.3382/ps/pey358
Weninger W, Andrian UH (2003) Chemokine regulation of naïve T cell traffic in health and disease. Semin Immunol 15:257–270. https://doi.org/10.1016/j.smim.2003.08.007
Yan H, Ge J, Gao H, Pan Y, Hao Y, Li J (2020) Melatonin attenuates AFB1-induced cardiotoxicity via the NLRP3 signalling pathway. J Int Med Res 48:1–13. https://doi.org/10.1177/0300060520952656
Yuan S, Wu B, Yu Z, Fang J, Liang N, Zhou M, Huang C, Peng X (2016) The mitochondrial and endoplasmic reticulum pathways involved in the apoptosis of bursa of Fabricius cells in broilers exposed to dietary aflatoxin B1. Oncotarget 7:65295–65306. https://doi.org/10.18632/oncotarget.11321
Zain ME (2011) Impact of mycotoxins on humans and animals. J Saudi Chem Soc 15:129–144. https://doi.org/10.1016/j.jscs.2010.06.006
Zhang NY, Qi M, Zhao L, Zhu MK, Guo J, Liu J, Gu CQ, Rajput SA, Krumm CS, Qi DS (2016) Curcumin prevents aflatoxin B1 hepatoxicity by inhibition of cytochrome p450 isozymes in chick liver. Toxins 8:327. https://doi.org/10.3390/toxins8110327
Zhang H, Yang N, Wang T, Dai B, Shang Y (2018) Vitamin D reduces inflammatory response in asthmatic mice through HMGB1/TLR4/NF-κB signaling pathway. Mol Med Rep 17:2915–2920. https://doi.org/10.3892/mmr.2017.8216
Zhang LY, Zhan DL, Chen YY, Wang WH, He CY, Lin Y, Lin YC, Lin ZN (2019) Aflatoxin B1 enhances pyroptosis of hepatocytes and activation of Kupffer cells to promote liver inflammatory injury via dephosphorylation of cyclooxygenase-2: an in vitro, ex vivo and in vivo study. Arch Toxicol 93:3305–3320. https://doi.org/10.1007/s00204-019-02572-w
Zhao L, Feng Y, Deng J, Zhang NY, Zhang WP, Liu XL, Rajput SA, Qi DS, Sun LH (2019) Selenium deficiency aggravates aflatoxin B1-induced immunotoxicity in chick spleen by regulating 6 selenoprotein genes and redox/inflammation/apoptotic signaling. J Nutr 149:894–901. https://doi.org/10.1093/jn/nxz019
Zhu Y, Hassan YI, Watts C, Zhou T (2016) Innovative technologies for the mitigation of mycotoxins in animal feed and ingredients—a review of recent patents. Anim Feed Sci Technol 216:19–29. https://doi.org/10.1016/j.anifeedsci.2016.03.030
Zuo RY, Chang J, Yin QQ, Wang P, Yang YR, Wang X, Wang GQ, Zheng QH (2013) Effect of the combined probiotics with aflatoxin B1-degrading enzyme on aflatoxin detoxification, broiler production performance and hepatic enzyme gene expression. Food Chem Toxicol 59:470–475. https://doi.org/10.1016/j.fct.2013.06.044
This research was funded by the Natural Science Foundation of Henan Province, China (182300410029); Xinxiang Key Scientific and Technological Project, China (ZD19005); Henan Innovation and Demonstration Project, China (201111311100).
Ethics approval and consent to participate
The article does not contain any studies with human participants or animals performed by any of the authors.
Consent for publication
All authors agree to the publication of data reported in this work.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
About this article
Cite this article
Guo, HW., Chang, J., Wang, P. et al. Effects of compound probiotics and aflatoxin-degradation enzyme on alleviating aflatoxin-induced cytotoxicity in chicken embryo primary intestinal epithelium, liver and kidney cells. AMB Expr 11, 35 (2021). https://doi.org/10.1186/s13568-021-01196-7
- Aflatoxin B1
- Compound probiotics
- Mycotoxin-degradation enzyme
- Chicken embryo primary cells
- Cell damage alleviation
