Exploring d-xylose oxidation in Saccharomyces cerevisiae through the Weimberg pathway


Engineering of the yeast Saccharomyces cerevisiae towards efficient d-xylose assimilation has been a major focus over the last decades since d-xylose is the second most abundant sugar in nature, and its conversion into products could significantly improve process economy in biomass-based processes. Up to now, two different metabolic routes have been introduced via genetic engineering, consisting of either the isomerization or the oxido-reduction of d-xylose to d-xylulose that is further connected to the pentose phosphate pathway and glycolysis. In the present study, cytosolic d-xylose oxidation was investigated instead, through the introduction of the Weimberg pathway from Caulobacter crescentus in S. cerevisiae. This pathway consists of five reaction steps that connect d-xylose to the TCA cycle intermediate α-ketoglutarate. The corresponding genes could be expressed in S. cerevisiae, but no growth was observed on d-xylose indicating that not all the enzymes were functionally active. The accumulation of the Weimberg intermediate d-xylonate suggested that the dehydration step(s) might be limiting, blocking further conversion into α-ketoglutarate. Although four alternative dehydratases both of bacterial and archaeon origins were evaluated, d-xylonate accumulation still occurred. A better understanding of the mechanisms associated with the activity of dehydratases, both at a bacterial and yeast level, appears essential to obtain a fully functional Weimberg pathway in S. cerevisiae.


The pentose sugar d-xylose is an abundant carbon source in nature. It is a dominating part of hemicellulose—in the form of xylan—in hardwoods and agricultural crops, but is also present to a lower extent in softwoods. Several microorganisms are capable of metabolizing d-xylose through isomerization, oxido–reduction or oxidation reactions. Most bacteria, such as Escherichia coli, use the d-xylose isomerization pathway, in which d-xylose is converted to d-xylulose by d-xylose isomerase (XI) (Jeffries 1983). In contrast, the oxido–reduction route, involving a two-step process catalyzed by d-xylose reductase (XR) and xylitol dehydrogenase (XDH), is more common in yeasts such as Scheffersomyces stipitis (Du Preez and Prior 1985). In both routes, xylulose kinase (XK) converts d-xylulose into d-xylulose-5-P that can be further metabolized via the pentose phosphate pathway (PPP) and glycolysis (Wang and Schneider 1980). The Weimberg pathway, first described in the bacterium Pseudomonas fragi in 1960s, is a different metabolic route based on d-xylose oxidation (Weimberg 1961). This route that has received increasing attention in the past decade, has been characterized in several prokaryotes, including the freshwater bacterium Caulobacter crescentus and the halophilic archaeon Haloferax volcanii (Johnsen et al. 2009; Stephens et al. 2007). In this metabolic pathway, d-xylose is oxidized to the tricarboxylic acid (TCA) cycle intermediate α-ketoglutarate in five enzymatic steps, without carbon loss. d-Xylose is initially oxidized to d-xylono-γ-lactone by a d-xylose dehydrogenase (XylB, encoded by xylB), that is further converted to the intermediate d-xylonate by a d-xylono-γ-lactone lactonase (XylC, encoded by xylC). d-Xylonate is then subjected to two dehydration reactions by a d-xylonate dehydratase (XylD, encoded by xylD) and a 2-keto-3-deoxy-d-xylonate dehydratase (XylX, encoded by xylX), yielding 2-keto-3-deoxy-d-xylonate and then α-ketoglutarate semialdehyde. In the final step, the semialdehyde is oxidized by α-ketoglutarate semialdehyde dehydrogenase (XylA, encoded by xylA) into α-ketoglutarate. The entry point of carbon into the central cellular metabolism is thus completely different from both the XI and the XR-XDH pathways (Fig. 1). Heterologous expression of the Weimberg pathway from C. crescentus has enabled bacteria such as Pseudomonas putida and Corynebacterium glutamicum to grow on d-xylose as the sole carbon source (Meijnen et al. 2009; Radek et al. 2014). However, to the best of our knowledge, the complete Weimberg pathway has not yet been established in fungal species.

Fig. 1
figure 1

A condensed metabolic map describing d-xylose oxidation via the Weimberg pathway. Five enzymatic reactions convert d-xylose to α-ketoglutarate that enter the central cellular metabolism via the TCA cycle. For comparison, the oxido-reduction of d-xylose to d-xylulose through the oxido-reduction pathway (XR/XDH) is also shown. Required cofactors (ATP, NADH or NADPH) are indicated for the two xylose pathways while the central cellular metabolism is presented in a simplified scheme. XR xylose reductase, XDH xylitol dehydrogenase, XK xylulose kinase, TCA cycle tricarboxylic acid cycle

Saccharomyces cerevisiae is an extensively investigated yeast due to its unique features and potential to be applied in biotechnological processes aiming for the production of a large range of chemical compounds. Among others, the production of biofuels (e.g. ethanol, farnesene, isobutanol), pharmaceutical drugs (e.g. artemisinic acid) and carboxylic acids has received large attention from both academia and industry (Abbott et al. 2009; Borodina and Nielsen 2014; Buijs et al. 2013; Paddon et al. 2013). Since S. cerevisiae is not capable of naturally fermenting d-xylose, considerable research efforts have been invested in the engineering and optimization of d-xylose assimilation pathways based on XR-XDH or XI in S. cerevisiae, in particular for the production of ethanol or acetyl-CoA derived products [see reviews by e.g. (Hahn-Hägerdal et al. 2007; Kim et al. 2013; Van Maris et al. 2007)]. In that context, the Weimberg pathway that converts d-xylose to α-ketoglutarate that enters the metabolism via the TCA cycle could be relevant for the production of carboxylic acids produced or derived from the TCA-cycle. Potential applications for α-ketoglutarate are as a dietary supplement, in medical products, and as a platform chemical for the synthesis of heterocyclic compounds (Otto et al. 2011). Importantly, α-ketoglutarate can be used as a precursor for the production of acids with novel characteristics that are not yet being produced on a large scale, such as glutaric, glutaconic and glutamic acids (Bajaj and Singhal 2011; Djurdjevic et al. 2011; Dutta et al. 2013; Fink 2013; Sailakshmi et al. 2013; Sung et al. 2005). Chemical synthesis of α-ketoglutarate is possible through various routes, but problematic since it is a multi-step reaction partly involving toxic chemicals (Otto et al. 2011). Therefore, more attention is being directed to the biotechnological production of α-ketoglutarate since this constitutes an environmentally friendly alternative (Aurich et al. 2012; Otto et al. 2011).

The upper part of the Weimberg pathway has already been successfully introduced in S. cerevisiae (Salusjärvi et al. 2017; Toivari et al. 2012). However, biomass formation through the Weimberg pathway can only occur if d-xylose is fully oxidized to α-ketoglutarate.

In the present work, genes from the complete Weimberg pathway from C. crescentus were introduced into S. cerevisiae via genetic engineering to evaluate the possibility to oxidise d-xylose, with the long-term aim to produce α-ketoglutarate-derived bulk chemicals of industrial interest. The impact of replacing the d-xylonate dehydratase from C. crescentus (Cc XylD) by homologous enzymes of bacterial and archaeal origin on the yeast physiology and the functionality of the Weimberg pathway was also assessed as it has been shown that the dehydration reaction of d-xylonate to 2-keto-3-deoxy-d-xylonate catalyzed by XylD in C. crescentus is dependent on the coordination of Fe–S cluster(s) to three conserved cysteine residues (Andberg et al. 2016).

Materials and methods

Strains, media and culture conditions

Escherichia coli strain NEB5-α (New England Biolabs) was used for sub-cloning of plasmid DNA and grown at 37 °C in Luria–Bertani (LB) broth containing 5 g L−1 yeast extract, 10 g L−1 peptone, 5 g L−1 NaCl, pH 7.5. Bacterial transformants were selected on LB agar plates (15 g L−1 agar) supplemented with 50 mg L−1 ampicillin for 16 h at 37 °C. Yeast strains were grown at 30 °C and 180 rpm in an orbital shaker under non-selective conditions in Yeast Peptone Dextrose (YPD) medium containing 10 g L−1 yeast extract, 20 g L−1 peptone and 20 g L−1 d-glucose. Competent yeast cells were prepared and transformed according to the high efficiency LiAc protocol but DMSO was added before heat shock at 42 °C for 20 min (Gietz and Schiestl 2007). Transformants generated using the CRISPR–Cas9 system (Stovicek et al. 2015) were selected on YPD media supplemented with 200 mg L−1 geneticin and 100 mg L−1 nourseothricin (Jena Bioscience, Germany) to allow selection of the Cas9-kanMX and gRNA-natMX plasmids. When amdSYM was used as the selection marker, transformants were plated on synthetic media containing acetamide as the sole nitrogen source (SM-Ac) by following the protocol described by (Solis-Escalante et al. 2013). To select for cells that had recycled the amdSYM marker, cells were plated on SM containing 2.3 g L−1 fluoroacetamide (SM-FAc). Genomic S. cerevisiae DNA to be used for PCR amplification was extracted using the LiOAc/SDS lysis protocol (Lõoke et al. 2011). All restriction enzymes used where Fastdigest enzymes purchased from ThermoFisher Scientific (Massachusetts, USA). All chemicals and sugars were purchased from Sigma Aldrich (Missouri, USA).

Construction of expression cassettes, targeting fragments and plasmids

The plasmids used in this study are listed in Table 1. Primers are listed in Additional file 1: Table S1. The Weimberg pathway from C. crescentus was codon-optimized for S. cerevisiae and designed with promoter–terminator pairs already included, and ordered from GeneScript USA Inc. (New Jersey, USA). The five C. crescentus genes were delivered on four pUC57 vectors, pUC57-xylBC, pUC57-xylD, pUC57-xylX, and pUC57-xylA. The coding regions for xylB, xylC, xylD, xylX and xylA were inserted in between the strong constitutive promoter–terminator pairs of the genes TEF1, TPI1, GPM1, GPD and FBA1, respectively, known to be active on d-xylose (Jin et al. 2004). pUG6-amdSYM2 harboring the two infrequent endonuclease sites AsiSI and AscI, was constructed to form a platform for long pathway fragments by amplifying a fragment with primers MCS_Cassette_f and _r using pUG6-amdSYM as template (Solis-Escalante et al. 2013). The generated fragment was digested with SacI and SalI, and AGE-purified (agarose gel electrophoresis). The template pUG6-amdSYM was digested with SacI, SalI and BbsI and simultaneously dephosphorylated with FastAP, followed by AGE-purification. The digested fragment and vector backbone was ligated, generating pUG6-amdSYM2, which was fully validated by sequencing.

Table 1 Plasmids used in the present study

pAGS7 was generated by digesting the template pUG6-amdSYM2 with AscI and KasI simultaneously dephosphorylated with FastAP, followed by AGE-purification. pUC57-xylBC was digested with AscI, KasI and BspHI, and AGE-purified. The resulting fragments and templates were successfully ligated, generating pAGS7, which was validated by restriction fragment analysis using NsbI. pAGS8 was generated by digesting the template pUG6-amdSYM2 with SmaI followed by AGE-purification. The pUC57-xylD was digested with RruI, FspI and AfeI; pUC57-xylX was digested with SmaI, FspI and AfeI; pUC57-xylA was digested with SmaI, FspI, and all the digested fragments were AGE-purified. The resulting fragments and template were assembled using In-Fusion HD Enzyme Mix (Clontech Laboratories, California, USA) and the resulting plasmid was validated. pAGS8H was constructed by digesting the template pAGS8 with SalI and dephosphorylated with FastAP, followed by AGE-purification. pUC57-xad_Hv was digested with SalI, and the resulting, purified fragments were ligated. The generated vector was validated and correct orientation was verified with PCR using primers xad_Hv_f/GPM1t_r and restriction fragment analysis using NdeI. pAGS8B and pAGS8HB were generated by cloning the TEFp-xylB-TEFt from AGS7 into pAGS8 and pAGS8H, respectively. pAGS7 was digested with AscI and AfeI and pAGS8 and pAGS8H were digested with AscI and SmaI, and the resulting, purified fragments were ligated. The obtained vectors pAGS8B and pAGS8HB were validated by PCR and restriction fragment analysis using NdeI and AleI.

Three homologs to C. crescentus xylD were selected, codon-optimized for S. cerevisiae using GeneArt (ThermoFisher Scientific, Massachusetts, USA) and ordered from GeneScript USA Inc. (New Jersey, USA). The gene sequences were retrieved from the Integrative Microbial Genomes database supplied by the Joint Genome Institute (Markowitz et al. 2014).

The CRISPR–Cas9 system developed by Stovicek et al. (2015) was used for selective targeting of sites. The gRNA target sequence for GRE3 was selected using the CRISPy tool (Ronda et al. 2014) and for xylD using the E-CRISP tool (Heigwer et al. 2014). The gRNA plasmids pLWA25 and pLWA36 were constructed by amplifying the gRNA backbone as described by Stovicek et al. (2015) using a phosphorylated forward primer, 102 for pLWA25 and 263 for pLWA36, containing a tail with the specific 20-bp target sequence for GRE3 or xylD, respectively, together with the phosphorylated reverse primer 103. As a template the two-micron-based replicative gRNA plasmid for targeting ADE2 containing the natMX dominant marker for selection was used.

Targeting fragments for nested double homologous integration of pAGS7, pAGS8B and pAGS8HB into the GRE3 locus and pAGS8 into the intergenic region between VAC17 and MRC1 were constructed by PCR amplification. About 400 bp of the 5′ upstream region and the 3′ downstream region of GRE3 were amplified from genomic S. cerevisiae CEN.PK 113-7D DNA using Phusion polymerase and primer pairs 84/85 (5′GRE3_AGS7), 86/87 (3′GRE3_AGS7), 84/109 (5′GRE3_AGS8) and 87/110 (3′GRE3_AGS8), generating PCR products with 50 bp homology to the flanks of SfaAI/SgsI cleaved plasmid AGS7 or SgsI/EheI cleaved plasmids pAGS8B and pAGS8HB. For integration of pAGS8 into the VAC17/MRC1 intergenic region, 400 bp of the 5′ upstream region and the 3′ downstream intergenic region between VAC17 and MRC1 were amplified from genomic CEN.PK 113-7D DNA using Phusion polymerase and primer pairs 88/89 (5′VAC17_AGS8) and MRC1_f/MRC1_r (3′MRC1_AGS8) generating PCR products with 50 bp homology to the flanks SfaAI/SgsI cleaved plasmid pAGS8. For integration of pAGS7, pAGS8 and pAGS8H the amdSYM marker was included and to enable marker recycling of amdSYM a 40 bp direct repeat with homology to the upstream region of amdSYM was included in the primers 86_3′GRE3_f_AGS7 and 3′MRC1_r_AGS8 (Solis-Escalante et al. 2013). A schematic picture of the integration of pAGS8B and pAGS8HB in the GRE3 locus using CRISPR–Cas9 is shown in Additional file 2: Figure S1.

Yeast strain engineering

The strains used and generated in this study are listed in Table 2. The upper part of the Weimberg pathway containing xylB and xylC (pAGS7) was integrated into the GRE3 locus of CEN.PK 113-7D while the lower part of the Weimberg pathway containing xylD, xylX and xylA (pAGS8) was integrated into the VAC17/MRC1 intergenic region using nested homologous recombination. For pAGS7 integration the strain was transformed with SfaAI/SgsI-digested pAGS7 and the targeting fragments for GRE3_AGS7 described above. pAGS8 or pAGS8H were integrated by transforming the strain with SfaAI/SgsI digested pAGS8/8H and the targeting fragments for VAC17/MRC1_AGS8 described above. Transformants were selected on SM-Ac (containing acetamide as the sole nitrogen source) and correct integration was validated with primer pairs 5/87 for pAGS7 and with 5/MRC1_r and 88/158 for pAGS8/pAGS8H. The amdSYM marker was recycled by growing the cells overnight in liquid YPD and plating a small amount of cells on SM-FAc where only cells that had lost the amdSYM marker should be able to survive (Solis-Escalante et al. 2013). Removal of the amdSYM marker was confirmed by PCR with primer pairs 155/87 for pAGS7 and 222/MRC1_r for pAGS8/pAGS8H. The resulting strains were named TMB4511 (pAGS7), TMB4515 (pAGS8), TMB4520 (pAGS7/8) and TMB4526 (pAGS7/8H).

Table 2 Strains used in the present study

In the second generation of strains, xylC was eliminated to allow a more gradual formation of d-xylonate and avoid the drastic drop in intracellular pH as previously reported (Nygård et al. 2014). First, a control strain containing only xylB was constructed. TEFp-xylB-TEFt was amplified from pAGS7 with primers 308/309 containing 50 bp flank to the GRE3 locus and transformed together with gRNA.GRE3-natMX (LWA25) into CEN.PK 113-7D already containing Cas9-kanMX. Transformants were selected on YPD supplemented with geneticin and nourseothricin and validated by amplifying parts of the integrated cassette by PCR using primers 65/225. The resulting strain was named TMB4512. In a similar approach the constructed Weimberg genes present in pAGS8B and pAGS8HB was integrated into the GRE3 ORF of S. cerevisiae CEN.PK 113-7D through homologous recombination using the CRISPR–Cas9 system and a gRNA that target the GRE3 ORF as described above and in Additional file 2: Figure S1 (Stovicek et al. 2015). The yeast already expressing Cas9-kanMX was transformed with AscI and EheI digested pAGS8B and pAGS8HB plasmids, the targeting fragments for GRE3 and gRNA.GRE3-natMX (LWA25). Transformants were selected on YPD supplemented with geneticin and nourseothricin and validated by amplifying parts of the integrated cassette by PCR using primer pair 84/66. The resulting strains were named TMB4530 (pAGS8B) and TMB4531 (pAGS8HB). The strain TMB4530 containing pAGS8B (xylB, xylD, xylX and xylA from C. crescentus) was further engineered using CRISPR–Cas9 in order to replace the d-xylonate dehydratase from C. crescentus with three alternative putative xylD genes from B. cenocepacia (xylD_Bc), E. coli (yjhG_Ec) and Ellin329 bacterium (xylD_El) resulting in three new strains named TMB4569, TMB4570 and TMB4571, respectively. These three strains were constructed by transforming TMB4530 containing Cas9-kanMX with either BamHI and AscI digested pUC57-xylD_Bc, pUC57-yjhG_Ec or pUC57-xylD_El together with the episomal plasmid gRNA.xylD-natMX (pLWA36). All the four xylD homologs were designed with the same promoter–terminator pairs (from GPM1) to allow homologous recombination and replacement of the xylD as shown in the schematic picture presented in Additional file 2: Figure S1 panel B. Transformants were selected on YPD supplemented with geneticin and nourseothricin and validated by amplifying the specific xylD homolog using primer pairs 269/270 (xylD_El), 271/272 (yjhG_Ec) and 273/274 (xylD_Bc).

Reverse transcriptase-PCR experiments

Strains were grown in YPD to exponential phase and cells were lysed using a bead beater (Precellys 24, Bertin Technologies, France) connected to a cooling device (Cryolys, Bertin Technologies, France) according to the supplier’s instructions. RNA was extracted from the cell lysate using RNeasy Mini Kit (Qiagen, 74104) according to supplier’s instructions. DNA was degraded from the RNA samples using DNA free kit from Ambion (AM1906, Life Technologies, California, USA) and incubation for 1 h at 37 °C. Complete removal of DNA was confirmed by PCR directly on the RNA samples using primer pair 232/233 that amplify the constitutively expressed gene PFY1 encoding Profilin. RNA concentration was determined using Biodrop DUO (Biodrop Ltd, Cambridge, England). 200 ng DNA-free RNA was then used for cDNA synthesis with Superscript IV RT polymerase and oligo d(T)20 primer. 2.5 µM oligo d(T)20 was mixed with 0.5 mM dNTPs and 200 ng RNA. The primer-RNA mix was heated to 65 °C for 5 min. After cooling on ice SSIV buffer, 5 mM DTT, RNAseOUT and 200 U of Superscript IV RT polymerase were added to the RNA primer mix and incubated at 50 °C for 10 min, followed by enzyme heat inactivation for 10 min at 80 °C. The cDNA was used for RT-PCR to verify that the Weimberg genes were transcribed in S. cerevisiae strains TMB4530, TMB4531, TMB4569, TMB4570 and TMB4571. Specific primers to amplify xylB, xylD, xylD_El, yjhG_Ec, xylD_Bc, xad_Hv, xylX and xylA are listed in Additional file 1: Table S1.

In vitro enzymatic activity measurements

Overnight cultures were inoculated in 250 mL shake flasks containing 25 mL YNB supplemented with d-glucose (20 g L−1) at a starting optical density of 0.25 at 620 nm (Ultrospec 2100 Pro spectrophotometer, Amersham Biosciences Corp., USA) and grown at 30 °C and 180 rpm. The cells were harvested at late exponential phase and the total protein was extracted using Y-PER extraction solution (Pierce, Illinois, USA) according to manufacturer’s instructions. Total protein concentration was determined using Micro BCA™ Protein Assay (ThermoFisher Scientific, Massachusetts, USA) and bovine albumin standard (ThermoFisher Scientific, Massachusetts, USA) based on the assay developed by (Bradford 1976). All enzyme activities were assayed by following the rate of NAD+ reduction by measuring the optical density at 340 nm (OD340 nm, Ultrospec 2100 Pro spectrophotometer, Amersham Biosciences Corp., USA). The measurements were performed in duplicates at 30 °C on a Multiskan Ascent reader (Thermo Electro Corporation, Finland) using 96-well plates and a final volume of 200 µL. Before adding the substrate (d-xylose or d-xylonate) to the reactions, the background formation of NADH was monitored and subtracted, if present. The standard assay mixture for all the enzymatic reactions contained 100 mM Tris–HCl pH 8.0, 2 mM MgCl2 and 2 mM NAD+. A concentration of 100 mM of d-xylose was used as substrate for d-xylose dehydrogenase XylB (Toivari et al. 2012). The overall combined activity of the lower part of the pathway including XylD, XylX and XylA was assayed by following the formation of NADH using 80 mM d-xylonate as substrate (Meijnen et al. 2009). The d-xylonate dehydratase activity was also assayed using the thiobarbituric assay (TBA) method as described by Buchanan et al. (1999) and Salusjärvi et al. (2017). 10 µL of protein extract was mixed with 90 µL 10 mM d-xylonic acid in 10 mM MgCl2 and 50 mM Tris–HCl (pH 8.5) and incubated at 30 °C for 10 min. After the incubation, 10 µL 12% (w/v) trichloroacetic acid was added and precipitated proteins were removed by centrifugation. 50 µL of the supernatant was oxidized by addition of 125 µL 25 mM periodic acid/0.25 M H2SO4 and incubated at room temperature for 20 min. To terminate oxidation, 250 µL 2% (w/v) sodium (meta) arsenite in 0.5 M HCl was added. 1 mL 0.3% (w/v) thiobarbituric acid (TBA) was added and the chromophore developed for 10 min at 100 °C. To intensify the color, 100 µL of this sample was taken and added to 100 µL DMSO in a microtiter plate. The absorbance was read at 550 nm.

Dot plating

A single-colony of each strain was grown in 5 mL of YNB supplemented with d-glucose in a 50 mL conical tube (Sarstedt AG & Co., Nümbrecht, Germany) and incubated at 30 °C and 180 rpm. At the end of the exponential growth phase, the cultivations were stopped and the amount of cells was normalized by dilution with 0.9% NaCl to an OD620 of 2.5, which corresponds to approximately 107 colony forming units (CFU) per mL. Serial dilutions of each strain were done under sterile conditions with 0.9% NaCl to obtain a coverage from 105 to 108 CFU mL−1. 5 µL of each dilution were carefully dot plated in YNB-agar plates supplemented with d-glucose (5 g L−1), d-xylose (20 g L−1) or a mixture of d-glucose/d-xylose (5 and 20 g L−1, respectively) and incubated at 30 °C for 48 h.

Aerobic cultivations in bioreactor

Bioreactor experiments were performed in lab-scale 3 L reactors Braun Biostat CT (B. Braun International, Germany) or Sartorius Biostat A+ (Sartorius, Germany) with an initial working volume of 1 L. Temperature was 30 °C, stirring 500 rpm using dual six-bladed Rushton turbines and sparging was 0.5 vvm air. As in the case of shake-flask cultivations, the medium also contained 6.7 g L−1 YNB with ammonium sulfate. For the batch experiments, the initial carbon source was 5 g L−1 d-glucose. When d-glucose was depleted, 20 g of d-xylose was added by injecting 50 mL of a 400 g L−1 d-xylose solution. pH was set to 5.5 and controlled by the addition of 5 M KOH. In the case of the fed-batch experiments, the initial substrate increased to 10 g L−1 d-glucose. d-Xylose was subsequently added to a concentration of 10 g L−1, by pulsing 50 mL of a 200 g L−1 d-xylose solution. During fed-batch mode a 40 g L−1 d-glucose solution was fed at a rate of 0.2 g d-glucose h−1.

Aerobic cultivations in shake-flasks

Prior to the aerobic cultivation, yeast pre-cultures were obtained by transferring a loop of cells from the glycerol stocks into 5.0 mL of YNB defined medium (6.7 g L−1 Yeast Nitrogen Base without amino acids (Becton, Dickinson and Company, USA) supplemented with 20 g L−1 d-glucose. The pH of the medium was adjusted to 6.0 by the addition of H2SO4 or KOH. Cells were grown in a 50 mL sterile conical tube and incubated at 30 °C and 180 rpm until the end of the exponential growth phase was reached. At that moment, cells corresponding to an OD620 nm of 0.1 were transferred to 100 mL YNB d-glucose in 1000 mL baffled shake-flasks and incubated at 30 °C and 180 rpm. This intermediate step was used for cell proliferation in order to start the aerobic cultivations with high levels of biomass. At the end of the exponential phase, an amount of cells corresponding to an OD620 nm of 14 was harvested, centrifuged (5 min, 4000 rpm) and washed once by resuspension in 0.9% NaCl. Aerobic cultivations were then conducted in 250 mL baffled shake-flasks containing 25 mL of YNB defined media buffered to pH 6.0 and supplemented with 5 g L−1 d-xylose. After the inoculum, the shake-flasks were incubated at 30 °C and 180 rpm for 100 h. OD620 nm was monitored over time and samples were taken for metabolite analysis using HPLC (cf. below). The final pH was measured at the end of the cultivations.

Metabolite analysis and cell dry weight determination

The measurement of the extracellular concentrations of d-xylose and d-xylonate was done by ultra-performance liquid chromatography (UPLC, Waters, Massachusetts, USA) through a novel method specifically developed for the analysis of d-xylonate (Almqvist et al. 2017). Calibration was made with a standard solution containing α-ketoglutarate, d-xylose, d-xylitol, d-xylonate and d-glucose. Prior to analysis, samples were centrifuged (2 min, 13,000 rpm), filtered (0.2 µm) and diluted with ultra-pure H2O if necessary. d-Xylose concentrations were also measured using a Waters HPLC system equipped with RI-detector (45 °C cell temperature). The column was a 300 × 7.8 mm, 9 μm Aminex HPX-87P column (BIO-RAD, Hercules, CA, USA). The column temperature was 85 °C, the mobile phase (0.6 mL min−1) consisted of ultra-pure water (18.2 MΩ) from an ELGA Purelab Flex unit (Veolia Water, Paris, France). Metabolites were analysed using a Waters HPLC system equipped with RI-detector (45 °C cell temperature). The column was a 300 × 7.8 mm, 9 μm Aminex HPX-87H column (BIO-RAD, Hercules, CA, USA). The column temperature was 60 °C, the mobile phase (0.6 mL min−1) consisted of 5 mM H2SO4 in ultra-pure water. Calibration was made with a standard solution containing α-ketoglutarate, d-xylose, d-xylitol, acetate, ethanol and glycerol. d-Xylonate concentrations were also measured using the hydroxamate method (Lien 1959) as described by Toivari et al. (2010). The d-xylonate concentration in the samples was determined by comparison with a standard curve using lithium xylonate from Sigma-Aldrich. The cell dry weight (CDW) was obtained from optical density (OD620) through a correlation curve. CDW was initially determined in triplicate by centrifuging samples at 13,000 rpm for 5 min. The cells were washed by resuspension in ultra-pure water followed by centrifugation. The washed cells were then resuspended in ultra-pure water and transferred to pre-dried and pre-weighed 5 mL glass test tubes. The test tubes were dried in a convection oven (Termaks, Norway) at 105 °C for 16–24 h and then placed in a desiccator until equilibration to room temperature. After this analysis, it was determined that an OD620 of 1.0 corresponded to a CDW of 0.40 g L−1.

Primary nucleotide accession numbers

The primary nucleotide accession numbers of the genes of bacterial/archaeal origin heterologously expressed in S. cerevisiae were obtained from GenBank or the Integrative Microbial Genome database (IMG) and are listed in Table 3. These Weimberg pathway genes codon-optimized towards S. cerevisiae was deposited in GenBank with the accession numbers listed in Table 3. The percent sequence identity with the C. crescentus XylD is presented for the four XylD homologs used and was obtained by aligning the protein sequences using the multiple sequence alignments tool Clustal Omega developed at the European Bioinformatics Institute (EMBL-EBI) (McWilliam et al. 2013).

Table 3 Nucleotide accession numbers of the bacterial/archeal genes used in the study


Expression of the Weimberg pathway from C. crescentus for d-xylose assimilation in S. cerevisiae

Several different S. cerevisiae strains were constructed with varying combinations of the Weimberg pathway genes from C. crescentus integrated in the genome. In strain, TMB4511, only the first two genes, xylB and xylC, were integrated in the S. cerevisiae genome while in another strain, TMB4520, the entire Weimberg pathway genes were integrated (xylB, xylC, xylD, xylX and xylA). To prevent d-xylitol formation, GRE3 encoding a native aldose reductase was deleted in all the S. cerevisiae strains carrying the Weimberg pathway. The growth capacity of the strains was evaluated by dot plating on media containing d-glucose, d-xylose or a mixture of both carbon sources (Fig. 2). When d-glucose was the sole carbon source, all strains grew, which was expected since the d-glucose metabolism is not directly connected with the d-xylose assimilation through the Weimberg pathway. However, when d-glucose was used in combination with d-xylose as carbon source, growth of strains carrying part or all Weimberg pathway genes (TMB4511 and TMB4520, respectively) was inhibited, indicating that d-xylose conversion, either in part or fully, through the Weimberg pathway was inhibitory to S. cerevisiae. This is in line with previous published results by Nygård and coworkers in 2014 who showed that the expression of the d-xylono-γ-lactone lactonase encoding gene xylC led to a rapid conversion of d-xylono-γ-lactone to d-xylonate, decreasing the intracellular pH and, consequently, initiating cell death. A more gradual d-xylonate formation was obtained by solely expressing the d-xylose dehydrogenase encoding gene xylB since the conversion of d-xylono-γ-lactone into d-xylonate also occurs spontaneously at neutral pH (Buchert and Viikari 1988; Nygård et al. 2014). In the present study, a strain was therefore constructed with the full Weimberg pathway from C. crescentus except for xylC integrated in the genome (Additional file 2: Figure S1). In this way, it was possible to evaluate whether the absence of the d-xylono-γ-lactone lactonase activity would also be beneficial when the complete Weimberg pathway was expressed in S. cerevisiae. The resulting strain, TMB4530, was indeed able to grow on d-glucose also in the presence of d-xylose in contrast to the strains containing xylC (TMB4511, TMB4520). However, TMB4530 was still not able to grow on d-xylose as the sole carbon source (Fig. 2).

Fig. 2
figure 2

Evaluation of the growth capacity of yeast strains engineered with Weimberg pathway genes. The dot plating tests were done in defined agar-medium supplemented with d-glucose, d-xylose or a mixture of d-glucose and d-xylose. The background strain CEN.PK 113-7D was used as negative control for growth on d-xylose (first row). As a positive control for growth on d-xylose, a strain engineered with an optimized d-xylose oxido-reduction route (TMB4545) was used (last row)

Expression of the Weimberg pathway genes from C. crescentus in S. cerevisiae enables bioconversion of d-xylose to d-xylonate via d-xylose dehydrogenase

Strain TMB4530, containing xylB, xylD, xylX and xylA, was evaluated by bioreactor experiments in two steps: initial cell growth on d-glucose in a batch phase followed by a pulse addition of d-xylose to allow bioconversion at high cell density. In the first 24 h of the batch experiments, cells were propagated in YNB supplemented with d-glucose. After depletion of the d-glucose and the formed ethanol and acetate, the bioconversion phase was initiated by the addition of d-xylose. During this period, the specific d-xylose uptake rate (0.027 ± 0.002 cmol d-xylose cmol biomass−1 h−1) matched the d-xylonate production rate (0.024 ± 0.001 cmol d-xylonate cmol biomass−1 h−1) (data not shown). Cell growth could not be sustained by d-xylose during the bioconversion phase; instead biomass was estimated to decrease at a rate of 0.006 ± 0.001 h−1. In order to maintain cell viability, a fed-batch experiment was designed where d-glucose was fed during the bioconversion phase. The fed-batch experiment consisted of three phases (Fig. 3): initial growth phase on d-glucose followed by a pulse of d-xylose, where non-growing cells assimilated the pentose for 24 h. Finally, the third phase consisted of a prolonged fed-batch phase where d-glucose was fed at a slow rate of 0.2 g h−1. This set-up allowed the comparison of the d-xylose uptake efficiency by both growing and non-growing cells in the same experiment. The measurements showed that d-xylose uptake rate was not affected by d-glucose feeding. In the growth phase, d-glucose depletion was reached with TMB4530 after approximately 20 h of cultivation. After 46 h, a pulse of d-xylose was added and the pentose was taken up at a specific rate of 0.025 ± 0.004 cmol d-xylose cmol biomass−1 h−1 independent of the d-xylose concentration (Fig. 3). The assimilated d-xylose was converted to d-xylonate at a conversion rate of 0.020 ± 0.005 cmol biomass−1 h−1, reaching full conversion after 140 h. No other products could be detected from d-xylose.

Fig. 3
figure 3

Fed-batch experiments with strain TMB4530 (xylB, xylD, xylX, xylA). d-Glucose (filled square), biomass (filled circle), ethanol (filled triangle), d-xylose (square), d-xylonate (circle), CO2 (triangle) and liquid volume (straight line). The dotted line represents the sum of specific productivity of biomass and CO2. All experiments were performed in biological duplicates and standard deviations are indicated with error bars

Expression of xylD from H. volcanii does not convey d-xylonate conversion

Heterologous expression of the C. crescentus Weimberg pathway in S. cerevisiae enables bioconversion of d-xylose to d-xylonate, however, the d-xylonate is apparently not converted further as no downstream products can be detected. The dehydration reaction converting d-xylonate to 2-keto-3-deoxy-d-xylonate is catalysed by a dehydratase (XylD) belonging to the IlvD/EDD protein family that requires an iron–sulfur cluster (Fe–S) for its catalytic activity. Iron–sulfur cluster containing proteins of bacterial origin are known to be challenging to express in eukaryotes due to differences in the complicated cell machinery responsible for the loading of the Fe–S cluster onto the apoprotein (Benisch and Boles 2014). As an alternative to iron–sulphur cluster requiring Cc XylD, there are d-xylonate dehydratases found in Archaea that belong to the enolase family and require metal ions (such as Mg2+) for its function rather than Fe–S clusters (Johnsen et al. 2009; Petsko and Ringe 2004; Faller et al. 1977). Therefore, the C. crescentus xylD in strain TMB4530 containing xylB, xylD, xylX and xylA was replaced with the counterpart from the halophilic archaeon H. volcanii (HVO_B0038A, xad_Hv), generating strain TMB4531. The same three phase-set up as previously described for TMB4530 was used to test d-xylose conversion with a low simultaneous d-glucose co-consumption. In the first batch phase (24 h) cells were propagated in YNB supplemented with d-glucose to high cell density and then the second phase was initiated after 30 h by adding a pulse of d-xylose to allow bioconversion by the non-growing cells produced in the first phase. The third phase was a prolonged fed-batch phase where d-glucose was added at a slow rate of 0.2 g h−1 to maintain cell viability during the d-xylose bioconversion. TMB4531 reached a maximum uptake rate (0.06 cmol d-xylose cmol biomass−1 h−1) when the highest concentration of d-xylose was present, declining after that time-point. During the initial part of the fed-batch phase, the specific biomass and CO2 productivity were identical to TMB4530. In contrast, the carbon flux appeared to be shifted towards CO2 formation at later stages (Figs. 3, 4). The decrease in biomass yield correlated well with the d-xylonate concentrations, suggesting increased maintenance requirements due to the need of secreting the acid to maintain the intracellular pH, as previously suggested (Nygård et al. 2014). In both TMB4530 and TMB4531 the sum of biomass and CO2 production rates matched the d-glucose uptake rate (dotted lines in Figs. 3, 4), which suggested that d-glucose was converted into biomass and CO2 while d-xylose was quantitatively converted into d-xylonate (note that the concentrations decreased due to dilution during the fed-batch).

Fig. 4
figure 4

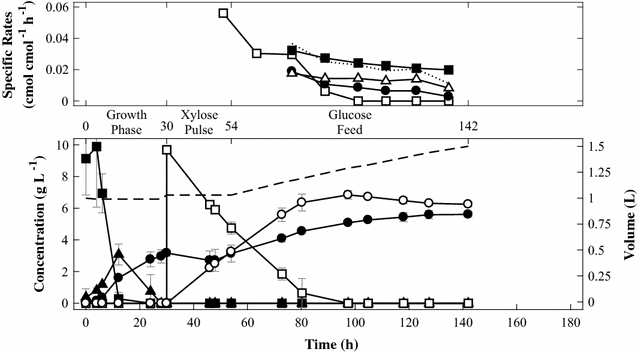

Fed-batch experiments with strain TMB4531 (xylB, xad_Hv, xylX, xylA). d-Glucose (filled square), biomass (filled circle), ethanol (filled triangle), d-xylose (square), d-xylonate (circle), CO2 (triangle) and liquid volume (straight line). The dotted line represents the sum of specific productivity of biomass and CO2. All experiments were performed in biological duplicates and standard deviations are indicated with error bars

The increased d-xylose bioconversion rate in TMB4531 compared to TMB4530 could indicate that H. volcanii XylD (Hv XAD) was able to convert some of the d-xylonate to 2-keto-3-deoxy-d-xylonate, thereby increasing the intracellular pH and the fitness of the cells. 2-keto-3-deoxy-d-xylonate was not included in the standard solution used in the UHPLC and HPLC analyses since it is not commercially available. But as shown in Additional file 3: Figure S2, no unidentified peaks were seen in the chromatograms from the bioreactor experiments. Proteomics analysis of TMB4531 in a parallel study indicated that Hv XAD was not produced in TMB4531, while Cc XylD was present in TMB4530 (data not shown). Synthesis of the Fe–S Cc XylD in TMB4530 might increase the metabolic burden in this strain, which would explain the lower d-xylose bioconversion rate in TMB4530 in comparison to TMB4531 that lacks the Fe–S XylD protein.

Evaluation of three XylD homologs from the IlvD/EDD family to improve d-xylonate conversion

Although Cc XylD was produced in TMB4530, the functionality of this protein remained unclear. In an attempt to improve d-xylonate conversion, we evaluated three XylD homologs of the IlvD/EDD family originating from B. cenocepacia, E. coli and an unknown organism denoted as Ellin329 bacterium, for their functionality in yeast by integration into TMB4530 replacing xylD, and resulting in strains TMB4569, TMB4570 and TMB4571, respectively (Additional file 2: Figure S1). These XylD homologs were chosen based on the difference in protein sequence identity as compared to C. crescentus XylD (Table 3) and the fact that they had previously not been characterized in S. cerevisiae.

Initial evaluation showed that all strains grew well on minimal medium supplemented with d-glucose, but no growth could be observed when d-xylose was used as the sole carbon source (data not shown). Subsequently, the biocatalytic capacities of the strains to convert d-xylose into d-xylonate and downstream products were assessed. For these tests, cells were first grown to exponential phase in medium containing d-glucose. After harvest, about 5 g L−1 biomass was transferred to a mineral medium supplemented with a small amount of d-xylose (5 g L−1) and aerobic cultivations were initiated in shake flasks (Fig. 5). For these experiments two control strains containing only part of the pathway were also evaluated under the same conditions namely TMB4511 containing xylB and xylC and TMB4512 containing only xylB. The results showed that both control strains TMB4511 and TMB4512 (i.e. the strain producing both XylB and XylC and the strain producing XylB, respectively) converted d-xylose to d-xylono-γ-lactone/d-xylonate at higher rates than all the strains containing genes from the lower pathway. This suggested that the lower part of the pathway put some metabolic burden on these strains since no downstream products from d-xylonate could be detected in the current set up. In strain TMB4511, rapid d-xylonate production was expected since the strain can enzymatically convert d-xylono-γ-lactone to d-xylonate; however this was also observed for the control TMB4512 that lacks XylC and has to rely on the spontaneous opening of the lactone ring to form d-xylonate. This can be explained by the analytical method used, called the hydroxamate method that in the current setup does not distinguish between the lactone and the acid form since all the d-xylonate is converted to d-xylono-γ-lactone and then measured colorimetrically.

Fig. 5
figure 5

Aerobic bioconversion of d-xylose into d-xylonate in recombinant Saccharomyces cerevisiae strains. TMB4511 (xylB, xylC: filled square), TMB4512 (xylB: filled triangle), TMB4530 (xylB, xylD, xylX, xylA: filled circle), TMB4569 (xylB, xylD_Bc, xylX, xylA: square), TMB4570 (xylB, yjhG_Ec, xylX, xylA: triangle), TMB4571 (xylB, xylD_El, xylX, xylA: circle). All experiments were performed in biological duplicates. The d-xylose consumption and d-xylonate formation in replicate 1 is shown in the upper a and b, respectively. The lower c and d show d-xylose consumption and d-xylonate formation in replicate 2, respectively

Investigation of non-functional steps for yeast strains carrying the whole Weimberg pathway

As d-xylonate was the main product in all S. cerevisiae strains carrying the Weimberg pathway, we verified that each strain expressed the correct heterologous genes. Reverse transcriptase PCR was carried out on cDNA derived from exponentially growing cells in d-glucose (d-xylose was not added since the expression in yeast is constitutive and not regulated by d-xylose as in C. crescentus). The results confirmed that all the engineered S. cerevisiae strains expressed xylB, xylX and xylA and each strain expressed one unique xylD homolog: TMB4530-xylD from C. crescentus, TMB4569-xylD from B. cenocepacia, TMB4570-yjhG from E. coli, TMB4571-xylD from Ellin329 isolate, but also TMB4531 carrying xad from H. volcanii (Fig. 6). Due to the absence of XylD protein in the strain carrying H. volcanii, the other strains were also tested and the presence of the corresponding proteins was confirmed (data not shown).

Fig. 6
figure 6

Reverse-transcriptase PCR analysis to verify gene expression of Weimberg pathway genes. RNA from five different strains exponentially growing on d-glucose was purified and used for cDNA synthesis. Reverse-transcriptase PCR was performed on the cDNA using primers specific for each Weimberg pathway gene. Amplification of xylB, xylA and xylX was carried out in all strains while different xylDs was amplified in each individual strain as follows: xylD from Caulobacter crescentus in TMB4530, xad from Haloferax volcanii in TMB4531, xylD from Burkholderia cenocepacia in TMB4569, yjhG from Escherichia coli in TMB4570 and xylD from Ellin329 isolate in TMB4571. CEN.PK 113-7D (WT) was used as negative control. Before cDNA synthesis the RNA purity (i.e. removal of DNA) was examined using a control PCR that amplifies the constitutively expressed gene PFY1 encoding Profilin

As a third step, the activity of the Weimberg enzymes was assayed. The d-xylose dehydrogenase (XylB) activity was determined enzymatically in cell extract by monitoring the NADH formation at 340 nm and the results showed an activity of 0.2–0.3 µmol min−1 mg−1 in the different strains (Table 4). The activity of the lower part of the pathway including d-xylonate dehydratase (XylD), 2-keto-3-deoxy-d-xylonate dehydratase (XylX) and the α-ketoglutarate semialdehyde dehydrogenase (XylA) was assessed through the combined activity of the enzymes by following the formation of NADH from d-xylonate. However, no enzymatic activity could be detected (data not shown). In order to validate both oxidation assays, protein extract from d-xylose-grown C. crescentus cells was used as positive control and it showed enzymatic activity both for XylB and for the three enzymes XylD/XylX/XylA using d-xylose and d-xylonate as substrate, respectively, which confirmed the robustness of the assays. d-Glucose-grown C. crescentus showed no activity of the tested enzymes (unpublished data). To specifically assay the d-xylonate dehydratase activity, the thiobarbituric acid (TBA) method was also used (Buchanan et al. 1999; Salusjärvi et al. 2017). No activity could be detected, indicating that none of the XylD homologous were active in vitro (data no shown). This is in line with the recent report from Salusjärvi et al. (2017) where no XylD activity was detected unless FRA2 gene was deleted.

Table 4 Specific activity of d-xylose dehydrogenase, XylB, in different recombinant S. cerevisiae strains

These results suggest that although the genes encoding the Weimberg pathway could be expressed and transcribed in S. cerevisiae, the functionality of the three proteins converting d-xylonate into α-ketoglutarate remained unknown. If the d-xylonate is converted further it is below detection limit in our experimental setup. Proteomics data could confirm that all the bacterial Fe–S XylDs were present in the correct strain, yet the assembly of the Fe–S cluster onto the apoprotein could be the limiting factor for producing an active protein.


In the present study, the expression of the genes encoding for the entire Weimberg pathway in the eukaryote S. cerevisiae had the objective to provide an alternative entry point for d-xylose into the yeast central carbon metabolism with possibilities to produce new compounds that are intermediates or derivatives of the TCA cycle. The C. crescentus Weimberg pathway was chosen since the corresponding genes had already been integrated and proven to be functionally expressed in the bacteria C. glutamicum and P. putida (Meijnen et al. 2009; Radek et al. 2014). In S. cerevisiae, the upper part of the pathway including xylB and xylC from C. crescentus has been successfully expressed, enabling d-xylonate production from d-xylose (Nygård et al. 2014). In a recent study of the Dahms pathway in S. cerevisiae it was also shown that deletion of FRA2 encoding a repressor of iron regulon transcription resulted in some activity of the d-xylonate dehydratase (Salusjärvi et al. 2017).

None of the recombinant strains designed in the present study could sustain growth on d-xylose alone and only d-xylonate formation was detected. Although all genes were transcribed, it remained unclear whether the corresponding proteins were catalytically active and functional in S. cerevisiae since only the activity of the first enzyme XylB could be verified. The combined assay of the three last enzymes (XylD, XylX, XylA) as well as the XylD (TBA) assay gave no activity in any of the recombinant S. cerevisiae strains. Due to the lack of products downstream of d-xylonate, it is likely that the dehydration of d-xylonate to 2-keto-3-deoxy-d-xylonate, facilitated by the iron–sulfur (Fe–S) cluster containing protein XylD, was a major bottleneck to attain a fully active Weimberg pathway. Other studies on introduction of the Weimberg pathway into Pseudomonas species and C. glutamicum also showed d-xylonate accumulation during cultivations, and its conversion into 2-keto-3-deoxy-d-xylonate occurred only when other carbon sources were depleted. Therefore, the reaction catalyzed by XylD was seemingly the rate-limiting step for an efficient d-xylose oxidation into α-ketoglutarate, also in these bacterial hosts (Meijnen et al. 2009; Radek et al. 2014). However, it cannot be ruled out that the second dehydratase in the Weimberg pathway, XylX, which catalyzes the dehydration of 2-keto-3-deoxy-d-xylonate to α-ketoglutarate semialdehyde may also not be functional. This enzyme is not a Fe–S cluster containing protein and protein BLAST analysis (NCBI: National Center for Biotechnology Information) reveals that the first 122 amino acids of the XylX protein (total length, 140 amino acids) contain a conserved domain from the fumarylacetoacetate (FAA) hydrolase family protein that is part of the MhpD superfamily of proteins. Further insights into the functionality of the Weimberg pathway could be revealed by analysis of its intracellular metabolites. However, this is currently hampered by the lack of commercial standards.

A recent study on in depth characterisation of Cc XylD heterologously expressed in E. coli led to the identification of three conserved cysteine residues that coordinate the Fe–S binding essential for catalytic activity of the protein (Andberg et al. 2016). Although the formation of Fe–S clusters occurs spontaneously in vitro, systems for Fe–S biogenesis are required in vivo (Roche et al. 2013). In eukaryotes, the assembly of iron–sulfur clusters is carried out by two complex machineries, one present in the mitochondria (ISC: mitochondrial iron–sulfur cluster) and one present in the cytosol (CIA: cytosolic iron–sulfur protein assembly) (Lill et al. 2015; Lill and Mühlenhoff 2008). These machineries assemble Fe–S clusters on scaffold proteins using iron and cysteine as the source of sulfur, and the Fe–S cluster is then transferred to apoproteins with the aid of specific chaperones (Lill and Mühlenhoff 2008). The chances of a correct formation of bacterial Fe–S cluster harboring proteins in S. cerevisiae remains unknown, since the biogenesis systems are significantly different in prokaryotes and eukaryotes (Kirby et al. 2016). However, examples of challenging functional expression of bacterial genes encoding Fe–S cluster harboring enzymes in eukaryotes have been reported. For instance, the prokaryotic 6-phosphogluconate dehydratase (PGDH) from E. coli is a Fe–S cluster-harboring enzyme, and despite a number of attempts to activate the Fe–S cluster machinery in yeast by increasing the intracellular iron availability, inducing iron-responsive genes or by localizing PGDH to the mitochondria, the activity and functionality of PGDH could not be improved (Benisch and Boles 2014). An insufficient loading of the Fe–S cluster onto the protein was hypothesized to result in a very low enzyme activity, since the Fe–S cluster machinery in S. cerevisiae failed to recognize it as an apoprotein (Benisch and Boles 2014). In a similar line, the activity of the bacterial enzyme IspG, whose activity is also dependent on the correct assembly of Fe–S clusters, was demonstrated to be the limiting step to obtain a functional heterologous pathway for the production of isoprenoids in S. cerevisiae (Carlsen et al. 2013; Kirby et al. 2016). In our case, all Fe–S XylD homologs were detected, indicating again that the translation and folding of the proteins may not be the problem, whereas the proper loading of the Fe–S cluster might be.

In an attempt to circumvent the Fe–S cluster problem, we searched for non Fe–S XylD homologs. In previous work focusing on enolase dehydratases, several six carbon dehydratases using d-mannonate or d-gluconate as substrate has been reported (Wichelecki et al. 2014) but no bacterial enzyme that can dehydrate d-xylonate has yet been found [reviewed by (Gerlt et al. 2012)]. Reported non Fe–S XylD come from extremophilic archaea such as the halophilic H. volcanii (Johnsen et al. 2009) and the thermophilic Sulfolobus solfataricus (Nunn et al. 2010). Based on the lower temperature optimum of H. volcanii (42 °C) it was chosen over the thermophilic S. solfataricus (75–85 °C) for this study. Thus, xad from H. volcanii (xad_Hv) was expressed in S. cerevisiae together with xylB, xylX and xylA from C. crescentus (strain TMB4531). The use of Hv XAD in TMB4531 increased the uptake and formation rates of d-xylose and d-xylonate, respectively, which could indicate some flux downstream of d-xylonate. Supporting this is the fact that the carbon recovery in the fed-batch experiment with d-xylose and d-glucose was 85% for TMB4531, while for TMB4530 harboring XylD from C. crescentus it was 100%. However, no further intermediates of the Weimberg pathway could be detected and no peptides corresponding to XAD could be found in TMB4531. Therefore, it is more likely that measurement error contributed to this result seen in the bioreactor experiment. Functional expression of genes originating from halophiles such as H. volcanii can be challenging since these organisms require 100–150 g L−1 salt to grow and maintain structural stability. The proteome of halophiles is usually acidic leading to protein denaturation when suspended in low salt (Oren 2008). Thus, the absence of XAD in S. cerevisiae strain TMB4531 could indicate that the protein folding of this halophilic protein was indeed problematic, and the increased d-xylose bioconversion rate observed in this strain in comparison to TMB4530 was probably caused by an increased metabolic burden in TMB4530 expressing and assembling the Fe–S cluster-containing XylD.

In conclusion, the dehydration reaction(s) appear to be major bottlenecks to establish an active Weimberg pathway in S. cerevisiae. Bacterial XylDs require assembly of Fe–S clusters for a functional active enzyme while archaeal XylDs of the enolase family originating from halophiles require high salt concentration for correct folding. At the time of writing, the hypothesis of a non- or poorly functional XylD was confirmed in a study where the Fe–S cluster metabolism of S. cerevisiae was altered by deletion of FRA2 that regulates iron regulon transcription (Salusjärvi et al. 2017). This resulted in an increased activity of XylD from C. crescentus in yeast. Moreover, the XylD activity was improved when its expression was targeted to the mitochondrium, indicating that the cytosolic Fe–S cluster synthesis was inefficient in yeast (Salusjärvi et al. 2017). Further evaluation of this strategy as well as alternative d-xylonate dehydratases with different requirements and properties, is therefore expected to lead to significant improvements of Weimberg functionality in yeast. Similarly, the crystallization of H. volcanii XAD could open new routes for optimization of this protein functionality through protein engineering.
