Housekeeping gene gyrA, a potential molecular marker for Bacillus ecology study
AMB Express volume 12, Article number: 133 (2022)
Bacillus is a genus of microorganisms (bacteria) and contains many important commercial species used in industry, agriculture and healthcare. Many different Bacilli are relatively well understood at the single-cell level; however, molecular tools that determine the diversity and ecology of Bacillus community are limited, which limits our understanding of how the Bacillus community works. In the present study, we investigated the potential of the housekeeping gene gyrA as a molecular marker for determining the diversity of Bacillus species. The amplification efficiency for Bacillus species diversity could be greatly improved by primer design. Therefore, we designed a novel primer pair gyrA3 that can detect at least 92 Bacillus species and related species. For B. amyloliquefaciens, B. pumilus, and B. megaterium, we observed that the high variability of the gyrA gene allows for more detailed clustering at the subspecies level that cannot be achieved by the 16S rRNA gene. Since gyrA provides better phylogenetic resolution than 16S rRNA and informs on the diversity of the Bacillus community, we propose that the gyrA gene may have broad application prospects in the study of Bacillus ecology.
Microbial communities in soil are known to be one of the largest reservoirs of biological diversity and have been extensively studied (Timmis and Ramos 2021). Current advances in high-throughput DNA sequencing of a portion of the small subunit of ribosomal RNA (16S and 18S rRNA) form the backbone of most studies of soil microbial ecology (Klindworth et al. 2013). For bacteria, the 16S rRNA gene is usually preferred, because it contains both highly conserved and hypervariable regions (Peer et al. 1996), and especially because comprehensive reference databases have been compiled for comparison (McDonald et al. 2012; Quast et al. 2013; Cole et al. 2014; Yoon et al. 2017). However, 16S rRNA amplicon sequencing also has many shortcomings: first, 16S rRNA evolves slowly and is highly conserved, making it a poor marker for distinguishing between closely related strains. Second, chimera formation during PCR is high because 16S rRNA variability is very low (Pinto and Raskin 2012; Sun et al. 2013). Third, the number of 16S rRNA copies in different species is highly variable, and single nucleotide polymorphisms (SNPs) at the single-cell level may result in an overestimation of diversity (Johnson et al. 2019). Fourth, the similarity between species can be very high, making it difficult to delineate species in cluster analysis, and different clustering levels lead to different results (Edgar 2013). Therefore, new complementary taxonomic markers for genetic and bioinformatic analysis need to be developed to study microbial diversity in more detail, especially at the subspecies level.
Bacillus is one of the most intensely studied bacterial genus comprising at least 200 species (Mandic-Mulec et al. 2015). It is a heterogeneous bacterial taxon that is ubiquitous in various ecological niches and widely used in medicine, industry and agriculture. Although there have been many in-depth studies on Bacillus model species, community-level studies on Bacillus in soil and other habitats lag. Because sequences of 16S rRNA within Bacillus species are often similar, the definition and delineation of bacterial species based on the 16S rRNA comparison among related species in the genus Bacillus are unclear. Therefore, the identification and typing of Bacillus isolates based on the 16S rRNA gene alone cannot provide accurate results and it is important to explore and use other genes as molecular markers to assess the diversity of the Bacillus community (Mandic-Mulec et al. 2015).
Housekeeping genes are potential candidates for assessing microbial diversity because they have been shown to elicit higher phylogenetic resolution than the 16S rRNA gene, such as the rpoB gene, gyrA gene, and gyrB gene, etc. (Chun and Bae 2000; Kasai et al. 2000; Yamamoto et al. 2000; Hurtle et al. 2004; Stefanic and Mandic-Mulec 2009; Stefanic et al. 2012, 2015; Levican et al. 2013; Ménard et al. 2016). Typically, there are only one or two copies of housekeeping genes per genome, and the use of low-copy number genes compared to high-copy number genes could lead to more accurate diversity analysis by avoiding overestimation of diversity due to SNPs in different gene copies. Indeed, several studies have tested the rpoB gene and the gyrB gene as molecular markers to analyze the diversity of bacterial communities by amplicon sequencing. The results showed that housekeeping gene sequencing provided a more accurate description of bacterial community composition than 16S rRNA sequencing under certain conditions (Vos et al. 2012; Poirier et al. 2018; Ogier et al. 2019).
The housekeeping gene gyrA, encoding DNA gyrase subunit A, is essential for DNA replication and is present in all bacteria (Cozzarelli 1980). Analyses of gyrA identity provided higher phylogenetic resolution than the 16S rRNA gene for tested Bacillus isolates (Chun and Bae 2000; Ménard et al. 2016). Specifically, partial gyrA gene sequences were used for phylogenetic analysis and species identification of seven Bacillus strains, including B. amyloliquefaciens, B. atrophaeus, B. licheniformis, B. mojavensis, B. subtilis, B. subtilis subsp. spizizenii, and B. vallismortis (Chun and Bae 2000). Moreover, the gyrA gene sequences provided a good marker for B. subtilis and B. amyloliquefaciens and showed better discriminatory potential between these two closely related species than the rpoB gene (Chun and Bae 2000). The gyrA gene has been also successfully used to detect intraspecific diversity of B. subtilis isolates from soil microscale (Stefanic and Mandic-Mulec 2009) and tomato rhizosphere isolates (Oslizlo et al. 2015). Overall, these works suggest that gyrA has a good potential to be used as a molecular marker for microbial ecology studies of the Bacillus genus and related species, however, to the best of our knowledge, the available primer pairs used in the studies indicated above, have not been used for amplicon-based community analyses of Bacillus species.
In this study, we first compared the rate of variation of the 16S rRNA and gyrA genes between 20 Bacillus species and then designed a new primer pair that specifically target gyrA (gyrA3). We then evaluate their performance by using in silico PCR, testing their efficiency on Bacillus isolates and performing SNPs analysis of 16S rRNA and gyrA genes for selected species that were available in the NCBI database. Finally, verified gyrA3 primers to differentiate species and strains of Bacillus mock community, and compared the obtained results with those targeting 16S rRNA. Our results suggest that the gyrA gene is a useful molecular marker for the identification of Bacillus isolates and describing the diversity of the Bacillus community.
Materials and methods
Strains and culture condition
The 127 strains (56 species) used in the study were strains of Bacillus (32 species) and related genera of Bacillus (Paenibacillus, Lysinibacillus, Aneurinibacillus, Virgibacillus, Brevibacillus, Halobacillus and Fictibacillus; 24 species), all strains were isolated from soil (Additional file 2: Table S1). All strains were grown at 30 °C in low-salt Luria–Bertani medium (LB), containing 10 g tryptone, 5 g yeast extract, and 3 g NaCl per litre.
Nucleotide diversity (Pi) analysis
For interspecies analysis, the whole sequences of the 16S rRNA and the gyrA genes of 20 Bacillus species (361 genomes) were downloaded from the NCBI genome database (Additional file 2: Table S2). For intraspecies analysis, 3 species were selected and whole sequences of 16S rRNA and gyrA gene were downloaded from the database: B. amyloliquefaciens (88 genomes), B. licheniformis (71 genomes) and B. pumilus (97 genomes) (Additional file 2: Table S2). The alignment of these sequences was conducted using the online alignment tool Kalign on EMBL (https://www.ebi.ac.uk/Tools/msa/). Subsequently, nucleotide diversity (Pi) was estimated with DnaSP 6 (v.6) using a window size of 100 bp and a step size of 10 bp (Rozas et al. 2017).
DNA extraction of strains, PCR and gel electrophoresis
Genomic DNA was extracted using the Omega Bacterial DNA Kit D3350 (Omega, Bio-tek, Norcross, GA, USA), and the concentration and quality of DNA were determined using a NanoDrop 2000 spectrophotometer (Wilmington, DE, USA). The reaction mixture for PCR amplification was prepared in 25 μL containing 1 μL of DNA, 2 μL of each primer (the primer pair gyrA1 were gyrA1-F: 5′-CAGTCAGGAAATGCGTACGTCCTT-3′ (Roberts et al. 1994) and gyrA1-R: 5′- GTATCCGTTGTGCGTCAGAGTAAC-3′ (Ansaldi et al. 2002), the primer pair gyrA2 were gyrA2-F: 5′-CAGTCAGGAAATGCGTACGTCCTT-3′ (Roberts et al. 1994) and gyrA2-R: 5′-CAAGGTAATGCTCCAGGCATTGCT-3′ (Roberts et al. 1994), the primer pair gyrA3 were gyrA3-F: 5′-GCDGCHGCNATGCGTTAYAC-3′ and gyrA3-R: 5′-ACAAGMTCWGCKATTTTTTC-3′, the primers for the 16S rRNA gene were 27F: 5′-AGAGTTTGATCCTGGCTCAG-3ʹ and 1492R: 5′-GGTTACCTTGTTACGACTT-3ʹ), 12.5 μL Green Taq Mix (http://www.vazyme.com), and 7.5 μL deionized water. PCR has performed under the following conditions: Predenaturation at 94 °C for 5 min; denaturation at 94 °C for 30 s; annealing at 50 °C for 30 s; elongation at 72 °C for 40 s (35 cycles); and elongation at 72 °C for 7 min.
In silico PCR
The gyrA sequence database contains 5062 full-length gyrA gene sequences (226 Bacillus species), which were downloaded from the NCBI database using the NCBI-genome-download script (https://github.com/kblin/ncbigenome-download/) (Additional file 2: Table S3). First, the degenerate primer pair gyrA3 was converted to primers that do not contain degenerate bases, and the converted gyrA3 is listed in Additional file 2: Table S4. Subsequently, the primer pairs gyrA1, gyrA2 and the converted gyrA3 were aligned with the gyrA database using NCBI-blast + software (v.2.9.0). The match at 18 bases of both, the forward and reverse primer, was considered amplifiable by the primer pair.
In this study, phylogenetic analysis of genes was performed using MEGA (v.5.05) (Tamura et al. 2011) for Neighbor-Joining and the reliability of clades was tested using 1000 bootstrap replicates. Furthermore, annotation and beautification of trees were performed using programs available at the iTol online site (https://itol.embl.de) (Letunic and Bork 2019).
A total of 600 available genomes of 4 different Bacillus species were obtained using the same method as in-silico PCR, including 116 genomes of B. amyloliquefaciens, 140 genomes of B. pumilus, 117 genomes of B. megaterium and 226 genomes of B. anthracis (Additional file 2: Table S5). The alignment of the 16S rRNA (base sites: 330–810) and gyrA genes (base sites: 350–850) within each species was performed using the L-INS-I method of MAFFT (v7.487) (https://mafft.cbrc.jp/alignment/software/) (Katoh et al. 2002). The 2 gene sequences (16S rRNA, gyrA) on the same genome were selected as representative sequences, and the base mismatch sites on other sequences were marked with color after comparison with the representative sequence.
Construction of the DNA-based Bacillus mock community, amplicon sequencing and data analysis
For the Bacillus mock community, we selected 8 strains with known genome sequences. Genomic DNA from 8 strains was extracted and its quality and quantity were determined. Eight genomic DNAs were pooled in equal amounts after being diluted to approximately the same concentrations. The hypervariable region V3-V4 of the 16S rRNA gene was amplified with the universal primers 338F: 5′-CCTACGGRRBGCASCAGKVRVGAAT-3’ and 806R: 5′-GGACTACNVGGGTWTCTAATCC-3′. The gyrA gene from 8 strains of the mock community was amplified with primer pairs gyrA3 (see above), gyrA4 (F: 5′-TAYGCRATGAGYRTHATYGT-3’ and R: 5′- TTBGTNGCCATHCCDACMGC-3ʹ), and gyrA5 (F: 5′-GCDGCNGCVATGCGTTAYAC-3ʹ and R: 5′- CGNAGRTYBGTAATDCCDTC-3ʹ). Sequencing was performed on an Illumina Miseq PE300 instrument.
Raw data were processed using the Unoise3 algorithm (Edgar 2016) in the UPARSE pipeline (http://drive5.com/usearch/manual/uparse_pipeline.html) (Edgar 2013) to obtain the ZOTUs represent sequences and the ZOTUs table. The ZOTUs represent sequences were annotated using the sequences of 16S rRNA and gyrA gene of the eight strains (Additional file 2: Dataset S1, S2). The ZOTUs of the same strain were pooled into a single unit after annotation. Finally, we used box plots to show the community structure and the characteristics of the different primer pairs during sequencing. The box plots were drawn using R (v.4.0.3) (R Core Team 2020).
The gyrA gene of the Bacillus genus shows higher variation rates than 16S rRNA
The housekeeping gene gyrA is considered to be more variable than 16S rRNA and has been used as a molecular tool for the classification and identification of B. subtilis species (Chun and Bae 2000; Borshchevskaya et al. 2013). In the genus Bacillus, the nucleotide diversity (Pi) of 16S rRNA and the gyrA gene sequences were 0.039 and 0.491, respectively (Fig. 1A, B blue line). It indicated that the degree of interspecies variation was significantly higher for the gyrA gene than for the 16S rRNA gene.
In three Bacillus species, the intraspecific nucleotide diversity (Pi) of 16S rRNA was again significantly lower than the intraspecific nucleotide diversity of gyrA gene sequences in all three species: B. amyloliquefaciens (Pi16S = 0.0014; PigyrA = 0.0244), B. licheniformis (Pi16S = 0.00024; PigyrA = 0.0021) and B. pumilus (Pi16S = 0.00136; PigyrA = 0.0344) (Fig. 1A, B nonblue lines).
In conclusion, the Bacillus gyrA gene shows higher variation rates than 16S rRNA, hence we propose that gyrA represents a promising molecular marker for analyses of Bacillus community diversity analyses and the diversity of Bacillus isolates.
First comparative tests of three primer pairs for the detection of Bacillus species
As indicated above Bacillus isolates have been already analyzed by primers targeting gyrA, however the specificity of these primers has not been investigated broadly (Roberts et al. 1994; Ansaldi et al. 2002). To satisfy the amplicon sequencing requirements, we designed a new primer pair (gyrA3) (Fig. 2A), and compared its amplification potential in colony PCR and virtual PCR with the previously designed primers, referred to here as gyrA1 and gyrA2 (Fig. 2A) (Roberts et al. 1994; Ansaldi et al. 2002).

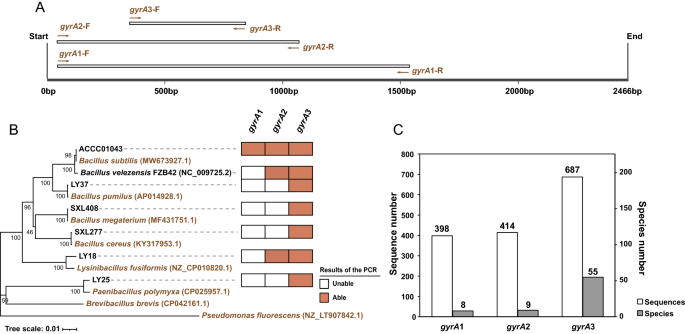

First, we selected seven strains of different Bacillus species: L. fusiformis, P. polymyxa, B. pumilus, B. velezensis, B. megaterium, B. cereus and B. subtilis (Fig. 2B) to perform PCR amplification with primer pairs gyrA1, gyrA2 and gyrA3. The PCR amplification results showed that gyrA1 detected only B. subtilis; gyrA2 detected B. subtilis, B. velezensis and L. fusiformis; whereas gyrA3 performed much better and detected all Bacillus species included in the analysis (Fig. 2B and Additional file 1: Fig. S1).
The in-silico PCR analysis was performed using the gyrA gene database containing 226 Bacillus species. The results showed that only 8 Bacillus species were amplified in-silico by gyrA1, 9 Bacillus species were amplified by gyrA2 (Fig. 2C and Additional file 1: Fig. S2), while 55 Bacillus species were amplified by gyrA3 (Fig. 2C). The majority of sequences amplified by gyrA1 and gyrA2 belonged to B. subtilis, whereas gyrA3 demonstrated broader diversity as evidenced by the amplification of seven species and in-silico PCR (Fig. 2B, C and Additional file 2: Table S6).
Specificity range of the gyrA3 primer pair by using PCR and in silico PCR
Because the gyrA3 primer pair performed better than the previously reported primers, we next combined analysis of the in-silico amplified gyrA genes with PCR analysis of Bacillus isolates from our laboratory culture collection. Virtual gyrA3 PCR amplicons from 55 different Bacillus species from the gyrA gene database were evenly distributed among the branches of the phylogenetic tree (Fig. 3 orange and green).
Next, we used 127 strains of Bacillus (32 species) and related genera (Paenibacillus, Lysinibacillus, Aneurinibacillus, Virgibacillus, Brevibacillus, Halobacillus, Fictibacillus, 24 species) from our laboratory culture collection to amplify their gyrA genes with a gyrA3 primer pair (Additional file 2: Table S1). The results showed that 28 Bacillus species and 16 Bacillus-related species could be amplified by the gyrA3 primers (Fig. 3 blue and green), while the remaining 4 Bacillus species and 8 Bacillus-related species could not be amplified by the gyrA3 primers. Of these Bacillus species, marked in green in the phylogenetic tree, 7 species were detectable by both methods (Fig. 3 green). In summary, the primer pair gyrA3 can potentially detect 76 Bacillus species and as many as 16 species from related genera (Fig. 3).
The gyrA gene provides better intraspecific phylogenetic resolution than the 16S rRNA gene among certain species
Compared to 16S rRNA, the molecular evolution rate of gyrA gene sequences is faster (Timmis and Ramos 2021), so we hypothesized that gyrA might provide better phylogenetic resolution at the subspecies level. The single nucleotide polymorphisms (SNPs) analysis of the 16S rRNA (V3-V4 region) and the gyrA gene (gyrA3 amplicon region) was performed in four Bacillus species (B. amyloliquefaciens, B. pumilus, B. megaterium and B. anthracis). We did not include an analysis of the B. subtilis genomes because templates for gyrA primers have already been developed and applied for analyses of this species (Roberts et al. 1994; Ansaldi et al. 2002; De Clerck et al. 2004; Stefanic and Mandic-Mulec 2009).
In B. amyloliquefaciens, the 480 bp long 16S rRNA region (V3-V4 region) contained 12 variable base sites (Fig. 4A and Additional file 1: Fig. S3A), which were detected in only 4 of 116 genomes of this species (Fig. 4A), and the SNPs frequency at variable sites within the 4 genomes ranged from 0.21%-1.46% (Additional file 1: Fig. S3C red column). In contrast, the 500-nucleotide gyrA region (positions 350–850) contained 59 variable sites (Fig. 4B and Additional file 1: Fig. S3B). The variable sites were detected in 109 of 116 genomes (Fig. 4B), and the frequency of SNPs at the variable sites ranged from 0.4% to 6.4% (Additional file 1: Fig. S3C blue column).
In B. pumilus, alignment of the 16S rRNA V3-V4 region revealed 21 variable base sites (Fig. 4C and Additional file 1: Fig. S4A), but again only in 11 out of 140 genomes (Fig. 4C). The frequency of SNPs at variable sites ranged from 0.21% to 3.54% (Additional file 1: Fig. S4C red column). In contrast, in the gyrA gene, 130 of the base sites were variable (Fig. 4D and Additional file 1: Fig. S4B) and these were found in 87 of 140 genomes, with SNPs frequencies at variable sites ranging from 0.2% to 15.8% (Additional file 1: Fig. S4C blue column). However, in B. pumilus nearly 50% of the genomes examined had 100% identity in the gyrA gene, indicating a high degree of relatedness between genomes that may require sequencing of additional marker genes for clonality verification and strain typing.
We also observed that the variation of the gyrA gene is quite different in different Bacillus species, which could be a bias of the NCBI database or property of certain species. For example, B. megaterium showed lower diversity with 3 bases of variation in the 16S rRNA alignment region (V3-V4 region) (Additional file 1: Fig. S5A and Fig. S6A). Although 48 of 117 genomes showed polymorphism, the maximum SNPs frequency at variable sites of B. megaterium genomes was only 0.42% (Additional file 1: Fig. S6C red column). The gyrA gene was again more polymorphic with 58 bases of variation (Additional file 1: Fig. S5B, S6B) occurring in 99 of 117 genomes, with SNPs’ frequencies at variable sites ranging from 0.2% to 2.8% (Additional file 1: Fig. S6C blue column).
The variation divergence between the 2 genes of B. anthracis was much lower than in the three Bacillus species described above. Although we identified 13 variable base sites in the 16S rRNA V3-V4 region and 65 variable base sites in the gyrA gene region (Additional file 1: Fig. S5C, D and Additional file 1: Fig. S7A, B), the SNPs occurred in only 7 and 18 of 226 genomes, respectively. Moreover, the SNPs frequencies at variable sites in 7 and 18 of B. anthracis genomes were also low: 0.21%-1.04% and 0.2%-7.4%, respectively (Additional file 1: Fig. S7C).
Overall, our results showed that within Bacillus species the frequency of SNPs in the gyrA gene was consistently much higher than in the 16S rRNA (Fig. 4 and Additional file 1: Fig. S5). We therefore suggest that the gyrA gene provides better resolution than 16S rRNA for identification and typing of Bacillus isolates at the subspecies level. This is particularly true for B. amyloliquefaciens, B. pumilus and B. megaterium but less so for B. anthracis (Table 1).
The resolution power of Bacillus mock community gyrA amplicon sequencing
Our results above suggest that the amplicon sequence of the primer pair gyrA3 could be used as a molecular marker for diversity analysis of Bacillus. Next, we aimed to design a mock community to test the efficacy of the primers gyrA3 and used the general 16S rRNA primers (V3-V4) as a positive control. For better comparison, we designed 2 additional primer pairs, gyrA4 and gyrA5, which are very close to the position of the gyrA3 in the gyrA gene (Additional file 1: Fig. S8). We selected eight strains belonging to four species (B. altitudinis, B. licheniformis, B. velezensis and L. pakistanensis) and successfully amplified their gyrA gene by gyrA3, gyrA4 and gyrA5 primer pairs in a routine PCR for selected strains (Fig. 5A).

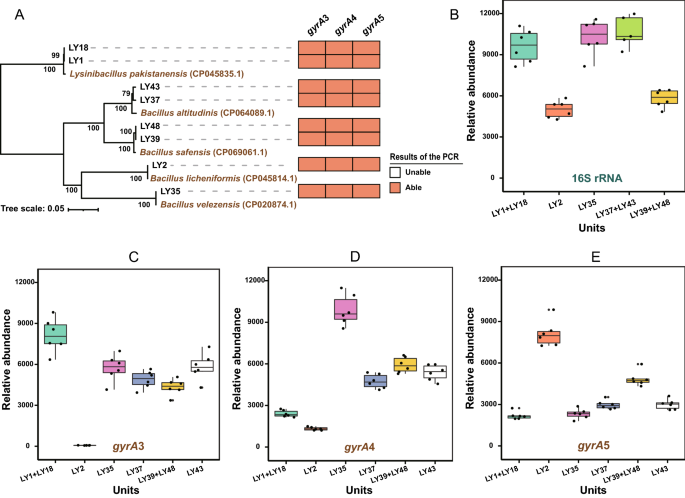

Next, we constructed a mock community of eight strains to retest the resolution power of the three gyrA primer pairs and the 16S rRNA-specific primers. Our goal was to test whether the primer pair is suitable for determining the diversity of the mock community (Fig. 5). Sequencing of the 16S rRNA amplicons showed that 16S rRNA primers could distinguish only five units, as strains LY1 and LY18, LY37 and LY43, and LY39 and LY48 had identical V3-V4 nucleotide sequence (Fig. 5B). The gyrA primer pairs were capable of resolving 6 units, but gyrA4 and gyrA5 produced amplicons of variable abundance and preferentially amplified LY35 and LY2, respectively (Fig. 5C–E). In comparison, primers gyrA3 also amplified six fragments but the relative abundance of these amplicons was more uniform (Additional file 2: Table S7) with the exception of LY2 strain (Fig. 5C). Our data suggest that gyrA3 has potential for Illumina amplicon sequencing of more complex Bacillus communities.
It is believed that the diversity of microorganisms in nature is immense, so its detection remains a challenge (Widder et al. 2016). Molecular tools (e.g., for specific amplification of marker genes) combined with high-throughput sequencing are expected to open the door to the vast diversity of microorganisms (Klindworth et al. 2013). Here, we systematically investigated the potential of the gyrA gene as a marker gene for the taxonomic typing of Bacillus isolates and assessment of Bacillus community composition by amplicon sequencing. The novel gyrA3 primer pair is capable of detecting 76 Bacillus species by virtual and colony PCR; hence, our results suggest that the gyrA gene is a good phylogenetic marker for detecting intra- and interspecific diversity of the genus Bacillus.
Although 16S rRNA is widely used as a molecular marker for bacterial community analyses (Clarridge 2004), its amplicon sequencing can only describe community diversity at the genus level (Gupta et al. 2019). This is particularly true for Bacillus species, which exhibit very low interspecific variability (Vos et al. 2012). In contrast, faster evolution and consequently higher diversity of the gyrA gene (Timmis and Ramos 2021) suggests that this gene might provide higher phylogenetic resolution than the 16S rRNA gene within the genus Bacillus. In our study, the differential effect of the gyrA gene on Bacillus interspecies and several Bacillus species was better than that of 16S rRNA (Fig. 1). Moreover, the results of comparative sequence analysis (16S rRNA V3-V4 region and the gyrA3 amplicon region of the gyrA gene) of the four species showed the wider range of SNPs in the gyrA genes than in the 16S rRNA (Fig. 4, Additional file 1: Fig. S5 and Table 1). Our results are consistent with findings that housekeeping genes, including gyrA, evolve much faster than 16S rRNA genes and are suitable for the identification and typing of closely related species (Poirier et al. 2018) and the intraspecific resolution of isolates, as previously shown for B. subtilis (Roberts et al. 1994; Ansaldi et al. 2002). Because protein-coding genes involved in DNA processing have evolved differently than rRNA, protein translation is affected by the degenerative codes, and nucleotide changes may propagate along genes without affecting amino acid sequence. Therefore, housekeeping genes encoding proteins are more powerful than 16S rRNA in distinguishing between highly related strains (Navarro and Martínez-Murcia 2018).
To date, there have been only a few reports in which conserved genes (e.g., rpoB and gyrB) have been used as templates for amplicon sequencing of microbial communities (Vos et al. 2012; Poirier et al. 2018; Ogier et al. 2019). These reports show that sequencing of conserved protein-coding genes provides a more accurate description of bacterial community composition than 16S rRNA sequencing. Specifically, the rpoB gene has been used in addition to the 16S rRNA molecular marker for high-throughput sequencing studies of species diversity in the Proteobacteria phylum (Vos et al. 2012).
Caution should be recommended when using single protein-coding genes as molecular markers, as they may exhibit different phylogenetic resolutions or may be subjected to possible horizontal gene transfer or recombination processes (Navarro and Martínez-Murcia 2018). However, many previous studies have reported the application of the gyrA gene in the identification and typing of Bacillus strains, so the gyrA gene should not have the above-mentioned concerns (Chun and Bae 2000; Hurtle et al. 2004; Stefanic and Mandic-Mulec 2009; Stefanic et al. 2012, 2015). And we identified here its resolution power for 76 Bacillus species (Fig. 3) and propose that the diversity of the Bacillus community can be more accurately assessed by combining 16S rRNA and gyrA amplicon sequencing.
As a molecular marker, the housekeeping gene gyrA also has some limitations, unlike ribosomal RNA, due to the high variability of protein-encoding housekeeping gene sequences, the design of universal sequencing primers is not always achievable (Schleifer 2009). Therefore, the inability of primer pair gyrA3 to amplify strains of the entire Bacillus genus is also expected, as has been previously described for the Escherichia genus (Johnning et al. 2015). Besides, the choice of the amplified region (ie, the design of the primers) affects the discrimination of the Bacillus species by the gyrA gene. The gyrA amplicon region we selected was well suited for resolving subspecies of B. amyloliquefaciens, B. pumilus, and B. megaterium. For B. anthracis, which is known for its low diversity (Lista et al. 2006) intraspecific resolution was limited (Fig. 4 and Additional file 1: Fig. S5). Moreover, in the high-throughput amplicon sequencing of eight strains, the primer pair gyrA3 also showed different advantages from the primer pairs gyrA4 and gyrA5 (Fig. 5). The primer pair gyrA3 also had its blind area in the detection, this could be due to the extremely high similarity of the gyrA genes in selected genomes, some of which have even identical gyrA sequences. However, the gyrA3 distinguished very well two strains with highly similar gyrA genes such as LY37 and LY43, which 16S rRNA did not (Fig. 5). Although primers for amplicon sequencing of the gyrA gene had certain limitations, such as not amplifying all selected targets or not reflecting the abundance of added DNA, this study has put forward the advantages that gyrA3 covers the broadest diversity of Bacillus species reported to date.
In summary, this study investigated the application of the gyrA gene as a molecular marker in Bacillus subspecies typing and high-throughput sequencing of the Bacillus mock community. The greater ability of gyrA-based analyses to distinguish Bacillus strains at the subspecies level should increase resolution and provide more reliable results for the ecological studies of the genus Bacillus. We believe that the primer pair will have broad applications in Bacillus research.
Availability of data and materials
Data and materials used in the analysis are available upon request from the corresponding authors for the purposes of reproducing or extending the analysis. Amplicon sequencing reads from the 16S rRNA gene and gyrA gene are available at NCBI Sequence Read Archive under accession number PRJNA823863.
Ansaldi M, Marolt D, Stebe T, Mandic-Mulec I, Dubnau D (2002) Specific activation of the Bacillus quorum-sensing systems by isoprenylated pheromone variants. Mol Microbiol 44:1561–1573. https://doi.org/10.1046/j.1365-2958.2002.02977.x
Borshchevskaya LN, Kalinina AN, Sineokii SP (2013) Design of a PCR test based on the gyrA gene sequence for the identification of closely related species of the Bacillus subtilis group. Appl Biochem Microbiol 49:646–655. https://doi.org/10.1134/S0003683813070028
Chun J, Bae KS (2000) Phylogenetic analysis of Bacillus subtilis and related taxa based on partial gyrA gene sequences. Antonie Van Leeuwenhoek 78:123–127. https://doi.org/10.1023/A:1026555830014
Clarridge JE (2004) Impact of 16S rRNA gene sequence analysis for identification of bacteria on clinical microbiology and infectious diseases. Clin Microbiol Rev 17:840–862. https://doi.org/10.1128/CMR.17.4.840-862.2004
Cole JR, Wang Q, Fish JA, Chai B, McGarrell DM, Sun Y, Brown CT, Porras-Alfaro A, Kuske CR, Tiedje JM (2014) Ribosomal database project: data and tools for high throughput rRNA analysis. Nucleic Acids Res 42:D633–D642. https://doi.org/10.1093/nar/gkt1244
Cozzarelli NR (1980) DNA gyrase and the supercoiling of DNA. Science 207:953–960. https://doi.org/10.1126/science.6243420
De Clerck E, Vanhoutte T, Hebb T, Geerinck J, Devos J, De Vos P (2004) Isolation, characterization, and identification of bacterial contaminants in semifinal gelatin extracts. Appl Environ Microbiol 70:3664–3672. https://doi.org/10.1128/AEM.70.6.3664-3672.2004
Edgar RC (2013) UPARSE: Highly accurate OTU sequences from microbial amplicon reads. Nat Methods 10:996–998. https://doi.org/10.1038/nmeth.2604
Edgar R (2016) UNOISE2: improved error-correction for Illumina 16S and ITS amplicon sequencing. bioRxiv. https://doi.org/10.1101/081257
Gupta S, Mortensen MS, Schjørring S, Trivedi U, Vestergaard G, Stokholm J, Bisgaard H, Krogfelt KA, Sørensen SJ (2019) Amplicon sequencing provides more accurate microbiome information in healthy children compared to culturing. Commun Biol 2:291. https://doi.org/10.1038/s42003-019-0540-1
Hurtle W, Bode E, Kulesh DA, Kaplan RS, Garrison J, Bridge D, House M, Frye MS, Loveless B, Norwood D (2004) Detection of the Bacillus anthracis gyrA gene by using a minor groove binder probe. J Clin Microbiol 42:179–185. https://doi.org/10.1128/JCM.42.1.179-185.2004
Johnning A, Kristiansson E, Fick J, Weijdegård B, Larsson DGJ (2015) Resistance mutations in gyrA and parC are common in Escherichia communities of both fluoroquinolone-polluted and uncontaminated aquatic environments. Front Microbiol 6:1355. https://doi.org/10.3389/fmicb.2015.01355
Johnson JS, Spakowicz DJ, Hong B, Petersen LM, Demkowicz P, Chen L, Leopold SR, Hanson BM, Agresta HO, Gerstein M, Sodergren E, Weinstock GM (2019) Evaluation of 16S rRNA gene sequencing for species and strain-level microbiome analysis. Nat Commun 10:5029. https://doi.org/10.1038/s41467-019-13036-1
Kasai H, Tamura T, Harayama S (2000) Intrageneric relationships among Micromonospora species deduced from gyrB-based phylogeny and DNA relatedness. Int J Syst Evol Microbiol 50:127–134
Katoh K, Misawa K, Kuma KI, Miyata T (2002) MAFFT: A novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res 30:3059–3066. https://doi.org/10.1093/nar/gkf436
Klindworth A, Pruesse E, Schweer T, Peplies J, Quast C, Horn M, Glöckner FO (2013) Evaluation of general 16S ribosomal RNA gene PCR primers for classical and next-generation sequencing-based diversity studies. Nucleic Acids Res 41:e1. https://doi.org/10.1093/nar/gks808
Letunic I, Bork P (2019) Interactive Tree of Life (iTOL) v4: Recent updates and new developments. Nucleic Acids Res 47:W256–W259. https://doi.org/10.1093/nar/gkz239
Levican A, Collado L, Figueras MJ (2013) Arcobacter cloacae sp. nov. and Arcobacter suis sp. nov., two new species isolated from food and sewage. Syst Appl Microbiol 36:22–27. https://doi.org/10.1016/j.syapm.2012.11.003
Lista F, Faggioni G, Valjevac S, Ciammaruconi A, Vaissaire J, Le Doujet C, Gorgé O, De Santis R, Carattoli A, Ciervo A, Fasanella A, Orsini F, D’Amelio R, Pourcel C, Cassone A, Vergnaud G (2006) Genotyping of Bacillus anthracis strains based on automated capillary 25-loci multiple locus variable-number tandem repeats analysis. BMC Microbiol 6:1–14. https://doi.org/10.1186/1471-2180-6-33
Mandic-Mulec I, Stefanic P, van Elsas JD (2015) Ecology of Bacillaceae. Microbiol Spectr 3:59–85. https://doi.org/10.1128/microbiolspec.TBS-0017-2013
McDonald D, Price MN, Goodrich J, Nawrocki EP, Desantis TZ, Probst A, Andersen GL, Knight R, Hugenholtz P (2012) An improved greengenes taxonomy with explicit ranks for ecological and evolutionary analyses of bacteria and archaea. ISME J 6:610–618. https://doi.org/10.1038/ismej.2011.139
Ménard A, Buissonnière A, Prouzet-Mauléon V, Sifré E, Mégraud F (2016) The GyrA encoded gene: a pertinent marker for the phylogenetic revision of Helicobacter genus. Syst Appl Microbiol 39:77–87. https://doi.org/10.1016/j.syapm.2015.09.008
Navarro A, Martínez-Murcia A (2018) Phylogenetic analyses of the genus Aeromonas based on housekeeping gene sequencing and its influence on systematics. J Appl Microbiol 125:622–631. https://doi.org/10.1111/jam.13887
Ogier JC, Pagès S, Galan M, Barret M, Gaudriault S (2019) rpoB, a promising marker for analyzing the diversity of bacterial communities by amplicon sequencing. BMC Microbiol 19:171. https://doi.org/10.1186/s12866-019-1546-z
Oslizlo A, Stefanic P, Vatovec S, Beigot Glaser S, Rupnik M, Mandic-Mulec I (2015) Exploring ComQXPA quorum-sensing diversity and biocontrol potential of Bacillus spp. isolates from tomato rhizoplane. Microb Biotechnol 8:527–540. https://doi.org/10.1111/1751-7915.12258
Pinto AJ, Raskin L (2012) PCR biases distort bacterial and archaeal community structure in pyrosequencing datasets. PLoS ONE 7:e43093. https://doi.org/10.1371/journal.pone.0043093
Poirier S, Rué O, Peguilhan R, Coeuret G, Zagorec M, Champomier-Vergès MC, Loux V, Chaillou S (2018) Deciphering intra-species bacterial diversity of meat and seafood spoilage microbiota using gyrB amplicon sequencing: a comparative analysis with 16S rDNA V3–V4 amplicon sequencing. PLoS ONE 13:e0204629. https://doi.org/10.1371/journal.pone.0204629
Quast C, Pruesse E, Yilmaz P, Gerken J, Schweer T, Yarza P, Peplies J, Glöckner FO (2013) The SILVA ribosomal RNA gene database project: improved data processing and web-based tools. Nucleic Acids Res 41:590–596. https://doi.org/10.1093/nar/gks1219
R Core Team (2020) R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna
Roberts MS, Nakamura LK, Cohan FM (1994) Bacillus mojavensis sp. nov., distinguishable from Bacillus subtilis by sexual isolation, divergence in DNA sequence, and differences in fatty acid composition. Int J Syst Bacteriol 44:256–264. https://doi.org/10.1099/00207713-44-2-256
Rozas J, Ferrer-Mata A, Sanchez-DelBarrio JC, Guirao-Rico S, Librado P, Ramos-Onsins SE, Sanchez-Gracia A (2017) DnaSP 6: DNA sequence polymorphism analysis of large data sets. Mol Biol Evol 34:3299–3302. https://doi.org/10.1093/molbev/msx248
Schleifer KH (2009) Classification of bacteria and archaea: past, present and future. Syst Appl Microbiol 32:533–542. https://doi.org/10.1016/j.syapm.2009.09.002
Stefanic P, Mandic-Mulec I (2009) Social interactions and distribution of Bacillus subtilis pherotypes at microscale. J Bacteriol 191:1756–1764. https://doi.org/10.1128/JB.01290-08
Stefanic P, Decorosi F, Viti C, Petito J, Cohan FM, Mandic-Mulec I (2012) The quorum sensing diversity within and between ecotypes of Bacillus subtilis. Environ Microbiol 14:1378–1389. https://doi.org/10.1111/j.1462-2920.2012.02717.x
Stefanic P, Kraigher B, Lyons NA, Kolter R, Mandic-Mulec I (2015) Kin discrimination between sympatric Bacillus subtilis isolates. Proc Natl Acad Sci USA 112:14042–14047. https://doi.org/10.1073/pnas.1512671112
Sun D-L, Jiang X, Wu QL, Zhou N-Y (2013) Intragenomic heterogeneity of 16S rRNA genes causes overestimation of prokaryotic diversity. Appl Environ Microbiol 79:5962–5969. https://doi.org/10.1128/AEM.01282-13
Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S (2011) MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol Biol Evol 28:2731–2739. https://doi.org/10.1093/molbev/msr121
Timmis K, Ramos JL (2021) The soil crisis: the need to treat as a global health problem and the pivotal role of microbes in prophylaxis and therapy. Microb Biotechnol 14:769–797. https://doi.org/10.1111/1751-7915.13771
Van De PY, Chapelle S, De WR (1996) A quantitative map of nucleotide substitution rates in bacterial rRNA. Nucleic Acids Res 24:3381–3391. https://doi.org/10.1093/nar/24.17.3381
Vos M, Quince C, Pijl AS, de Hollander M, Kowalchuk GA (2012) A comparison of rpoB and 16S rRNA as markers in pyrosequencing studies of bacterial diversity. PLoS ONE 7:e30600. https://doi.org/10.1371/journal.pone.0030600
Widder S, Allen RJ, Pfeiffer T, Curtis TP, Wiuf C, Sloan WT, Cordero OX, Brown SP, Momeni B, Shou W, Kettle H, Flint HJ, Haas AF, Laroche B, Kreft JU, Rainey PB, Freilich S, Schuster S, Milferstedt K, Van Der Meer JR, Grobkopf T, Huisman J, Free A, Picioreanu C, Quince C, Klapper I, Labarthe S, Smets BF, Wang H, Soyer OS, Allison SD, Chong J, Lagomarsino MC, Croze OA, Hamelin J, Harmand J, Hoyle R, Hwa TT, Jin Q, Johnson DR, de Lorenzo V, Mobilia M, Murphy B, Peaudecerf F, Prosser JI, Quinn RA, Ralser M, Smith AG, Steyer JP, Swainston N, Tarnita CE, Trably E, Warren PB, Wilmes P (2016) Challenges in microbial ecology: building predictive understanding of community function and dynamics. ISME J 10:2557–2568. https://doi.org/10.1038/ismej.2016.45
Yamamoto S, Kasai H, Arnold DL, Jackson RW, Vivian A, Harayama S (2000) Phylogeny of the genus Pseudomonas: intrageneric structure reconstructed from the nucleotide sequences of gyrB and rpoD genes. Microbiology 146:2385–2394. https://doi.org/10.1099/00221287-146-10-2385
Yoon SH, Ha SM, Kwon S, Lim J, Kim Y, Seo H, Chun J (2017) Introducing EzBioCloud: a taxonomically united database of 16S rRNA gene sequences and whole-genome assemblies. Int J Syst Evol Microbiol 67:1613–1617. https://doi.org/10.1099/ijsem.0.001755
This work was financially supported by the National Nature Science Foundation of China (31972512 and 42090064), the Fundamental Research Funds for the Central Universities (KYXK202009). The Innovative Research Team Development Plan of the Ministry of Education of China (Grant No. IRT_17R56). PS and IMM were supported by the Program Grant P4-0116 funded by the Slovenian national research agency (ARRS).
Ethics approval and consent to participate
This article does not contain any studies with human participants or animals performed by any of the authors.
The authors declare no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Figure S1 The agarose gel electrophoresis of DNA amplification products of three gyrA gene primer pairs: gyrA1 (A), gyrA2 (B) and gyrA3 (C). 1-7 indicates strains LY18, LY25, LY37, FZB42, SXL408, SXL277 and ACCC01043. Figure S2 The amplification ability of the primer pair gyrA1 and gyrA2 in Bacillus species by computer simulation. The eight Bacillus species were amplified by gyrA1 and nine Bacillus species were amplified by gyrA2. The phylogenetic trees were constructed based on gyrA gene (2403 bp). Figure S3 Polymorphisms in the 16S rRNA and gyrA gene’s regions of B. amyloliquefaciens (116 genomes). (A) The proportion of variation at different base sites along the 16S rRNA V3-V4 region. (B) The proportion of variation at the different base positions of the gyrA gene region. (C) The proportion of variants along 16S rRNA (red column) and gyrA gene (blue column) region in different genomes. Figure S4 Polymorphisms in the 16S rRNA and gyrA gene’s region of B. pumilus (140 genomes). (A) The proportion of variation at different base sites along the 16S rRNA (B) and the gyrA gene. (C) The proportion of variable base sites in 16S rRNA (red column) and gyrA (blue column) sequences in different genomes. Figure S5 Alignment of the 16S rRNA and gyrA sequences of B. megaterium (117 genomes) and B. anthracis (226 genomes). Sequences were aligned using L-INS-I method of MAFFT (v7.487). The analysis involved positions along 16S rRNA from 330-810 and along gyrA from 350-850. On the left side of the graph GCF reference numbers of genomes were displayed, with reference sequence GCF_002577645.1 displayed at the top for B. megaterium and GCF_000007845.1 for B. anthracis. The display of base site variation was drawn using MEGA (v.5.05). The colored line (red or blue) indicates a variation of specific base sites as compared to the reference sequence. Figure S6 Polymorphisms in the 16S rRNA and gyrA gene’s regions of B. megaterium (117 genomes). (A) The proportion of variation at different base sites along the 16S rRNA V3-V4 region. (B) The proportion of variation at the different base positions of the gyrA gene region. (C) The proportion of variants along 16S rRNA (red column) and gyrA gene (blue column) region in different genomes. Figure S7 Polymorphisms in the 16S rRNA and gyrA gene’s region of B. anthracis (226 genomes). (A) The proportion of variation at different base sites along the 16S rRNA gene (B) and the gyrA gene. (C) The proportion of variable base sites in 16S rRNA (red column) and gyrA (blue column) sequences in different genomes. Figure S8 Description of gyrA gene primer pairs for amplicon sequencing. (A) The position of gyrA amplicons was obtained by primer pairs gyrA3, gyrA4 and gyrA5. (B) PCR amplification of eight Bacillus strains by gyrA gene primer pairs. The orange square indicates positive and white square unsuccessful amplification. The phylogenetic tree was contracted based on the complete gyrA genes (2469 bp) (Supplemental Dataset S2) by using the Neighbor-Joining method in MEGA 5.05 software. The reliability of clades was tested by the 1000 bootstrap replications.
TableS1 The information of 127 strains for colony PCR. TableS2 The genomes information for nucleotide variability analysis of gyrA gene and 16S rRNA gene in inter- and intraspecies Bacillus. TableS3 The gyrA gene database information of Bacillus for computer simulation. TableS4 The general primers converted from degenerate primer pair gyrA3. TableS5 The genomes information for SNP analysis of gyrA gene and 16S rRNA gene in four Bacillus species. TableS6 The information of sequences amplified by three gyrA gene primer pairs in computer simulation. TableS7 The analysis results of mock community amplicon sequencing. DatasetS1 The 16S rRNA gene sequences of the eight Bacillus strains for mock Bacillus community. DatasetS2 The gyrA gene sequences of the eight Bacillus strains for mock Bacillus community. DatasetS3 The 16S rRNA gene sequences of the seven Bacillus strains.
