Evaluation of antimicrobial and cytotoxic effects of Echinacea and Arctium extracts and Zataria essential oil
AMB Express volume 12, Article number: 75 (2022)
Abstract
Dental caries and oral infections have become a widespread issue in the modern world. This study aimed to investigate the antibacterial, antifungal, and cytotoxicity characteristics of the extracts of Echinacea purpura, Arctium lappa, and the essential oil of Zataria multiflora as a potential herbal mouthwash. The essential oil of Z. multiflora leaves and the extracts of E. purpurea and A. lappa roots were prepared. The characterization was carried out by GC-MS and also, total phenol and flavonoid were assed for all three samples. The antimicrobial and anti-biofilm effects were evaluated against Streptococcus mutans, Streptococcus mitis, Streptococcus salivarius, Lactobacillus acidophilus, Escherichia coli, Staphylococcus aureus, and Candida albicans. The cytotoxic effect of the samples was evaluated on HEK 293 and HDFa cells by MTT test. Thymol and carvacrol contents in EO of Z. multiflora were measured at 31% and 42.2%, respectively. A. lappa had the lowest total phenolic and flavonoid value among the samples. On the other hand, the total phenolic content of Z. multiflora and the total flavonoid content of E. purpurea were the highest. The MIC values of Zataria, Arctium, and Echinacea against S. mutans were 0.011% v/v, 187.5 mg/ml, and 93.75 mg/ml, while MBC were 0.011% v/v, 375 mg/ml, and 187.5 mg/ml, respectively. The formulation showed bactericidal activity against S. mutans in the concentration of 5.86 mg/ml for Echinacea and Burdock extracts and 0.08 µl/ml for EO of Zataria. The formulation significantly affected microbial biofilm formation and induced biofilm degradation. The cell viability percentages were higher than 50% during 24 and 48 h. The formulation had a significant antimicrobial effect on cariogenic bacteria and C. albicans, with the lowest cytotoxic effects. Therefore, this formulation can be an appropriate candidate for mouthwash.
Introduction
Dental caries is a disease in which an ecological shift within the dental biofilm environment, fueled by frequent access to fermentable dietary carbohydrates, causes a shift from a balanced population of low cariogenic microorganisms to a microbiological population of high cariogenicity (more aciduric and acidogenic), as well as an increase in the production of organic acids. This causes net mineral loss in the dental hard tissue, resulting in a carious lesion (Innes et al. 2016). Poor oral hygiene, dental caries, and periodontal infections have been linked to various illnesses, including gastrointestinal and cardiovascular diseases, as well as preterm labor and low-birthweight babies (Romero et al. 2002; Beck et al. 2005; Jia et al. 2009). Moreover, the costs of inflammatory mouth diseases and tooth decay to a country's health system are enormous. According to one report, the total direct and indirect costs (absenteeism and reduced productivity) of these diseases are estimated at $ 422 billion per year worldwide, underscoring the importance of oral health (Listl et al. 2015). Therefore, the best way to reduce these direct and indirect costs is to prevent caries and gingivitis. According to the etiology of dental caries, the formation of dental plaque is the first step in developing gingivitis and dental caries. Dental plaque is considered a dense and non-calcified microbial accumulation that adheres to tooth surfaces that are not washed away by saliva flow (Rosan et al. 2000). Therefore, preventing plaque formation and removing plaque formed on dental surfaces is the best way to promote oral health and prevent tooth decay. Mechanical and chemical methods are recommended to remove formed plaque from the teeth. Brushing as a mechanical method of removing plaque is considered the most accessible method of preventing dental caries (Wootton 2005; Jakubovics et al. 2021). Due to the inadequacy of mechanical methods in the comprehensive removal of plaques, chemical methods are also used to complete the mechanical removal. Mouthwashes are the most common method in the chemical control of plaque (Madhavi et al. 2020).
Mouthwashes are classified as either chemical (synthetic) or herbal. Chemical mouthwashes are available in a variety of forms. Chlorhexidine mouthwash as a synthetic product is widely used due to its wide range of antimicrobial effects and low cost. Chlorhexidine works against bacteria by disrupting their cell membranes (Azgomi et al. 2016). Despite chlorhexidine's antimicrobial and anti-inflammatory properties, its numerous side effects, such as tooth staining, unpleasant taste in the mouth, mouth irritation, gingivitis, and side effects from potential swallowing, have limited its usage (Kumar 2017). Therefore, it is necessary to do more studies to find more suitable alternatives with better therapeutic effects and fewer side effects. According to a study conducted by the World Health Organization in 2013, more than 80% of the world's population relies on traditional medicines for their primary health needs (Qi 2013). Because of the long tradition of people's interaction with nature, medicinal plants have played a significant role in treating diseases in Iran. Iran has a diverse flora and a wealth of information about its natural medicinal plants. Native plants with antimicrobial properties are used in rural villages in Iran, but there is no scientific evidence to prove them. As a result, screening and research into these herbs could lead to the discovery of new antimicrobial compounds (Amiri et al. 2021). In recent years, the use of herbal medicines has increased significantly in many areas of health and wellness, but in oral health, the use of herbs is limited. Despite various laboratory and clinical studies on different medicinal plants, there are limited commercial products in this field (Cruz Martinez et al. 2017; Anushya et al. 2020). The most well-known herbal mouthwash is Listerine, which contains four essential oils menthol, thymol, eucalyptol, methyl salicylate, and 27% ethanol (Vlachojannis et al. 2015).
Zataria multiflora (Avishan-e-Shirazi) from the Lamiaceae family has been known as a plant in Iranian food and medicine culture for a long time and has been used more to relieve gastrointestinal disorders. However, numerous articles have been published on its antimicrobial and anti-inflammatory. Antioxidant properties, immune system stimulant, and antispasmodic, and good results have been reported. Also the antibacterial effect of essential oils of this plant on pathogenic caries has been shown in oral and dental health (Hashemi et al. 2017; Khazdair et al. 2018; Saeidi et al. 2019). Zataria multiflora is the only native thyme species in Iran and grows in Isfahan, Lorestan, Khuzestan, Fars, Bushehr, Kerman, Hormozgan, Baluchistan, Khorasan, and Yazd. In contemporary medicine, the root of Arctium (Baba Adam, Burdock) from the Asteraceae family is used as a diuretic and anti-inflammatory agent. In traditional medicine, the first-year leaves of the plant are widely used as anti-inflammatory, anti-cancer, diuretic, diaphoretic, and choleretic agents (Ahangarpour et al. 2017; Nascimento et al. 2019; Zhang et al. 2019). There have also been studies on diabetes that have shown that it lowers blood sugar. It has also been used externally for wound healing, regenerative agents, and tissue regeneration. Researchers have proven the antibacterial effect of this plant (Ahangarpour et al. 2017; Nascimento et al. 2019; Zhang et al. 2019). These plants are cultivated in Tehran, Alborz, Khorasan, Kerman, Rudbar, Tafresh, Europe, and North America. Numerous clinical studies have been performed on Echinacea from the Asteraceae family to evaluate the preventive or therapeutic effect on infections and the modulating effect on the immune system. These studies have claimed that plant-based products have a significant effect on stimulating the immune system. Echinacea has been shown to affect the severity and duration of gingivitis and dental plaque. This herbal medicine generally has no side effects, and even swallowing could not cause the related problems (Dronyk et al. 2017; Billah et al. 2019; Izadi et al. 2020). While it is not native to Iran, it has been introduced to native Iranian plants in recent years. This plant's antimicrobial properties have recently been recognized and attributed to the presence of phenolic compounds (Fathi et al. 2021). In this study, the cytotoxicity and antimicrobial effects of the essential oil, herbal extracts, and final formulation as mouthwash (Zataria multiflora, Echinacea purpura, and Arctium lappa) were evaluated on fibroblast cells/HEK 293 and Streptococcus mutans, Streptococcus mitis, Streptococcus salivarius, Lactobacillus acidophilus, Escherichia coli, Staphylococcus aureus, and Candida albicans, respectively.
Materials and methods
Materials
Streptococcus mutans (ATCC: 35,668), Streptococcus mitis (ATCC: 6249), Streptococcus salivarius (ATCC: 13,419), Lactobacillus acidophilus (ATCC:314), Candida albicans (89–1093), Staphylococcus aureus (ATCC: 29,213), and Escherichia coli (ATCC: 25,922), Human embryonic kidney cells (HEK 293, NCBI: C497) and Human Dermal fibroblast cells (HDFa) (HFSF-PI 3, NCBI: C167) were gifted from Baqiyatallah University of Medical Sciences, Tehran, Iran. Brain Heart Infusion (BHI) broth and agar and Chrystal violet were provided from Merck (Darmstadt, Germany). MTT Kit was obtained from Bioidea (Iran). Dimethyl sulfoxide (DMSO) was obtained from Sigma‐Aldrich. Dulbecco's modified Eagle's medium (DMEM), Fetal bovine serum (FBS), phosphate‐buffered saline (PBS), trypsin, anti‐streptomycin, and beta-glycerol were purchased from Gibco (New York, USA).
Plant sampling and extraction
Zataria multiflora
The aerial parts of Zataria multiflora were collected from rural districts of Fars province (29°33′17″ N, 52°41′02E”) near Shiraz (Fig. 1). A botanist identified the plant at the Tehran University of Medical Sciences, Tehran, Iran. One kilogram of aerial parts was dried in the shade and pulverized. An all-glass Clevenger type apparatus performed Hydro-distillation of the plant for about 3 h. The obtained essential oil was dehydrated by anhydrous sodium sulfate and kept in a closed container away from light in a refrigerator at 4 °C in up to use (Sadeghi et al. 2015). The essential oil color was light yellow, and it had a strong, penetrating thyme odor.
Echinacea purpura
The root of E. purpura was received from Darab, Fars, Iran (28°45′26″ N, 54°31′07″ E) (Fig. 1). Chopped plant material (300 mg) was immersed in 1.2 L of 70% EtOH solution for 3 days, and during this time, the extract was stirred twice. After 3 days, it was filtered, and for the remaining plant, this process was repeated two more times. Finally, the ethanol was removed using a rotary evaporator [BUCHI Rotavapor R-114, Germany], and the extracts were separated by lyophilization using a freeze-drier HETOSICC, Heto Lab Equipment, Denmark. A total of 29 g of dry brown extract was obtained.
Arctium lappa
Burdock root was received from Isfahan, Iran (29°33′17″ N, 52°41′02″) (Fig. 1) and approved by the botanist of the Faculty of Pharmacy of Tehran University of Medical Sciences. The dried roots were cut into pieces, and 500 g was added into 2 L of 40% EtOH and kept at room temperature for 3 days. During this time, the mixture was stirred twice. The mixture was filtered, and for the remaining plant, these steps were repeated two more times. Finally, a rotary evaporator was used to remove the solvent, and the water was removed through the freeze-drier to have 25 g lyophilized extract.
Phytochemical screening
Measurement of the total amount of phenolic compounds
The measurement was performed according to Wolfe et al. (2003) method with some changes. 2 ml of Folin-Ciocalteu diluted 1: 10 with water was added to 0.5 ml of each extract and then sodium carbonate (75 g/L, 2 mL). The mixture was centrifuged for 15 s and left at 30 °C for 30 min to complete staining. The absorption associated with the 765 nm wavelength was measured. Gallic acid was used to calculate the standard chromium (R2 = 0.999, 0.05–0.8 mM: y = 1.683x + 0.044). Results were reported in mg equivalent of Gallic acid (GAE) per ml of extract solution (Wolfe et al. 2003).
Measurement of the total amount of flavonoid compounds
The measurement was performed according to Jia et al. (1999) method with some changes. 5 ml of each extract was mixed with deionized water (2 ml), and then sodium nitrite solution (5%, 0.15 mL) was added. After 6 min, AlCL3 solution (10%, 0.15 ml) was added and left for 6 min longer. Then, sodium hydroxide (4%, 2 ml) and deionized water were added to make a final volume of 5 ml. Finally, the resulting solution was left for 15 min, and the pink color intensity was calculated at a wavelength of 510 nm. Catechin was used to calculate the standard chromium (0.0156–1.0182 mM; y = 0.98766x—0.0008; R2 = 0.999) and the results were reported in milligrams equivalent to catechin per milliliter of extract solution (Zhishen et al. 1999).
GC-MS detection of thymol and carvacrol in the essential oil
For GC-MS analysis, an electron ionization system was used with a 70 eV ionization energy. As a carrier gas, helium gas was used at a constant flow rate of 1 ml.min−1. The injector and mass transfer line temperatures were set to 250 °C and 300 °C, respectively. The oven temperature was programmed to rise from 50 to 200 °C at the constant pace of 8 °C min−1, then kept isothermally for 20 min before being lifted to 300 °C at 10 °C min−1. In the splitless mode, diluted samples (1/100 v/v, in methanol) of 0.2 µl were manually injected. GC retention time on the VF-5 capillary column and algorithm matching of mass spectra with standards were used to identify essential oil compounds. Wiley's library analysis and the ISIRI No 5192 determined the form of components entering mass spectrometry (Saei-Dehkordi et al. 2010).
Cytotoxicity study
Cell culture
Human embryonic kidney cells (HEK 293) were grown in Dulbecco's modified eagle medium (DMEM) containing 10% fetal bovine serum (FBS), streptomycin sulfate (10 mg/ml), and penicillin G sodium (10 units/ml) at 37 °C in a humidified incubator with 5% CO2 and 90% humidity. The culture media was replaced every 48 h (80 percent). Next, cells were used from the second passage.
Cell viability test
The cytotoxic effects of the extracts, the essential oil, and the formulation on Human Dermal Fibroblast cells (HDFa) and Human Embryonic Kidney cells (HEK 293) (Pasteur Institute, Tehran, Iran) were measured by 3-(4, 5-dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide (MTT) assay method (ISO 10993-5). Cells were incubated for 24 h before adding to 96 plates. Cells cultured without extracts were used as a control. After 24 and 48 h, the solution was replaced with 5 mg/mL MTT. Then, the MTT solution was removed, and after 3 h, 0.1 mL isopropanol was added to dissolve the Formazan product. Their absorption was monitored at 570 nm on a microplate reader. The findings were presented as percentages (control value = 100%). These tests were performed three times. The percentage of cell viability was measured using the following equation:
Antimicrobial tests
Preparation of final sample concentration for the antimicrobial tests
To obtain the solution, 1.5% (v/v) of Zataria multiflora essential oil was prepared with distilled water. Also, a 1.5 g/ml concentration was prepared from lyophilized extracts of Echinacea and Arctium.
Bacterial strain
The bacterial strains used in this experiment were Streptococcus mutans, Streptococcus mitis, Streptococcus salivarius, Lactobacil acidophilus, Staphylococcus aureus, and Escherichia coli. The cultures were stored at −80 °C in brain heart infusion (BHI) containing 20% glycerol (v/v). The concentration of the strains in the study was adjusted to a final concentration of 0.5 McFarland (1.5 × 108 CFU/mL) before the experiment. The stock culture of C. albicans was inoculated initially into 30 mL of sterilized Yeast Peptone Dextrose (YPD) broth to form the C. albicans suspension. The concentration of C. albicans in the study was adjusted to a final concentration of 0.5 McFarland (1.5 × 106 CFU/mL) before the experiment.
Determination of minimum inhibitory concentration (MIC), minimum bactericidal concentration (MBC), and minimal fungicidal concentration (MFC) tests
MIC and MBC were measured using the broth microdilution method. Serial doubling dilutions of the extract suspensions were prepared in a 96-well microtiter plate. The final concentration of each strain was adjusted to 105–106 CFU/ml. All microtiter plates were incubated for 24 h at 37 °C. After incubation, wells were examined for the growth of microorganisms, and the MIC was determined. MIC was defined as the lowest concentration of the extracts tested, showing restricted growth at a lower level than 0.05 at 660 nm (no visible growth). To determine MBC, an aliquot (50 ml) of each incubated tube containing extract suspension at concentrations higher than the MIC was sub-cultured on BHI agar supplemented with 5% defibrinated horse blood using a Spiral Plater (Whitley Automatic Spiral Plater). MBC and MFC were defined as the lowest concentration of essential oil or dry extracts in which incubating microorganisms are entirely killed. Each experiment was repeated three times. Chlorhexidine digluconate 0.2% (v/v) was used as a positive control for determining MIC and MBC. After obtaining MIC and MBC extracts, the required concentration of each extract in the formulation was obtained. MIC and MBC of the formulation were also performed as described.
Disc Agar Diffusion test (DAD)
The disk diffusion method was also used to measure antimicrobial activity. For microbial strains, prepared new suspensions separately were inoculated with sterile swabs on BHI agar medium and cultured as grass. In the next step, each sample and formulation (the appropriate concentration of each extract in the formulation were obtained after the determination of the MIC and MBC of each sample) in the amount of 50 μl were poured on sterile blank paper discs with a diameter of 6 mm (Padtan Teb, Iran) to be absorbed by the disc. The discs were then placed on the culture medium with sterile forceps at a distance of 24 mm from each other. After placing the plates at the appropriate temperature and time, the diameter of the bacterial growth inhibition zone around the disk was measured in millimeters. Physiological serum was used for negative control. For positive control, 0.2% chlorhexidine gluconate mouthwash was used. The experiments were repeated three times.
The biofilm formation evaluation
To perform this test, the micro-dilution method was used. Pathogenic bacteria were cultured for 18–24 h in TSB, complete with 1% turbidity sucrose equivalent to half McFarland. The suspension was diluted 1: 100 in TSB with 1% sucrose. Each extract with a twice concentration of MBC and the formulation separately was used to affect the rate of biofilm formation. 200 μl of an equal volume mixture of bacterial suspension and extract solution (100 μl suspension of pathogenic bacteria and 100 μl of extract and mouthwash) was transferred to each well in the microplates. Negative control wells contained 200 μl of the same volume mixture of bacterial suspension and physiological saline, and 0.2% chlorhexidine was used as a positive control. The plate surface was then covered and incubated in the incubator for 24 h at 37 °C. After 24 h, the contents of the well were removed, and the wells were washed three times with phosphate saline buffer. This was done due to the removal of disconnected cells. At this stage, the cells adhering to the bottom of the well were stained with 1% violet crystal and filled with 200 μl of 33% glycolic acetic acid. After 15 min, the optical density of each well at 570 nm was read by an ELISA reader, and the biofilm formation rate (%) was calculated using the following equation:
where OD treatment and OD control refer to the absorbance at 570 nm in each well with and without the samples, respectively, after the addition of dissolving solution.
The biofilm degradation evaluation
A biofilm degradation activity test was also performed to investigate the destructive activity on biofilm by the micro-dilution method. Biofilms were formed from TSB medium with synthetic saliva (McDougall solution), 3% glucose, and inoculation of bacteria and fungi in 96-well microplates. The resulting composition was incubated for 24 h at 37 °C. As soon as the biofilm was made, the rest of the culture medium was discarded. The extracts were obtained at twice the concentration of MBC, and the formulation solution was added and then incubated again for 24 h at 37 °C. The biofilms attached to the well's walls were washed using phosphate buffer. 1% violet crystal was added to the walls and placed there for 15 min. The wells were then rinsed with sterile water three times, and 95% alcohol was added. The suspension was incubated for 45 min, and the solution was transferred to a new microplate. The optical density of the suspension in each well was measured using a microplate reader with a wavelength of 570 nm to determine the extent of biofilm degradation. Chlorhexidine 0.2% was used for positive control and physiological serum for negative control. The biofilm reduction rate (%) was calculated using the following equation:
where OD treatment and OD control refer to the absorbance at 570 nm in each well with and without the samples, respectively, after the addition of dissolving solution.
Statistical analysis
All tests were independently performed in triplicates. The results obtained were analyzed using a one-way ANOVA test accompanied by a Tukey post hoc test to compare means among groups. The importance level became set at p ≤ 0.05. Statistical evaluation was carried out with SPSS statistics model 20.
Results
Phytochemical analysis
The results of the determination of total phenolic and flavonoid compounds from the samples are illustrated in Table 1. Arctium lappa had the lowest total phenolic and flavonoid value of the samples. On the other hand, the total phenolic content of Zataria multiflora and the total flavonoid content of Echinacea purpurea were the highest.

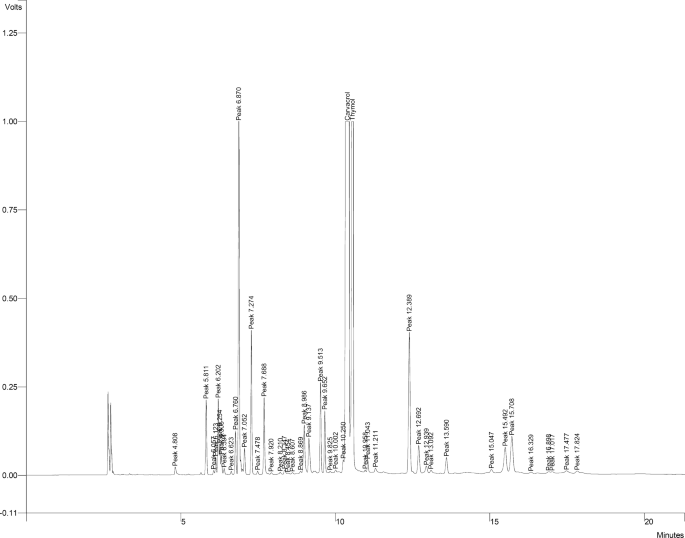

Figure 2 illustrates the gas chromatogram of the GC-MS analysis of Zataria multiflora EO. Two major peaks were identified as thymol and carvacrol from the GC-MS database. Thymol and carvacrol content in Z. multiflora EO were measured at 310,740 and 424,000 ppm, equal to 31% and 42.2%, respectively.
Antimicrobial analysis
The MIC and MBC values of each sample are presented in Table 2. In this study E, Z, A, and F stand for the samples of Echinacea purpurea, Zataria multiflora, Arctium lappa, and the formulation. Echinacea purpurea had a bacteriostatic and bactericidal effect against almost all tested samples and had lower concentrations than Arctium lappa.
Taking the MBC values of the three herbal samples into consideration, the initial concentrations of herbal extracts in the formulation was suggested as follows: E: 187.5 mg/ml, A: 187.5 mg/ml, Z: 2.81 µl/ml. Table 3 illustrates MIC and MBC test results that showed the restricted growth of S. mutans, S. salivarius, S. mitis, E.coli, and S. aureus at the concentrations of 2.93 mg/ml for E and A and 0.04 µl/ml for Z which means the fraction 1/64 of primary concentration of A, E, and Z in the formulation could inhibit the growth of these bacteria. Moreover, the MBCs and MFCs were twice the value of MICs for all samples, which means a formulation consisted of Zataria essential oil at the lowest concentration of 0.08 µl/m, and Burdock and Echinacea extracts at the concentrations of 5.86 mg/ml could significantly reduce Streptococcus species associated with dental caries completely.
In Table 4, the diameters of inhibition zones of samples are illustrated. The mean diameter of the inhibition zone for the formulation against S. mutans was 20 mm, which is the highest number and most effective compared to other species. However, the inhibition zone diameter was determined against Candida albicans (14 mm). Zones of Z and F inhibition against S. mutans had no significant difference with the gold standard, Chlorhexidine 0.2% (p > 0.05%).
The effect of samples on the prevention of biofilm formation was tested using the micro-dilution method. Biofilm formation rates of samples are reported in percentage in Table 5. These percentages compare the biofilm formation of the tested microorganisms during exposure of different samples with the control group by measuring the optical density of each well at 570 nm. The formulation had a significant effect against the biofilm formation of all tested bacteria (p < 0.001) and Candida albicans (p = 0.02). However, chlorhexidine 0.2% as the positive control had a significantly higher effect than other samples (p < 0.001). Arctium lappa had no significant effect against all tested biofilms compared to the control group (p > 0.05). Zataria multiflora was the most effective sample against biofilm formation among Z, A, and E. On top of that, it must be stated that the formulation had a significantly higher anti-biofilm effect compared with Z.
The effect of extracts on biofilms was tested using the same method. In this case, the percentage biofilm reduction rate was calculated and illustrated in Table 6. The formulation had a significant effect on all groups of biofilms (p < 0.001). However, its effectiveness was significantly lower than Chlorhexidine 0.2% (p < 0.001). Sample E had a significant effect only against L. acidophilus biofilm (p = 0.015), while sample A effect on biofilm reduction was not significant (p > 0.05). The most biofilm reduction rate of samples F and Z was observed against S. mitis (35%, 17%, respectively).
Cell viability evaluation

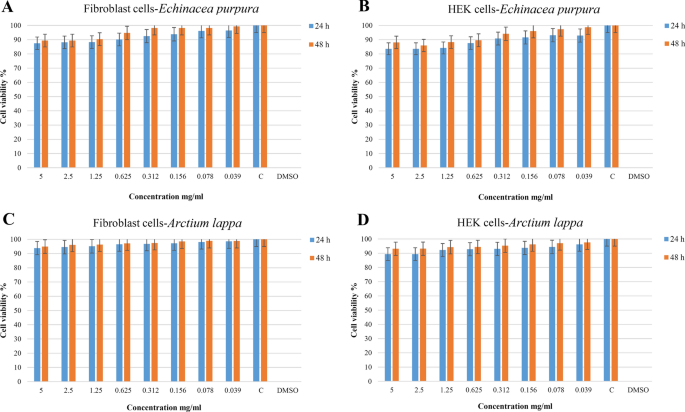

To determine the possible effect of E, A, Z and formulation on cell growth, the two types of cells (HEK 293 and HDFa cells) were incubated with E (39–5000 µg/mL), A (39–5000 µg/mL), Z (0.39%-50%) and F (1/128-1) for 24 and 48 h, and the cell viability was measured using MTT assay. A significant reduction of viable cells was observed using extracts in a dose and time-dependent pattern. By determining of optical density of vital cells after treatment with the samples for incubation times of 24 and 48 h, the cell viability percentage for both cell lines was calculated compared to the control group. These percentages are illustrated in Figs. 3 and 4.
It was observed that cell viability was decreased by increasing the concentrations, but these decreases were not significant below a specific concentration for each of these samples (p > 0.05). The cell viability percentages were higher than 50% in the tested concentrations for all groups.
Discussion
The establishment of pathogenic microorganisms can cause serious health issues, especially infections associated with biofilm. As a result, discovering anti-biofilm agents is essential and provides an effective tool for preventing oral cavity infections. The oral colonizer S. mutans is the most common. The bacterium adheres to the tooth surface, creating ideal conditions for secondary colonizers, including Lactobacillus species, to colonize. Plaque management is therefore crucial, with natural antimicrobial mouth rinses complementing and synergistically assisting mechanical plaque elimination. Herbal mouthwashes are moderately effective and less toxic than prescription mouthwashes like chlorhexidine (de Oliveira Carvalho et al. 2020). This research focuses on the anti-carious effect of Zataria multiflora, Echinacea purpurea, and Arctium lappa extracts on cariogenic bacteria and Candida albicans.
Zataria multiflora has long been used in traditional Iranian medicine. Zataria multiflora has antimicrobial, antioxidant, anti-inflammatory, antispasmodic, and analgesic effects as an edible plant and valuable medicine, according to clinical and pharmacological studies (Khazdair et al. 2018). This plant's essential oils contain a high percentage of oxygen monoterpenes, especially thymol and carvacrol, and have antimicrobial properties. In general, the antimicrobial property of this plant appears to be its most intriguing biological impact (Niczad et al. 2019). In Zataria multiflora, Saei Dehkordi discovered that a high percentage of thymol and carvacrol induced antiseptic properties. Because of their lipophilic origin and attachment to the cell membrane of bacteria, thymol and carvacrol disrupt bacteria's activity. The essential oil can withstand high temperatures and a wide variety of pH levels (Saei-Dehkordi et al. 2010).
Alipour et al. (2018) developed and tested an herbal mouthwash containing oak bark extract and Zataria essential oils. The researchers studied formulations containing 0.15% Zataria essential oil obtained by hydro-distillation and various amounts of tannin, the active ingredient in oak bark extract. In this analysis, the best formulation had tannin concentrations of 0.2 and 0.5 percent and significantly outperformed Persica mouthwash in terms of antimicrobial effect. The active ingredients thymol and carvacrol in Zataria multiflora were found to have 44 and 23 percent, respectively (Alipour et al. 2018). In 2010, Owlia et al. (Owlia et al. 2010) conducted research on the antimicrobial effects of Zataria multiflora on caries-causing streptococci in teeth. The MICs for S. sanguis, S. salivaius, and S. mutans were 15%, 20%, and 10%, respectively. These bacteria had MBC values of 25%, 20%, and greater than 25%, respectively. The number of bacteria that died was influenced by the amount of the extract and the duration of exposure. In this way, as the concentration and exposure time of the extract improved, so did its effectiveness against bacteria. Finally, the writers recommend using this plant as a medication (mouthwash), which was done in this article. Sharififar et al. (2007) found that Zataria multiflora has a more significant effect on gram-negative bacteria (Sharififar et al. 2007), while Dehkordi et al. 2010 compared Shirazi thyme from different Iranian regions and discovered that gram-negative bacteria are more resistant to it. Escherichia coli O157:H7 was the most resistant organism, and Candida tropicalis was the most susceptible, with MICs of 16 and 0.062 mg/ml, respectively (Saei-Dehkordi et al. 2010). Zataria multiflora essential oil has been involved in eliminating Enterococcus faecalis and cleaning the dental canal (Ravanshad et al. 2007). Khakzad et al. investigated the cytotoxic effects of Satureja khuzistanica and Zataria multiflora essential oils on the growth inhibition of PBMC and K562 cell lines. Hydro-distillation was used to collect the essential oils from the plants. The MTT test was used to assess the effects of four different concentrations (12.5, 25, 50, and 100 g/ml) of Z. multiflora essential oils on cell viability in PBMC and K562 cell lines after 24, 48, and 72 h of incubation. For the standard PBMC and K562 cell lines, the 50% growth inhibitory concentration (IC50) of Z.multiflora oil was 64.97 and 42.82 (µg/mL), respectively (Khakzad et al. 2019).
Few studies have investigated Echinacea's antibacterial activity in dental caries. Still, its antibacterial effect on respiratory bacteria such as Hemophilus influenzae and Legionella pneumophila is due to its dual anti-inflammatory and bactericidal effects (Sharma et al. 2010). High anti-inflammatory properties, helping to heal mucosal wounds, and strong anti-viral effect made it very beneficial to be included in this formulation as an adjuvant extract. Echinacea has been found to affect gingivitis severity and duration and dental plaque. Owing to the benefits of herbal compounds over chemical mouthwashes, like fewer side effects, a comparison of Echinacea solution and chlorhexidine on dental plaque and gingivitis improvement reveals that Echinacea extract solution has significantly improved decreased dental plaque and the incidence of gingivitis as compared to chlorhexidine. Hence, it can be considered a suitable alternative to chlorhexidine (Safarabadi et al. 2017). Fathi et al. discovered that S.officinalis, L.citriodora, and M.piperita essential oils, but not E.purpurea and M.chamomilla extracts, could dissolve the biofilms formed by the oral pathogen bacteria. The herbal mixture of these extracts decomposed the biofilm on the teeth in 45 s. According to light and electron microscopy findings, the bacterial structure exposed to the herbal mixture was deformed (Fathi et al. 2021). Izadi et al. 2020 demonstrated that the ethanolic extract contained the highest total phenolic content and cichoric acid. The antimicrobial ability of purple coneflower aqueous and ethanolic extracts were higher in the ethanolic extract with a 3000 g/ml concentration. At doses of 25 and 50 mg/ml, the aqueous extract of purple coneflower has no effect on gram-negative bacteria growth. According to the findings, the ethanolic extract had a larger inhibitory effect on the examined strains than the aqueous extract. Depending on the bacteria, the MIC of purple coneflower ethanolic extract ranged from 16 to 256 mg/ml (gram-positive or gram-negative) (Izadi et al. 2020). Wang et al. assessed the cytotoxic effect of Echinacea extracts prepared from the whole plant, stem and leaf, flower, and root to analyze the viability of human dendritic cells (DCs). Except for the whole plant group, none of the extracts were cytotoxic at 1 to 100 g/ml (Wang et al. 2006).
The lyophilized extract of burdock leaves has been shown to have antimicrobial activity against oral microorganisms, mainly bacteria linked to endodontic pathogens such as Bacillus subtilis, Lactobacillus acidophilus, and Pseudomonas aeruginosa (Pereira et al. 2005). The MIC and MBC concentrations of the extract of A. lappa on B. subtilis were 600 and 750 mg/ml, respectively. Also, these values were 230 and 540 mg/ml for H. influenza (Habibipour et al. 2015). Chlorogenic acid isolated from the extract of this plant has shown inhibitory effects on Escherichia coli, Micrococcus luteus, and Staphylococcus aureus (Xuezheng et al. 2004). Oliviera et al. evaluated the antimicrobial activity of Arctium lappa L. extract on Staphylococcus aureus, S. epidermidis, Streptococcus mutans, Candida albicans, C. tropicalis, and C. glabrata. In addition, the cytotoxicity of this extract was analyzed on macrophages (RAW 264.7).The most effective concentration was 250 mg/mL and also promoted significant reduction in the biofilms of S. aureus, S. epidermidis, S. mutans and C. albicans. Cell viability was similar to 100% (de Oliveira et al. 2014).
In the present study, the formation and degradation of biofilm showed that although Zataria multiflora essential oil (twice the concentration of MBC) was effective on the biofilm formation and degradation of bacterial and Candida species, this effect was more significant when combining Zataria multiflora essential oil with Burdock and Echinacea extracts. However, the extract of Burdock and Echinacea alone had a limited effect on the biofilm growth of the tested species of the bacteria and Candida albicans. These findings revealed that the formulation containing the essential oil of Zataria multiflora and extracts of Echinacea and Burdock inhibited the development of Streptococcus mutans biofilm by more than half and had the most significant effects on Streptococcus mutans as compared to other bacterial strains and Candida. In terms of biofilm degradation, it had the most considerable effect on Streptococcus mitis.
As to what limitations the study has, it is in-vitro research, and the formulation needs to be tested clinically in future research. The other limitation is that different extraction methods obtained from different parts of plants from different locations could compare to obtain the optimum thymol level, carvacrol, total flavonoid, and phenolic content. Nonetheless, the amount of these components in the extracts was at acceptable levels. While having a noticeable impact on bacterial organisms, the formulation was less effective than chlorhexidine 0.2% mouthwash. However, since chlorhexidine mouthwash has many side effects when used for a long time, including tooth pigmentation, changes in taste, burning and dry mouth, flatulence of the gums, and side effects from potential swallowing (Jones 1997), using herbal mouthwash without any significant side effects can be a beneficial alternative, even with a lower antimicrobial and biofilm impact. This mouthwash is purely herbal without adding alcohol or any other additives as other products found on the market. Antimicrobial studies specifically demonstrate that this formulation is a potent plaque inhibitor that could be used as a promising ingredient in herbal mouthwash. The mixture blocked plaque formation and degraded biofilm formation and had no cytotoxic effects on normal human cells at the concentrations used. However, further long-term clinical trials are required to include the much-needed standardization and certification of the mouthwash to overcome the drawbacks of the standard gold chlorhexidine.
Availability of data and materials
All the data generated or analyzed during this study are included in this published article, and also, the datasets analyzed to support the findings of this study are available from the corresponding author upon request.
References
Ahangarpour A, Heidari H, Oroojan AA, Mirzavandi F, Esfehani KN, Mohammadi ZD (2017) Antidiabetic, hypolipidemic and hepatoprotective effects of Arctium lappa root’s hydro-alcoholic extract on nicotinamide-streptozotocin induced type 2 model of diabetes in male mice. Avicenna J Phytomed 7(2):169–179
Alipour S, Dehshahri S, Afsari A (2018) Preparation and Evaluation of a Herbal mouthwash containing Oak Husk of Quercus brantii and Zataria multiflora. Jundishapur J Nat Pharm Prod 13(3):e13420
Amiri MS, Yazdi MET, Rahnama M (2021) Medicinal plants and phytotherapy in Iran: glorious history, current status and future prospects. Plant Sci Today 8(1):95–111
Anushya P, Priya AJ, Arivarasu L (2020) Role of herbal medicine in dental health-a detailed review. EJMCM 7(1):2185–2196
Azgomi RND, Akbarzadeh A, Ebrahimi F, Khoshbakht Z (2016) Sanoon: a specialized dosage form for dental diseases in traditional persian medicine. Biomed Pharmacol J 9(3):1171–1182
Beck JD, Offenbacher S (2005) Systemic effects of periodontitis: epidemiology of periodontal disease and cardiovascular disease. J Periodontol 76:2089–2100
Billah MM, Hosen MB, Khan F, Niaz K (2019) Nonvitamin and nonmineral nutritional supplements. Academic Press, Cambridge
Cruz Martinez C, Diaz Gómez M, Oh MS (2017) Use of traditional herbal medicine as an alternative in dental treatment in Mexican dentistry: a review. Pharm Biol 55(1):1992–1998
de Oliveira JR, de Aguiar Almeida RB, das Gracas Figueiredo Vilela P, de Oliveira FE, da Rocha RF, Jorge AOC, de Oliveira LD (2014) Control of microorganisms of oral health interest with Arctium lappa L. (burdock) extract non-cytotoxic to cell culture of macrophages (RAW 264. 7). Arch Oral Biol 59(8):808–814
de Oliveira CI, Purgato GA, Piccolo MS, Pizziolo VR, Coelho RR, Diaz-Munoz G, Alves Nogueira Diaz M (2020) In vitro anticariogenic and antibiofilm activities of toothpastes formulated with essential oils. Arch Oral Biol 117:104834
Dronyk I, Shostenko A (2017) A comparative characteristic of toothpastes and rinses for the oral cavity in a comprehensive therapy of patients with chronic catarrhal gingivitis. J East Eur Sci Res (bratisl) 19(3–1):42–44
Fathi F, Sadrnia M, Arjomandzadegan M, Mohajerani HR (2021) In vitro and in vivo evaluation of antibacterial and anti-biofilm properties of five ethnomedicinal plants against oral bacteria by TEM. Avicenna J Phytomed 11(2):180–189
Habibipour R, Rajabi M (2015) Antibacterial effects of Arctium lappa and Artemesia absinthium extracts in laboratory conditions. J Herbmed Pharmacol 4(4):133–137
Hashemi SA, Azadeh S, Nouri BM, Navai RA (2017) Review of pharmacological effects of Zataria multiflora Boiss (thyme of Shiraz). Int. j. med 6(8):78–84
Innes NP, Frencken JE, Bjorndal L, Maltz M, Manton DJ, Ricketts D, Van Landuyt K, Banerjee A, Campus G, Domejean S, Fontana M, Leal S, Lo E, Machiulskiene V, Schulte A, Splieth C, Zandona A, Schwendicke F (2016) Managing carious lesions: consensus recommendations on terminology. Adv Dent Res 28(2):49–57
Izadi Z, Mirazi N (2020) Extracts of purple coneflower (Echinacea purpurea L) against some gram positive and gram negative bacteria. Armaghane danesh 25(2):162–180
Jakubovics NS, Goodman SD, Mashburn-Warren L, Stafford GP, Cieplik F (2021) The dental plaque biofilm matrix. Periodontol 2000 86(1):32–56
Jia CL, Jiang GS, Li CH, Li CR (2009) Effect of dental plaque control on infection of Helicobacter pylori in gastric mucosa. J Periodontol 80(10):1606–1609
Jones CG (1997) Chlorhexidine: is it still the gold standard? Periodontol 2000 15:55–62
Khakzad S, Rahmani F, Hojjati M, Tabandeh MR (2019) Anti-carcinogenic effects of Satureja khuzistanica and Zataria multiflora essential oils on K562 cell line proliferation. J Food Bioproc Eng 2(2):127–132
Khazdair MR, Ghorani V, Alavinezhad A, Boskabady MH (2018) Pharmacological effects of Zataria multiflora Boiss L. and its constituents focus on their anti-inflammatory, antioxidant, and immunomodulatory effects. Fundam Clin Pharmacol 32(1):26–50
Kumar SB (2017) Chlorhexidine mouthwash-a review. J Pharm Sci Res 9(9):1450–1452
Listl S, Galloway J, Mossey PA, Marcenes W (2015) Global economic impact of dental diseases. J Dent Res 94(10):1355–1361
Madhavi B, Prasanna JS (2020) Pragmatic effect of an essential oil mouthwash as an adjunct to scaling on bacterial growth and gingival inflammation: a randomized controlled study. J Oral Res 12(2):76
Nascimento BAC, Gardinassi LG, Silveira IMG, Gallucci MG, Tome MA, Oliveira JFD, Moreira MRA, Meirelles AFG, Faccioli LH, Tefe-Silva C, Zoccal KF (2019) Arctium lappa extract suppresses inflammation and inhibits melanoma progression. Medicines (basel) 6(3):81
Niczad A, Sharafzadeh S, Alizadeh A, Amiri B, Bazrafshan F (2019) Variability in essential oil constituent, phenolic content, antioxidant and antimicrobial activities of different Ecotypes of Zataria multiflora Boiss. from Iran. J Essent Oil-Bear Plants 22(6):1435–1449
Owlia P, Pirveicy H, Saderi H, Rezvani M, Mansouri S (2010) Evaluation of the antimicrobial effects of extract of Zataria multiflora against oral streptococci. IJPR. https://doi.org/10.22037/IJPR.2010.521
Pereira JV, Bergamo DCB, Pereira JO, França SdC, Pietro RCLR, Silva-Sousa YTC (2005) Antimicrobial activity of Arctium lappa constituents against microorganisms commonly found in endodontic infections. Braz Dent J 16(3):192–196
Qi Z (2013) Who traditional medicine strategy. 2014–2023. World Health Organization, Geneva
Ravanshad S, Basiri E, Dastgheib B (2007) Antimicrobial activity of different concentrations of essential oil of Zataria multiflora on Enterococcus faecalis. J Dent 8(1):28–36
Romero BC, Chiquito CS, Elejalde LE, Bernardoni CB (2002) Relationship between periodontal disease in pregnant women and the nutritional condition of their newborns. J Periodontol 73(10):1177–1183
Rosan B, Lamont RJ (2000) Dental plaque formation. Microbes Infect 2(13):1599–1607
Sadeghi H, Robati Z, Saharkhiz MJ (2015) Variability in Zataria multiflora Bioss. essential oil of twelve populations from Fars province. Iran Ind Crops Prod 67:221–226
Saei-Dehkordi SS, Tajik H, Moradi M, Khalighi-Sigaroodi F (2010) Chemical composition of essential oils in Zataria multiflora Boiss. from different parts of Iran and their radical scavenging and antimicrobial activity. Food Chem Toxicol. 48(6):1562–1567
Saeidi S, Mohsenbeygi M, Roustakhiz J, Javadian F, Hassanshahian M (2019) Antimicrobial and anti-biofilm effects of Mentha piperita and Zataria multiflora on pathogenic bacteria. J Med Bacteriol 8(1–2):37–44
Safarabadi M, Ghaznavi-Rad E, Pakniyat A, Rezaie K, Jadidi A (2017) Comparing the effect of echinacea and chlorhexidine mouthwash on the Microbial Flora of intubated patients admitted to the intensive care unit. Iran J Nurs Midwifery Res 22(6):481–485
Sharififar F, Moshafi M, Mansouri S, Khodashenas M, Khoshnoodi M (2007) In vitro evaluation of antibacterial and antioxidant activities of the essential oil and methanol extract of endemic Zataria multiflora Boiss. Food Control 18(7):800–805
Sharma S, Anderson M, Schoop S, Hudson J (2010) Bactericidal and anti-inflammatory properties of a standardized Echinacea extract (Echinaforce®): dual actions against respiratory bacteria. Phytomedicine 17(8–9):563–568
Vlachojannis C, Chrubasik-Hausmann S, Hellwig E, Al-Ahmad A (2015) A preliminary investigation on the antimicrobial activity of Listerine®, its components, and of mixtures thereof. Phytother Res 29(10):1590–1594
Wang CY, Chiao MT, Yen PJ, Huang WC, Hou CC, Chien SC, Yeh KC, Yang WC, Shyur LF, Yang NS (2006) Modulatory effects of Echinacea purpurea extracts on human dendritic cells: a cell- and gene-based study. Genomics 88(6):801–808
Wolfe K, Wu X, Liu RH (2003) Antioxidant activity of apple peels. J Agric Food Chem 51(3):609–614
Wootton JC (2005) Classifying and defining complementary and alternative medicine. J Altern Complement Med 11(5):777–778
Xuezheng L, Chunyan L, Kaoshan C, Guangyou L (2004) Extraction and content comparison of chlorogenic acid in Arctium lappa L. leaves collected from different terrain and its restraining bacteria test. Nat Prod Res 16(4):328–330
Zhang N, Wang Y, Kan J, Wu X, Zhang X, Tang S, Sun R, Liu J, Qian C, Jin C (2019) In vivo and in vitro anti-inflammatory effects of water-soluble polysaccharide from Arctium lappa. Int J Biol Macromol 135:717–724
Zhishen J, Mengcheng T, Jianming W (1999) The determination of flavonoid contents in mulberry and their scavenging effects on superoxide radicals. Food Chem 64(4):555–559
