Genome-wide identification of the fatty acid desaturases gene family in four Aspergillus species and their expression profile in Aspergillus oryzae

Contributed equally
AMB Express20188:169

https://doi.org/10.1186/s13568-018-0697-x

  • Received: 10 June 2018
  • Accepted: 9 October 2018
  • Published:

Abstract

Fatty acid desaturases play a key role in producing polyunsaturated fatty acids by converting single bonds to double bonds. In the present study, a total of 13, 12, 8 and 8 candidate fatty acid desaturases genes were identified in the Aspergillus oryzae, Aspergillus flavus, Aspergillus fumigatus and Aspergillus nidulans genomes through database searches, which were classified into five different subfamilies based on phylogenetic analysis. Furthermore, a comprehensive analysis was performed to characterize conserved motifs and gene structures, which could provide an intuitive comprehension to learn the relationship between structure and functions of the fatty acid desaturases genes in different Aspergillus species. In addition, the expression pattern of 13 fatty acid desaturases genes of A. oryzae was tested in different growth stages and under salt stress treatment. The results revealed that the fatty acid desaturases genes in A. oryzae were highly expressed in adaptive phase growth and up-regulated under salt stress treatment. This study provided a better understanding of the evolution and functions of the fatty acid desaturases gene family in the four Aspergillus species, and would be useful for seeking methods to improve the production of unsaturated fatty acids and enhance efforts for the genetic improvement of strains to adapt to the complex surrounding environment.

Keywords

  • Fatty acid desaturases
  • Genome-wide
  • Phylogenetic analysis
  • Expression patterns

Introduction

Unsaturated fatty acids, which contain one or more double bonds, are the major structural components of cell membranes. Therefore, they play significant roles in maintaining cell structure and the membrane fluidity, which are involved in development, energy metabolism and stress response (Pereira et al. 2003). Unsaturated fatty acids are synthesized by individual fatty acid desaturases via introducing double bonds into the hydrocarbon chains of fatty acids (Chi et al. 2011; Shanklin and Cahoon 1998). Fatty acid desaturases are found in almost all organisms, including plants, animals, bacteria and fungi. According to localization and cofactor requirements, fatty acid desaturases have been broadly classified into two evolutionary groups: soluble and membrane-bound desaturases. The soluble fatty acid desaturases, such as the plant Acyl-carrier-protein (ACP) desaturase family, use acyl carrier protein thioesters as substrates, and use ferredoxin oxidoreductase and ferredoxin as electron donors. The membrane-bound fatty acid desaturases, which include Δ5-, Δ6-, Δ9-, Δ12- and Δ15-desaturase in the mammals, fungi, insects, higher plants and cyanobacteria, use fatty acids esterified to complex lipid as the substrate, and use cytochrome (cyt) b5 oxidoreductase and cyt b5 as electron donors. In addition, most of fatty acid desaturases share three highly conserved histidine boxes: ʻHXXXXHʼ, ʻHXXHHʼ and ʻQXXHHʼ included in the fatty acid desaturases domain. The fatty acid desaturases domain was the essential domain of the fatty acid desaturases gene family. However, some researches revealed that the cytochrome b5 domain play a key role in the synthesis of unsaturated fatty acids as an electron donor to activate desaturase (Pereira et al. 2003). Zhang et al. reported that the cytochrome b5 is required for biosynthesis of polyunsaturated fatty acids in Caenorhabditis elegans (Zhang et al. 2005). Although fatty acid desaturases orthologs of different organisms share some obvious structure characteristics, the structural and functional features were distinctive among plants, animals and fungi. Most studies of fatty acid desaturases gene family focused on plants and animals. For example, Liu et al. characterized 19 genes encoding fatty acid desaturases and analyzed their expression profiles in Gossypium raimondii under low temperature (Liu et al. 2015). Xue et al. cloned and characterized fatty acid desaturases gene family from Salvia hispanica and Perilla frutescens (Xue et al. 2018).

Compared with unsaturated fatty acids production in animals and plants, microbes possess many advantages in the production of polyunsaturated fatty acids. For instance, unsaturated fatty acids production in microbes has a short production cycle and is unaffected by sites, climates and seasons. Besides, it is suitable to exploit new functional lipid using diverse strains and culture medium. Furthermore, lower eukaryotes contain diverse fatty acid desaturases to produce polyunsaturated fatty acids (PUFA). Therefore, in recent years, microbial fatty acid desaturases have attracted great attention of researchers. Sakuradani et al. isolated and cloned ∆6 desaturase gene from Mortierella alpina IS-4. Then the ∆6 desaturase gene was expressed in Aspergillus oryzae (A. oryzae) and the results showed that the content of gamma linolenic acid (GLA) in total fatty acids was up to 25.2% (Sakuradani et al. 1999). Sakuradani et al. improved arachidonic acid (ARA) production by generating mutants with lower desaturation activity derived from Mortierella alpine (Sakuradani et al. 2004). On the other hand, researches related to the function of fatty acid desaturases from fungus on stress response are also a hotspot. Cheawchanlertfa et al. revealed that the up-regulated expression of desaturase genes from Mucor rouxii was responded to low temperature (Cheawchanlertfa et al. 2011). The fatty acid desaturases genes in A. oryzae were up-regulated in response to salinity stress (He et al. 2017a). In brief, the fatty acid desaturases genes in fungi are responsible for multiple biological processes, from development and industrial production to adaption to the surrounding environment. However, systematic investigations of the fatty acid desaturases gene family at the whole-genome level was absent in fungi, especially in Aspergillus species, as Aspergillus species always encounter complex environments, artificially or non-artificially introduced (He et al. 2018).

With the price reduction of genome sequencing and the development of sequencing technology, the genome sequences were increasing available to provide opportunities for identifying important gene families at the whole-genome level. Millerozyma farinosa formerly known as Pichia farinosa, unlike Saccharomyces cerevisiae (containing a sole unsaturated fatty acid), contained multiple unsaturated fatty acids. It is a salt-tolerant and osmo-tolerant diploid yeast, of which the full genome sequence was completed in 2012 (Leh et al. 2012). The genome sequencing of A. oryzae, A. flavus, A. fumigatus and A. nidulans were completed earlier (Machida et al. 2005; Payne et al. 2008). On the other hand, the increasing availability of transcriptome data provides unprecedented opportunities to study the expression patterns of the members of gene family. For example, Dou et al. (2014) analyzed the expression profiles of WRKY gene family in different tissues of cotton through the transcriptome data.

Therefore, based on the related genomic data, we respectively identified fatty acid desaturases gene family members from two yeasts, including S. cerevisiae and M. farinosa, and four Aspergillus species, including A. oryzae, A. flavus, A. fumigatus and A. nidulans. In addition, a comprehensive analysis was performed to characterize conserved motifs and gene structures. Then, according to the transcriptome analysis of A. oryzae, the expression patterns of A. oryzae fatty acid desaturases gene family under salt stress and different growth periods were studied, and verified by qRT-PCR. The results of this study are propitious to comprehend the relationship between structure and functions of the fatty acid desaturases genes.

Materials and methods

Identification of fatty acid desaturases genes

The genomic and protein sequences of M. farinosa CBS 7064, A. oryzae 304, A. flavus NR3357, A. fumigatus Af293, and A. nidulans FGSC A4 were downloaded from the National Center for Biotechnology Information (NCBI). The fatty acid desaturases protein sequences of S. cerevisiae (ScFAD) and M. farinosa (MfFAD) were retrieved from Saccharomyces Genome Database (Cherry et al. 2012). To identify all candidate fatty acid desaturases genes in A. oryzae, A. flavus, A. fumigatus and A. nidulans, ScFAD and MfFAD proteins were employed as query sequences to search genome database using BLAST program with a threshold e-value of 1e−10 (Altschul et al. 1997). Then the identity and cover region (more than 50%) were used as a filter criteria to eliminate improper fatty acid desaturases genes. Subsequently, the Pfam database was used for domain analysis to ensure that the selected sequences were non-redundant sequences to ultimately identify candidate fatty acid desaturases gene family members (Finn et al. 2014).

Multiple sequence alignment and phylogenetic analysis

Multiple sequence alignments of fatty acid desaturases proteins in A. oryzae, S. cerevisiae, M. farinosa, A. flavus, A. fumigatus and A. nidulans were performed using Clustal X version 2.0 with the default parameters (Larkin et al. 2007). MEGA 5.0 was further applied to construct an unrooted Neighbor-Joining phylogenetic tree with pairwise deletion option and poisson correction model. Bootstrap analysis with 1000 replicates was used to examine the statistical reliability (Saitou and Nei 1987; Tamura et al. 2011). The Figtree program (v1.4.3) was used to visualize it.

Analysis of conserved motifs and gene structures

To identify the conserved motifs of each fatty acid desaturases gene in the six species, deduced fatty acid desaturases protein sequences were subjected to MEME version 4.12.0 (http://meme-suite.org/tools/meme), with the default parameters except the number of motifs was chosen 5 (Bailey et al. 2009). The logo of motifs was produced by weblogo (http://weblogo.berkeley.edu/logo.cgi).

To illustrate exon–intron organization for each fatty acid desaturases gene, coding sequences (CDSs) and corresponding genomic sequences of fatty acid desaturases genes in the six species, downloaded from NCBI database, were compared on the Gene Structure Display Server (GSDS, http://gsds.cbi.pku.edu.cn) (Guo et al. 2007).

Expression analysis of AoFAD genes in different growth stages and under salt stress treatment

The genome-wide transcriptome data of A. oryzae in different growth stages and salt stress treatment were obtained from NCBI SRA databases under Bioproject Accession PRJNA407002 and PRJNA383095. The raw reads that contained adapters, reads containing unknown sequences ‘N’ with a rate more than 5% and low-quality bases which were identified based on CycleQ 30 were removed. After filtering, gene expression levels were normalized using the TopHat/Cufflinks pipeline with FPKM (Fragments Per Kilobase of transcript per Million mapped reads) value (He et al. 2015). An FPKM filtering cutoff of 1.0 in at least one of the collected samples was used to determine expressed transcripts. The heatmaps for expression profiles were generated with the OmicShare Tools (http://www.omicshare.com/tools/Home/Index/index.html).

To further confirm the expression level of 13 fatty acid desaturases genes in A. oryzae 3042 (CICC 40092), quantitative real-time RT-PCR (qRT-PCR) experiments were performed. The genome-wide transcriptome data of A. oryzae were obtained at three stages of development (24, 48 and 72 h) and different conditions (cultivated in potato dextrose agar medium supplied with 0, 5, 10 and 15% NaCl). Three stages of development correspond to the adaptive phase, logarithmic phase, and stationary phase. And four conditions represent control, slight stress, moderate stress and severe stress, respectively. Samples under salt stress treatment were all harvested at 48 h. Total RNA of all collected samples was extracted using PrimeScript RTreagent kit (Takara, Dalian, China) following the instructions, in which our previous studies have been performed (He et al. 2017a). The specific primers for fatty acid desaturases genes in A. oryzae were listed in Additional file 1: Table S1. The qRT-PCR analysis was performed on a CFX96 Real-Time PCR Detection System (Bio-Rad, CA, USA) in the BioRad CFX Connect Optics Module Real-time PCR System (Livak and Schmittgen 2001).

Results

Identification of fatty acid desaturases genes in the six species

The candidate fatty acid desaturases genes were identified from the A. oryzae, A. flavus, A. fumigatus and A. nidulans genome using the Blast programs with the query sequences of S. cerevisiae and M. farinosa fatty acid desaturases genes. Subsequently, the retrieved sequences were submitted to the Pfam databases to confirm the presence of conserved domains. A total of 13, 12, 8 and 8 candidate fatty acid desaturases genes were identified in the A. oryzae, A. flavus, A. fumigatus and A. nidulans genomes, respectively (Table 1). For convenience, the fatty acid desaturases genes in A. oryzae were named from AoFAD1 to AoFAD13, these genes in M. farinosa, A. flavus, A. fumigatus and A. nidulans were named MfFAD, AflFAD, AfuFAD and AnFAD respectively. To obtain accurate sequences of fatty acid desaturases gene family, the FA_desaturase domain (PF00487) was used as a filter criteria. The results showed that the 1, 13, 12, 12, 8 and 8 fatty acid desaturases genes from S. cerevisiae, A. oryzae, M. farinosa, A. flavus, A. fumigatus and A. nidulans were all contained FA_desaturase domain, and Cyt_b5 domain was harbored in some fatty acid desaturases genes of each species. Except for the presence of conserved FA_desaturase domain and Cyt_b5 domain, Lipid_DES domain was existed in AoFAD1, AflFAD1, AfuFAD1, and AnFAD1. In addition, AoFAD9 and AnFAD5 respectively contained DUF953 and DUF3474 domain. The detailed information of fatty acid desaturases genes in the six species was provided in Table 1.
Table 1

The FAD family members in the six species

Nomenclature

Accession number in NCBI

Length of CDS

FAD group

Protein length (aa)

Domain number

Domain

AoFAD1

EIT78262.1

1266

ΙΙ-A

421

2

Lipid_DES

FA_desaturase

AoFAD2

EIT82118.1

1191

Ι-B

396

2

FA_desaturase

Cyt-b5

AoFAD3

EIT81402.1

1683

ΙΙ-B-2

560

2

Cyt-b5

FA_desaturase

AoFAD4

EIT77666.1

1401

ΙΙ-B-1

466

1

FA_desaturase

AoFAD5

EIT77504.1

1371

Ι-B

456

2

FA_desaturase

Cyt-b5

AoFAD6

EIT77130.1

1410

Ι-B

469

2

FA_desaturase

Cyt-b5

AoFAD7

EIT75420.1

1179

ΙΙ-B-1

392

1

FA_desaturase

AoFAD8

EIT74178.1

1677

ΙΙ-B-2

558

2

Cyt-b5

FA_desaturase

AoFAD9

EIT73664.1

1554

Ι-B

517

2

FA_desaturase

DUF953

AoFAD10

EIT73811.1

1752

ΙΙ-B-2

583

2

Cyt-b5

FA_desaturase

AoFAD11

EIT79919.1

1032

Ι-A

343

1

FA_desaturase

AoFAD12

EIT80397.1

1059

Ι-A

352

1

FA_desaturase

AoFAD13

EIT73679.1

918

Ι-A

305

1

FA_desaturase

ScFAD

NP_011460.3

1533

Ι-B

510

2

FA_desaturase

Cyt-b5

MfFAD1

XP_004200213.1

1458

Ι-B

485

2

FA_desaturase

Cyt-b5

MfFAD2

XP_004199354.1

1458

Ι-B

485

2

FA_desaturase

Cyt-b5

MfFAD3

XP_004205233.1

1587

Ι-B

528

2

FA_desaturase

Cyt-b5

MfFAD4

XP_004204675.1

1587

Ι-B

528

2

FA_desaturase

Cyt-b5

MfFAD5

XP_004195443.1

1746

ΙΙ-B-2

581

2

Cyt-b5

FA_desaturase

MfFAD6

XP_004194342.1

1743

ΙΙ-B-2

580

2

Cyt-b5

FA_desaturase

MfFAD7

XP_004197824.1

1131

Ι-A

376

1

FA_desaturase

MfFAD8

XP_004196793.1

1131

Ι-A

376

1

FA_desaturase

MfFAD9

XP_004202466.1

915

Ι-A

304

1

FA_desaturase

MfFAD10

XP_004201841.1

915

Ι-A

304

1

FA_desaturase

MfFAD11

XP_004201407.1

978

Ι-A

325

1

FA_desaturase

MfFAD12

XP_004200776.1

978

Ι-A

325

1

FA_desaturase

AflFAD1

XP_002377170.1

1266

ΙΙ-A

421

2

Lipid_DES

FA_desaturase

AflFAD2

XP_002379176.1

1209

Ι-B

402

2

FA_desaturase

Cyt-b5

AflFAD3

XP_002372605.1

1371

Ι-B

456

2

FA_desaturase

Cyt-b5

AflFAD4

XP_002382647.1

1410

Ι-B

469

2

FA_desaturase

Cyt-b5

AflFAD5

XP_002379029.1

1683

ΙΙ-B-2

560

2

Cyt-b5

FA_desaturase

AflFAD6

XP_002377775.1

1677

ΙΙ-B-2

558

2

Cyt-b5

FA_desaturase

AflFAD7

XP_002380192.1

1401

ΙΙ-B-1

466

1

FA_desaturase

AflFAD8

XP_002384911.1

1179

ΙΙ-B-1

392

1

FA_desaturase

AflFAD9

XP_002385335.1

1719

ΙΙ-B-2

572

2

Cyt-b5

FA_desaturase

AflFAD10

XP_002373264.1

1032

Ι-A

343

1

FA_desaturase

AflFAD11

XP_002378226.1

852

Ι-A

283

1

FA_desaturase

AflFAD12

XP_002385334.1

918

Ι-A

305

1

FA_desaturase

AfuFAD1

XP_752132.1

1476

ΙΙ-A

491

2

Lipid_DES

FA_desaturase

AfuFAD2

XP_748918.1

1371

Ι-B

456

2

FA_desaturase

Cyt-b5

AfuFAD3

XP_747146.1

1683

ΙΙ-B-2

560

2

Cyt-b5

FA_desaturase

AfuFAD4

XP_749348.1

1698

ΙΙ-B-2

565

2

Cyt-b5

FA_desaturase

AfuFAD5

XP_752623.1

1410

ΙΙ-B-1

469

1

FA_desaturase

AfuFAD6

XP_747771.1

1191

ΙΙ-B-1

396

1

FA_desaturase

AfuFAD7

XP_749168.1

1008

Ι-A

335

1

FA_desaturase

AfuFAD8

XP_747563.1

1059

Ι-A

352

1

FA_desaturase

AnFAD1

XP_662009.1

1257

ΙΙ-A

418

2

Lipid_DES

FA_desaturase

AnFAD2

XP_664335.1

1368

Ι-B

455

2

FA_desaturase

Cyt-b5

AnFAD3

XP_661739.1

1350

Ι-B

449

2

FA_desaturase

Cyt-b5

AnFAD4

XP_662196.1

1647

ΙΙ-B-2

548

2

FA_desaturase

Cyt-b5

AnFAD5

XP_658641.1

1281

ΙΙ-B-1

426

2

DUF3474

FA_desaturase

AnFAD6

XP_664808.1

1185

ΙΙ-B-1

394

1

FA_desaturase

AnFAD7

XP_664110.1

1059

Ι-A

352

1

FA_desaturase

AnFAD8

XP_661242.1

933

Ι-A

310

1

FA_desaturase

Classification and phylogenetic analysis of the fatty acid desaturases genes

To evaluate the phylogenetic relationships among the fatty acid desaturases gene members, all the genes from the six species were aligned separately by Neighboring-Joining method to generate an un-rooted phylogenetic tree. As shown in the phylogenetic tree (Fig. 1), the fatty acid desaturases genes in these six species were divided into two groups, which were named I and II group. According to the homology of the fatty acid desaturases genes, groups I and II were respectively further divided into I-A, I-B and II-A, II -B-1, II-B-2. Group I was composed of 31 fatty acid desaturases genes, while group II contained 23 fatty acid desaturases genes. Phylogenetic analysis of fatty acid desaturases genes in the six species revealed considerable diversification and conservation of the fatty acid desaturases gene family in fungi. In the phylogenetic tree, ScFAD, fatty acid desaturase in S. cerevisiae, was clustered with MfFAD1 and MfFAD2 into one branch, which belongs to group I-B. Every two fatty acid desaturases genes of M. farinosa shared one subbranch, which suggested that the fatty acid desaturases genes of M. farinosa had a strong conservation. From the phylogenetic tree, the 12 fatty acid desaturases genes from A. flavus were all clustered with A. oryzae into a subbranch, which revealed the close relationship between the A. oryzae and A. flavus, while AoFAD9 grouped closely with MfFAD1, 2, 3 and 4. In addition, fatty acid desaturases genes between A. fumigatus and A. nidulans appeared to be more closely than the two other Aspergillus. These results can not only illustrate the relationship between the Aspergillus species and yeast, but also provide a potential method to distinguish A. oryzae and A. flavus.
Fig. 1
Fig. 1

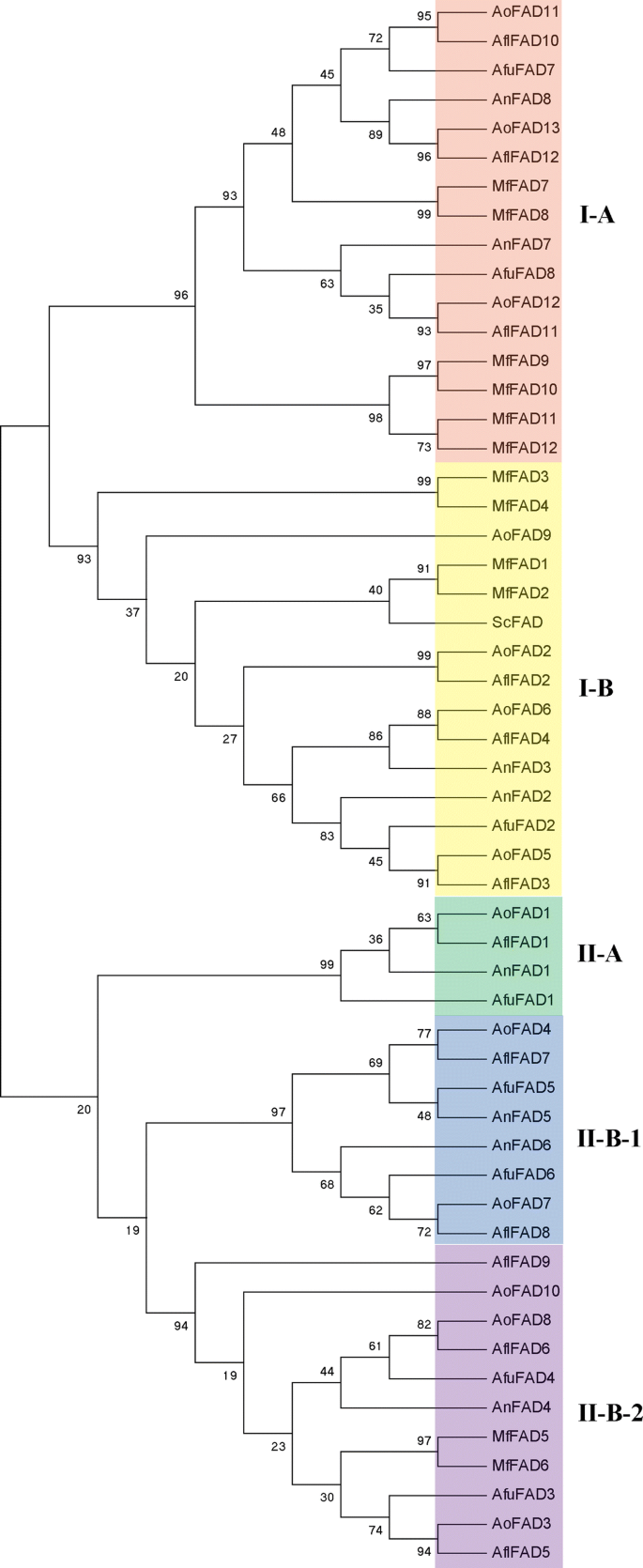

The phylogenetic tree construction of fatty acid desaturases genes. A Neighbor-Joining (NJ) phylogenetic tree of all detected fatty acid desaturases genes was constructed, using MEGA 5.0 program with bootstrap analysis (1000 replicates). Fatty acid desaturases genes in the phylogenetic tree were clustered into five distinct groups (groups I-A, I-B, II-A, II-B-1 and II-B-2)

Conserved motifs analysis of the fatty acid desaturases genes

Conserved motifs in the 54 fatty acid desaturases proteins were identified using the MEME program. A total of five conserved motifs were identified in the fatty acid desaturases proteins and their consensus sequence information was listed in Table 2. The logo of five conserved motifs identified in the fatty acid desaturases proteins were shown in Additional file 1: Figure S2. According to the phylogenetic tree and conserved motifs (Fig. 2), we could know that the same group of fatty acid desaturases genes had substantially consistent conserved motifs, which indicated there might be similar genetic functions. The fatty acid desaturases domains of most fatty acid desaturases gene members in group I-A contain motif 1 and motif 4, while most of group I-B fatty acid desaturases domains in group I-B all were consisted of motif 1, motif 2 and motif 3. The fatty acid desaturases domains were only composed of motif 1 in groups II-A and II-B-1. However, the fatty acid desaturases domains of subgroup II-B-2 were mainly consisted of motif 1, motif 2 and motif 5. The fatty acid desaturases domains consisting of different motifs in subgroup II-B-1 and subgroup II-B-2, suggested that functional differentiation might occur in the group II-B fatty acid desaturases genes. Besides, we found that motif 1, motif 3, motif 4 and motif 5 were contained in the fatty acid desaturases domains, while motif 2 was the part of Cyt-b5 domains, excepting the motif 2 in AoFAD9. The results revealed the conservation of motifs among various species.
Table 2

The information of motif found in MEME

Motif

Motif length

Motif sequence

1

38

HVITALVTLGEGYHNFHHEFPSDYRNAIEWYQYDPTKW

2

21

IGWWKRSHRVHHRYTBTPEDD

3

42

GRGJIIIGDVVHDVTAFIKFHPGGKKSIKHMVGKDATDEFNG

4

50

ISHMVTAPLHVQITLSHFAMSTADLGVNESFPQKMLRTTMDVDCPTWLDF

5

50

WTVMIHDGEYLANSPVVNGAACHTMHHLYFNYNYGQFTTLWDRLGGSYRK

Fig. 2
Fig. 2

Motif analysis of fatty acid desaturases gene family of the six species. Motif compositions: protein sequences are indicated by thick gray lines, and the conserved motifs are represented by different colored boxes. The domains are displayed by different colored boxes without filling. The length (amino acids) of the protein and motif can be estimated using the scale bar at the bottom

Gene structure analysis of the fatty acid desaturases genes

In order to gain further insight into the structural diversity of fatty acid desaturases genes, coding sequences (CDSs) and corresponding genomic sequences were investigated through the six species. In the present study, a detailed illustration of the gene structures was shown in Fig. 3. The fatty acid desaturases genes of A. oryzae and A. flavus, clustered into a subbranch, had similar gene structures. The minor difference of the fatty acid desaturases gene structures between A. oryzae and A. flavus is that most of AoFAD contained upstream and downstream while only AflFAD11 and AflFAD9 contained an upstream sequence. And most of fatty acid desaturases genes in the two species possessed one or two introns except for AoFAD9, which had seven introns. The fatty acid desaturases genes of S. cerevisiae and M. farinosa were lacked of introns. Furthermore, the fatty acid desaturases genes of M. farinosa, which were clustered into the same branch, had same gene structures, further indicating the conservation of the fatty acid desaturases genes in M. farinosa.
Fig. 3
Fig. 3

The gene structure analysis of fatty acid desaturases proteins based on their phylogentic relationships

Expression of AoFAD genes during growth

Aspergillus oryzae undergoes morphological differentiation across the different growth stages, which always accompany with the change of gene expression profile as well as metabolic pathways and influence the process productivity. To characterize the patterns of fatty acid desaturases gene expression during the growth stages of A. oryzae, samples at 24, 48 and 72 h (corresponding to the adaptive phase, logarithmic phase, and stationary phase), containing three biological replicates (i.e. Ao_24_1, 2, 3), were harvested. The expression patterns of the fatty acid desaturases genes at different growth periods in A. oryzae were shown in Fig. 4. Eight fatty acid desaturases genes, including AoFAD3, AoFAD7, AoFAD4, AoFAD12, AoFAD10, AoFAD5, AoFAD6 and AoFAD11, showed the maximal expression in adaptive phase (Ao_24_1, 2, 3) and lower expression levels at logarithmic phase and stationary phase. AoFAD1, AoFAD2 and AoFAD9 were significantly up-regulated at 72 h, while the expression of AoFAD8 and AoFAD13 was obvious at 24 h and 72 h but not palpable at 48 h, indicating different roles of AoFAD with respect to the development of A. oryzae. To further confirm the expression profiles of AoFAD, six AoFAD genes were selected for qRT-PCR analysis. The results of qRT-PCR have strong consistency with those of transcriptome analysis (Additional file 1: Figure S1).
Fig. 4
Fig. 4

Expression of the AoFAD genes during growth. Ao_24_1, 2, 3 indicated the three biological reduplicates at 24 h (lag phase). Ao_48_1, 2, 3 indicated the three biological reduplicates at 48 h (logarithmic phase). Ao_72_1, 2, 3 indicated the three biological reduplicates at 72 h (stationary phase)

Expression of AoFAD genes under salt stress

Unsaturated fatty acids play critical roles in the tolerance to various abiotic stresses, such as salt stress, cold stress, etc. (Sakamoto and Murata 2002).Therefore, gene expression patterns for all the fatty acid desaturases genes of A. oryzae were also observed under different levels of salt concentration. Results showed that the salt stress caused changes of the AoFAD expression patterns in the form of up-regulation (Fig. 5). Of these AoFAD genes, the expression of AoFAD2, AoFAD3, AoFAD8 and AoFAD9 reached the highest under 5% NaCl treatment. Four fatty acid desaturases genes in A. oryzae, including AoFAD11, AoFAD1, AoFAD13 and AoFAD12, were highly expressed under 15% NaCl treatment. The expression level of AoFAD4, AoFAD5, AoFAD6, AoFAD7 and AoFAD10 was the highest under 10% NaCl treatment and was decreased under 15% NaCl treatment. The expression pattern of AoFAD genes under salt stress indicated that AoFAD are components of a complex transcriptional network regarding the salt stress and the mechanism of AoFAD genes involved in salt stress is complex and diversified. The coordination results of qRT-PCR were further confirmed the accuracy of analysis (Additional file 1: Figure S1).
Fig. 5
Fig. 5

Expression of the AoFAD genes under salt stress. WT, NaCl_5, NaCl_10 and NaCl_15 indicated samples cultivated in PDA medium supplied with 0, 5, 10 and 15% NaCl, respectively

Discussion

Studies have indicated that fatty acid desaturases is expressed in plants, animals and fungi, and plays an important role in the synthesis of polyunsaturated fatty acid (Garba et al. 2016; Murphy and Piffanelli 1998). Fatty acid desaturases genes in fungi are responsible for multiple biological processes, from development and industrial production to adaption to the surrounding environment (Watanabe et al. 2010). Therefore, the study of the fatty acid desaturases genes is becoming a hot spot in the current biological research. So far, researchers have used DNA library, cDNA library and RT-PCR to clone fatty acid desaturases genes from plants, animals, bacteria, fungi and algae. For example, 29 and 21 fatty acid desaturases gene members were respectively identified from the fatty acid desaturases gene families of the soybean and Arabidopsis thaliana (Chi et al. 2011). Besides, there are some reports on the cloning and expression of fatty acid desaturases in microbes. For example, the sole fatty acid desaturases gene in Bacillus subtilis, named des, encoding Δ5-desaturase, was cloned by Ma and Liu (Ma and Liu 2010). The expression of three fatty acid desaturases genes in the Cytosolic cyanobacteria, named desA, desB and desD, was up-regulated under low temperature (Los et al. 1997). Aspergillus species has been intensively used for the production of traditional fermented foods and secondary metabolite, such as fumagillin. Therefore, the synthesis of unsaturated fatty acid appears to be essential and vital for the Aspergillus species to adapt to some complex environments and regulate the growth as well as development. However, systematic investigations of the fatty acid desaturases gene family at the whole-genome level was absent in Aspergillus species. Therefore, a comprehensive survey of fatty acid desaturases gene family in Aspergillus species was undertaken.

The results in this study showed that all of the 54 fatty acid desaturases genes in the six fungi species contained FA_desaturase domain and most of the fatty acid desaturases genes had Cyt-b5 domain as well. These findings echo previous studies which studied the regulation of fatty acid synthesis pathways in the Caenorhabditis elegans. He et al. (2017b) reported that, in the desaturation of fatty acids, electrons are transferred to cytochrome b5 through cytochrome b5 reductase, which activates desaturase, and introduces unsaturated bonds to the unsaturated fatty acids at the specific location of the carbon chain of fatty acids (He et al. 2017b). When the fatty acid desaturases genes were absent of the Cyt-b5 domain, there need to be additional cytochrome b5 reductase to transfer electrons. From their result, we could infer that only FA_desaturase domain was specifically required for the activity of some fatty acid desaturases while some fatty acid desaturases were activated by FA_desaturase and Cyt-b5 domain. The other researches showed that some of the fatty acid desaturases were activated by FA_desaturase and DUF3474 domain (He et al. 2017b). In our study, the fatty acid desaturases genes without the Cyt-b5 domain existed in Aspergillus species as well, which may be need additional cytochrome b5 reductase to transfer electrons. In addition, we found a fatty acid desaturases gene in A. nidulans (AnFAD5) which depends on FA_desaturase and DUF3474 domain to activate. However, the functions of some domains identified in the fatty acid desaturases genes of Aspergillus species, such as DUF953, were not clear.

The relationship of A. oryzae and A. flavus is a controversial issue which has long been plagued with researchers. A very strong phylogenetic connection between A. oryzae and A. flavus has been clearly demonstrated by molecular methods, including isozyme analyses, DNA/DNA hybridization studies and DNA sequencing (Chang et al. 2006; Geiser et al. 2000). Furthermore, the morphological characteristics and genomes of the two Aspergillus species were similar, which was thus difficult to distinguish. In this study, there were 13 fatty acid desaturases genes identified in A. oryzae, whereas 12 fatty acid desaturases genes were identified in A. flavus. From the phylogenetic tree, the 12 fatty acid desaturases genes from A. flavus were all clustered with A. oryzae into a sub-branch, which supported a close relationship between the A. oryzae and A. flavus. Additionally, AoFAD9 was grouped closely with MfFAD1, 2, 3 and 4, which could be considered as a method to distinguish A. oryzae and A. flavus.

In this study, analysis of the AoFAD expression profiles showed that the different concentration of salt stress caused changes of the AoFAD expression patterns in the form of up-regulation. The results revealed that AoFAD genes were assumed to be associated with salt stress, which has been mentioned in the previous studies (He et al. 2017a). The potential mechanism was that the increase of unsaturated fatty acids is beneficial to maintain membranes in an appropriate fluid state, which counteracts the fluidizing effect of salt stress. In fact, there are many studies which convey that the fatty acid desaturases genes have a closed relation with the salt stress in many species. For example, in the Arabidopsis thaliana, the FAD2 and FAD6 are essential for improving the early growth and salt tolerance of the seedlings while the antisense expression of FAD7 gene reduces plant tolerance to salt stress (Zhang et al. 2009, 2012). In addition, the overexpression of LeFAD3 gene can enhance the salt tolerance of early growth of the tomato seedlings (Wang et al. 2014). Our results, taken together with these earlier studies, imply that the fatty acid desaturases genes have an effect on salt stress.

Notes

Abbreviations

FA:

fatty acid

A. oryzae

Aspergillus oryzae

S. cerevisiae

Saccharomyces cerevisiae

M. farinosa

Millerozyma farinosa

A. flavus

Aspergillus flavus

A. fumigatus

Aspergillus fumigatus

A. nidulans

Aspergillus nidulan

FPKM:

fragments per kilobase of transcript per million mapped reads

PUFA:

polyunsaturated fatty acids

GLA:

gamma linolenic acid

ARA:

arachidonic acid

Declarations

Authors’ contributions

BH, BZ and WT conceived and designed the experiments; QW, LF and JW performed the experiments; LL and HL analyzed the data; CZ contributed reagents/materials/analysis tools; BH and CO wrote the paper. All authors read and approved the final manuscript.

Acknowledgements

The authors thank Yayi Tu and Long Ma for critical reading of this manuscript.

Competing interests

The authors declare that they have no competing interests.

Availability of data

The genome-wide transcriptome data of A. oryzae in different growth stages and salt stress treatment have been submitted to NCBI SRA databases under Bioproject Accession PRJNA407002 and PRJNA383095.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Funding

This study was funded by National Natural Science Foundation of China (NSFC) (Grant Nos. 31171731, 31700068 and 31460447), International S&T Cooperation Project of Jiangxi Provincial (Grant No. 20142BDH80003), doctor and master specific projects of Honghe University (XJ17B09), the Science Funds of Natural Science Foundation of Jiangxi Province (20114BAB205039).

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Jiangxi Key Laboratory of Bioprocess Engineering and Co-Innovation Center for In-vitro Diagnostic Reagents and Devices of Jiangxi Province, College of Life Sciences, Jiangxi Science & Technology Normal University, Nanchang, 330013, China
(2)
Nanchang University, Nanchang, 330013, China
(3)
Jiangxi Provincial People’s Hospital, Nanchang, 330006, China

References

  1. Altschul SF, Madden TL, Schäffer AA, Zhang J, Zhang Z, Miller W, Lipman DJ (1997) Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 25(17):3389View ArticleGoogle Scholar
  2. Bailey TL, Boden M, Buske FA, Frith M, Grant CE, Clementi L, Ren J, Li WW, Noble WS (2009) MEME SUITE: tools for motif discovery and searching. Nucleic Acids Res 37(Web Server issue):202–208View ArticleGoogle Scholar
  3. Chang PK, Ehrlich KC, Hua SS (2006) Cladal relatedness among Aspergillus oryzae isolates and Aspergillus flavus S and L morphotype isolates. Int J Food Microbiol 108(2):172–177View ArticleGoogle Scholar
  4. Cheawchanlertfa P, Cheevadhanarak S, Tanticharoen M, Maresca B, Laoteng K (2011) Up-regulated expression of desaturase genes of Mucor rouxii in response to low temperature associates with pre-existing cellular fatty acid constituents. Mol Biol Rep 38(5):3455–3462View ArticleGoogle Scholar
  5. Cherry JM, Hong EL, Amundsen C, Balakrishnan R, Binkley G, Chan ET, Christie KR, Costanzo MC, Dwight SS, Engel SR (2012) Saccharomyces Genome Database: the genomics resource of budding yeast. Nucleic Acids Res 40(Database issue):700–705View ArticleGoogle Scholar
  6. Chi X, Yang Q, Lu Y, Wang J, Zhang Q, Pan L, Chen M, He Y, Yu S (2011) Genome-wide analysis of fatty acid desaturases in soybean (Glycine max). Plant Mol Biol Rep 29(4):769–783View ArticleGoogle Scholar
  7. Dou L, Zhang X, Pang C, Song M, Wei H, Fan S, Yu S (2014) Genome-wide analysis of the WRKY gene family in cotton. Mol Genet Genomics 289(6):1103View ArticleGoogle Scholar
  8. Finn RD, Bateman A, Clements J, Coggill P, Eberhardt RY, Eddy SR, Heger A, Hetherington K, Holm L, Mistry J (2014) Pfam: the protein families database. Nucleic Acids Res 42(Database issue):222–230View ArticleGoogle Scholar
  9. Garba L, Mohamad Ali MS, Oslan SN, Rahman RN (2016) Molecular cloning and functional expression of a Δ9 − fatty acid desaturase from an Antarctic Pseudomonas sp. A3. PLoS ONE 11(8):e0160681View ArticleGoogle Scholar
  10. Geiser DM, Dorner JW, Horn BW, Taylor JW (2000) The phylogenetics of mycotoxin and sclerotium production in Aspergillus flavus and Aspergillus oryzae. Fungal Genet Biol 31(3):169–179View ArticleGoogle Scholar
  11. Guo AY, Zhu QH, Chen X, Luo JC (2007) GSDS: a gene structure display server. Yi Chuan 29(8):1023–1026View ArticleGoogle Scholar
  12. He B, Gu Y, Xiang T, Cheng X, Wei C, Jian F, Cheng Z, Zhang Y (2015) De novo transcriptome sequencing of Oryza officinalis Wall ex Watt to identify disease-resistance genes. Int J Mol Sci 16(12):29482–29495View ArticleGoogle Scholar
  13. He B, Ma L, Hu Z, Li H, Ai M, Long C, Zeng B (2017a) Deep sequencing analysis of transcriptomes in Aspergillus oryzae in response to salinity stress. Appl Microbiol Biot 102(1–2):1–10Google Scholar
  14. He B, Zhang J, Wang Y, Li Y, Zou X, Liang B (2017b) Identification of cytochrome b5 CYTB-5.1 and CYTB-5.2 in C. elegans; evidence for differential regulation of SCD. Biochim Biophys Acta 1863(3):235–246View ArticleGoogle Scholar
  15. He B, Tu Y, Hu Z, Ma L, Dai J, Cheng X, Li H, Liu L, Zeng B (2018) Genome-wide identification and expression profile analysis of the HOG gene family in Aspergillus oryzae. World J Microb Biot 34(2):35View ArticleGoogle Scholar
  16. Larkin MA, Blackshields G, Brown NP, Chenna R, Mcgettigan PA, Mcwilliam H, Valentin F, Wallace IM, Wilm A, Lopez R (2007) Clustal W and Clustal X version 2.0. Bioinformatics 23(21):2947–2948View ArticleGoogle Scholar
  17. Leh LV, Laurence D, Anne F, Tiphaine M, Pascal D, Serge C, Cécile N, Cécile F, Christian M, Cruz JA (2012) Pichia sorbitophila, an interspecies yeast hybrid, reveals early steps of genome resolution after polyploidization. G3 Genesgenetics 2(2):299–311View ArticleGoogle Scholar
  18. Liu W, Li W, He Q, Daud MK, Chen J, Zhu S (2015) Characterization of 19 genes encoding membrane-bound fatty acid desaturases and their expression profiles in Gossypium raimondii under low temperature. PLoS ONE 10(4):e0123281View ArticleGoogle Scholar
  19. Livak KJ, Schmittgen TD (2001) Analysis of relative gene expression data using real-time quantitative PCR and the 2(−Delta Delta C(T)) method. Methods 25(4):402–408View ArticleGoogle Scholar
  20. Los DA, Ray MK, Murata N (1997) Differences in the control of the temperature-dependent expression of four genes for desaturases in Synechocystis sp. PCC 6803. Mol Microbiol 25(6):1167–1175View ArticleGoogle Scholar
  21. Ma M, Liu ZL (2010) Mechanisms of ethanol tolerance in Saccharomyces cerevisiae. Appl Microbiol Biot 87(3):829–845View ArticleGoogle Scholar
  22. Machida M, Asai K, Sano M, Tanaka T, Kumagai T, Terai G, Kusumoto KI, Arima T, Akita O, Kashiwagi Y (2005) Genome sequencing and analysis of Aspergillus oryzae. Nature 438(7071):1157View ArticleGoogle Scholar
  23. Murphy DJ, Piffanelli P (1998) Fatty acid desaturases: structure, mechanism and regulation. Cambridge University Press, CambridgeGoogle Scholar
  24. Payne GA, Yu JJ, Nierman WC, Machida M, Bhatnagar D, Cleveland TE, Dean RA, Goldman GH, Osmani SA (2008) A first glance into the genome sequence of Aspergillus flavus. CRC Press, New YorkGoogle Scholar
  25. Pereira SL, Leonard AE, Mukerji P (2003) Recent advances in the study of fatty acid desaturases from animals and lower eukaryotes. Prostag Leukotr Ess 68(2):97–106View ArticleGoogle Scholar
  26. Saitou N, Nei M (1987) The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol 4(4):406Google Scholar
  27. Sakamoto T, Murata N (2002) Regulation of the desaturation of fatty acids and its role in tolerance to cold and salt stress. Curr Opin Microbiol 5(2):208–210View ArticleGoogle Scholar
  28. Sakuradani E, Kobayashi M, Shimizu S (1999) Δ9-Fatty acid desaturase from arachidonic acid-producing fungus. FEBS J 260(1):208–216Google Scholar
  29. Sakuradani E, Hirano Y, Kamada N, Nojiri M, Ogawa J, Shimizu S (2004) Improvement of arachidonic acid production by mutants with lower n − 3 desaturation activity derived from Mortierella alpina 1S − 4. Appl Microbiol Biot 66(3):243–248View ArticleGoogle Scholar
  30. Shanklin J, Cahoon EB (1998) Desaturation and related modifications of fatty acids1. Annu Rev Plant Physiol Mol Biol 49(49):611View ArticleGoogle Scholar
  31. Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S (2011) MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol Biol Evol 28(10):2731View ArticleGoogle Scholar
  32. Wang HS, Yu C, Tang XF, Zhu ZJ, Ma NN, Meng QW (2014) A tomato endoplasmic reticulum (ER)-type omega-3 fatty acid desaturase (LeFAD3) functions in early seedling tolerance to salinity stress. Plant Cell Rep 33(1):131–142View ArticleGoogle Scholar
  33. Watanabe T, Tsuda S, Nishimura H, Honda Y, Watanabe T (2010) Characterization of a Delta12-fatty acid desaturase gene from Ceriporiopsis subvermispora, a selective lignin-degrading fungus. Appl Microbiol Biot 87(1):215–224View ArticleGoogle Scholar
  34. Xue Y, Chen B, Win AN, Fu C, Lian J, Liu X, Wang R, Zhang X, Chai Y (2018) Omega-3 fatty acid desaturase gene family from two ω − 3 sources, Salvia hispanica and Perilla frutescens: cloning, characterization and expression. PLoS ONE 13(1):e0191432View ArticleGoogle Scholar
  35. Zhang Y, Lu H, Bargmann CI (2005) Pathogenic bacteria induce aversive olfactory learning in Caenorhabditis elegans. Nature 438(7065):179–184View ArticleGoogle Scholar
  36. Zhang JT, Zhu JQ, Zhu Q, Liu H, Gao XS, Zhang HX (2009) Fatty acid desaturase-6 (Fad6) is required for salt tolerance in Arabidopsis thaliana. Biochem Bioph Res Co 390(3):469–474View ArticleGoogle Scholar
  37. Zhang J, Liu H, Sun J, Li B, Zhu Q, Chen S, Zhang H (2012) Arabidopsis fatty acid desaturase FAD2 is required for salt tolerance during seed germination and early seedling growth. PLoS ONE 7(1):e30355View ArticleGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
