Establishment of a duplex real-time qPCR method for detection of Salmonella spp. and Serratia fonticola in fishmeal

Abstract

Salmonella spp. is a high-risk bacterial pathogen that is monitored in imported animal-derived feedstuffs. Serratia fonticola is the bacterial species most frequently confused with Salmonella spp. in traditional identification methods based on biochemical characteristics, which are time-consuming and labor-intensive, and thus unsuitable for daily inspection and quarantine work. In this study, we established a duplex real-time qPCR method with invA- and gyrB-specific primers and probes corresponding to Salmonella spp. and S. fonticola. The method could simultaneously detect both pathogens in imported feedstuffs, with a minimum limit of detection for Salmonella spp. and S. fonticola of 197 copies/μL and 145 copies/μL, respectively (correlation coefficient R² = 0.999 in both cases). The amplification efficiency for Salmonella spp. and S. fonticola was 98.346% and 96.49%, respectively. Detection of fishmeal was consistent with method GB/T 13091-2018, and all seven artificially contaminated imported feed samples were positively identified. Thus, the developed duplex real-time qPCR assay displays high specificity and sensitivity, and can be used for the rapid and accurate detection of genomic DNA from Salmonella spp. and S. fonticola within hours. This represents a significant improvement in the efficiency of detection of both pathogens in imported feedstuffs.

Introduction

Salmonella spp. are ubiquitous Gram-negative bacteria in the environment and include six different subspecies and more than 2000 serotypes that infect a wide range of hosts, often causing severe food poisoning outbreaks in humans and other animals. People infected with Salmonella can develop diarrhea, fever, and suffer dehydration, hence Salmonella spp. are of significance to public health.

S. fonticola is a species belonging to the Serratia genus that was first isolated from water and soil in 1979 (Gavini et al. 1979). Subsequent studies showed that S. fonticola, a member the Gram-negative Enterobacteriaceae family that includes Salmonella spp., is also ubiquitous in environments such as water, soil, plants, and the gastrointestinal tract of humans and other animals (Tasic et al. 2013). Research has revealed that S. fonticola can infect various tissues and organs in humans, causing septic arthritis, septicemia, gastrointestinal tract infections, and surgical infections (Rd et al. 1985; Bollet et al. 1991; Kunimoto et al. 2004). Therefore S. fonticola have been defined as an important opportunistic pathogen.

At present, the detection of Salmonella spp. in imported animal-derived feeds (fish meal and chicken powder) involves non-selective enrichment, selective enrichment, selective platelet culturing, biochemical culturing of suspected Salmonella colonies (triglyceride tests, etc.), and even serological typing. These conventional methods require at least 3 days to detect Salmonella spp. in daily quarantine work. Furthermore, suspected Salmonella colonies based on selective plate isolation and culturing of imported animal-derived feeds often turn out to be S. fonticola when biochemical properties are investigated (Chen et al. 2016). The enzyme linked immune sorbent assay (ELISA) method is commonly used for detecting pathogens in imported animal-derived feeds, but this method can produce incorrect results due to its cumbersome operational steps. A novel method involving polymer fluorescent nanoparticles as biosensor probes has been described for the detection of Salmonella (Jain et al. 2016), which takes only 3 h, but cannot be applied to large volume detection due to its prohibitively high cost.

Traditional PCR and multiplex PCR methods have been developed for the detection of Salmonella species and Serratia genus attributed to its high sensitivity, specificity, and results can be obtained within several hours. Multi-PCR approaches can differentiate two or more pathogens in one amplification, however, products are easily contaminated during agarose gel electrophoresis, which increases false-positive and false-negative results. Thus, a more reliable approach such as real-time fluorescence quantitative PCR (RT-qPCR) would be more desirable for the rapid and accurate detection of pathogens. RT-qPCR methods are known to be fast, reliable, and highly efficient. Several single RT-qPCR methods for detecting S. nematodiphila (Hurst et al. 2008), S. marcescens (Iwaya et al. 2005; Joyner et al. 2014; Cornegliani et al. 2015) and Salmonella spp. (Perelle et al. 2004; Nam et al. 2005; Tomás et al. 2009) have been described.

Previous studies on fish meal and other animal-derived feeds have mainly focused on the detection and epidemiology of Salmonella, Shigella, Escherichia coli, and other common pathogenic bacteria. A method for the simultaneous detection of Salmonella spp. and S. fonticola in imported animal-derived feeds using RT-qPCR has not been reported. Such a method could provide rapid differential diagnosis of suspected Salmonella colonies after selective plate separation and culturing. This would undoubtedly improve the detection of Salmonella, and greatly shorten the time required for subsequent biochemical and serological identification, saving valuable manpower and material resources.

The duplex real-time qPCR method established in the present work provides a useful tool for the simultaneous detection of Salmonella spp. and S. fonticola. The method has important theoretical significance and great potential for improving the safety of imported feeds by rapidly identifying bacterial pathogens and facilitating effective quarantining in a more timely manner than traditional detection methods.

Materials and methods

Bacterial strains

A total of 48 tested strains were used in this study, including 17 reference strains from six different collection centers, and 31 isolates from imported fishmeal (Additional file 1: Tables S1–S3). All experimental strains were streaked on nutrient agar plates and cultured in Luria–Bertani (LB) broth at 37 °C overnight (~ 18–24 h), except for S. marcescens, which was grown at 23 °C for 24 h. An established single colony was inoculated into 3 mL of LB broth for 8 h and the resultant culture was harvested for genomic DNA extraction.

Sample collection and bacterial isolation

A 25 g sample of fishmeal was added to 225 mL of buffered peptone water (BPW) and incubated at 36 ± 1 °C for between 16 − 20 h. A 10 mL sample of this pre-enrichment culture was transferred into 100 mL of enrichment solution containing selenite cysteine (SC enrichment solution), cultured at 36 ± 1 °C for 24 h, and inoculated onto CHROMagar™ Salmonellae (CHROMagar) designed for Salmonella spp. Two Salmonella spp. colonies were cultured at 36 ± 1 °C for 48 h in CHROMagar, one on the medium slope, the other punctured through the agar, and both were then inoculated on trisaccharide iron medium. Meanwhile, suspicious colonies were inoculated onto lysine decarboxylase medium and cultured at 36 ± 1 °C for 18 − 24 h (or up to 48 h if necessary). Colonies from positive samples presumed to be Salmonella spp. were further identified using a VITEK II Compact 30 instrument (BioMérieux) with a GN card according to the manufacturer’s specifications. DNA extraction from isolates and reference strains was performed with a TIANamp Bacteria DNA Kit (Tiangen Biotech, Co., Ltd, Beijing, China) according to the manufacturer’s recommendations.

Species-specific primers and probes design

The invA sequences of Salmonella spp. were aligned to identify conserved and specific regions using CLUSTAL W software (Aiyar 2000). A series of sense and antisense primers were designed based on these conserved and specific regions using ABI ViiA7 PrimerExpress software, and the final specific primer pair and dual-labelled probe (Additional file 1: Table S4) targeting the Salmonella spp. virulence gene were determined using the basic logical alignment search tool (BLAST) (Altschul et al. 1997). Primers and dual-labelled probe targeting the gyrB gene were as described our previous research (Ruan et al. 2017). The primers and probes sets were synthesized by Sangon Biotech (Shanghai, China), and probes labeled with the fluorescent reporter dye carboxy-4′,5′-dichloro-2′,7′-dimethoxyfluorescein (JOE) targeting invA and 6-carboxyfluorescein (FAM) targeting gyrB were covalently coupled to the 5′-end, with Black Hole Quencher 1 (BHQ-1) at the 3′-end.

Single real-time qPCR assays

The optimum annealing temperature of primers were screened using a Bio-rad CFX96 Real-time PCR system (Bio-Rad Laboratories, Inc., USA). Two simplex RT-qPCR detection methods for the detection of Salmonella spp. and S. fonticola were established using primers and probes targeting invA and gyrB genes, respectively, using an Applied Biosystems ViiA 7 real-time PCR system (Life Technologies Inc., Foster City, CA, USA). Reaction conditions were determined after various PCR parameters were tested according to the information supplied with the reagents. The optimized 20 μL PCR contained 10 μL of 2 × Premix Ex Taq (TaKaRa Biomedical Technology Co., Ltd), 0.4 μL of each primer (10 μM) and probe (10 μM), 0.2 μL of ROX Reference Dye (50 ×), 1 μL of bacterial DNA, and 7.6 μL of Rnase-free ddH₂O. Optimized thermal cycling conditions involved an initial denaturation at 95 °C for 30 s, followed by 40 cycles at 95 °C for 5 s and 64 °C for 34 s. ViiA 7 Software was employed to monitor PCR amplification, and the collect and analyze amplification data.

To verify the specificity of the two simplex RT-qPCR assays, tests were performed by amplifying genomic DNA extracted from strains. We constructed recombinant plasmids carrying invA and gyrB gene to determine the sensitivity of two simplex real-time qPCR. The standard plasmids of pMD-invA and pMD-gyrB were serially diluted 9 times with ten-fold and then subjected to RT-qPCR to make standard curves(three technical replications for each dilution), from which we determined both the amplification efficiency and the minimum detection limit of the two real-time qPCR methods. The plasmid copy numbers was calculated using the following formula (Whelan et al. 2003):

$$ {\text{Copy number }} = \, \left( {{\text{DNA amount }}\left( {{\text{ng}}} \right) \, \times { 6}.0{22} \times {1}0^{{{23}}} /{\text{length }}\left( {{\text{bp}}} \right) \, \times { 1}0^{{9}} \times { 65}0} \right). $$

Duplex real-time qPCR assay

A duplex real-time qPCR assay was established based on the two simplex RT-qPCR assays developed for the detection of Salmonella spp. and S. fonticola using an equal amount of genomic DNA from the two pathogens in the same reaction. Optimal PCR conditions were ultimately determined based on the simplex RT-qPCR parameters described above by varying a single factor while all other parameters remained constant. The main factor to be investigated was the concentration of the two primer and probe sets since the annealing temperatures of primers and probes was already optimized.

To analyze the reproducibility and stability of the established duplex real-time qPCR method, recombinant pMD-invA and pMD-gyrB plasmids were tenfold serially diluted five times (each dilution was tested in triplicate). A total of 96 reactions were simultaneously performed using the invA- and gyrB recombinant plasmids in the same real-time qPCR mixture to verify reproducibility. The coefficient of variation (CV) based on quantification cycle (Cq) values for each test was used to evaluate the performance of this approach.

Detection of artificially contaminated feed stuffs

A 10 mL sample of this pre-enrichment culture was transferred into 100 mL of SC enrichment solution, cultured at 36 ± 1 °C for 24 h, and inoculated onto CHROMagar designed for Salmonella spp. Two Salmonella spp. colonies were cultured at 36 ± 1 °C for 48 h in CHROMagar, one on the medium slope, the other punctured through the agar, and both were then inoculated on trisaccharide iron medium. Meanwhile, suspicious colonies were inoculated onto lysine decarboxylase medium and cultured at 36 ± 1 °C for 18 − 24 h (or up to 48 h if necessary).

We tested seven imported fishmeal samples not contaminated by either Salmonella spp. or S. fonticola. A 25 g portion of three of the fishmeal samples was artificially contaminated with Salmonella enteritidis and S. fonticola (2 × 10⁶ CFU/g), while the other four samples were contaminated with Salmonella enteritidis (2 × 10⁶ CFU/g). Contaminated samples were added to 225 mL of BPW enrichment solution and incubated at 36 ± 1 °C for 16 − 20 h. A 1 mL sample of the pre-enrichment culture was transferred into 10 mL of SC enrichment solution, cultured at 36 ± 1 °C for 24 h. Then 1 mL of above solution was used for genomic DNA extraction using the TIANamp Bacteria DNA Kit (Tiangen Biotech, Co., Ltd). Finally, RT-qPCR was performed for the detection of Salmonella spp. and S. fonticola, and the national standard method (GB/T13091-2018) was also employed for verification.

Results

Determination of optimum annealing temperature

Genomic DNA from Salmonella enteritidis and S. fonticola was used as a template to determine optimal annealing temperatures for the two primer sets by testing between 55 and 65 °C using a Bio-Rad fluorescence quantitative PCR instrument. RT-qPCR using the designed primers and probes yielded the highest fluorescence intensity of amplified products at an annealing temperature of 64.5 °C for both invA- and gyrB- specific primers and probes, and this annealing temperature was employed in subsequent experiments.

Specificity of the single real-time qPCR assay

The specificity of the two single real-time qPCR assays was verified by amplifying genomic DNA extracted from reference strains and laboratory isolates. The real-time qPCR assay detected Salmonella spp. only, while no fluorescent signal was observed for any non-Salmonella spp. strains or blank controls. Additionally, the real-time qPCR assay targeting S. fonticola generated four specific amplification curves for the detection of four S. fonticola strains, while non-S. fonticola and blank controls were not amplified. Thus, the specificity of the two real-time qPCR assays was 100%, with no detectable fluorescent signal for negative samples or blank controls.

Standard curves and sensitivity of the simplex real-time qPCR assay

Recombinant invA- and gyrB-containing plasmids were tenfold serially diluted nine times, resulting in real-time qPCR amplicon copy numbers from 1. 97 × 10¹⁰ copies/μL to 1. 97 × 10² copies/μL, and 1.45 × 10¹⁰ copies/μL to 1.45 × 10² copies/μL, respectively. The standard curve for invA has a γ intercept of 48.116, a slope of -3.267, and a mean efficiency of 102.344% (Fig. 1a). The gyrB standard curve has a γ intercept of 42.919, a slope of -3.242, and a mean efficiency of 103.429% (Fig. 1b). As shown in Fig. 1c, d, the single quantitative real-time PCR assays could detect Salmonella spp. and S. fonticola at concentrations as low as 197 and 145 copies per reaction, respectively.

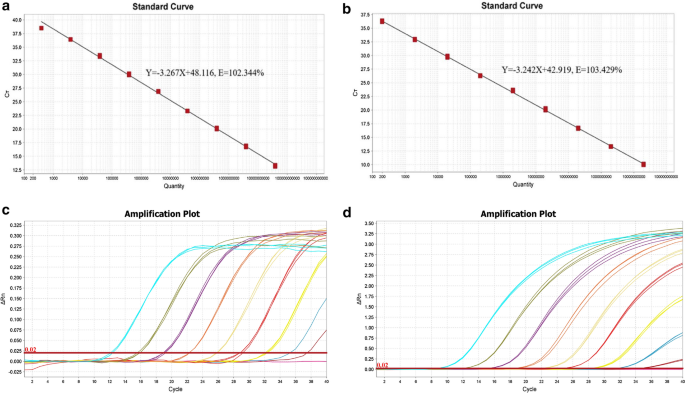

Fig. 1

Standard curves and sensitivity of the real-time qPCR assay. Standard curves for Salmonella. app (a) and S. fonticola (b) RT-qPCR assay. The curves represent a range from 10¹⁰ to 10² copies per reaction. Sensitivity of the real-time qPCR assay for the detection of Salmonella species (c) and S. fonticola (d). Amplification plots from left to right represent a range of invA/gyrB gene-containing plasmids from 1.97 × 10¹⁰ to 1.97 × 10² copies/μL (1.45 × 10¹⁰ to 1.45 × 10² copies/μL), respectively

Establishment of the duplex real-time qPCR

Figure 2a, b shows amplification plots and standard curves for the duplex real-time qPCR assay established for simultaneous detection of Salmonella spp. and S. fonticola developed with recombinant pUCm-invA and pUCm-gyrB plasmids. Standard curve slopes are − 3.362 and − 3.409 for the detection of invA and gyrB, respectively, indicating an amplification efficiency of 98.346% and 96.49%. A correlation coefficient consistently higher than 0.999 indicates effective simultaneous detection of two kinds of pathogens in one real-time qPCR assay without cross-reaction.

Fig. 2

Amplification plot for the duplex RT-qPCR assay using serially diluted plasmids (a). Amplification plots 1–5 represent gyrB gene-containing plasmid ranging from 1.97 × 10¹⁰ to 1.97 × 10⁶ copies/μL, respectively. Amplification plots 6–10 represent invA gene-containing plasmid ranging from 1.45 × 10¹⁰ to 1.45 × 10⁶ copies/μL, respectively. Standard curves for the duplex RT-qPCR assay (b). Y₁ and Y₂ are standard curves using invA gene- and gyrB gene-containing plasmids, respectively

Tests of reproducibility and stability

Five recombinant invA and gyrB plasmid dilutions were simultaneously used as substrates to evaluate the reproducibility and stability of the assay. As shown in Additional file 1: Table S5, the standard deviation was no more than 0.153 for all reactions, and the coefficient of variation was less than 0.73%. Additionally, Ct values for the same plasmid samples obtained from same experiments were determined to analyze the performance of the developed real-time qPCR method. The results showed that amplification plots for all 96 replicate reactions were almost coincident in the vicinity of the threshold line (Additional file 2: Fig. S1). Thus, the established quantitative real-time PCR assay has high stability and reproducibility.

Duplex real-time qPCR analysis of imported feed stuffs

Imported feedstuffs not infected with either Salmonella spp. or S. fonticola were artificially contaminated with the corresponding pathogens. Three feed samples were contaminated with Salmonella enteritidis and S. fonticola, while four samples were contaminated with Salmonella enteritidis only. Expected fluorescent signals were observed among all artificially contaminated feed samples by the end of amplification (Fig. 3). Meanwhile, the results of the detection of artificial contaminated samples were consistent with the national standard method (GB/T13091-2018) that was also employed for verification.

Fig. 3

Detected amplification plot of artificially contaminated Feedstuffs. Red curves 1–3 and blue curves 4–6 represent the amplification plots of gyrB and invA-specific primers, respectively, which correspond to three samples artificially contaminated with Salmonella enteritidis and S. fonticola. Blue curves 7–10 represent the amplification plots of invA-specific primers, which correspond to four samples artificially contaminated with Salmonella enteritidis only

Discussion

Many target genes for the detection of Salmonella genus have been reported, including afgA, hilA, spvC, sef (Crăciunaş et al. 2012; Mann et al. 2013), fliC, fliB, iroB, rfbJ (Shanmugasundaram et al. 2009), ompC (Ngan et al. 2010), spvR (Mahon et al. 1993), fimA (Cano et al. 1993), viaB (Hashimoto et al. 1995),etc. However, they have shortcomings for the identification of Salmonella species, and false-positives limit the diagnostic process. At present, quorum sensing-related such as luxS and gyrB are widely used, along with virulence genes invH, sopE, hilA, and invA in the SP11, sugR, rhuM, and iacP in the SPI-3 pathogenicity island, and spvB and spvC in virulence plasmids. Of these, invA, which encodes an epithelial cell surface protein, is present in all Salmonella species, and is the most widely reported target gene in the Salmonella genus. Primers and probes for the diagnosis of Salmonella spp. based on this conserved gene are highly specific, hence invA was selected as the target gene for real-time qPCR detection of Salmonella species in the present study.

The 16S rDNA gene has been used for classification and identification of Serratia species in previous studies, as has the quorum sensing gene luxS (Zhu et al. 2008), which was employed in real-time qPCR (Joyner et al. 2014). In addition, several studies used carbapenem antibiotic resistance genes for identification of Serratia species (Yamamoto and Harayama 1996). The gyrB gene, encoding the B subunit of DNA gyrase (GyrB) that forms topoisomerase II, an essential protein in replication, transcription, DNA synthesis, and maintenance of the DNA supercoiled structure, is more reliable than the 16S rDNA gene for the identification of bacterial species (Gellert et al. 1976). The protein-coding gyrB gene contains more genetic information than the non-protein-coding 16S rDNA, resulting in a greater capacity to distinguish bacterial species (Kasai et al. 1998). Thus, the gyrB gene was selected for discriminating S. fonticola and Salmonella spp. using real-time qPCR.

Real-time qPCR requires stricter primers, amplification products, and reaction conditions than conventional PCR. Primers used for real-time qPCR are typically 18 − 30 bp in length. Shorter primers (< 15 nucleotides) can be combined efficiently, but often to the detriment of specificity. By contrast, longer primers often display enhanced specificity but may also hybridize with the wrong pairing sequence, reducing specificity and decreasing the efficiency of hybridization, resulting in diminished PCR amplification. Ideal results are generally obtained when amplifying products of less than 300 bp. Therefore, the PCR products selected for differentiating Salmonella spp. and S. fonticola were 199 bp and 94 bp, respectively. Different annealing temperatures were tested to determine the optimum annealing temperature of the two pairs of primers, in order to reduce the influence of annealing temperature on the duplex real-time qPCR experiment. An annealing temperature of 64 °C was found to be optimal.

The duplex real-time qPCR approach established for the rapid detection of Salmonella spp. and S. fonticola in imported feedstuffs was characterized by a high correlation coefficient between the Ct value and the logarithm of the initial copy number (R² = 0.999). Additionally, parameters including slope, y-axis intercept, and amplification efficiency between duplex real-time PCR and single real-time PCR were compared. As shown in Additional file 1: Table S6, the slope of the standard curve and its intercept on the y-axis are approximately equal, and the amplification efficiency is ~ 100%. Thus, simultaneous detection of the two pathogens was achieved in a single duplex real-time qPCR amplification assay, and the detection limit of this method is suitable for daily inspection and quarantine work. In summary, the rapid diagnostic method established in this study has many advantages, including a low detection limit and high repeatability. It is also rapid and convenient to deploy, since the results can be obtained within several hours after pre-enriching, representing a significant improvement in efficiency for detecting Salmonella spp. in imported animal-derived feedstuffs during quarantine work. This method is of great theoretical and practical value for ensuring the safety of imported feedstuffs.
