Ursolic acid inhibits colistin efflux and curtails colistin resistant Enterobacteriaceae
AMB Express volume 9, Article number: 27 (2019)
Colistin resistance in Enterobacteriaceae especially Klebsiella pneumoniae and Escherichia coli is driving the evolution of pan drug resistant strains. Screening a library of 13 plant nutraceuticals led to the identification of acetyl shikonin and ursolic acid, which exhibited synergy with colistin against extremely drug resistant (XDR) clinical strains of E. coli (U3790) and K. pneumoniae (BC936). Ursolic acid caused a significant colistin MIC reversal of 16-fold in U3790 and 4-fold in BC936 strains. Ursolic acid also potentiated the bactericidal effect of colistin against both U3790 and BC936 by causing ~ 4 to 4.5 log fold decline in CFU of both clinical isolates in a time kill assay. At 2× minimum effective concentration, ursolic acid was non-toxic to zebrafish as evidenced by brain and liver enzyme profiles and by histopathology studies. In combination with colistin, ursolic acid reduced bacterial bioburden of U3790/BC936 by 1–1.58 log fold from the infected muscle tissue of zebrafish. Mechanistic explorations via studies on real time efflux, membrane potential and intracellular accumulation of dansyl chloride tagged colistin revealed that colistin efflux is inhibited by ursolic acid. In addition, ursolic acid also enhanced outer membrane permeability which probably facilitates colistin’s attack on outer and inner membranes. Our study shows that ursolic acid synergizes with colistin by inhibiting colistin efflux in Enterobacteriaceae that helps to curtail colistin resistant Enterobacteriaceae.
Multi drug resistant Enterobacteriaceae especially Klebsiella pneumoniae and Escherichia coli, are the leading causes of mortality and morbidity in neonatal bacterial sepsis caused by Gram negatives. Roughly 54% of K. pneumoniae and 38% of E. coli strains that caused neonatal sepsis were observed to be multi drug resistant (Investigators of the Delhi Neonatal Infection Study (DeNIS) collaboration 2016). Colistin is regarded as a drug of last resort in therapeutic management of Gram negative infections (Yau et al. 2009) and colistin resistance in carbapenem resistant Enterobacteriaceae implies that we are in fact dealing with pan drug resistant strains, with very limited/no therapeutic options. Colistin resistance was known to be chromosomally mediated (Yau et al. 2009). But of late, studies have shown that plasmid encoded mcr-1 gene harbored by E. coli SHP47 confers colistin resistance in farm animals in China (Liu et al. 2016), subsequently other reports have also highlighted spread of plasmid mediated colistin resistance in Europe (Skov and Monnet 2016). Resistance to colistin is typically caused by modification of LPS with 4-amino 4-dexoy arabinose or with phosphoethanolamine both of which alters surface charge, ultimately resulting in reduced binding of colistin to outer membrane of the bacteria (Olaitan et al. 2014). Among Enterobacteriaceae, especially with Klebsiella pneumoniae clinical isolates, mutation/disruption of mgrB was reported as the most common reason for colistin resistance (Cannatelli et al. 2014).
Due to resistance to last resort drugs like colistin, infections by MDR Enterobacteriaceae are associated with treatment failure and high mortality. Hence, restoring colistin sensitivity is likely to improve therapeutic outcomes significantly. Towards this end, we were interested to explore ability of natural products to interact synergistically with colistin and augment bactericidal effect of colistin in clinical isolates of Enterobacteriaceae (especially E. coli and Klebsiella pneumoniae.) both in vitro and in vivo in a zebrafish infection model that we and others have developed (Christena et al. 2016; Cheepurupalli et al. 2017). In addition, we were also interested in exploring mechanism of action of plant metabolites that displays synergistic interaction with colistin.
Materials and methods
Strains and compounds
Klebsiella pneumoniae reference strain (MTCC 432: K. pneumoniae-1) was procured from Microbial Type Culture Collection (MTCC) Chandigarh, India and E. coli MG1655 was a kind gift from Dr. Aswin Sai Narayan Seshasayee NCBS, Bangalore. The clinical isolates of Klebsiella pneumoniae and Escherichia coli were obtained from Sundaram Medical Foundation (SMF), Chennai, India. The K. pneumoniae isolates are designated as (BC936, E474, BC1415, U2016, BC1994, BC2412, U3866) and the E. coli isolates as (U3176 and U3790). All the antibiotics, media and chemicals employed in the study were purchased from Sigma Aldrich, USA, Alfa-Aesar, USA or HiMedia, India. The plant metabolites used as test compounds was from a natural product library which include caffeic acid, naringin, naringenin, arjunolic acid, ursolic acid, acetyl shikonin, β-methylacrylshikonin, chrysin, chrysophenol, ventilone, ventiloquinone, emodin and physcion. Stocks for the test compounds were freshly prepared in DMSO and stored at − 20 °C for further use.
All the test compounds were screened for their minimum inhibitory concentration (MIC) by microbroth 2-fold-dilution method to check for the antimicrobial efficacy against the E. coli and K. pneumoniae strains as reported earlier (Andrews and Andrews 2001). Similarly, the susceptibility pattern of other clinical isolates towards other antibiotics was also analyzed.
Synergy and modulation of antibiotic resistance
To understand the combinatorial activity, plant metabolites and antibiotics were used in combination at different concentrations by checkerboard assay against reference and clinical isolates as reported earlier (Lowrence et al. 2016). The Fractional inhibitory concentration (FIC) index was calculated and if FIC values are < 0.5, the interaction is synergistic, 0.5–2.0, interaction is additive and > 2, the interaction is antagonistic (Odds 2003). The colistin potentiating ability of ursolic acid against colistin resistant isolates of E. coli and K. pneumoniae was evaluated. Ursolic acid at sub-MIC concentration was used along with varying concentrations of colistin and incubated for 18–24 h at 37 °C. The fold reduction in MIC (MIC reversal) of colistin when combined with ursolic acid was determined as modulation factor as reported earlier (Lowrence et al. 2016; Sundaramoorthy et al. 2018).
Real time efflux study
To analyze the efflux pump inhibitory activity of ursolic acid against Klebsiella pneumoniae and Escherichia coli, real time efflux studies were performed using ethidium bromide as a substrate. The cells were de-energized, EtBr was added and then glucose was added to re-energize the cells, which would activate efflux. Resulting fluorescent intensity was measured with Ex 360 nm and Em 590 nm as reported earlier (Sundaramoorthy et al. 2018). The increase in fluorescent intensity of EtBr was taken as a measure of efflux inhibition activity.
Time kill assay
Bactericidal effect of ursolic acid in combination with colistin was evaluated against the XDR clinical isolates U3790 and BC936 by time kill assay (Belley et al. 2008; Grillon et al. 2016). Early log phase cells were subjected to following treatments, viz., colistin (4 μg/ml) and colistin (4 μg/ml) + ursolic acid (40 µM). Untreated culture was maintained as a growth control. The samples were withdrawn at different time intervals (0, 1, 2, 3, 4, 5 and 24 h), serially diluted and plated on agar plates. The plates were incubated at 37 °C for 24 h and from plate counts, Colony forming units (CFU)/ml was calculated and bactericidal effect of combination was discerned.
Membrane permeability and integrity assay
The ability of ursolic acid to permeabilize outer membrane of Enterobacteriaceae was assessed by 1-N-phenylethylamine (NPN) uptake assay as reported earlier (Helander and Mattila-Sandholm 2000). NPN exhibits enhanced fluorescence in phospholipid environment. Since the outer membrane (OM) of Gram negative bacteria affords steric hindrance to hydrophobic molecules and prevents NPN entry due to LPS, increased NPN fluorescence due to treatment, indicates enhanced OM permeability. Briefly, cells were grown to mid-log phase collected and washed with 5 mM HEPES buffer containing 0.2% glucose at pH 7.5 and resuspended in an equal volume of the same buffer. NPN was added at a concentration of 0.5 mM, this was immediately followed by addition of ursolic acid. Fluorescence due to NPN was measured (Ex 350 and Em 420 nm) using spectrofluorimeter (JASCO FP-8500, Jasco, Tokyo, Japan). NPN in buffer and NPN in buffer along with cells were maintained as controls.
Membrane integrity assay
Compromise in cell membrane integrity due to treatment with ursolic acid was assessed as reported previously (Marks et al. 2013). Briefly, cells after treatment were collected at different time points (0, 1, 2, 3 and 4 h), pelleted at 13,250 rcf for 5 min. The release of DNA and proteins, due to loss of inner membrane integrity, was quantified by measuring absorbance at 260 nm and 280 nm respectively using UV–Vis Spectrophotometer (Evolution 201, Thermoscientific, USA). Treatment with 0.5% Triton X 100 was used as a positive control.
Membrane potential assay
The effect of ursolic acid alone/with colistin in perturbing membrane potential was evaluated using DiSc3, a cationic membrane permeabilizing dye. Intact bacterial cells accumulate the dye in the lipid bilayer, resulting in quenching of fluorescence. When the membrane gets depolarized, dye gets released to the surrounding aqueous phase and fluorescence gets enhanced (Te Winkel et al. 2016). The fluorescent intensity (Ex 610 ± 5 nm and Em 660 ± 5 nm) of buffer with DiSc3 (1 μM) was measured initially. Mid log cells were added, which reduces the fluorescent intensity due to accumulation of dye in cells. Colistin, ursolic acid and colistin with ursolic acid treatments were given and the resulting variation in fluorescence intensity due to various treatments was quantified using spectrofluorimeter (JASCO FP-8500, Jasco, Tokyo, Japan).
Release of reactive oxygen species (ROS) from XDR E. coli and K. pneumoniae clinical isolates, in the presence of colistin and ursolic alone and in combination was discerned using fluorophore Dichloro-dihydro-fluorescein diacetate (DCFH-DA) and fluorescence of ROS induced dichlorofluorescein (DCF) formation was quantified using a fluorescence spectrophotometer (JASCO FP-8500, JASCO, Tokyo, Japan) (Ex 485 nm and Em 538 nm).
Colistin accumulation studies
In order to visualize the intracellular accumulation of colistin within the cells, colistin was conjugated using the fluorophore dansyl chloride as reported earlier (Soon et al. 2011). Intracellular accumulation of dansyl chloride conjugated colistin in response to different treatments viz., colistin-dansyl chloride, colistin-dansyl chloride + ursolic acid, colitin-dansyl chloride + CCCP was evaluated using fluorescent microscopic imaging (Nikon eclipse Ni-U, Nikon, Tokyo, Japan), to discern effect of various treatments on colistin accumulation.
Fish toxicity studies
All experiments were performed in compliance with applicable national and/or institutional guidelines for the care and use of animals (Animal Biosafety Level 2). Adult zebrafish (Danio rerio), either male/female, measuring 4 to 5 cm in length, weighing approx. 300 mg, were purchased from a local aquarium in Thanjavur, India. Animal acclimatization was performed as reported earlier (Westerfield 1995). To evaluate the effect of ursolic acid on brain and liver enzyme profiles of zebrafish, a total of 10 fish were exposed to 32 mg/L of the respective compounds for 48 h. At the end of exposure (48 h), fish were sacrificed (anesthetized by 150 mM MS-222 and euthanized by decapitation), skin removed and the liver/brain from two fish from the same group were pooled and homogenized in ice-cold buffer (Tris–HCl, 0.1 M, pH 7.4). The homogenate was centrifuged (10,000×g, 10 min, 4 °C) and supernatant used for all analyses in duplicates. Protein was estimated by the method of Lowry et al. (1951). Estimation of carboxyl esterase was essentially as described by Argentine and James (Argentine and James 1995) and acetylcholinesterase (AChE) activity was measured by Edmann’s degradation. Histopathology of ursolic acid injected fish was performed to analyze any histopathological alterations. The fish were sacrificed and fixed with 10% formalin. Thin sections were made after embedding process, stained with hematoxylin–eosin and viewed and imaged using a bright field microscope (Nikon Eclipse Ni-U, Japan).
Intramuscular infection of zebrafish (n = 6) with colistin resistant Klebsiella pneumoniae BC936 and Escherichia coli U3790 strains corresponding to OD of 0.2 (~ 1 × 106 CFU/ml) was performed as reported earlier (Neely et al. 2002) with slight modifications. 2 h post infection, compounds viz., ursolic acid/colistin alone and ursolic acid +colistin combination were administered via intramuscular injection as a single dose. 48 h post treatment, fish were euthanized, decapitated, muscle tissue was dissected, minced, serial diluted and plated onto LB agar to discern colony counts after 24 h of incubation. Based on cell counts, graph was plotted and ability of ursolic acid alone and in combination with colistin to reduce bacterial bioburden in infected muscle tissue was estimated.
Antimicrobial profiling of isolates
The clinical isolates of Klebsiella pneumoniae and Escherichia coli were obtained from blood of unrelated patients diagnosed with bacterial sepsis from the same health care setting albeit at different time points. Antimicrobial profiling of clinical isolates showed that K. pneumoniae BC2412, U3866 and E. coli U3176 strains were relatively more sensitive to colistin whereas K. pneumoniae BC936 and E. coli U3790 were the most colistin resistant strains, which also exhibits a very high MIC to most of the other antibiotics evaluated (Additional file 1: Table S1). Based on its resistance profile, both E. coli U3790 and K. pneumoniae BC936 strains were deemed as extremely drug resistant (XDR) strains as proposed by international expert committee for standard definitions on acquired resistance (Magiorakos et al. 2012). We observed that U3790 and BC936 had a high colistin MIC (32 µg/ml), rest of the strains displayed an MIC (1–8 µg/ml) for colistin. MIC of plant metabolites was determined against the XDR U3790 and BC936 strains wherein, most plant metabolites tested exhibited a higher MIC ranging from 256 to 1028 µg/ml (Additional file 1: Table S2).
Synergy between the plant metabolites and colistin was evaluated by checkerboard assay against U3790 and BC936. Among the metabolites evaluated, only acetyl shikonin and ursolic acid displayed synergy with U3790 and BC936 strains, the rest of the metabolites exhibited additive effect and emodin exhibited antagonistic effect. Both acetyl shikonin and ursolic acid were further evaluated for their ability to synergize with colistin against all strains employed in this study. Among the two metabolites chosen, ursolic acid at 32 µg/ml displayed synergy with colistin for most of the strains tested, other than one strain K. pneumoniae (BC1415) wherein FIC index values were < 0.5. But acetyl shikonin displayed synergy only with four strains and for rest five strains, it exhibited an additive effect and hence it was not taken up further (Table 1).
Reversal of colistin MIC using ursolic acid
Ability of ursolic acid to reduce colistin MIC in all clinical isolates was evaluated. Except for BC1415 strain of K. pneumoniae, with which ursolic acid did not display synergy and hence, no decrease in colistin MIC was observed, for rest of the 8 strains (both E. coli and K. pneumoniae), ursolic acid caused 2–16-fold reduction in colistin MIC (Table 2). A 4-fold reduction in colistin MIC was seen for K. pneumoniae strains U3866, MTCC reference strains and BC936 strain whereas, 16-fold reversal in colistin MIC was observed for the E. coli U3790 strain. Thus by virtue of its synergistic interaction, ursolic acid was able to potentiate anti-bacterial effect of colistin in various clinical isolates of Escherichia coli and K. pneumoniae.

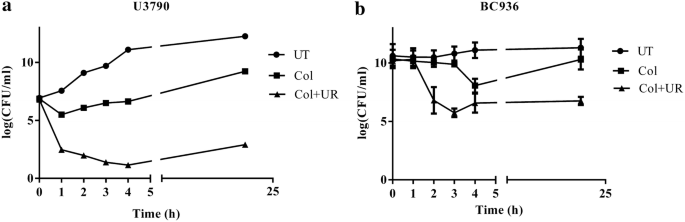

Time kill curve
In order to validate ability of ursolic acid to potentiate the bactericidal effect of colistin, a time kill assay was performed. Overnight grown culture of U3790 and BC936 were diluted to 0.1 OD and was subjected to following treatments: colistin alone, colistin and ursolic acid (16 µg/ml) and untreated sample was maintained as a growth control. In E. coli U3790 strain, 24 h plate counts revealed a 5–6 log increase in cell counts in the untreated control relative to starting population (Fig. 1a). Treatment with colistin caused an initial decline by 1 h, following which re-growth was observed, and by 24 h ~ 2 log CFU increase in cell count was observed relative to initial population. When ursolic acid was administered along with colistin, a steep decline in cell counts was noted by 1 h and by 24 h, a decline in cell count of ~ 4 log CFU relative to founder population was maintained (Fig. 1a). Similarly for K. pneumoniae BC936 strain, colistin treatment caused an initial decline at 3 h, but regrowth was observed by 24 h (Fig. 1b). Ursolic acid in combination with colistin caused a ~ 4.5-fold reduction in bioburden, which was maintained until 24 h, implying that ursolic acid effectively potentiated bactericidal effect of colistin and restricted growth of both U3790 and BC936 strains for 24 h.

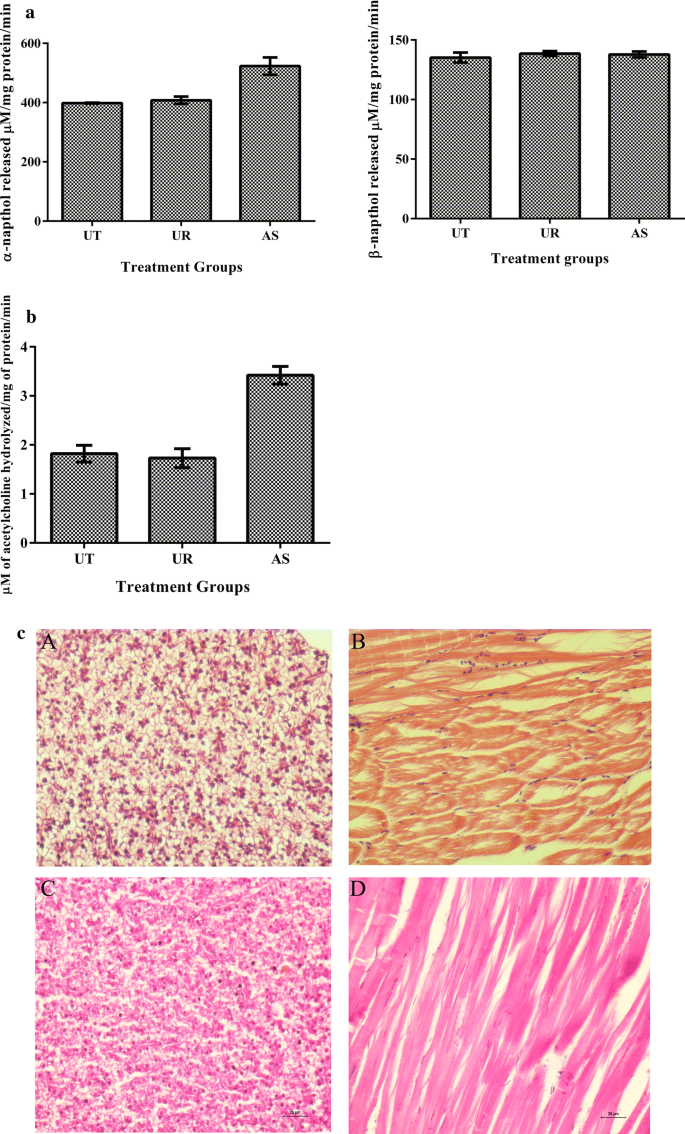

Zebrafish toxicity testing
Toxicity of ursolic acid was evaluated using by determining liver and brain enzyme profiles of zebrafish, because relative to in vitro cell culture based toxicity evaluation, whole organism based toxicity testing is likely to yield holistic insights (Astashkina et al. 2012). Liver and brain enzyme levels due to ursolic acid treatment were comparable as that of the untreated control implying that ursolic acid was non-toxic at the concentration tested (Fig. 2a, b). Whereas acetyl shikonin treatment resulted in enhanced acetylcholine esterase activity and alpha-naphthol levels indicating toxicity. Histopathological analysis of liver and muscle from ursolic acid injected fish tissue sections revealed no signs of inflammation, neutrophil accumulation or tissue damage and tissue appeared similar to untreated control, showing non-toxic nature of ursolic acid at the tested concentration (Fig. 2c).
Zebrafish infection study
Zebrafish (n = 6 per group) was infected independently with ~ 1 × 106 CFU/ml (corresponding to an OD of 0.2) of E. coli U3790 and K. pneumoniae BC936 strains and 2 h post infection, fish were subjected to various treatments viz., colistin alone, ursolic acid alone and colistin and ursolic acid. Plate counts from infected muscle tissue of various groups showed that untreated control displayed a colony count of 5.2 log CFU. Colony counts in case of ursolic acid treatment group was comparable to untreated control at 5.7 log CFU. Colistin treatment resulted in a decline in plate count to 4.7 log CFU. When ursolic acid was administered in combination with colistin, a further reduction in plate count to 3.62 log CFU was observed for U3790 strain. With BC936 strain, treatment with colistin did not cause significant decline in cell counts relative to infected and untreated cells. The combination of ursolic acid and colistin caused 1 log decline in plate counts. Most importantly treatment with combination caused statistically significant decline in cell counts for both E. coli U3790 (P = 0.003) and K. pneumoniae- BC936 (P = 0.0375), although the reduction in cell counts was more pronounced for U3790 strain. Thus relative to untreated control, ursolic acid-colistin combination caused 1.1 to 1.58 log CFU reduction in both U3790 and BC936 strains (Fig. 3). Reduction in bioburden following combinatorial treatment highlights the ability of ursolic acid in potentiating bactericidal effect of colistin in vivo.
NPN was used as fluorophore to evaluate membrane permeability. In E. coli U3790, colistin treatment caused a slight increase in membrane permeability relative to untreated control and ursolic acid caused ~ 1.5-fold increase in membrane permeability. But when ursolic acid was mixed with colistin a significant 2.5-fold increase in membrane permeability was observed (Additional file 1: Fig S1). With K. pneumoniae BC936 strain, colistin treatment showed ~ 1-fold increase in membrane permeability whereas ursolic acid caused ~ 0.8-fold increase in permeability. Combination of colistin with ursolic acid resulted in a 2.4-fold increase in membrane permeability. Thus ursolic acid synergistically enhanced membrane permeabilizing effect of colistin in both U3790 and BC936 strains. By enhancing membrane permeability ursolic acid would afford more access to colistin and is likely to potentiate bactericidal effect of colistin.
Real time efflux studies (RTE)
To discern the ability of ursolic acid to inhibit efflux pumps, real time efflux assay was performed for U3790 and BC936 strains. De-energized cells were incubated with ursolic acid for 1 h and then re-energized with glucose and fluorescence of EtBr was measured over a time course of 20 min. PAßN and CCCP were maintained as positive controls. RTE results revealed that ursolic acid caused enhanced inhibition of EtBr efflux relative to positive controls PAßN and CCCP (Fig. 4). Thus ursolic acid apart from enhancing membrane permeability, also inhibits efflux pumps in Enterobacteriaceae.
Measurement of membrane potential
DiSc3 was used to determine the effect of ursolic acid with colistin on membrane potential. DiSc3 exhibits enhanced fluorescence in aqueous milieu and its fluorescence gets quenched when it partitions to lipid membranes of cells, compounds that alters membrane potential causes DiSc3 to partition back into aqueous environment resulting in enhanced fluorescence. In E. coli U3790 strain, addition of colistin and ursolic acid alone caused depolarization resulting in enhanced fluorescence. Combination of colistin with ursolic acid showed 2.5-fold enhanced depolarization effect relative to the individual components (Fig. 5). Even in K. pneumoniae BC936 strain, ursolic acid itself caused efficient depolarization, which was comparable to that of positive control CCCP. Colistin with ursolic acid showed ~ 2-fold increase in depolarization effect. This reveals that ursolic acid with colistin can disrupt membrane potential in both U3790 and in BC936 strains (Fig. 5). Membrane potential perturbation will abolish proton motive force, which energizes most of efflux transport proteins and hence by perturbing membrane potential ursolic acid inhibits efflux in Enterobacteriaceae.
Colistin accumulation studies
In order to confirm whether ursolic acid prevents colistin efflux, we qualitatively determined intracellular accumulation of colistin by tagging colistin with dansyl chloride, which exhibits fluorescence and can be imaged using a fluorescent microscope. Incubation of colistin-dansyl chloride with bacterial cells in the presence and absence of ursolic acid for 3 h showed that there is enhanced uptake of colistin-dansyl chloride in the presence of ursolic acid (Fig. 6), which was comparable to accumulation of colistin-dansyl chloride seen in the presence of positive control (CCCP). This shows that colistin indeed gets accumulated within the cells in presence of ursolic acid, which could be attributed to efflux inhibitory potential of ursolic acid primarily mediated by its ability to disrupt proton motive force.
DCFH-DA was used as fluorophore to evaluate ROS production and in the presence of ROS, non-fluorescent DHFCA would be converted to strongly fluorescent DHF. Ursolic acid treatment caused only a minimum or negligible level of ROS production in bacterial cells relative to untreated cells. When treated with colistin, ~ 3–4-fold increases in ROS production was observed. Whereas when ursolic acid was combined with colistin there was reduction in ROS generation by ~ 1-fold in both U3790 and BC936 strains (Additional file 1: Fig S2). Thus ursolic acid treatment quenches ROS production in Enterobacteriaceae. Overall ursolic acid enhances bactericidal effect of colistin by enhancing outer membrane permeability and by disrupting proton motive, which prevents colistin efflux and results in increased intracellular accumulation of colistin, thereby leading to enhancement in bactericidal effect of colistin both in vitro and in vivo.
The recent declaration of list of drug resistant priority pathogens by WHO urging R&D to develop new antimicrobials, highlights the urgent need for addressing the issue of antimicrobial resistance. Incidentally as per World Health Organization (WHO) list, carbapenem resistant Enterobacteriaceae viz., Klebsiella pneumoniae and Escherichia coli belongs to the high priority category, which requires urgent attention by researchers to develop new antimicrobial agents or resistance modulatory agents. Pentacyclic triterpenoids such as oleanolic acid and ursolic acid and their derivatives were discovered earlier as potential alternatives to antibiotics against a broad spectrum of pathogens (Wolska et al. 2010; Wang et al. 2016). Ursolic acid was shown to display anti-Mycobacterium tuberculosis activity and immune-stimulatory activity by decreasing the microbial load in TB induced mice. Ursolic acid derivatives were also reported earlier to inhibit multidrug resistant E. coli when used in combination with kanamycin (do Nascimento et al. 2014) and were also shown to inhibit acrAB mediated efflux of nalidixic acid in E. coli. Ursolic and oleanic acids were earlier reported to synergize with beta lactam antibiotics against gram positive pathogens S. aureus, S. epidermidis and Listeria monocytogenes (Kurek et al. 2012). In a recent interesting study, ursolic and oleanic acids present in dichloromethane extract of shea butter tree were shown to synergize with ampicillin and oxacillin against MRSA and cause reversion of MRSA phenotype which was attributed to delocalization of PBP2 from the septal division site leading to disturbance in peptidoglycan synthesis, in addition the triterpenoids also caused indirect inhibition of β-lactamases and reversed β-lactam resistance in MRSA (Catteau et al. 2017). To the best of our knowledge, ursolic acid was not reported to interact synergistically with colistin in bacteria. We are reporting for the first time that ursolic acid can reverse colistin MIC in eight non replicate clinical isolates of Enterobacteriaceae viz., K. pneumoniae and E. coli.
Colistin is a drug of last resort in Enterobacteriaceae (Falagas et al. 2005). In Gram negative bacteria, colistin is believed to cause outer membrane (OM) disruption by insertion of hydrophobic fatty acyl N terminal chain into outer membrane followed by entry into periplasm and thinning and lysis of inner membrane (Velkov et al. 2010). Presently colistin resistant strains are managed by combinatorial therapy involving various antimicrobial agents whose therapeutic efficiency is not well established (Cheng et al. 2018). A recent study has shown that use of outer membrane permeabilizing agents like anti protozoal drug pentamidine with Gram positive antimicrobial agents can indeed be highly effective against colistin resistant Gram negative bacteria (Stokes et al. 2017). Follow up study by the same group has shown that colistin, by virtue of its membrane permeabilizing effect, in combination with clarithromycin is highly effective against mcr-1 harboring K. pneumoniae both in vitro and in vivo (MacNair et al. 2018). Colistin doripenem combination was found to be quite effective in curtailing both colistin resistant and colistin heteroresistant K. pneumoniae isolates (Deris et al. 2012). In an effort to identify antibiotics that synergized with colistin against colistin resistant Enterobacteriaceae, among 20 different isolates tested, colistin in combination with linezolid, rifampin, azithromycin and fusidic acid exhibited synergistic activity against > 90% of the strains (Brennan-Krohn et al. 2018). Another recent study has shown that colistin sulphadiazine combination was synergistic and highly effective in curtailing 92.7% of 55 colistin resistant strains irrespective of mechanism of colistin resistance (Okdah et al. 2018).
In A. baumannii it was shown that colistins’ bactericidal effect was mediated by reactive oxygen species (ROS) especially •OH radical and the agents that impair production of ROS were shown to delay killing effect of colistin (Sampson et al. 2012). In the present study since ursolic acid quenched ROS and the amount of ROS generated by colistin was further reduced in the presence of ursolic acid (Additional file 1: Fig S2), enhancement of colistins’ bactericidal effect in the presence of ursolic acid (Fig. 1 and Table 2) cannot be attributed to ROS. In the absence of ROS, the synergistic effect of colistin –ursolic acid combination could be primarily attributed to inhibition of colistin efflux by ursolic acid which is supported by real time efflux data (Fig. 4) and by the ability of ursolic acid to disrupt membrane potential in both E. coli and K. pneumoniae (Fig. 5). By perturbing membrane potential, which results in loss of proton motive force (PMF), efflux transport proteins that are powered by PMF are rendered non-functional. This is further supported by accumulation of dansyl tagged colistin within the cells (Fig. 6). In contrast, a previous study has shown that CCCP enhances bactericidal effect of colistin on A. baumannii cells but the authors contend that reduced metabolic activity due to CCCP, rather than efflux inhibition, is responsible for increase in bactericidal effect of colistin (Park and Ko 2015). In the present study, we have shown that intracellular concentration of dansyl tagged colistin increases only in presence of CCCP and ursolic acid (Fig. 6), implying that colistin accumulates in presence of either ursolic acid/CCCP. It is implied that increased intracellular colistin accumulation accounts for enhanced bactericidal effect observed in combination. Another recent study has shown that CCCP is effective in potentiating bactericidal effect of only colistin but not tigecycline and meropenem against multi drug resistant Enterobacteriaceae (Osei Sekyere and Amoako 2017). Although an earlier study reported that ursolic acid synergized with nalidixic adid by inhibiting acrAB pump in E. coli using in silico studies, the authors have not used acrA/acrB knock out mutants to prove that ursolic acid specifically inhibits acrAB pump in E. coli (Dwivedi et al. 2015). By virtue of its ability to disrupt proton motive force in both E. coli and K. pneumoniae as shown in the present study (Fig. 5), we can safely state that multiple efflux transporters that depend on PMF are inhibited concurrently, thereby preventing colistin efflux. Identifying pump involved in colistin efflux requires gene knock out mutants of all pumps present in both E. coli and K. pneumoniae, which is quite labor intensive. Alternatively, gene expression studies by qPCR can identify pumps that are upregulated only in colistin resistant bacteria, this can be followed by creating gene knock outs of only those pumps that are overexpressed, such an approach can help to identify pump(s) responsible for colistin efflux, which can be pursued as a future study. Compounds that act as protonophores like CCCP are typically toxic to higher eukaryotes (Itami et al. 2015; Park et al. 2018). By virtue of being a nutraceutical and based on our observations on brain and liver enzyme profiles (Fig. 2a, b) and histopathology studies (Fig. 2c), we can conclude that ursolic acid is non-toxic even at 2× concentration employed in present study, which gives credence for exploring it further as an adjuvant to colistin. A recent study has shown that curcumin can synergize with colistin and reduce persister formation in A. baumannii by increasing ROS, enhancing membrane permeability and by inhibiting efflux, which ultimately eliminates persisters (Kaur et al. 2018). In the present study too, we observed that ursolic acid exhibited synergy with colistin against K. pneumoniae and E. coli clinical isolates and its mode of action involved enhancing the outer membrane permeability and perturbing membrane potential that ultimately resulting in colistin accumulation, which enhances colistins’ attack on bacterial membranes. Although ursolic acid resembles curcumin in most of the other effects, by quenching ROS, it differs from curcumin and is probably slightly less effective. Hence future study would aim to make derivatives of ursolic acid that does not quench ROS, while retaining its ability to inhibit colistin efflux.
In conclusion from a library of 13 plant metabolites, we have screened and identified ursolic acid that interacts synergistically with colistin in clinical isolates of both K. pneumoniae and E. coli. By virtue of its synergistic interaction, ursolic acid caused colistin MIC reversal in both colistin resistant and colistin sensitive Enterobacteriaceae clinical isolates tested. Our observations revealed that ursolic acid was non-toxic and better potentiated bactericidal effect of colistin both in vitro, in a time kill assay and in vivo, in a zebrafish infection model against XDR strains U3790 and BC936 probably by enhancing access of colistin into the cells, which is achieved by perturbing outer membrane permeability and disrupting membrane potential that serves as a source of energy for multiple efflux pumps. Ability of ursolic acid to synergize with colistin highlights its therapeutic potential, which can be further enhanced by making derivatives that retain efflux inhibitory effect and gain ability of not quenching ROS. Ability of ursolic acid in potentiating bactericidal effect of last resort drugs like colistin is interesting and warrants further studies with improved derivatives in higher animal models.
microbial type culture collection
minimum inhibitory concentration
fractional inhibitory concentration
- E. coli :
- K. pneumoniae :
reactive oxygen species
real time efflux
carbonyl cyanide 3-chlorophenylhydrazone
extremely drug resistant
colony forming unit
proton motive force
Andrews JM, Andrews JM (2001) Determination of minimum inhibitory concentrations. J Antimicrob Chemother 48(Suppl 1):5–16. https://doi.org/10.1093/jac/48.suppl_1.5
Argentine JA, James AA (1995) Characterization of a salivary gland-specific esterase in the vector mosquito, Aedes aegypti. Insect Biochem Mol Biol 25:621–630
Astashkina A, Mann B, Grainger DW (2012) A critical evaluation of in vitro cell culture models for high-throughput drug screening and toxicity. Pharmacol Ther 134:82–106. https://doi.org/10.1016/j.pharmthera.2012.01.001
Belley A, Neesham-Grenon E, Arhin FF, McKay GA, Parr TR Jr, Moeck G (2008) Assessment by time-kill methodology of the synergistic effects of oritavancin in combination with other antimicrobial agents against Staphylococcus aureus. Antimicrob Agents Chemother 52(10):3820–3822. https://doi.org/10.1128/AAC.00361-08
Brennan-Krohn T, Pironti A, Kirby JE (2018) Synergistic activity of colistin-containing combinations against colistin-resistant Enterobacteriaceae. Antimicrob Agents Chemother. https://doi.org/10.1128/AAC.00873-18
Cannatelli A, Giani T, D’ Andrea MM, Di Pilato V, Arena F, Conte V, Tryfinopoulou K, Vatopoulos A, Rossolini GM, COLGRIT Study Group GM (2014) MgrB inactivation is a common mechanism of colistin resistance in KPC-producing Klebsiella pneumoniae of clinical origin. Antimicrob Agents Chemother 58:5696–5703. https://doi.org/10.1128/AAC.03110-14
Catteau L, Reichmann N, Olson J, Pinho M, Nizet V, VanBambeke F, Quetin-Leclercq J (2017) Synergy between ursolic and oleanolic acids from Vitellaria paradoxa leaf extract and β-lactams against methicillin-resistant Staphylococcus aureus: in vitro and in vivo activity and underlying mechanisms. Molecules 22:2245. https://doi.org/10.3390/molecules22122245
Cheepurupalli L, Raman T, Rathore SS, Ramakrishnan J (2017) Bioactive molecule from Streptomyces sp. mitigates MDR Klebsiella pneumoniae in zebrafish infection model. Front Microbiol 8:1–15. https://doi.org/10.3389/fmicb.2017.00614
Cheng I-L, Chen Y-H, Lai C-C, Tang H-J (2018) Intravenous colistin monotherapy versus combination therapy against carbapenem-resistant gram-negative bacteria infections: meta-analysis of randomized controlled trials. J Clin Med 7:208. https://doi.org/10.3390/jcm7080208
Christena LR, Raman T, Makala VH, Ulaganathan V, Subramaniapillai S (2016) Dithiazole thione derivative as competitive NorA efflux pump inhibitor to curtail multi drug resistant clinical isolate of MRSA in a zebra fish infection model. Appl Microbiol Biotechnol. https://doi.org/10.1007/s00253-016-7759-2
Deris ZZ, Yu HH, Davis K, Soon RL, Jacob J, Ku CK, Poudyal A, Bergen PJ, Tsuji BT, Bulitta JB, Forrest A, Paterson DL, Velkov T, Li J, Nation RL (2012) The combination of colistin and doripenem is synergistic against Klebsiella pneumoniae at multiple inocula and suppresses colistin resistance in an in vitro pharmacokinetic/pharmacodynamic model. Antimicrob Agents Chemother 56(10):5103–5112. https://doi.org/10.1128/AAC.01064-12
do Nascimento P, Lemos T, Bizerra A, Arriaga A, Ferreira D, Santiago G, Braz-Filho R, Costa J (2014) Antibacterial and antioxidant activities of ursolic acid and derivatives. Molecules 19:1317–1327. https://doi.org/10.3390/molecules19011317
Dwivedi GR, Maurya A, Yadav DK, Khan F, Darokar MP, Srivastava SK (2015) Drug resistance reversal potential of ursolic acid derivatives against nalidixic acid- and multidrug-resistant Escherichia coli. Chem Biol Drug Des 86:272–283. https://doi.org/10.1111/cbdd.12491
Falagas ME, Kasiakou SK, Saravolatz LD (2005) Colistin: the revival of polymyxins for the management of multidrug-resistant Gram-negative bacterial infections. Clin Infect Dis 40:1333–1341. https://doi.org/10.1086/429323
Grillon A, Schramm F, Kleinberg M, Jehl F (2016) Comparative activity of ciprofloxacin, levofloxacin and moxifloxacin against Klebsiella pneumoniae, Pseudomonas aeruginosa and Stenotrophomonas maltophilia assessed by minimum inhibitory concentrations and time-kill studies. PLoS ONE 11:1–10. https://doi.org/10.1371/journal.pone.0156690
Helander IM, Mattila-Sandholm T (2000) Fluorometric assessment of gram-negative bacterial permeabilization. J Appl Microbiol 88(2):213–219
Investigators of the Delhi Neonatal Infection Study (DeNIS) collaboration (2016) Characterisation and antimicrobial resistance of sepsis pathogens in neonates born in tertiary care centres in Delhi, India: a cohort study. Lancet Glob Heal 4:e752–e760. https://doi.org/10.1016/S2214-109X(16)30148-6
Itami N, Shiratsuki S, Shirasuna K, Kuwayama T, Iwata H (2015) Mitochondrial biogenesis and degradation are induced by CCCP treatment of porcine oocytes. Reproduction 150:97–104. https://doi.org/10.1530/REP-15-0037
Kaur A, Sharma P, Capalash N (2018) Curcumin alleviates persistence of Acinetobacter baumannii against colistin. Sci Rep 8:11029. https://doi.org/10.1038/s41598-018-29291-z
Kurek A, Nadkowska P, Pliszka S, Wolska KI (2012) Modulation of antibiotic resistance in bacterial pathogens by oleanolic acid and ursolic acid. Phytomedicine 19:515–519. https://doi.org/10.1016/j.phymed.2011.12.009
Liu Y-Y, Wang Y, Walsh TR, Yi L-X, Zhang R, Spencer J, Doi Y, Tian G, Dong B, Huang X, Yu L-F, Gu D, Ren H, Chen X, Lv L, He D, Zhou H, Liang Z, Liu J-H, Shen J (2016) Emergence of plasmid-mediated colistin resistance mechanism MCR-1 in animals and human beings in China: a microbiological and molecular biological study. Lancet Infect Dis 16:161–168. https://doi.org/10.1016/S1473-3099(15)00424-7
Lowrence RC, Raman T, Makala HV, Ulaganathan V, Subramaniapillai SG, Kuppuswamy AA, Mani A, Chittoor Neelakantan S, Nagarajan S (2016) Dithiazole thione derivative as competitive NorA efflux pump inhibitor to curtail multi drug resistant clinical isolate of MRSA in a zebrafish infection model. Appl Microbiol Biotechnol 1:1. https://doi.org/10.1007/s00253-016-7759-2
Lowry OH, Rosenbrough NJ, Farr AL, Randall RJ (1951) Protein measurement with the Folin phenol reagent. J Biol Chem 193:265–275
MacNair CR, Stokes JM, Carfrae LA, Fiebig-Comyn AA, Coombes BK, Mulvey MR, Brown ED (2018) Overcoming mcr-1 mediated colistin resistance with colistin in combination with other antibiotics. Nat Commun 9:458. https://doi.org/10.1038/s41467-018-02875-z
Magiorakos A-P, Srinivasan A, Carey RB, Carmeli Y, Falagas ME, Giske CG, Harbarth S, Hindler JF, Kahlmeter G, Olsson-Liljequist B, Paterson DL, Rice LB, Stelling J, Struelens MJ, Vatopoulos A, Weber JT, Monnet DL (2012) Multidrug-resistant, extensively drug-resistant and pandrug-resistant bacteria: an international expert proposal for interim standard definitions for acquired resistance. Clin Microbiol Infect 18:268–281. https://doi.org/10.1111/j.1469-0691.2011.03570.x
Marks LR, Clementi EA, Hakansson AP (2013) Sensitization of Staphylococcus aureus to methicillin and other antibiotics in vitro and in vivo in the presence of HAMLET. PLoS ONE 8(5):e63158. https://doi.org/10.1371/journal.pone.0063158
Neely M, Pfeifer J, Caparon M (2002) Streptococcus-zebrafish model of bacterial pathogenesis. Infect Immun 70:3904–3914. https://doi.org/10.1128/IAI.70.7.3904
Odds FC (2003) Synergy, antagonism, and what the chequerboard puts between them. J Antimicrob Chemother 52(1):1. https://doi.org/10.1093/jac/dkg301
Okdah L, Le Page S, Olaitan AO, Dubourg G, Hadjadj L, Rolain J-M (2018) New therapy from old drugs: synergistic bactericidal activity of sulfadiazine with colistin against colistin-resistant bacteria, including plasmid-mediated colistin-resistant mcr-1 isolates. Int J Antimicrob Agents 51:775–783. https://doi.org/10.1016/j.ijantimicag.2018.01.027
Olaitan AO, Morand S, Rolain JM (2014) Mechanisms of polymyxin resistance: acquired and intrinsic resistance in bacteria. Front Microbiol 5:643. https://doi.org/10.3389/fmicb.2014.00643
Osei Sekyere J, Amoako DG (2017) Carbonyl cyanide m-chlorophenylhydrazine (CCCP) reverses resistance to colistin, but not to carbapenems and tigecycline in multidrug-resistant Enterobacteriaceae. Front Microbiol 8:228. https://doi.org/10.3389/fmicb.2017.00228
Park YK, Ko KS (2015) Effect of carbonyl cyanide 3-chlorophenylhydrazone (CCCP) on killing Acinetobacter baumannii by colistin. J Microbiol 53:53–59. https://doi.org/10.1007/s12275-015-4498-5
Park YS, Choi SE, Koh HC (2018) PGAM5 regulates PINK1/Parkin-mediated mitophagy via DRP1 in CCCP-induced mitochondrial dysfunction. Toxicol Lett 284:120–128. https://doi.org/10.1016/j.toxlet.2017.12.004
Sampson TR, Liu X, Schroeder MR, Kraft CS, Burd EM, Weiss DS (2012) Rapid Killing of Acinetobacter baumannii by polymyxins is mediated by a hydroxyl radical death pathway. Antimicrob Agents Chemother 56:5642–5649. https://doi.org/10.1128/AAC.00756-12
Skov RL, Monnet DL (2016) Plasmid-mediated colistin resistance (mcr-1 gene): three months later, the story unfolds. Eurosurveillance 21:30155. https://doi.org/10.2807/1560-7917.ES.2016.21.9.30155
Soon RL, Velkov T, Chiu F, Thompson PE, Kancharla R, Roberts K, Larson I, Nation RL, Li J (2011) Design, synthesis, and evaluation of a new fluorescent probe for measuring polymyxin-lipopolysaccharide binding interactions. Anal Biochem 409(2):273–283. https://doi.org/10.1016/j.ab.2010.10.033
Stokes JM, MacNair CR, Ilyas B, French S, Côté J-P, Bouwman C, Farha MA, Sieron AO, Whitfield C, Coombes BK, Brown ED (2017) Pentamidine sensitizes Gram-negative pathogens to antibiotics and overcomes acquired colistin resistance. Nat Microbiol 2:17028. https://doi.org/10.1038/nmicrobiol.2017.28
Sundaramoorthy NS, Mitra K, Ganesh JS, Makala H, Lotha R, Bhanuvalli SR, Ulaganathan V, Tiru V, Sivasubramanian A, Nagarajan S (2018) Ferulic acid derivative inhibits NorA efflux and in combination with ciprofloxacin curtails growth of MRSA in vitro and in vivo. Microb Pathog 124:54–62. https://doi.org/10.1016/j.micpath.2018.08.022
Te Winkel JD, Gray DA, Seistrup KH, Hamoen LW, Strahl H (2016) Analysis of antimicrobial-triggered membrane depolarization using voltage sensitive dyes. Front cell Dev Biol 4:29. https://doi.org/10.3389/fcell.2016.00029
Velkov T, Thompson PE, Nation RL, Li J (2010) Structure–activity relationships of polymyxin antibiotics. J Med Chem 53:1898–1916. https://doi.org/10.1021/jm900999h
Wang CM, Jhan YL, Tsai SJ, Chou CH (2016) The pleiotropic antibacterial mechanisms of ursolic acid against methicillin-resistant Staphylococcus aureus (MRSA). Molecules. https://doi.org/10.3390/molecules21070884
Westerfield M (1995) The Zebrafish Book. A guide for the laboratory use of zebrafish (Danio rerio), 3rd edn.
Wolska KI, Grudniak AM, Fiecek B, Kraczkiewicz-Dowjat A, Kurek A (2010) Antibacterial activity of oleanolic and ursolic acids and their derivatives. Cent Eur J Biol 5:543–553. https://doi.org/10.2478/s11535-010-0045-x
Yau W, Owen RJ, Poudyal A, Bell JM, Turnidge JD, Yu HH, Nation RL, Li J (2009) Colistin hetero-resistance in multidrug-resistant Acinetobacter baumannii clinical isolates from the Western Pacific region in the SENTRY antimicrobial surveillance programme. J Infect 58(2):138–144. https://doi.org/10.1016/j.jinf.2008.11.002
NSS and HM performed the experiments; Plant metabolites were extracted and purified by SS. SGS prepared dansyl coupled colistin, SN designed the study and analyzed the data; AS designed extraction and purification of plant metabolites; TR performed histopathology studies. NSS and SN wrote the manuscript. All authors read and approved the final manuscript.
The authors would like to thank management SASTRA deemed University, Thanjavur, India, for providing infrastructural support through central research facility to carry out the experiments.
The authors declare that they have no competing interests.
Availability of data and materials
Please contact author for data requests. The strains used in the present study is available upon request to the corresponding author and the strains are also archived as glycerol stocks from Clinical Microbiology Lab of Dr. Rangarajan Memmorial Hospital, Sundaram Medical Foundation, Chennai, Tamil Nadu, India.
Consent for publication
All the authors and their affiliated institutions agree for publication of the manuscript in AMB express.
Ethics approval and consent to participate
The in vivo experiments were performed by following approved institutional guidelines as prescribed by the Institutional Animal Ethics Committee (CPCSEA-510/SASTRA/IAEC/RPP), SASTRA Deemed University, India and also in adherence with the CPCSEA guidelines for laboratory animal facilities (Central Act 26 of 1982).
This research was funded by DST-SERB under EMR scheme (EMR/2016/001168) and facilities established using funds provided by DST-FIST (SR/FST/ETI-331/2013).
