Open Access

Arabidopsis acyl-acyl carrier protein synthetase AAE15 with medium chain fatty acid specificity is functional in cyanobacteria

AMB Express20166:7

https://doi.org/10.1186/s13568-016-0178-z

Received: 5 January 2016

Accepted: 8 January 2016

Published: 21 January 2016

Abstract

Cyanobacteria are potential hosts for the biosynthesis of oleochemical compounds. The metabolic precursors for such compounds are fatty acids and their derivatives, which require chemical activation to become substrates in further conversion steps. We characterized the acyl activating enzyme AAE15 of Arabidopsis encoded by At4g14070, which is a homologue of a cyanobacterial acyl-ACP synthetase (AAS). We expressed AAE15 in insect cells and demonstrated its AAS activity with medium chain fatty acid (C10–C14) substrates in vitro. Furthermore, we used AAE15 to complement a Synechocystis aas deletion mutant and showed that the new strain preferentially incorporates supplied medium chain fatty acids into internal lipid molecules. Based on this data we propose that AAE15 can be utilized in metabolic engineering strategies for cyanobacteria that aim to produce compounds based on medium chain fatty acids.

Keywords

Acyl-ACP synthetaseMedium chain fatty acids Arabidopsis Cyanobacteria

Introduction

In recent years metabolic engineering has benefited from advances in gene synthesis and assembly that allow the implementation of complex biosynthetic pathways into a variety of microorganisms (Keasling 2012; Yadav et al. 2012; Seo et al. 2013). One focus of current research is the establishment of biosynthetic pathways for production a variety of oleo compounds such as fatty acids, alcohols, and alkanes in hosts such as yeast, Escherichia coli, and cyanobacteria (Steen et al. 2010; Lennen and Pfleger 2013; Pfleger et al. 2015; Savakis and Hellingwerf 2015). A cyanobacteria production host is particularly attractive, as their carbon and energy requirements are minimal. However, cyanobacteria-based production of fatty acids, fatty alcohols and alka(e)nes has been limited to several proof-of-principle studies (Liu et al. 2011; Tan et al. 2011; Ruffing and Jones 2012; Kaiser et al. 2013; Wang et al. 2013; Ruffing 2014; Yao et al. 2014). We strive for the utilization of cyanobacteria for the production of oleochemical compounds. For biosynthetic production of oleochemicals, intrinsically synthesized fatty acids should serve as substrates for the diverse downstream metabolic pathways. In cyanobacteria, fatty acids are chemically activated by acyl-ACP synthetase (AAS) (Kaczmarzyk and Fulda 2010). Acyl-ACP synthetases can therefore play a critical role in metabolic engineering strategies for oleochemicals. In this work we were interested in the closer characterization of an Arabidopsis enzyme capable of generating acyl-ACPs and to evaluate its potential for pathway engineering in cyanobacteria.

In Arabidopsis enzymes capable of activating fatty acids belong to a superfamily of acyl-activating enzymes (AAEs), which consists of 63 members, and is divided into seven clades based on sequence similarities (Shockey et al. 2003). Clade I contains eleven members and long chain acyl-CoA synthetase (LACS; C16–C20) activity has been confirmed for nine of these (Shockey et al. 2002). The conversion of very similar fatty acid substrates is reflected by characteristic features of the amino acid sequences of the proteins of clade I. In particular, clade I AAEs differ from all other AAEs by the presence of an amino acid stretch separating two highly conserved sequence motifs. Interestingly, this amino acid linker is remarkably longer in the two remaining proteins of clade I, for which initial tests were unable to proof LACS activity (Shockey et al. 2002). These proteins called AAE15 and AAE16 and encoded by At4g14070 and At3g23790, respectively, include an amino acid linker of approximately 70 amino acid residues, compared to about 40 amino acids found in eukaryotic LACSs (Shockey et al. 2002).

It was proposed previously that Arabidopsis AAE15 is a plastidial AAS (Koo et al. 2005). The conclusions were drawn from experiments in which plant extracts of Arabidopsis wild type and AAE15 and AAE16 knock-out lines were incubated in the presence of radioactive labeled medium chain fatty acids. We showed later that acyl activating enzymes characterized by the presence of a linker motif of 68–74 amino acid residues indeed have AAS activity (Kaczmarzyk and Fulda 2010). Sequences of this type could be found in sequenced genomes of almost all organisms performing oxygenic photosynthesis.

In a recent report, Beld et al. (2014) analyzed the activity of Arabidopsis AAE15 using a more direct approach. The enzyme was expressed in E. coli, and tested in acyl-CoA synthetase and AAS assays. It was concluded that AtAAE15 was a poor enzyme in both assays (Beld et al. 2014).

We were interested in further characterization of Arabidopsis AAE15, and its activity in Synechocystis sp. PCC6803. In this work, we expressed AAE15 heterologously in insect cells, purified it, and analyzed its enzymatic activity in vitro. We demonstrated AAS activity for AAE15 with some specificity for medium chain fatty acids (C10:0–C14:0). Moreover, we expressed AAE15 in the background of an AAS deletion mutant of Synechocystis sp. PCC6803. This mutant is unable to incorporate exogenously added fatty acids into lipids, and secrete free fatty acids to the culture media (Kaczmarzyk and Fulda 2010). Feeding experiments with radiolabeled fatty acids confirmed medium chain fatty acid specificity of AAE15.

Materials and methods

Heterologous expression of tagged AAE15 in insect cells

For heterologous expression the Bac to Bac Baculovirus Expression System (Thermo Fisher Scientific) was used. Two variants of AAE15 (At4g14070) were cloned in frame with the N-terminal 6xHis tag of the pFastBac™HT. The first clone corresponds to the complete open reading frame including the native start codon. For the second clone the predicted plastidial targeting signal was removed, leading to an N-terminal deletion of 195 bps. The vector pUNI51 carrying At4g14070 served as a PCR template, and full length and truncated versions of the gene were amplified using a forward primer introducing a NcoI restriction site, and a reverse primer including the stop codon, introducing a NotI restriction site. The primers sequences were 5′-AGATCCATGGAAATTCGTCTGAAACCT-3′ (forward 1), 5′-AGTACCATGGCTTGCGAGTCAAAGGAAAAAGAAG-3′ (forward 2), and 5′-AGTAGCGGCCGCTTAACTGTAGAGTTGATCAATC-3′ (reverse). PCR products were cloned into pGEMT-vector (Promega), verified by sequencing, and subsequently transferred into pFastBac™HT. The vectors were used to transform competent DH10Bac E. coli cells. Bacmid DNA was isolated and used to transfect Sf9 cells. A recombinant Baculovirus stock P1 was used to infect cells to produce a P2 Baculovirus stock, which was titered and used to infect insect cells for protein expression. Sf9 cells were infected at MOI 3 and grown at 27 °C as adherent cultures in T-75 culture flasks using Sf-900 II SFM media supplemented with penicillin at 50 U mL−1, and streptomycin at 50 μg mL−1.

Isolation and purification of recombinant protein from insect cells

Cells from two T-75 flasks were harvested 72 h after infection, washed once with PBS, and resuspended in 1 mL of extraction buffer (50 mM Tris–HCl pH 7.8, 150 mM NaCl). Cells were disrupted by sonication (2 × 30 s on ice) with Branson Sonifier Cell Disruptor B15, and cell debris was removed by centrifugation at 3500g at 4 °C for 15 min. Aliquots of the supernatant were saved for Western blot analysis and activity assays, and the remaining volume was centrifuged at 100,000g at 4 °C for 1 h to isolate the membrane fraction. The membranes pellet was resuspended in 300 μL of solubilization buffer (50 mM Tris–HCl, pH 7.8, 150 mM NaCl, 2 % Triton X-100), incubated at 4 °C overnight with agitation to release membrane-bound proteins, and clarified by centrifugation at 100,000g at 4 °C for 30 min. To purify His-tagged proteins the supernatant was applied to 800 μL of BD TALON resin (BD Biosciences) and agitated for 4 h at 4 °C to enable protein binding. The resin was transferred to a gravity-flow column and washed first with the solubilization buffer, and then with the same buffer supplemented with 20 mM imidazole to remove non-specifically bound proteins. The target protein was eluted with the solubilization buffer containing 100 mM EDTA. Fractions of 200 μL were collected and dialyzed overnight against 400 mL of the solubilization buffer at 4 °C. Protein concentration in cellular lysates and membrane suspensions was determined using Bradford assays. Protein concentration in the sample of the purified protein was not determined.

Immunoblot analysis

Protein samples were separated on standard 10 % SDS polyacrylamide gels and transferred to the Optiran BA-S 83 membrane (Schleicher and Schuell). Membranes were blocked with 3 % BSA in TBST buffer (10 mM Tris–HCl, 150 mM NaCl, 0.1 % Tween 20, pH 8.0), and probed with TetraHis-Antibody (Qiagen). As secondary antibody a peroxidase conjugated anti-mouse antibody was employed and the signals were detected by chemiluminescence using ECL Western Blotting Kit (Amersham).

Enzyme assays

The AAS activity was measured according to the protocol described before (Rock and Cronan 1981). The assay buffer contained 2.5 mM Tris–HCl (pH 8.0), 2 mM dithiothreitol, 0.25 mM MgCl2, 5 mM ATP, 10 mM LiCl, 2 % Triton X-100, 15 μM acyl-carrier-protein (ACP; from E. coli K12), and 30 μM [1-14C] fatty acid (specific activity 53.7–60 mCi mmol−1) in a total volume of 40 μL. The assays were initiated by adding defined amounts of protein sample (50 μg of total protein when crude cellular extracts were used as source of enzyme, and 10 μL of purified protein), and were conducted at 37 °C for 30 min. Transferring the assay volume to filter disks stopped the assays. The filter disks were dried and subsequently washed twice with 20 mL of chloroform: methanol: acetic acid (3:6:1, v/v/v) to remove unreacted free fatty acids. Control assays using only free fatty acids demonstrated quantitative removal of the labelled fatty acids by the two washing steps. The radioactivity was determined by liquid scintillation counting (Liquid Scintillation Analyser 1900 TR, Fa. Canberra Packard).

To make sure that all fatty acid substrates are accessible to the enzyme, positive control assays were performed, in which purified AAS from Synechococcus elongatus PCC 7942 was used. Synechococcus AAS was characterized before, and showed broad substrate specificity (C12–C18) (Kaczmarzyk and Fulda 2010).

Lipid analytical methods

Pre-cultures of Synechocystis wild type and mutant strains were diluted to OD730 0.2 in 15 mL BG11, and cultures were grown for 3 days. Cells of 10 mL culture were harvested, and washed twice in 0.1 M NaHCO3. Intracellular and extracellular lipid extractions were performed according to the protocol established before (Bligh and Dyer 1959). Fatty acids were converted to their methyl esters according to modified protocols described earlier (Christie 1982; Stumpe et al. 2001). The fatty acid methyl esters were analyzed by gas chromatography using a Shimadzu GC-2010 gas chromatograph equipped with a Stabilwax column (Restek).

Fatty acid uptake assay

Cyanobacterial cells were collected from 10 mL cultures at OD750 1 by centrifugation, resuspended in 2 mL of fresh BG11 medium, and transferred to a 2 mL microcentrifuge tubes. Radiolabeled [1-14C] fatty acids (lauric, specific activity 57 mCi mmol−1, myristic 55 mCi mmol−1, palmitic 60 mCi mmol−1, stearic 58 mCi mmol−1, oleic 56 mCi mmol−1, linolenic 53.7 mCi mmol−1; Amersham Biosciences) were individually added in amounts corresponding to 0.22 μCi, and the tubes were placed on a platform shaker under light and incubated for 15 h. Cells were pelleted and washed twice with 0.1 M NaHCO3. Total lipid extracts were prepared as follows: 1.5 mL chloroform: methanol (2:1, v/v) acidified with HCl were added to the cell pellets in 2 mL tubes, and lipids were extracted for 4 h under shaking. Afterwards 500 μL 0.45 % NaCl was added, the tubes were shaken briefly, and centrifuged at 2000g for 2 min for phase separation. The lower phase was transferred to a new tube, dried under a stream of nitrogen and resuspended in 20 μL of chloroform: methanol (1:1, v/v). Different lipid classes were separated by thin layer chromatography using acetone: toluene: water (91:30:8, v/v/v) as solvent and were visualized by fluorography. Signals were detected with an image analyzer (FLA-3000, Fujifilm).

Cyanobacteria strains and growth conditions

Liquid cultures of the glucose-tolerant Synechocystis sp. PCC 6803 and mutant strains were grown photoautotrophically in BG11 media buffered to pH 7.8 with 25 mM HEPES at 30 °C, with 45 μE s−1 m2 illumination in a climatic chamber (Percival Climatics SE-1100). For fatty acid profiles analysis, cultures were grown under 1 % (v/v) CO2 conditions. Mutant strains were cultivated in BG11 containing an appropriate antibiotic for the selection (kanamycin 25 μg mL−1, and/or chloramphenicol 20 μg mL−1). To prepare solid media 0.3 % (w/v) sodium thiosulfate pentahydrate and 1.5 % (w/v) agar were added to the buffered BG11 media. The plates were incubated under illumination with 25 μE s−1 m2.

A ∆aas deletion strain, in which a kanamycin resistance cartridge replaced part of the coding region of the gene slr1609, was created before (Kaczmarzyk and Fulda 2010). This strain was used as a host to overexpress homologous acyl activating enzyme from Arabidopsis thaliana: AAE15 (At4g14070).

In the first strategy the Arabidopsis gene was introduced into the cyanobacterial genome via homologous recombination. To this end, expression constructs were prepared which contained a promoter of a kanamycin resistance gene, the Arabidopsis AAE15 gene, the terminator sequence of a native aas, and the chloramphenicol resistance gene as a selection marker. The whole assembly was flanked by fragments of the kanamycin resistance gene, which served as homology regions for the recombination. The list of primers used for amplifying those blocks is provided in Table 1. The kanamycin resistant ∆aas strain was transformed with a pUC19 vector carrying the expression construct, and after few rounds of re-streaking on BG11 agar plates containing chloramphenicol, fully segregated complementation strain ∆aas:AAE15 was obtained. The complete segregation was confirmed by PCR.
Table 1

List of primers

Name

Sequence

KanF1Sac

ACGAGAGCTCGCCCCATCATCCAGCCAGA

KanR1Xba

CTGAATCTAGATATTCTTCTAATACCTGG

KanF2Hind

CTAGTAAGCTT GCGCCGGTTGCATTCGA

KanR2Kpn

TGAATGGTACC ATCATCCAGCCAGAAAGT

KanProSpeF

GACTAGTGAATCGCCCCATCATCCAGCCA

KanProNcoR

TCCATGGCACCCCTTGTATTACTGTTTATG

AAE15F

AGATCCATGGAAATTCGTCTGAAACCT

AAE15R

AGTAGCGGCCGCTTAACTGTAGAGTTGATCAATC

SYN68TermFEcoNot

GTAGAATTCGCGGCCGCTTAAGAACCTGTTTATAAAGTCT

SYN68TermRHind

GAACTTGCCGCAAGCTTACTC

JOANRT15

TTTCCCTGGTGATTTCTTCG

JOANRT16

ATATGCCCTGGGAGGGTTAC

DAKART01

CGATGGCTTGTTTCAGATCA

DAKART02

ATGCGGTTGAAAAACTCAGG

DAKART03

GCCACCCTGATCTACACCTC

DAKART04

TTCTAGGGAGTGCCAACAGG

In the second strategy the ∆aas Synechocystis host was transformed with a replicative plasmid pJA2c, carrying AAE15, devoid of the plastidial targeting signal, under the control of psbA2 promoter. The pJA2c vector was constructed by Huang et al. (2010), and modified later (Anfelt et al. 2013), and contains chloramphenicol resistance gene as a selection marker. The primers used for amplification of AAE15 were as follows: forward (adding XbaI restriction site) 5′-GACCTCTAGAATGTGCGAGTCAAAGGAAAAAGAAG-3′, reverse (adding SpeI restriction site) 5′-CTACACTAGTTTAACTGTAGAGTTGATCAATC-3′.

RT-qPCR

Synechocystis cells were collected from 6 mL cultures at OD730 1, and total RNA was isolated with GeneJET RNA Purification Kit (Thermo Scientific) according to manufacturer’s instructions with the following modifications: lysozyme concentration in TE buffer was 40 mg L−1, and cells were disrupted by vortexing with glass beads for 15 min. DNA was removed with RapidOut DNA Removal Kit (Thermo Scientific).

RT-qPCR was performed in the CFX96 Real-Time PCR Detection System (Bio-Rad) with iScript One-Step RT-PCR Kit with SYBR Green (Bio-Rad). All reactions were performed in duplicate, and no-RT controls were included. As a reference gene rpoB (sll1787) encoding RNA polymerase beta subunit was used. The list of primers is provided in Table 1.

Results

AAE15 has AAS activity in vitro, with specificity for medium chain fatty acids

To determine the in vitro enzymatic activity of AAE15, the protein fused to an N-terminal polyhistidine-tag was expressed in a Baculovirus system. Attempts to express the complete open reading frame in Sf9 cells resulted in either very low or undetectable amounts of recombinant protein. Removing the sequence encoding a predicted plastidial targeting peptide increased the expression level significantly, and the construct yielded fusion protein of the expected size ~79 kD (Fig. 1).
Fig. 1

Western blot analysis of Arabidopsis AAE15 expressed in insect cells. His-tagged AAE15 devoid of plastidial targeting signal was expressed in insect cells. Samples of whole cell lysate and purified protein were subjected to immunoblot analysis employing anti-His antibody. The lanes represent crude protein extracts of uninfected cells (1) and cells infected with the empty vector (2) as controls and extracts of cells expressing AAE15 (3), and the purified AAE15 protein (4). The sizes of molecular mass standards are indicated to the right. AAE15 protein is marked by asterisk

The crude protein extract of lysed cells expressing AAE15 was analyzed in enzymatic activity assays. The assays were conducted in the presence of ATP, ACP and [1-14C] labeled fatty acids. We tested nine linear fatty acids, ranging in chain length from 8 to 18 carbon atoms and containing between 0 to 3 double bonds. AAE15 demonstrated AAS activity with medium chain fatty acids (Fig. 2a). Specific enzyme activities were 66.7 (SD 13.3), 102.7 (SD 3.6), and 157.2 (SD 9.2) pmol min−1 mg−1 total protein for decanoic, lauric and myristic acid substrates, respectively. This substrate specificity assay was repeated with purified AAE15 (Fig. 2b), and the result confirmed the specificity for medium chain length fatty acids. Moreover, the data proved that AAE15 was able to activate other fatty acids as well, but with clearly reduced efficiency.

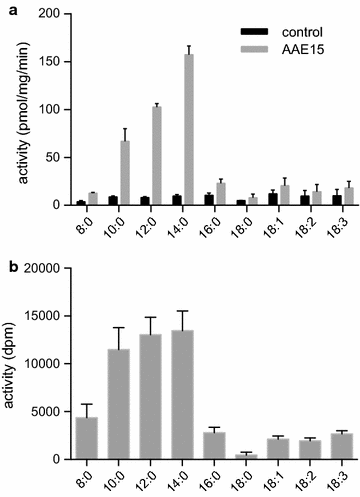

Fig. 2

Acyl-ACP synthetase activity assays of AAE15 expressed in insect cells. Crude extracts of Sf9 cells (a), and purified AAE15 (b) were incubated with an assay mixture containing ACP, ATP and [1-14C] fatty acids for 30 min, at 37 °C. As control cells infected with the empty vector were used. AAE15 lacks the predicted plastidial targeting signal. Each measurement was performed in triplicate. Error bars indicate standard deviation

Complementation of Synechocystis aas knockout with Arabidopsis AAE15

In order to examine the activity of Arabidopsis AAE15 in vivo, we performed feeding of radioactive fatty acids. A Synechocystis strain lacking its endogenous AAS (∆aas) was used as a host to express Arabidopsis AAE15. The AAE15 expression cassette was integrated into the chromosome of the cyanobacteria ∆aas strain by homologous recombination to create ∆aas:AAE15. Complete segregation of the newly generated strain was confirmed by PCR. Wild type Synechocystis and the ∆aas strain served as positive and negative control, respectively in fatty acid uptake assays.

Cultures were grown in media supplemented with radiolabeled fatty acids, and subsequently total lipid extracts of the cells were separated by thin layer chromatography in order to trace the fate of the supplemented fatty acids. All tested fatty acids were incorporated into different lipid classes in wild type cells, while in the ∆aas mutant strain the label strictly remained in the fraction of free fatty acids. In absence of the endogenous AAS protein, the supplied free fatty acids were absolutely inaccessible to the cellular metabolism. The expression of AAE15 in the ∆aas mutant strain could partially restore the wild type phenotype indicated by the incorporation of fatty acids into lipids (Fig. 3). The intensities of the spots corresponding to monogalactosyl diacylglycerol (MGDG), the main lipid fraction in extracts, of the complemented strains were clearly weaker compared to those of wild type extracts, but they proved the capability of AAE15 to activate exogenously added free fatty acids (Table 2). The endogenous AAS of Synechocystis mediated the incorporation of the different chain-length radiolabeled fatty acids with comparable efficiency, while ∆aas:AAE15 preferentially incorporated lauric acid and myristic acid. Thus, the in vivo experiments confirmed the results of the in vitro activity assays showing preference of AAE15 for medium chain fatty acids and demonstrated AAE15 activity in Synechocystis.

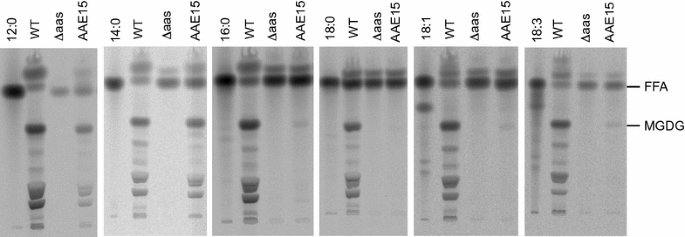

Fig. 3

Autoradiography of total lipid extracts from Synechocystisaas:AAE15. Cultures of Synechocystis sp. PCC 6803 wild type (WT), aas knock-out strain (∆aas), and aas knock-out strain complemented with Arabidopsis AAE15 (AAE15) were grown in presence of [1-14C] labeled fatty acids. Lipid extracts of harvested cells were separated by TLC. FFA free fatty acid, MGDG monogalactosyldiacylglycerol, (C12:0 lauric acid, C14:0 myristic acid, C16:0 palmitic acid, C18:0 stearic acid, C18:1 oleic acid, C18:3 linolenic acid). The spot above the free fatty acids was proven to be fatty acid methyl ester and originated from the extraction method applied

Table 2

Intensities of spots representing FFA and MGDG



WT

aas

aas:AAE15

FFA

MGDG

FFA

MGDG

FFA

MGDG

12:0

137.4

989.7

36.6

0.3

49.7

57.5

14:0

82.1

252.2

273.3

0

260.9

139.6

16:0

372.4

968.3

2689

3.2

4171.5

10.1

18:0

1665.7

205.7

919.3

1.2

1090.7

2.3

18:1

88.4

294.8

642.9

1.1

687.1

2.9

18:3

32.6

223.8

63.3

0.8

61.2

3.1

Radiolabeled fatty acids were fed to cells of Synechocystis sp. PCC6803 wild type (WT), the aas knockout mutant (∆aas), and the aas mutant complemented with Arabidopsis AAE15 (∆aas:AAE15)

Expression of Arabidopsis AAE15, resulted in changes in intracellular and extracellular free fatty acids pools in the cyanobacterial ∆aas strain

The fatty acid uptake assays demonstrated the ability of Arabidopsis AAE15 to activate exogenously added fatty acids of different carbon chain length. We next evaluated how the expression of AAE15 influenced the fatty acid metabolism in cyanobacteria. We analyzed the secreted fatty acids of ∆aas:AAE15 and compared this to ∆aas, and wild type Synechocystis. The results showed that like ∆aas, ∆aas:AAE15 secreted large amounts of fatty acids into the culture medium (Fig. 4a). Total free fatty acids after 3 days were 3.3 (SD 1.0) mg g−1 of dry cell weight (DCW) for ∆aas, and 2.6 (SD 0.7) mg g−1 DCW for ∆aas:AAE15 (Fig. 4a). The intracellular pool of free fatty acids of ∆aas:AAE15 was also similar to ∆aas, namely an increased amounts of total free fatty acids and a significant accumulation of 18:0 in comparison to the wild type was observed (Fig. 4b). Concentrations of internal free fatty acids were 2.7 (SD 0.3) mg g−1 DCW for ∆aas, 1.7 (SD 0.2) mg g−1 DCW for ∆aas:AAE15, and 0.5 (SD 0.1) mg g−1 DCW for wild type. Interestingly, free stearic acid (C18:0) was 50 % lower in the ∆aas:AAE15 strain, compared to ∆aas (Fig. 4b). Overall, expression of AAE15 in the ∆aas strain did not affect fatty acid profiles and did not have a significant complementation effect.
Fig. 4

Fatty acid profiles of cells and culture media of the different Synechocystis strains. a Free fatty acids in the culture media. b Free fatty acids within the cells. c Esterified fatty acids of the cellular lipid extract. Synechocystis sp. PCC 6803 wild type (WT); aas knockout strain (∆aas); and aas knock-out strain complemented with AAE15 from Arabidopsis (∆aas:AAE15, complete AAE15 integrated into the genome; ∆aas:pJA2AAE15, replicative plasmid encoding the truncated AAE15 under control of the psbA2 promoter)

Since ∆aas:AAE15 did not show significant differences to ∆aas in vivo, we attempted to increase AAE15 expression levels by using a replicative plasmid, and a stronger promoter. Additionally, we removed the plastidial targeting sequence, to express exactly the version of the protein as it is found in plastids of Arabidopsis (Zybailov et al. 2008). Before, we observed that removing the transit peptide resulted in more robust expression levels in insect cells. The truncated AAE15 was then cloned into an episomal vector (pJA2c) under control of the strong promoter PpsbA2. This plasmid was transformed into ∆aas to give ∆aas:pJA2AAE15. We analyzed the expression level of AAE15 in mutant strains, and found that AAE15 expression was 170 fold higher in ∆aas:pJA2AAE15 compared to ∆aas:AAE15 (Table 3). The increased expression resulted in the complete reversion of the biochemical phenotypes of the ∆aas strain when complemented with AAE15 (Fig. 4). The strain ∆aas:pJA2AAE15 did not secrete free fatty acids and the profile of the intracellular free fatty acids was similar to wild type, with very low concentrations of free stearic acid. The concentration of intracellular fatty acids 0.4 (SD 0.1) mg g−1 DCW was also similar to wild type cells (Fig. 4a, b). These results suggest that expression of AAE15 in ∆aas:pJA2AAE15 was high enough to overcome its poor preference for long chain fatty acids. The profile of membrane bound fatty acids in wild type and mutant Synechocystis strains did not show any significant differences (Fig. 4c). Growth rates of all strains investigated did not show any significant differences either (Fig. 5).
Table 3

Gene expression level for acyl activating enzymes in different strains

Strain

Gene

Abundance (gene/rpoB)

WT

aas

0.30

aas:AAE15

AAE15

0.09

aas:pJA2AAE15

AAE15

14.84

Fig. 5

Growth curves of wild type and mutant strains. Cultures were grown in triplicate under standard conditions and OD730 was monitored at six time points; Synechocystis sp. PCC 6803 wild type (WT); aas knockout strain (∆aas); and aas knock-out strain complemented with AAE15 from Arabidopsis (∆aas:AAE15, genome integration; ∆aas:pJA2AAE15, replicative plasmid)

Discussion

In this work we characterized the Arabidopsis AAE15 enzyme in Synechocystis sp. PCC6803. We were particularly interested in evaluating the possibility to introduce modified substrate specificity into the cyanobacterial fatty acid metabolism. To obtain first insight into its enzymatic parameters we expressed Arabidopsis AAE15 in insect cells, and determined its AAS activity in vitro. In a recent report it was concluded upon heterologous expression in E. coli that the enzyme possesses poor activity in both acyl-CoA synthetase and AAS assays (Beld et al. 2014). In that study the full-length protein was expressed in the E. coli strain BL21. We propose that removing of the N-terminal transit peptide is essential to detect a robust AAS activity of AAE15 in expression hosts other than plants. A construct expressing such truncated protein resulted in significant AAS activity with decanoic, lauric and myristic acid (Fig. 2a, b).

It was hypothesized previously that AAE15 may be involved in acyl editing of membrane lipids in Arabidopsis cells (Koo et al. 2005). Thus, in addition to medium chain fatty acids, we tested fatty acid substrates typically found in Arabidopsis lipids: C16, and C18 fatty acids with 0–3 double bonds. Our in vitro activity assays showed that AAE15 is an AAS with strong preference for C10, C12, and C14 substrates, but can also activate other fatty acids with greatly reduced efficiency. The results indicated considerably different substrate specificity compared to the Synechocystis endogenous AAS (Kaczmarzyk and Fulda, 2010).

The in vitro data was confirmed by in vivo experiments. When we replaced the native aas gene of Synechocystis by AAE15 and fed the mutant strain with labeled fatty acids the results again indicated a very clear preference for medium chain fatty acids. In contrast, the endogenous AAS activity of the Synechocystis wild type strain mediated comparable incorporation of all offered fatty acids and showed no particular substrate specificity (Fig. 3).

On the other hand, our data showed also that a more robust expression of AAE15 is able to complement the inactivation of the endogenous AAS protein in Synechocystis. When the truncated version of AAE15 lacking the plastidial targeting signal was expressed under control of the strong psbA2 promoter the fatty acid secretion phenotype of the cyanobacterial aas knockout strain was revoked, indicating that all fatty acids that could be detected in the culture media of the ∆aas strain, were activated and recycled in the strain complemented, ∆aas:pJA2AAE15.

The AAE15 enzyme could be a useful tool for metabolic engineering projects aimed at the biosynthesis of medium chain fatty acid-derived products. There has been growing interest in engineering microorganisms for fatty acid-derived chemicals and fuels (Steen et al. 2010; Lennen and Pfleger 2013; Pfleger et al. 2015; Savakis and Hellingwerf 2015). One of the challenges is to tailor the carbon chain length in order to obtain the desired properties of the final fatty acid-derived products. For example, medium chain length fatty acids are extensively used for the production of soap and detergents (Dyer et al. 2008), and medium chain length alkanes are main components of jet fuel (Kallio et al. 2014). Reports addressing the chain length issue propose expression of acyl-ACP thioesterases with medium chain fatty acids specificity, as enzymes that can control the length of the end product (Zheng et al. 2012; Choi and Lee 2013; Howard et al. 2013; Liu et al. 2013; Torella et al. 2013; Youngquist et al. 2013) Enzymes involved in oleochemical biosynthesis pathways usually require a CoA- or ACP-activated derivative of the fatty acid substrate. In cyanobacteria, fatty acid metabolism relies on ACP-thioesters, which are the preferred substrates of acyl transferases (Weier et al. 2005) in lipid synthesis, and the acyl-ACP reductase of the alkane synthesis pathway (Schirmer et al. 2010). A strategy aimed at the production of medium chain length fatty alcohols in E. coli was published recently (Youngquist et al. 2013). An AAS such as AAE15 that can efficiently deliver activated medium chain fatty acids to downstream metabolic pathways is of significant biotechnological interest.

Declarations

Acknowledgements

This work was supported by the Deutsche Forschungsgemeinschaft (German Research Foundation; grant no. FU 430/3–1) and by the Swedish Foundation for Strategic Research (SSF) grant number RBP14-0013.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Plant Biochemistry, Albrecht-von-Haller-Institute, Georg-August-University Goettingen
(2)
School of Biotechnology, Science for Life Laboratory, KTH-Royal Institute of Technology

References

  1. Anfelt J, Hallström B, Nielsen J, Uhlén M, Hudson EP. Using transcriptomics to improve butanol tolerance of Synechocystis sp. strain PCC 6803. Appl Environ Microbiol. 2013;79:7419–27. doi:10.1128/AEM.02694-13.PubMed CentralView ArticlePubMedGoogle Scholar
  2. Beld J, Finzel K, Burkart MD. Versatility of acyl-acyl carrier protein synthetases. Chem Biol. 2014;21:1293–9. doi:10.1016/j.chembiol.2014.08.015.PubMed CentralView ArticlePubMedGoogle Scholar
  3. Bligh EG, Dyer WJ. A rapid method of total lipid extraction and purification. Can J Biochem Physiol. 1959;37(8):911–17. doi:10.1139/o59-099.View ArticlePubMedGoogle Scholar
  4. Choi YJ, Lee SY. Microbial production of short-chain alkanes. Nature. 2013;502:571–4. doi:10.1038/nature12536.View ArticlePubMedGoogle Scholar
  5. Christie WW. A simple procedure for rapid transmethylation of glycerolipids and cholesteryl esters. J Lipid Res. 1982;23:1072–5.PubMedGoogle Scholar
  6. Dyer JM, Stymne S, Green AG, Carlsson AS. High-value oils from plants. Plant J. 2008;54:640–55. doi:10.1111/j.1365-313X.2008.03430.x.View ArticlePubMedGoogle Scholar
  7. Howard TP, Middelhaufe S, Moore K, Edner C, Kolak DM, Taylor GN, Parker DA, Lee R, Smirnoff N, Aves SJ, Love J. Synthesis of customized petroleum-replica fuel molecules by targeted modification of free fatty acid pools in Escherichia coli. Proc Natl Acad Sci USA. 2013;110:7636–41. doi:10.1073/pnas.1215966110 PubMed CentralView ArticlePubMedGoogle Scholar
  8. Huang H-H, Camsund D, Lindblad P, Heidorn T. Design and characterization of molecular tools for a synthetic biology approach towards developing cyanobacterial biotechnology. Nucleic Acids Res. 2010;38:2577–93. doi:10.1093/nar/gkq164.PubMed CentralView ArticlePubMedGoogle Scholar
  9. Kaczmarzyk D, Fulda M. Fatty acid activation in cyanobacteria mediated by acyl-acyl carrier protein synthetase enables fatty acid recycling. Plant Physiol. 2010;152:1598–610. doi:10.1104/pp.109.148007.PubMed CentralView ArticlePubMedGoogle Scholar
  10. Kaiser BK, Carleton M, Hickman JW, Miller C, Lawson D, Budde M, Warrener P, Paredes A, Mullapudi S, Navarro P, Cross F, Roberts JM. Fatty aldehydes in cyanobacteria are a metabolically flexible precursor for a diversity of biofuel products. PLoS One. 2013;8:e58307. doi:10.1371/journal.pone.0058307.PubMed CentralView ArticlePubMedGoogle Scholar
  11. Kallio P, Pásztor A, Akhtar MK, Jones PR. Renewable jet fuel. Curr Opin Biotechnol. 2014;26:50–5. doi:10.1016/j.copbio.2013.09.006.View ArticlePubMedGoogle Scholar
  12. Keasling JD. Synthetic biology and the development of tools for metabolic engineering. Metab Eng. 2012;14:189–95. doi:10.1016/j.ymben.2012.01.004.View ArticlePubMedGoogle Scholar
  13. Koo AJK, Fulda M, Browse J, Ohlrogge JB. Identification of a plastid acyl-acyl carrier protein synthetase in Arabidopsis and its role in the activation and elongation of exogenous fatty acids. Plant J. 2005;44:620–32. doi:10.1111/j.1365-313X.2005.02553.x.View ArticlePubMedGoogle Scholar
  14. Lennen RM, Pfleger BF. Microbial production of fatty acid-derived fuels and chemicals. Curr Opin Biotechnol. 2013;24:1044–53. doi:10.1016/j.copbio.2013.02.028.View ArticlePubMedGoogle Scholar
  15. Liu A, Tan X, Yao L, Lu X. Fatty alcohol production in engineered E. coli expressing Marinobacter fatty acyl-CoA reductases. Appl Microbiol Biotechnol. 2013;97:7061–71. doi:10.1007/s00253-013-5027-2.View ArticlePubMedGoogle Scholar
  16. Liu X, Sheng J, Curtiss R III. Fatty acid production in genetically modified cyanobacteria. Proc Natl Acad Sci. 2011;108:6899–904. doi:10.1073/pnas.1103014108.PubMed CentralView ArticlePubMedGoogle Scholar
  17. Pfleger BF, Gossing M, Nielsen J. Metabolic engineering strategies for microbial synthesis of oleochemicals. Metab Eng. 2015;29:1–11. doi:10.1016/j.ymben.2015.01.009.View ArticlePubMedGoogle Scholar
  18. Rock CO, Cronan JE. Acyl-acyl carrier protein synthetase from Escherichia coli. Methods Enzymol. 1981;71:163–8.View ArticlePubMedGoogle Scholar
  19. Ruffing AM. Improved free fatty acid production in cyanobacteria with Synechococcus sp. PCC 7002 as host. Front Bioeng Biotechnol. 2014;2:1–10. doi:10.3389/fbioe.2014.00017.View ArticleGoogle Scholar
  20. Ruffing AM, Jones HDT. Physiological effects of free fatty acid production in genetically engineered Synechococcus elongatus PCC 7942. Biotechnol Bioeng. 2012;109:2190–9. doi:10.1002/bit.24509.PubMed CentralView ArticlePubMedGoogle Scholar
  21. Savakis P, Hellingwerf KJ. Engineering cyanobacteria for direct biofuel production from CO2. Curr Opin Biotechnol. 2015;33:8–14. doi:10.1016/j.copbio.2014.09.007.View ArticlePubMedGoogle Scholar
  22. Schirmer A, Rude MA, Li X, Popova E, del Cardayre SB. Microbial biosynthesis of alkanes. Science. 2010;329:559–62. doi:10.1126/science.1187936.View ArticlePubMedGoogle Scholar
  23. Seo SW, Yang J, Min BE, Jang S, Lim JH, Lim HG, Kim SC, Kim SY, Jeong JH, Jung GY. Synthetic biology: tools to design microbes for the production of chemicals and fuels. Biotechnol Adv. 2013;31:811–7. doi:10.1016/j.biotechadv.2013.03.012.View ArticlePubMedGoogle Scholar
  24. Shockey JM, Fulda MS, Browse J. Arabidopsis contains a large superfamily of acyl-activating enzymes. Phylogenetic and biochemical analysis reveals a new class of acyl-coenzyme a synthetases. Plant Physiol. 2003;132:1065–76. doi:10.1104/pp.103.020552.PubMed CentralView ArticlePubMedGoogle Scholar
  25. Shockey JM, Fulda MS, Browse JA. Arabidopsis contains nine long-chain acyl-coenzyme a synthetase genes that participate in fatty acid and glycerolipid metabolism. Plant Physiol. 2002;129:1710–22. doi:10.1104/pp.003269.PubMed CentralView ArticlePubMedGoogle Scholar
  26. Steen EJ, Kang Y, Bokinsky G, Hu Z, Schirmer A, McClure A, Del Cardayre SB, Keasling JD. Microbial production of fatty-acid-derived fuels and chemicals from plant biomass. Nature. 2010;463:559–62. doi:10.1038/nature08721.View ArticlePubMedGoogle Scholar
  27. Stumpe M, Kandzia R, Göbel C, Rosahl S, Feussner I. A pathogen-inducible divinyl ether synthase (CYP74D) from elicitor-treated potato suspension cells. FEBS Lett. 2001;507:371–6. doi:10.1016/S0014-5793(01)03019-8.View ArticlePubMedGoogle Scholar
  28. Tan X, Yao L, Gao Q, Wang W, Qi F, Lu X. Photosynthesis driven conversion of carbon dioxide to fatty alcohols and hydrocarbons in cyanobacteria. Metab Eng. 2011;13:169–76. doi:10.1016/j.ymben.2011.01.001.View ArticlePubMedGoogle Scholar
  29. Torella JP, Ford TJ, Kim SN, Chen AM, Way JC, Silver PA. Tailored fatty acid synthesis via dynamic control of fatty acid elongation. Proc Natl Acad Sci USA. 2013;110:11290–5. doi:10.1073/pnas.1307129110.PubMed CentralView ArticlePubMedGoogle Scholar
  30. Wang W, Liu X, Lu X. Engineering cyanobacteria to improve photosynthetic production of alka(e)nes. Biotechnol Biofuels. 2013;6:69. doi:10.1186/1754-6834-6-69.PubMed CentralView ArticlePubMedGoogle Scholar
  31. Weier D, Müller C, Gaspers C, Frentzen M. Characterisation of acyltransferases from Synechocystis sp. PCC6803. Biochem Biophys Res Commun. 2005;334:1127–34. doi:10.1016/j.bbrc.2005.06.197.View ArticlePubMedGoogle Scholar
  32. Yadav VG, De Mey M, Giaw Lim C, Kumaran Ajikumar P, Stephanopoulos G. The future of metabolic engineering and synthetic biology: towards a systematic practice. Metab Eng. 2012;14:233–41. doi:10.1016/j.ymben.2012.02.001.PubMed CentralView ArticlePubMedGoogle Scholar
  33. Yao L, Qi F, Tan X, Lu X. Improved production of fatty alcohols in cyanobacteria by metabolic engineering. Biotechnol Biofuels. 2014;7:94. doi:10.1186/1754-6834-7-94.PubMed CentralView ArticlePubMedGoogle Scholar
  34. Youngquist JT, Schumacher MH, Rose JP, Raines TC, Politz MC, Copeland MF, Pfleger BF. Production of medium chain length fatty alcohols from glucose in Escherichia coli. Metab Eng. 2013;20:177–86. doi:10.1016/j.ymben.2013.10.006.View ArticlePubMedGoogle Scholar
  35. Zheng Y-N, Li L-L, Liu Q, Yang J-M, Wang X-W, Liu W, Xu X, Liu H, Zhao G, Xian M. Optimization of fatty alcohol biosynthesis pathway for selectively enhanced production of C12/14 and C16/18 fatty alcohols in engineered Escherichia coli. Microb Cell Fact. 2012;11:65. doi:10.1186/1475-2859-11-65.PubMed CentralView ArticlePubMedGoogle Scholar
  36. Zybailov B, Rutschow H, Friso G, Rudella A, Emanuelsson O, Sun Q, van Wijk KJ. Sorting signals, N-terminal modifications and abundance of the chloroplast proteome. PLoS One. 2008;3(4):e1994. doi:10.1371/journal.pone.0001994.PubMed CentralView ArticlePubMedGoogle Scholar

Copyright

© Kaczmarzyk et al. 2016
