Redox mediators modify end product distribution in biomass fermentations by mixed ruminal microbes in vitro
© Nerdahl and Weimer. 2015
- Received: 8 June 2015
- Accepted: 17 July 2015
- Published: 4 August 2015
The fermentation system of mixed ruminal bacteria is capable of generating large amounts of short-chain volatile fatty acids (VFA) via the carboxylate platform in vitro. These VFAs are subject to elongation to larger, more energy-dense products through reverse β-oxidation, and the resulting products are useful as precursors for liquid fuels production. This study examined the effect of several redox mediators (neutral red, methyl viologen, safranin O, tannic acid) as alternative electron carriers for mixed ruminal bacteria during the fermentation of biomass (ground switchgrass not subjected to other pretreatments) and their potential to enhance elongation of end-products to medium-chain VFAs with no additional run-time. Neutral red (1 mM) in particular facilitated chain elongation, increasing average VFA chain length from 2.42 to 2.97 carbon atoms per molecule, while simultaneously inhibiting methane accumulation by over half yet maintaining total C in end products. The ability of redox dyes to act as alternative electron carriers suggests that ruminal fermentation is inherently manipulable toward retaining a higher fraction of substrate energy in the form of VFA.
- Electron mediator
- Redox dye
- Volatile fatty acids
One of the greatest needs in developing sustainable alternative energy systems is an economical means of producing energy-dense, infrastructure-compatible liquid fuels (Granda et al. 2007). Mixed cultures of microorganisms can degrade biomass to mixtures of volatile fatty acids (the carboxylate platform; Agler et al. 2011) that can then be converted by further chemistry to useful bioproducts, including liquid fuels (Holtzapple and Granda 2009; Lange et al. 2010; Levy et al. 1981). The carboxylate platform has been highlighted for its ability to be operated non-aseptically, generate high yields, and utilize a wide range of feedstocks, owing to the metabolic diversity of the undefined microbial community (Agler et al. 2011). Within the carboxylate platform, efforts have been made to improve its economics by increasing the value of products while still working within reasonable operating costs and run-times (Agler et al. 2012).
Ruminal fermentation is the means by which ruminant animals convert plant biomass to volatile fatty acids (VFA) that serve as energy source for the host animal. When conducted outside the animal (i.e., in bioreactors), the ruminal fermentation can be considered as a type of consolidated bioprocessing system that has the potential to improve upon the existing carboxylate platform for fuels and chemical production. In a manner similar to other undefined mixed cultures, such as sewage sludge or aquatic sediments, the mixed ruminal bacteria are capable of digesting a wide range of substrates (Weimer 2011). Of particular note for the ruminal bacteria is their capability to produce large amounts of short-chain volatile fatty acids (VFA) from cellulosic substrates in run times as short as 1–3 days. Likewise, the accumulation of methane in these systems is considerably lower than in most anaerobic digestion processes due to a lack of aceticlastic methanogens and proton-reducing acetogens, which require more time for growth than the short 1–3 day ruminal retention times allow, limiting their effect (Weimer et al. 2009). The ability of ruminal bacteria to produce substantial VFA yields has been well-documented and efforts have been made to elongate these short-chain VFAs to medium-chain VFAs, which are more energy-dense and more easily extractable (Singhania et al. 2013). The propensity of the ruminal bacteria towards VFA generation at considerable yield in such short run times deems it worthy of continued study with respect to chain elongation, and what low-cost methods can be used to manipulate the ruminal end-products to more valuable alternatives without altering the initial microbial composition, i.e. without addition of other bacteria. End product manipulation may also be beneficial within the rumen itself, as part of strategy for decreasing methane emissions and retaining feed energy in VFA in vivo, as this is a recognized as a fundamental goal of economically and environmentally sustainable animal agriculture (Hristov et al. 2013).
One important means of contributing to these goals is to better characterize the inherent manipulability of the ruminal fermentation under in vitro (“extraruminal”) conditions. The use of redox mediators has the potential to improve our understanding of how readily fermentation end product ratios may be altered in this system. This study examines the ability of several redox mediators—neutral red, methyl viologen, safranin O, and tannic acid—to decrease methanogenesis and shift ruminal fermentation end-products in vitro in short (72 h) run-times, as a means of demonstrating the inherent manipulability of the ruminal fermentation system.
Feedstocks and chemicals
Switchgrass (Panicum virgatum L.) air-dried whole herbage (late maturity, low quality, harvested after overwintering in February 2013) was generously provided by K. J. Shinners, University of Wisconsin-Madison. The material was ground through Wiley mill (1 mm) but otherwise was not subjected to additional pretreatment, and was stored at room temperature in the dark. Analysis (in triplicate) using the detergent fiber method of Goering and Van Soest (1970; without α-amylase treatment) revealed a composition [g (kg DM)−1] of: neutral detergent fiber, 878 ± 9; acid detergent fiber, 537 ± 1; and acid-detergent lignin, 86 ± 5. The N content, determined using a Leco TruMac (St. Joseph, MI, USA) combustion analyzer, was 5.2 ± 0.1 g (kg DM)−1. DM content of the ground switchgrass was 924 g (kg DM)−1.
The following redox mediators were used in their oxidized form: methyl viologen (MV, Acros, 98% dye content); neutral red (NR, Sigma, 95% dye content); safranin O (Aldrich, 96% dye content), resazurin (Sigma, ~85% dye content); tannic acid (TA, Aldrich).
Inocula were obtained from two lactating Holstein cows each fitted with a ruminal cannula (Bar-Diamond, Parma, ID, USA). The cows were fed a total mixed ration that contained corn silage, alfalfa haylage, ground corn grain, soybean meal and a vitamin and mineral mix. Ruminal contents (solids and liquids) from each cow were collected manually, then processed and the separate diluted ruminal fluid from each cow combined as described previously (Mouriño et al. 2001).
All fermentations were conducted in triplicate within treatment, under a CO2 gas phase in volume-calibrated glass serum vials (Wheaton) of ~60 mL volume fitted with butyl rubber closures and aluminum crimp seals. Experiments were conducted using freshly collected and diluted ruminal inocula. Vials contained Goering–Van Soest medium (1970) reduced with cysteine and Na2S, along with the switchgrass [19 mg DM (mL liquid volume)−1]. Total liquid volume in the vials was typically 10 mL, except for the NR concentration experiment (22 mL). Unless otherwise indicated, resazurin was added at low concentrations (0.008 mM) as a redox indicator to confirm (via decolorization upon reduction) establishment of reducing conditions in the culture media. Each redox mediator was dissolved in N2-gassed, deionized water to achieve a ~20 mM stock solution and added to fermentation vials to achieve the indicated concentration in the medium. Each experiment included control vials that lacked redox mediators, as well as blank vials that contained media and inoculum but lacked switchgrass or redox mediators. All experimental setup and incubations were conducted under non-aseptic conditions, with no sterilization of vessels, apparatus, biomass feedstocks, or culture media. Incubations were performed 39°C in a static upright position for 72 h.
Analysis of residual substrate and fermentation products
Analysis of gas phase H2 and methane was conducted by removal of fixed volumes (0.20–0.40 mL) of headspace using a pressure-lock syringe, and direct injection into a Shimadzu 8A gas chromatograph fitted with a 1.88 m × 3.18 mm (i.d.) stainless steel column packed with Carbosieve S-II (Sigma-Aldrich, St. Louis, MO, USA). The following chromatographic conditions were used: carrier gas, He; injector T, 120°C; oven T, 70°C; detector T, 120°C; detector type, thermal conductivity; detector current, 120 mA. External standard curves were used for quantification of H2 and CH4.
Culture pH was measured immediately after removal of the rubber stopper (to minimize alkalinization of medium that results from CO2 outgassing), using a Mettler-Toledo FiveEasy Plus pH meter calibrated with pH 4.01 and 7.00 buffers. Volatile fatty acids, nonvolatile acids (lactate, succinate) and ethanol in the culture liquid phase were determined by HPLC, as described previously (Weimer et al. 1991). For all gaseous and nongaseous products, net product formation was calculated after subtraction of products contained in substrate-free blank vials inoculated and incubated with the blank vials. Total enthalpy of combustion of products was calculated from enthalpies of combustion of individual end products (Weast 1969) at their measured net molar concentrations.
Total substrate consumption was calculated as initial dry weight of substrate minus neutral detergent fiber (NDF) residue (equivalent to plant cell wall residue). Residual NDF was determined gravimetrically by a modified Goering and Van Soest method (Weimer et al. 1990).
Statistical tests were performed using PROC MIXED in SAS, v.9.4 (SAS, Cary, NC, USA), using the model Yi = μ + Si + εi, where Yi = dependent variable; μ = overall mean; Si = effect of redox dye or its concentration; and εi = residual error. For analysis of data from the experiment conducted at different resazurin concentrations, the model Yi = μ + Si + Ri +SRij + εI was used, where Ri = resazurin concentration. For fermentations conducted at different neutral red concentrations, PROC REG was used for linear and quadratic regression analysis. Data are reported as least-square means. Means separation tests were conducted using the Tukey procedure. Significance was declared at P < 0.05, and trends identified at 0.05 < P < 0.10.
End products from in vitro switchgrass fermentations by mixed ruminal microorganisms in the presence or absence of redox dyes
Net umol producta
Model P > F
Methyl viologen (0.5 mM)
Neutral red (1.0 mM)
Safranin O (1.0 mM)
Control (no dye)
Isoval + 2 MBc
Enthalpy of combustion, kJ
Effect of tannic acid (TA) on in vitro switchgrass (SWG) fermentations by mixed ruminal microorganisms
Least-square mean valuesa
Model P > F
Control (no TA)
0.1 g TA L−1
0.3 g TA L−1
1.0 g TA L−1
SWG digested (mg DM)
mmol product (g SWG consumed)−1
Total alkyl in SCFAd
Enthalpy of combustion, kJ (g SWG digested)−1
Effect of resazurin (Res) and Neutral Red (NR) on fermentation of switchgrass (SWG) by mixed ruminal microflora in vitro
Resazurin (Res, in mM) without Neutral Red (NR)
0.5 mM NR
P > F,
P > F,
Isovalerate + 2 MB
Total C2–C6 VFA
Total VFA alkyld
μmol H (mg SWG)−1
Combustion, kJ (g SWG digested)−1
In the above fermentations inhibition of methanogenesis by NR was accompanied by accumulation of modest amounts of both H2 and formate. Fermentations containing either 0 or 0.008 mM resazurin with NR (Table 2) averaged 34.9 μmol H atoms in measured fermentation products (mg switchgrass digested)−1, numerically less than the 40.5 μmol H atoms (mg switchgrass digested)−1 in parallel fermentations lacking NR, but this difference was not significant. However, total H atoms in measured fermentation products (mg switchgrass digested)−1 tended (P = 0.089) to be lower in the presence versus absence of NR without resazurin, and was nearly so (P = 0.115) with 0.008 mM resazurin, suggesting that there may be additional fermentation products not accounted for in the NR-supplemented cultures. As expected, all cultures had similar enthalpies of combustion on a per mg switchgrass digested basis.
Shifting metabolic products of plant matter degradation to decrease methanogenesis and increase VFA is desirable within the rumen itself (as it should increase energetic efficiency and decrease greenhouse gas emissions) and in extraruminal bioreactors (as it should foster chain elongation to higher-energy, medium chain-length carboxylates). The inherent manipulability of the ruminal fermentation has largely been explored by altering substrate (i.e., diet composition) or by adding specific metabolic inhibitors (e.g., of methanogenesis), but the limits to which the fermentation can be altered, and the mechanisms underlying these alterations, have not been firmly established (Ungerfeld 2015). In this study we used artificial electron acceptors (redox mediators) to examine fermentation end product distribution on a single plant biomass substrate (ground switchgrass not subjected to chemical pretreatment).
The capability of redox dyes to shift anaerobic fermentation towards formation of longer end-products was first examined in non-ruminal systems by Hongo (1958). By diverting reducing equivalents that are normally released as H2 towards formation of NAD(P)H, redox dyes can inhibit methanogenesis by decreasing the supply of H2, and provide NAD(P)H for use as reducing power to synthesize longer chain molecules. Whether a redox mediator may divert electron flow depends on its capability to compete with a natural electron carrier in vivo. MV has a similar redox potential to ferredoxin and thus may replace ferredoxin in hydrogenase-catalyzed reactions (Peguin et al. 1994). That MV may replace ferredoxin allows it to act as a substitute for the direct reduction of NAD+. Accumulation of NADH inhibits further NAD+ reduction by either MV or ferredoxin (Rao and Mutharasan 1987). This is the mechanism for production of longer chain products with redox dyes: because a second electron carrier is present, the natural electron carrier will accumulate unless the reaction is coupled to the further synthesis of longer chain molecules that decreases the amount of NADH present in the cell.
An increased availability of NADH leads to increased production of VFAs, such as valerate and caproate. This is accomplished by reverse β-oxidation, which sequentially adds acetyl (C2) units to form butyrate from two molecules of acetate, valerate from acetate and propionate, and caproate from acetate and butyrate (Agler et al. 2012). This is most clearly demonstrated by a sevenfold increase in valerate upon the addition of 1 mM NR (Table 1). Interestingly, the levels of propionate were higher in the NR cultures than in the control, while acetate levels decreased by almost half. Not only did NR increase the concentration of C5–C6 VFAs, but also C3–C4 VFAs (propionate and butyrate) as well. So while the average chain length of end-products increased from 2.42 to 2.97, decreases in end-products only occurred with acetate and methane, the least desirable products in terms of energy content and commercial value.
The levels of total carbon in VFA resulting from MV or NR additions were nearly identical. Of interest is that MV did a significantly poorer job of inhibiting methanogenesis and facilitating chain elongation of acetate. Although Bauchop (1967) demonstrated that the related dye benzyl viologen decreased methanogenesis by mixed ruminal microbes in vitro, the effects on the amounts and distribution of other end products were not reported. The capability of MV to serve as an electron carrier for hydrogenase and increase the availability of NADH for VFA chain elongation was observed by Peguin et al. (1994) who showed MV to increase butyrate concentrations to 0.65 mol (mol glucose)−1 in pure cultures of the non-ruminal solventogenic bacterium, Clostridium acetobutylicum. In our experiments, the amount of butyrate was numerically lowered by MV, but the caproate concentration rose to over three times that of the control. This confirms not only that MV is capable of generating butyrate at the expense of shorter products, but also that a second chain elongation to caproate took place despite the short run times, although to relatively modest concentrations.

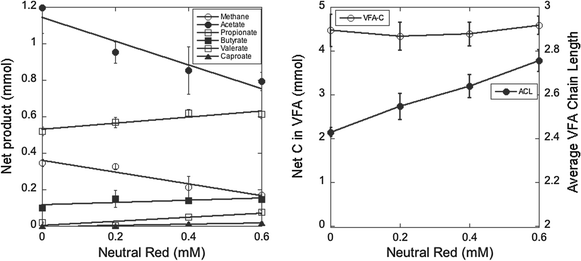

Of further interest is that NR shifted the fermentation to longer-chain end-products in a concentration-dependent manner. NR was also unaffected by the addition of resazurin as a redox indicator for reducing conditions of the ruminal media. Within the range of concentrations tested, linear decreases in acetate and methane along with increases in C3–C6 VFA occurred upon additions of greater amounts of NR. This demonstrates that there may be no specific threshold for NR activity. At what NR concentration the linear functions of methane inhibition and VFA chain extension dissipate may depend on the toxicity of the end-products.
At low concentrations, TA had no effect on fermentation product profiles, probably due to its relatively positive redox potential. At the highest concentration tested (1.0 g L−1), TA displayed a slight inhibition of switchgrass degradation and a corresponding decrease in methane and propionate formation, and in the ACL of VFA products. In addition, it decreased yield of C4–C5 branched-chain VFA, which are considered to be produced exclusively by fermentation of branched-chain amino acids (Russell 2002). It is likely that the TA-mediated inhibition of branched-chain VFA production reflects the known ability of tannins to bind proteins and protect them from ruminal degradation (Min et al. 2003).
In this report, we show that certain redox mediators may be an effective means of extending carbon chain length, and we highlight NR as the most effective of the dyes examined. NR is capable of increasing the average carbon chain length of end-products from 2.42 to 2.97 and inhibiting methanogenesis by over half, all while including no additionally added substrates/reagents and keeping fermentation run times at 72 h. The fact that shifts in end product distribution vary dramatically among different redox mediators that differ only slightly in their reduction potential reinforces bioenergetics studies that the ruminal fermentation is primarily under thermodynamic control (Ungerfeld and Kohn 2006). The manipulability of the ruminal system to form higher value fermentation end-products in vitro is clear, and it is a system worthy of further study to identify other, more practical interventions for shifting end product distribution, for potential use on an industrial scale.
PJW conceived the study, MAN and PJW conducted the experiments. MAN and PJW drafted the manuscript. Both authors read and approved the final manuscript.
This research was supported by USDA-ARS CRIS projects 3655-4100-006-00D and 3655-21000-022-D. We thank C. L. Odt for HPLC analysis.
Products mentioned are for informational purposes only and does not constitute an endorsement or warranty of such products over others that may be similar.
Compliance with ethical guidelines
Competing interests The authors declare that they have no competing interests.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
