Interception of Epoxide ring to quorum sensing system in Enterococcus faecalis and Staphylococcus aureus
AMB Express volume 13, Article number: 126 (2023)
Quorum sensing inhibitor (QSI) has been attracting attention as anti-virulence agent which disarms pathogens of their virulence rather than killing them. QSI marking cyclic peptide-mediated QS in Gram-positive bacteria is an effective tool to overcome the crisis of antibiotic-dependent chemotherapy due to the emergence of drug resistance strain, e.g., methicillin resistant Staphylococcus aureus (MRSA) and Vancomycin resistant Enterococci (VRE). From a semi-large-scale screening thus far carried out, two Epoxide compounds, Ambuic acid and Synerazol, have been found to efficiently block agr and fsr QS systems, suggesting that the Epoxide group is involved in the mode of action of these QSIs. To address this notion, known natural Epoxide compounds, Cerulenin and Fosfomycin were examined for QSI activity for the agr and fsr systems in addition to in silico and SAR studies. As a result, most of investigated Epoxide containing antibiotics correlatively interfere with QSI activity for the agr and fsr systems under sublethal concentrations.
Quorum sensing QS is a spirited system regulating the expression of a wide range of microbial genes (such as biofilm development, pathogenicity, and development of resistance and others) depending on cell density (Rutherford and Bassler, 2012; Saied et al., 2021; Waters and Bassler, 2005). The well-known core directing locus of the Gram-positive bacterial QS system is the accessory gene regulator (Agr) that has been considerably explored in S. aureus (El-gamal et al., 2017; Novick, 2003). while, in E. faecalis, fsr QS system has been discovered as a homolog of the agr-like QS system (Qin et al., 2000; Yousef et al., 2022). Even though Thiolactone- autoinducing peptides mediate the agr QS system, the fsr QS system is mediated by an activating peptide containing lactone called gelatinase biosynthesis-activating peptide (GBAP) (Nakayama et al., 2001). A Gram-positive pathogen Staphylococcus aureus, represents the most common reason for several diseases causing minor infections such as skin, and soft tissue infections, reaching life-threatening pneumonia, septicemia, endocarditis, and potentially fatal toxic shock (Said et al., 2023; Said et al., 2021; Shebl et al., 2021) (Desouky et al., 2014; Gordon and Lowy, 2008; Otto, 2012).
S. aureus infection is mediated via the agr locus by the release of several virulence agents and influencing biofilm formation. The agr locus involves two different units for transcription, RNAII and RNAIII, which are activated by the agr P2 and agr P3 promoters, respectively (Novick and Geisinger, 2008). The agr operon BDCA is encoded by RNAII, which is one of the QS structural components, while delta δ hemolysin is encoded by RNAIII which serves as a regulatory RNA implicated in a number of gene’s virulence (Le and Otto, 2015). Another type of opportunistic Gram-positive pathogen is Enterococci which lives as commensals in the gastrointestinal system. They commonly cause severe infections such as urinary tract infection, endocarditis, and bacteremia (Fiore et al., 2019; Lina et al., 1998). Gelatinase expression is positively controlled in the fsr locus by fsrA, fsrB, fsrC, and fsrD (Mylonakis et al., 2002). Nakayama (Nakayama et al., 2001) stated that the gelatinase synthesis which is regulated by the fsr QS has been associated with Enterococci pathogenicity. Methicillin-resistant S. aureus (MRSA) and vancomycin-resistant Enterococci (VRE) are among the most dangerous drug-resistant bacteria. Many antibiotics were shown to be ineffective against these bacteria, making therapeutic intervention much more difficult. The World Health Organization (WHO) expressed grave worry in 2017 about the progress of new antibiotics against diseases caused by multi-drug resistant (MDR) pathogens, including VRE and MRSA. The massive worldwide expansion of antimicrobial resistance, as well as a lack of effective and innovative medicines against these pathogens, may result in economic trouble and substantial morbidity in the future. (Molton et al., 2013; Prestinaci et al., 2015). Several MDR bacteria pathogenicity is regulated by the QS system. Consequently, QS interference has been proposed as an alternate strategy to these pathogens’ threats (Rasko and Sperandio, 2010; Rémy et al., 2018; Yousuf et al., 2018). Furthermore, one of the most recent attempts to develop anti-virulence medications that can lower virulence without being bactericidal is to target QS. (Defoirdt, 2018; LaSarre and Federle, 2013; Yousef et al., 2022). The need for wide spectrum antibiotics could be reduced when QS-inhibitors are utilized synergistically in combination with antibiotics or alone, and the chance of horizontal dissemination of drug-resistance genes is reduced (Baquero et al., 2011; Cegelski et al., 2008; Clatworthy et al., 2007). Several QS-inhibitors have been identified that exhibit promising therapeutic potential against Gram-positive bacteria pathogenicity in vivo and in vitro but they are still in experimental stages (Banhart et al., 2014; Daly et al., 2015; Gaber et al., 2020; Gaber et al., 2021; Nakayama et al., 2013). Previously, we reported a unique class of QS-inhibitors that drastically reduced fsr QS levels in Enterococci. (Nakayama et al., 2007; Nakayama et al., 2013). Lately, Desouky isolated cyclodepsipeptides as potent QS systems antagonists from actinomycetes microbial extracts, (Desouky et al., 2015). Accordingly, and as a part of our ongoing efforts to identify novel compounds with distinct mechanisms, here we scrutinize the inhibitory effects of a fungal secondary metabolite with the Epoxide group, Synerazol, which has been screened as a QSI compound. This discovery is intriguing because of its structure and activity association; Pseurotin A, a Synerazol analog, showed no QSI activity, whereas Synerazol inhibited the fsr and agr systems. The primary structural distinction between the two components is that Pseurotin A has a diol in place of Synerazol Epoxide at the same position. Also, a known QSI inhibitor, Ambuic acid, which inhibits both agr and fsr system through the inhibition of biosynthesis of auto-inducing peptide, has Epoxide. These structure-activity relationship data suggest that Epoxide group is involved in the mode of action of these QSI activities, which may target processing of autoinducing peptide precursor by the cysteine protease-like function of FsrB/AgrB as known in the case of Ambuic acid and Cerulenin is a known antifungal antibiotic with a broad spectrum of inhibitory activities produced by Cephalosporium caerulens (Omura et al., 1967). Recently, many researchers around the world have been exploring alternatives to antibiotics in which new types created from natural or chemical sources are used to confront the disaster of multidrug resistance by targeting factors other than those targeted by the currently commercially available antibiotics (Abd Elkarim et al., 2021; Khattab et al., 2022; Okba et al., 2021; Soliman et al., 2022). To address this notion, in this study, other Epoxides including natural and unnatural compounds were examined for agr and fsr QSI activity. Furthermore, we employed molecular docking to explore the Epoxide group’s attraction for the agrA protein’s active site. This work adds to the repertory of Epoxide compounds that successfully inhibit QS system and provides more information toward the discovery of new antimicrobial drugs.
Materials and methods
Bacterial strains and culture media
Todd-Hewitt broth (THB) (Oxoid, UK) used to culture E. faecalis OG1RF (ATCC 47077), a gelatinase-positive strain, which is used to assess the QSI effects of the chemicals under examination. strain was cultivated at 37°C (Nakayama, Jiro et al., 2009). Finally, 7 µg/mL chloramphenicol added to the medium for cultivating S. aureus 8325- 4(pSB2035), for plasmid selection and grown in LB broth media (Oxoid, U K) and incubated at 37°C, with gentle agitation (Desouky et al., 2022) (Schmitt et al., 2012).
Assay for E. faecalis fsr QS system
To measure fsr system inhibition, gelatinase activity in the culture supernatant of E. faecalis OG1RF grown with the tested drug was monitored. To address the inhibitory mode of action of samples, 0.5 McFarland (1.5 × 108 CFU) of E. faecalis OU510 inoculated into THB medium containing the tested compounds (5µg) and cultivated at 37°C for 5 h with moderate agitation (Qin et al., 2000; Yousef et al., 2022). After measuring the growth turbidity at (OD600), the tube was centrifuged at 9,300 x g for 5 min, and 40 µl of supernatant were recovered. Azocoll reagent (Calbiochem, San Diego, CA) was used for the gelatinase assay, as previously reported. Briefly, the OD was measured at 540 after adding 40 µl of E. faecalis culture supernatant to 0.8 ml of Azocoll solution and mixing the mixture at 170 rpm for four hours. The evaluated compounds were applied to grown cells as a negative control sample, and the inhibitory impact was assessed by contrasting the inhibitory effects of the two groups of compounds. A compound that inhibits growth by at least 50% is considered significant and is evaluated for further study. A triplicate experiment was conducted.
Assay for S. aureus agr system
Monitoring chemoluminescence of S. aureus 8325- 4(pSB2035) reporter strain, was used to evaluate agr inhibition. 0.5 McFarland standard overnight culture of S. aureus was then diluted 1: 50 in LB broth with different concentrations of the tested compounds, and then grown in a microtiter plate (96 wells) with 100 rpm shaking. For controls, the strains were grown without tested compounds. After 7 hours, the culture turbidity OD was measured at 620 nm using a reader (Immuno Mini NJ-2300; Nihon InterMed, Tokyo, Japan).
The bioluminescence was measured using a luminescence analyzer (LAS-4000mini; Fuji Photo Film, Japan). The induction level of luciferase was calculated by removing the fluorescence of the negative control. The total induction level was estimated by subtracting the brightness of the negative control from that of the positive one. A significant repressing impact was defined as one that was greater than 90%. The cells were extracted by centrifugation 9,300 x g for 2 minutes, washed twice in phosphate buffered saline (PBS), and then resuspended in 600µl of PBS.
The software of Molecular Operating Environment (MOE®) MOE 2014.0901 was used for molecular docking simulation investigation (El-Kalyoubi et al., 2022; Fayed et al., 2022; Fayed et al., 2021a; Fayed et al., 2021b; Ibrahim et al., 2021). Protein Data Bank was used to get the crystal structures of S. aureus agr A (PDB code: 3BS1). ChemDraw 2019 was used to create the 2D structures of the six chemicals Cerulenin, Fosfomycin, 1,2-epoxyethylbenzene, 1,2-epoxybutane, 2,3-epoxypropyl phenyl ether, Glycidyl methacrylate, and Ambuic acid. The protonated 3D was then constructed with the MOE 2014.0901 software using standard bond angles and lengths, followed by geometry optimization and energy minimization using the Conf Search module in MOE, and finally, the MOE files were saved to be available for the docking process. Using the Protonate 3D technique in MOE with the default settings, the structure of agr A was produced for docking (Leonard et al., 2012). In the docking protocol, the Triangle Matcher placement method and London dG scoring function were used.
Triple duplicates were achieved for each experiment, and the results were the means of three different tests. To compare the distinctions between a sample and its corresponding control, the student’s t-test was performed. The differences were determined significant if the p values were less than 0.05.
Effect of natural Epoxide compounds on E. faecalis
Since the QS fsr system consists of four genes responsible for the accumulation of gelatinase activating pheromones, detecting the presence or absence of the gelatinase enzyme was an indicator of the activity or inactivity of the quorum sensing system. Therefore, in this study, gelatinase was detected quantitatively using the Azocoll reagent, and the results were as follows:
Cerulenin structure is (2R) (3S)-2,3-epoxy-4-oxo-7,10- dodecadienoylamide (Fig. 1A) (Adhikari, R. P. and Novick, R. P., 2005; Goldberg, I. et al., 1973). In this study, it showed only slight growth inhibitory activity against E. faecalis at high concentrations. Like Synerazol, Cerulenin did not show direct inhibitory activity against GelE. On the other hand, at sublethal concentrations, Cerulenin substantially inhibited gelatinase synthesis mediated by the fsr QS system of MIC = 2.2 µM (Fig. 1B). However, IC50 dose (1.8 µM) of Cerulenin partially inhibited the gelatinase production in E. faecalis OU510 in the presence of physiological concentration (10 nM) of GBAP, suggesting that Cerulenin inhibits GBAP signal transduction more than GBAP biosynthesis.
Fosfomycin (Kahan et al., 1974) is a known anti-Gram-positive antibiotics including MRSA (Grif, K. et al., 2001) and VRE (Superti et al., 2009) (Fig. 2A). In this study, it showed only slight growth inhibitory activity against E. faecalis at high concentrations. Like Synerazol, Fosfomycin did not show direct inhibitory activity against GelE. On the other hand, at sublethal concentrations, Fosfomycin substantially reduced gelatinase synthesis mediated by the fsr QS system where IC50 = 380 µM (Fig. 2B).
Effect of synthetic Epoxide compounds on E. faecalis
1,2-epoxyethylbenzene, styrene oxide, (Fig. 4A) showed only slight growth inhibitory activity against E. faecalis at those concentrations (Fig. 4B). As same as Synerazol, Cerulenin, 1,2-epoxyethylbenzene did not show direct inhibitory activity against GelE. On the other hand, 1,2-epoxyethylbenzene strongly inhibited the gelatinase production controlled by the fsr QS system at its sublethal concentrations of MIC = 13 µM. However, IC50 dose (6 µM) of 1, 2-Epoxyethylbenzene partially inhibited the gelatinase production in E. faecalis OU510 in the presence of physiological concentration (10 nM) of GBAP, suggesting that 1,2-Epoxyethylbenzene inhibits GBAP signal transduction more than GBAP biosynthesis.

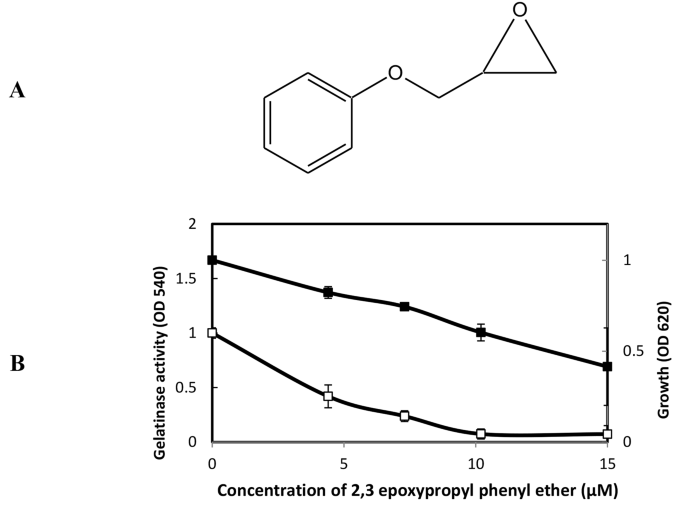

In current study, 2,3-epoxypropyl phenyl ether (Fig. 5A) showed only slight growth inhibitory activity against E. faecalis at those concentrations (Fig. 5B). As same as Synerazol and Cerulenin, 2,3-epoxypropyl phenyl ether did not show direct inhibitory activity against GelE. On the other hand, 2,3-epoxypropyl phenyl ether strongly inhibited the gelatinase production controlled by the
fsr QS system at its sublethal concentrations of MIC = 10 µM. However, IC50 dose (6 µM) of 2,3-epoxypropyl phenyl ether partially inhibited the gelatinase production in E. faecalis OU510 in the presence of physiological concentration (10 nM) of GBAP, suggesting that 2,3-epoxypropyl phenyl ether inhibits GBAP signal transduction more than GBAP biosynthesis.
Glycidyl methacrylate (Fig. 6A) showed only slight growth inhibitory activity against E. faecalis at those concentrations (Fig. 6B). As same as Synerazol, Cerulenin, and 2,3 epoxypropyl phenyl ether, glycidyl methacrylate did not show direct inhibitory activity against GelE. On the other hand, Glycidyl methacrylate strongly inhibited the gelatinase production controlled by the fsr QS system at its sublethal concentrations of MIC = 10 µM (Fig. 7).
Effect of Epoxide compounds on agr expression in S. aureus
1,2-epoxyethylbenzene (Fig. 8A), 2,3-epoxypropyl phenyl ether (Fig. 8B), and glycidyl methacrylate (Fig. 8C) inhibited the expressions of both GFP and luciferase in dose-dependent manner with IC50 for GFP expression approximately equal to 10, 1, and 1.5 µM, respectively and IC50 for luciferase expression approximately equal to 15, 0.75, and 1.5 µM, respectively.
In silico Studies
Assessment of physicochemical and ADME properties
SwissADME was used to assess the physicochemical and ADME properties of Cerulenin and Fosfomycin (Adhikari, Rajan P and Novick, Richard P, 2005; ANDO et al., 1991; Forsgren, Arne and Walder, Mats, 1983; Goldberg, Israel et al., 1973; Program, 1988). According to physicochemical metrics, all the substances tested met Lipinski’s standards for oral pharmaceuticals (Table S1). Furthermore, according to Veber’s standards, all the compounds meet the drug-likeness criterion. All the hits have rotatable bonds ranging from 1 to 7, indicating that their molecular target is adaptable. Table 1 shows that the total topological polar surface area (TPSA) is less than 115 A0 2. Additionally, absorption (percent ABS) was determined using the equation% ABS = 109 - (0.345 x TPSA) (Grif, Katharina et al., 2001), and the calculated percent ABS of all hits ranged from 81.44 to 104.68%, indicating that these derivatives may have the needed cell membrane permeability and bioavailability.
all tested hits have significant-high gastrointestinal absorption in relation to the pharmacokinetic and medicinal chemistry parameters. Cerulenin and Fosfomycin show no permeability of the blood-brain barrier and there are no CNS side effects (Table S2).
Another trait that distinguishes P-glycoprotein (P-gp) is its non-substrate candidature. P-gp is an efflux transporter that moves medicines, other constituents, and their substrates out of cells. As a result, the substances were investigated via the SwissADME website. As indicated in Table 1, all chemicals are P-gp protein substrates, indicating that these hits have a very low likelihood of effluxing out of the cell, resulting in a maximal effect.
The most essential factor determining absorption is bioavailability, which is a measurement of the amount of drug in the bloodstream. Surprisingly, all the hits had high bioavailability levels between 0.55 and 0.56. All of the compounds had zero warnings, according to SwissADME’s Pan Assay Interference Compounds (PAINS) (Adhikari, Rajan P and Novick, Richard P, 2005). Though PAINS are important criteria to deliberate when creating drugs to reduce false-positive results, overestimating and applying these filters blindly can lead to the rejection of potential achievements based on phantom PAINS (Igarashi et al., 2004). All the compounds have synthetic accessibility ratings ranging from 1.00 to 3.93, indicating that they can be easily synthesized on a wide scale.
Safety is always the most significant factor throughout the development of pharmaceutical agents, which includes a wide spectrum of toxicities and adverse pharmacological properties that should be examined throughout the clinical trial and preclinical stages.
a wide range of toxicities and adverse pharmacological effects that should be investigated during the preclinical and clinical trial phases. So, the toxicity of all compounds Cerulenin and Fosfomycin, was investigated using the web tools pkCSM (http://biosig.unimelb.edu.au/pkcsm/prediction) and ProTox-II (https://tox-new.charite.de/protox II) (Han et al., 2019; Kamoutsis et al., 2021). Cerulenin and Fosfomycin showed AMES toxicity, with maximum tolerated human doses equal 0.473 and 1.490 log mg/kg/day, respectively as well as values for oral rat acute toxicity (LOAEL) were 2.015 to 2.925 mol/kg, respectively and oral rat chronic toxicity values equal 2.850 and 2.517 log mg/kg_ bw/day) respectively according to the pkCSM web tools.
Hepatotoxicity is a mutual reason for pharmaceutical withdrawal from clinical trials and manufacturing. In vitro experiments can be performed on immortalized cell lines such as HepG-2, primary human hepatocyte cultures, and liver slices.
Due to ProTox-II detection, they were non-immunotoxic and inert against phosphoprotein p53 and cytotoxicity, according to the toxicity profile, as shown in the preceding table (Table S3). Cerulenin is likely to be mutagenic. Cerulenin was classified as class four (GHS), but Fosfomycin was classified as group five (Table S3).
Molecular docking studies

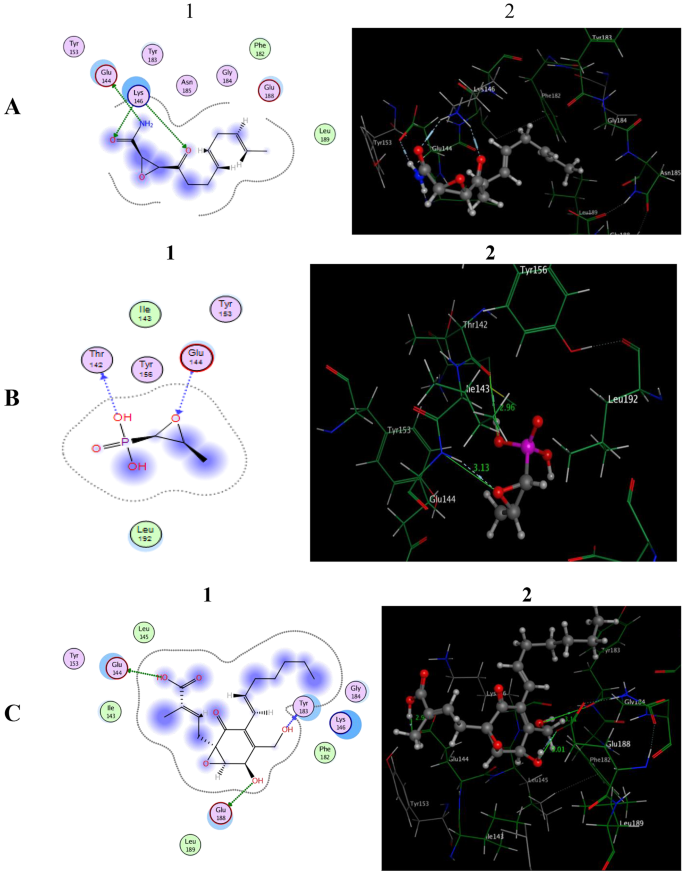

As depicted in Fig. 9A, Cerulenin formed a hydrogen bond donor between the nitrogen of the amidic group and the Side chain of Glu144 (distance: 3.16 Å). Moreover, the oxygen of the two carbonyl groups shared fixation with the sidechain of Lys146 via two H-bond acceptors (distance: 2.93, 3.12 Å, respectively).
Figure 9B shows how the epoxy group of the Fosfomycin scaffold kept its increased potency by forming hydrogen bonds between the oxygen atom and the backbone of the Glu144 residue (distance: 3.13 Å). Furthermore, the phosphate hydroxy group established an H-bond donor with the backbone of Thr142 (distance: 2.96 Å).
Finally, the Ambuic acid was docked into the active site of agrA which represented three hydrogen bonds with three amino acids. Two hydrogen bond donors, the first is the H-bond of the oxygen atom of the carboxylic group with the sidechain of Glu144 while the second is for the phenolic oxygen with the sidechain of Glu188 (distance: 2.95, 3.01 Å), respectively. Moreover, the alcoholic oxygen of Ambuic acid showed a hydrogen bond acceptor with the backbone of Tyr183 (distance: 3.11 Å) (Fig. 9C).
From the previous work (Capuzzi et al., 2017), Synerazol has been reported to function as a universal regulator of the fsr/agr QS systems. The stronger Synerazol’s inhibitory effect might be related to the presence of an Epoxide fragment, which is significant in the binding site of the essential amino acid in AgrA. Here we tested a series of natural and unnatural compounds that contain Epoxide rings. The results indicated Epoxide-containing compounds had moderate to high activity as QSI targeting fsr and agr system, according to the prior findings. Based on the structural composition of the substances, all contain Epoxide ring which is essential in the binding with the amino acids. Fosfomycin and Ambuic acid show binding of the oxygen atom of Epoxide with Glu144 with a high energy score except Cerulenin, which contains additional functional groups which make 3 H-bonds with two amino acids which are, Glu144 and Lys146. Here the amino acid Glu144 formed a hydrogen bond donor between the nitrogen of the amidic group and its sidechain and not the oxygen atom of Epoxide with a high energy score (-8.697 kcal/mol) and Root mean square deviation (RMSD) equal 1.731 and it is the most suitable conformer of the structure during the docking process. The higher activity of this compound may be due to the presence of other functional groups such as two C = O, and NH2, which can form additional bonds with other amino acids of the enzyme.
In addition, Ambuic acid showed a high binding energy score (-10.39 kcal/mol) and RMSD equal 1.609 as it contains three hydroxy groups that can form three hydrogen bonds with the essential amino acids. It formed two hydrogen bonds donor for carboxylic and phenolic oxygen with the sidechain of Glu144 and Glu188, respectively, while its alcoholic oxygen formed a hydrogen bond acceptor with the backbone of Tyr183. So, we need to study a large group of Epoxide-containing compounds of different sizes and additional functional groups to establish the effect of the Epoxide ring as agr/fsr quorum sensing inhibitors for Staphylococcus aureus and E. faecalis.
From relatively small-scale screening, Nakayama found Siamycin and Ambuic acid as QSIs targeting Enterococcal fsr quorum sensing. Interestingly, these two compounds showed different modes of action. Siamycin inhibits the fsr QS system of E. faecalis via the block of FsrC-FsrA two component signal transduction. On the other hand, Ambuic acid inhibits the biosynthesis of cyclic peptide autoinducer of Listeria innocua and S. aureus (Nakayama, J. et al., 2009), which resulted in wide-spectral QSI activity. The biosynthetic mechanism of cyclic peptide autoinducers has been investigated for both E. faecalis and S. aureus. In both cases, it is supposed that FsrB and AgrB are involved in the process and maybe in cyclization of precursor peptides in the cysteine protease-like manner because catalytic residue-like amino acids, cysteine, and histidine are conserved and essential for the biosynthesis of mature autoinducers. Even though Ambuic acid was suspected to target the cysteine protease-like function of FsrB/AgrB, the precise inhibitory mechanism of Ambuic acid was unexplored on the molecular structure level.
Cerulenin, an antifungal antibiotic with a broad spectrum of inhibitory activities, acts as an inhibitor of fatty acid synthesis and related processes (Adhikari, R. P. and Novick, R. P., 2005; Goldberg, I. et al., 1973). In this study, Cerulenin inhibited gelatinase production induced by the fsr QS system in E. faecalis. The dose response curve of Cerulenin showed an interesting profile; it completely inhibited gelatinase production at the concentrations higher than 3 µM while the cell growth was also suppressed at the concentrations higher than 3 µM but still about a half of the maximum growth was seen at 10 µM. Furthermore, 30% was done at 1 mM. This bacteriostatic activity, which fails to abolish cell growth, is favorable in terms of avoidance of selective pressure to promote the emergence of drug resistant strain. On the other hand, Cerulenin enhanced agr expression in S. aureus in a dose dependent manner from 0 to 4 µM. However, in a previous study by Adhikari, R. P. and Novick, R. P. (2005), showed that Cerulenin strongly inhibited agr system at 5 and 10 µg per ml corresponding to approximately 20 to 40 µM. However, in our study, dose higher than 4 µM strongly inhibited the bacterial cell growth, and we could not discriminate QSI activity from growth inhibitory activity. Cerulenin is not like the case of Synerazol or Ambuic acid and may modulate directly or indirectly the functions of some different molecules other than those involved in agr QS system. Cerulenin is known to inhibit fatty acid synthesis by covalently binding to the cysteine residue of beta-keto-acyl-ACP synthase of not only eukaryote but also bacteria. It is also known that Cerulenin blocks ACP synthase activity resulting in the lack in the transfer of acyl chain to N-acyl homoserine lactone auto-inducer in Gram negative bacteria (Val and Cronan, 1998).
In this study, Cerulenin inhibited gelatinase production induced by fsr QS system in E. faecalis. The dose-response curve of Cerulenin showed an interesting profile; it completely inhibited gelatinase production at concentrations higher than 3 µM while the cell growth was also suppressed at concentrations higher than 3 µM but still about half of the maximum growth was seen at 10 µM. Furthermore, 30% was done at 1 mM. This bacteriostatic activity, which fails to abolish cell growth, is favorable in terms of avoidance of selective pressure to promote the emergence of drug-resistant strains. On the other hand, Cerulenin enhanced agr expression in S. aureus in a dose-dependent manner from 0 to 4 µM. However, a previous study by Adhikari, R. P. and Novick, R. P. (2005), showed that Cerulenin strongly inhibited the agr system at 5 and 10 µg per ml corresponding to approximately 20 to 40 µM. However, in our study, a dose higher than 4 µM strongly inhibited bacterial cell growth, and we could not discriminate QSI activity from growth inhibitory activity. Cerulenin is not like the case of Synerazol or Ambuic acid and may modulate directly or indirectly the functions of some different molecules other than those involved in the agr QS system. Cerulenin is known to inhibit fatty acid synthesis by covalently binding to the cysteine residue of beta-keto-acyl-ACP synthase of not only eukaryotes but also bacteria. It is also known that Cerulenin blocks ACP synthase activity resulting in the lack of the transfer of the acyl chain to N-acyl homoserine lactone auto-inducer in Gram-negative bacteria (Val and Cronan, 1998).
This mode of action is highly interesting since the biosynthetic enzyme of GBAP, FsrB, has a catalytic cysteine residue which might be the target of Cerulenin. However, not only the cysteine residue of FsrB but also that of many other enzymes including ACP synthase can be the target of Cerulenin. This complex mode may explain the partial growth inhibitory effect of Cerulenin but also the discrepancy in its effect on between Enterococcus fsr and Staphylococcus agr.
Fosfomycin is an antibiotics active against gram-positive bacteria including MRSA (Grif, K. et al., 2001) and VRE (Superti et al., 2009) by inhibiting cell wall synthesis as a mimic of phosphoenolpyruvate which is transferred to UDP-N-acetylglucosamine to generate UDP-N-acetylglucosamine pyruvate ether (Forsgren, A. and Walder, M., 1983). Similar to Cerulenin, Fosfomycin is also known to react with cysteine catalytic residue of UDP-N-acetylglucosamine-3-enolpyruvyltransferase.
In this study, more than 0.4 mM of Fosfomycin sharply affects growth pattern in E. faecalis, but under sub-lethal dose we found IC50 for blocking gelatinase production is 0.37 mM without influencing growth. It could be suspected that this blocking activity against fsr system is due to the covalently binding of Fosfomycin to the catalytic cysteine residue of FsrB.
Regards the QSI effect of Synerazol which contains epoxy group as reported in our previous work (Igarashi et al., 2004). Here we decided to study compounds with the epoxy group to determine their QSI activities. So, the molecular docking simulation was used to investigate the binding modalities of the potent targets Cerulenin and Fosfomycin inside the active site of S. aureus AgrA (PDB code: 3BS1), this was performed using MOE program. Cerulenin, Fosfomycin and Ambuic acid were docked into the ATP-active region of AgrA, with energy scores of -8.69, -7.32, and − 10.39 kcal/mol, and RMSD of 1.731, 0.877, and 1.609 respectively. In conclusion, as a result of Epoxide-containing antibiotics investigation, Cerulenin and Fosfomycin interfered with QS activity for both the agr and fsr systems under the sublethal concentrations which makes these compounds a promising solution to the antibiotic-resistant problem.
All authors declare that the data supporting the findings of this study are available within the article.
Abd Elkarim AS, Ahmed AH, Taie HA, Elgamal AM, Shabana MA-EaS (2021) Synadenium grantii hook f.: HPLC/QTOF-MS/MS tentative identification of the phytoconstituents, antioxidant, antimicrobial and antibiofilm evaluation of the aerial parts. Rasayan J Chem 14:811–828
Adhikari RP, Novick RP (2005) Subinhibitory cerulenin inhibits staphylococcal exoprotein production by blocking transcription rather than by blocking secretion. Microbiology 151(9):3059–3069
ANDO O, SATAKE H, NAKAJIMA M, SATO A, NAKAMURA T, KINOSHITA T, FURUYA, K., HANEISHI, T (1991) Synerazol, a new antifungal antibiotic. J Antibiot 44(4):382–389
Banhart S, Saied EM, Martini A, Koch S, Aeberhard L, Madela K, Arenz C, Heuer D (2014) Improved plaque assay identifies a novel anti-Chlamydia ceramide derivative with altered intracellular localization. Antimicrob Agents Chemother 58(9):5537–5546
Baquero F, Coque TM, De La Cruz F (2011) Ecology and evolution as targets: the need for novel eco-evo drugs and strategies to fight antibiotic resistance. Antimicrob Agents Chemother 55(8):3649–3660
Capuzzi SJ, Muratov EN, Tropsha A (2017) Phantom PAINS: Problems with the Utility of Alerts for P an-A ssay IN terference Compound S. J Chem Inf Model 57(3):417–427
Cegelski L, Marshall GR, Eldridge GR, Hultgren SJ (2008) The biology and future prospects of antivirulence therapies. Nat Rev Microbiol 6(1):17–27
Clatworthy AE, Pierson E, Hung DT (2007) Targeting virulence: a new paradigm for antimicrobial therapy. Nat Chem Biol 3(9):541–548
Daly SM, Elmore BO, Kavanaugh JS, Triplett KD, Figueroa M, Raja HA, El-Elimat T, Crosby HA, Femling JK, Cech NB (2015) ω-Hydroxyemodin limits Staphylococcus aureus quorum sensing-mediated pathogenesis and inflammation. Antimicrob Agents Chemother 59(4):2223–2235
Defoirdt T (2018) Quorum-sensing systems as targets for antivirulence therapy. Trends Microbiol 26(4):313–328
Desouky SE, Abu-Elghait M, Fayed EA, Selim S, Yousuf B, Igarashi Y, Abdel-Wahab BA, Mohammed Alsuhaibani A, Sonomoto K, Nakayama J (2022) Secondary metabolites of actinomycetales as potent quorum sensing inhibitors targeting gram-positive pathogens: in vitro and in silico study. Metabolites 12(3):246
Desouky SE, El-Gamal MS, Mohammed AF, Abu-Elghait MA (2014) Determination of some virulence factors in Staphylococcus spp. isolated from clinical samples of different Egyptian patients. World Appl Sci J 32:731–740
Desouky SE, Shojima A, Singh RP, Matsufuji T, Igarashi Y, Suzuki T, Yamagaki T, Okubo K-i, Ohtani K, Sonomoto K (2015) Cyclodepsipeptides produced by actinomycetes inhibit cyclic-peptide-mediated quorum sensing in Gram-positive bacteria. FEMS microbiology letters 362(14)
El-gamal MS, Desouky SE, Hassan SE, Elghait MA (2017) Phenotypic and biochemical characterization of specific virulence determinants regulated By Agr quorum sensing system in Staphylococcus aureus. Al Azhar Bull Sci 9:217–226
El-Kalyoubi SA, Ragab A, Abu Ali OA, Ammar YA, Seadawy MG, Ahmed A, Fayed EA (2022) One-pot synthesis and molecular modeling studies of new bioactive spiro-oxindoles based on uracil derivatives as sars-cov-2 inhibitors targeting rna polymerase and spike glycoprotein. Pharmaceuticals 15(3):376
Fayed EA, Al-Arab EME, Saleh AS, Bayoumi AH, Ammar YA (2022) Design, synthesis, in silico studies, in vivo and in vitro assessment of pyridones and thiazolidinones as anti-inflammatory, antipyretic and ulcerogenic hits. J Mol Struct 1260:132839
Fayed EA, Eldin RRE, Mehany AB, Bayoumi AH, Ammar YA (2021a) Isatin-Schiff’s base and chalcone hybrids as chemically apoptotic inducers and EGFR inhibitors; design, synthesis, anti-proliferative activities and in silico evaluation. J Mol Struct 1234:130159
Fayed EA, Nosseir ES, Atef A, El–Kalyoubi SA (2021b) In vitro antimicrobial evaluation and in silico studies of coumarin derivatives tagged with pyrano-pyridine and pyrano-pyrimidine moieties as DNA gyrase inhibitors. Mol Diversity, 1–23
Fiore E, Van Tyne D, Gilmore MS (2019) Pathogenicity of enterococci. Microbiol Spectr 7(4), 7.4. 9.
Forsgren A, Walder M (1983) Antimicrobial activity of fosfomycin in vitro. J Antimicrob Chemother 11(5):467–471
Gaber A, Alsanie WF, Kumar DN, Refat MS, Saied EM (2020) Novel papaverine metal complexes with potential anticancer activities. Molecules 25(22):5447
Gaber A, Refat MS, Belal AA, El-Deen IM, Hassan N, Zakaria R, Alhomrani M, Alamri AS, Alsanie WF, Saied EM (2021) New mononuclear and binuclear Cu (II), Co (II), Ni (II), and Zn (II) thiosemicarbazone complexes with potential biological activity: antimicrobial and molecular docking study. Molecules 26(8):2288
Goldberg I, Walker JR, Bloch K (1973) Inhibition of lipid synthesis in Escherichia coli cells by the antibiotic cerulenin. Antimicrob Agents Chemother 3(5):549–554
Gordon RJ, Lowy FD (2008) Pathogenesis of methicillin-resistant Staphylococcus aureus infection. Clin Infect Dis 46(Supplement5):S350–S359
Grif K, Dierich MP, Pfaller K, Miglioli PA, Allerberger F (2001) In vitro activity of fosfomycin in combination with various antistaphylococcal substances. J Antimicrob Chemother 48(2):209–217
Han Y, Zhang J, Hu CQ, Zhang X, Ma B, Zhang P (2019) silico ADME and toxicity prediction of ceftazidime and its impurities. Front Pharmacol 10:434
Ibrahim SA, Fayed EA, Rizk HF, Desouky SE, Ragab A (2021) Hydrazonoyl bromide precursors as DHFR inhibitors for the synthesis of bis-thiazolyl pyrazole derivatives; antimicrobial activities, antibiofilm, and drug combination studies against MRSA. Bioorg Chem 116:105339
Igarashi Y, Yabuta Y, Sekine A, Fujii K, Harada K-I, Oikawa T, Sato M, Furumai T, Oki T (2004) Directed biosynthesis of fluorinated pseurotin A, synerazol and gliotoxin. J Antibiot 57(11):748–754
Kahan FM, Kahan JS, Cassidy PJ, Kropp H (1974) The mechanism of action of fosfomycin (phosphonomycin). Ann N Y Acad Sci 235(0):364–386
Kamoutsis C, Fesatidou M, Petrou A, Geronikaki A, Poroikov V, Ivanov M, Soković M, Ćirić A, Carazo A, Mladěnka P (2021) Triazolo Based-Thiadiazole Derivatives. Synthesis, Biological Evaluation and Molecular Docking Studies. Antibiotics 10(7):804
Khattab AM, Abo-Taleb HA, Abdelaziz AM, El-Tabakh MA, El-Feky MM, Abu-Elghait M (2022) Daphnia magna and Gammarus pulex, novel promising agents for biomedical and agricultural applications. Scientific Reports 12(1), 13690
LaSarre B, Federle MJ (2013) Exploiting quorum sensing to confuse bacterial pathogens. Microbiol Mol Biol Rev 77(1):73–111
Le KY, Otto M (2015) Quorum-sensing regulation in staphylococci—an overview. Front Microbiol 6:1174
Leonard PG, Bezar IF, Sidote DJ, Stock AM (2012) Identification of a hydrophobic cleft in the LytTR domain of AgrA as a locus for small molecule interactions that inhibit DNA binding. Biochemistry 51(50):10035–10043
Lina G, Jarraud S, Ji G, Greenland T, Pedraza A, Etienne J, Novick RP, Vandenesch F (1998) Transmembrane topology and histidine protein kinase activity of AgrC, the agr signal receptor in Staphylococcus aureus. Mol Microbiol 28(3):655–662
Molton JS, Tambyah PA, Ang BS, Ling ML, Fisher DA (2013) The global spread of healthcare-associated multidrug-resistant bacteria: a perspective from Asia. Clin Infect Dis 56(9):1310–1318
Mylonakis E, Engelbert M, Qin X, Sifri CD, Murray BE, Ausubel FM, Gilmore MS, Calderwood SB (2002) The Enterococcus faecalis fsrB gene, a key component of the fsr quorum-sensing system, is associated with virulence in the rabbit endophthalmitis model. Infect Immun 70(8):4678–4681
Nakayama J, Cao Y, Horii T, Sakuda S, Akkermans AD, De Vos WM, Nagasawa H (2001) Gelatinase biosynthesis-activating pheromone: a peptide lactone that mediates a quorum sensing in Enterococcus faecalis. Mol Microbiol 41(1):145–154
Nakayama J, Tanaka E, Kariyama R, Nagata K, Nishiguchi K, Mitsuhata R, Uemura Y, Tanokura M, Kumon H, Sonomoto K (2007) Siamycin attenuates fsr quorum sensing mediated by a gelatinase biosynthesis-activating pheromone in Enterococcus faecalis. Am Soc Microbiol
Nakayama J, Uemura Y, Nishiguchi K, Yoshimura N, Igarashi Y, Sonomoto K (2009) Ambuic acid inhibits the biosynthesis of cyclic peptide quormones in gram-positive bacteria. Antimicrob Agents Chemother 53(2):580–586
Nakayama J, Uemura Y, Nishiguchi K, Yoshimura N, Igarashi Y, Sonomoto K (2009) Ambuic acid inhibits the biosynthesis of cyclic peptide quormones in gram-positive bacteria. Antimicrob Agents Chemother 53(2):580–586
Nakayama J, Yokohata R, Sato M, Suzuki T, Matsufuji T, Nishiguchi K, Kawai T, Yamanaka Y, Nagata K, Tanokura M (2013) Development of a peptide antagonist against fsr quorum sensing of Enterococcus faecalis. ACS Chem Biol 8(4):804–811
Novick RP (2003) Autoinduction and signal transduction in the regulation of staphylococcal virulence. Mol Microbiol 48(6):1429–1449
Novick RP, Geisinger E (2008) Quorum sensing in staphylococci. Annu Rev Genet 42:541–564
Okba MM, El-Shiekh RA, Abu-Elghait M, Sobeh M, Ashour RM (2021) HPLC-PDA-ESI-MS/MS profiling and anti-biofilm potential of eucalyptus sideroxylon flowers. Antibiotics 10(7):761
Omura S, Katagiri M, Nakagawa A, Sano Y, Nomura S (1967) Studies on cerulenin. V. Structure of cerulenin. J Antibiot 20(6):349–354
Otto M (2012) MRSA virulence and spread. Cell Microbiol 14(10):1513–1521
Prestinaci F, Pezzotti P, Pantosti A (2015) Antimicrobial resistance: a global multifaceted phenomenon. Pathogens and global health 109(7):309–318
Program NT, Toxicology NTP (1988) and Carcinogenesis Studies of 1, 2-Epoxybutane (CAS No. 106-88-7) in F344/N Rats and B6C3F1 Mice (Inhalation Studies). National Toxicology Program technical report series 329, 1-176
Qin X, Singh KV, Weinstock GM, Murray BE (2000) Effects of Enterococcus faecalis fsr genes on production of gelatinase and a serine protease and virulence. Infect Immun 68(5):2579–2586
Rasko DA, Sperandio V (2010) Anti-virulence strategies to combat bacteria-mediated disease. Nat Rev Drug Discovery 9(2):117–128
Rémy B, Mion S, Plener L, Elias M, Chabrière E, Daudé D (2018) Interference in bacterial quorum sensing: a biopharmaceutical perspective. Front Pharmacol 9:203
Rutherford ST, Bassler BL (2012) Bacterial quorum sensing: its role in virulence and possibilities for its control. Cold Spring Harbor perspectives in medicine 2(11), a012427
Said A, Abu-Elghait M, Atta HM, Salem SS (2023) Antibacterial activity of green synthesized silver nanoparticles using lawsonia inermis against common pathogens from urinary tract infection. Appl Biochem Biotechnol, 1–14
Said A, El-Gamal MS, Abu-Elghait M, Salem SS (2021) Isolation, identification and antibiotic susceptibility pattern of urinary tract infection bacterial isolates. Lett Appl NanoBioSci 10:2820–2830
Saied E, Eid AM, Hassan SE-D, Salem SS, Radwan AA, Halawa M, Saleh FM, Saad HA, Saied EM, Fouda A (2021) The catalytic activity of biosynthesized magnesium oxide nanoparticles (Mgo-nps) for inhibiting the growth of pathogenic microbes, tanning effluent treatment, and chromium ion removal. Catalysts 11(7):821
Schmitt J, Joost I, Skaar EP, Herrmann M, Bischoff M (2012) Haemin represses the haemolytic activity of Staphylococcus aureus in an Sae-dependent manner. Microbiology 158(Pt 10):2619
Shebl RI, Amer ME, Abuamara TM, Matar ER, Ahmed HF, Gomah TA, El Moselhy LE, Abu-Elghait M, Mohamed AF (2021) Staphylococcus aureus derived hyaluronic acid and bacillus Calmette-Guérin purified proteins as immune enhancers to rabies vaccine and related immuno-histopathological alterations. Clin Experimental Vaccine Res 10(3), 229
Soliman MK, Abu-Elghait M, Salem SS, Azab MS (2022) Multifunctional properties of silver and gold nanoparticles synthesis by Fusarium pseudonygamai. Biomass Conversion and Biorefinery, pp 1–18
Superti S, Dias CA, d'Azevedo PA (2009) In vitro fosfomycin activity in vancomycin-resistant Enterococcus faecalis. The Brazilian journal of infectious diseases: an official publication of the Brazilian Society of Infectious Diseases 13(2), 123–124
Val DL, Cronan JE Jr. (1998) In vivo evidence that S-adenosylmethionine and fatty acid synthesis intermediates are the substrates for the LuxI family of autoinducer synthases. J Bacteriol 180(10):2644–2651
Waters CM, Bassler BL (2005) Quorum sensing: cell-to-cell communication in bacteria. Annu Rev Cell Dev Biol 21:319–346
Yousef A, Abu-Elghait M, Barghoth MG, Elazzazy AM, Desouky SE (2022) Fighting multidrug-resistant Enterococcus faecalis via interfering with virulence factors using green synthesized nanoparticles. Microb Pathog 173:105842
Yousuf B, Adachi K, Nakayama J (2018) Developing Anti-Virulence Chemotherapies by Exploiting the Diversity of Microbial Quorum Sensing Systems. Biotechnological Applications of Quorum Sensing Inhibitors, pp 151–208
This work was funded by the University of Jeddah, Jeddah, Saudi Arabia, under grant No. (UJ-21-ICI-7). The authors, therefore, acknowledge with thanks the University of Jeddah technical and financial support.
Conflict of interest
Authors declare that there is no conflict of interest.
