Comprehensive genome analysis of Burkholderia contaminans SK875, a quorum-sensing strain isolated from the swine
AMB Express volume 13, Article number: 30 (2023)
The Burkholderia cepacia complex (BCC) is a Gram-negative bacterial, including Burkholderia contaminans species. Although the plain Burkholderia is pervasive from taxonomic and genetic perspectives, a common characteristic is that they may use the quorum-sensing (QS) system. In our previous study, we generated the complete genome sequence of Burkholderia contaminans SK875 isolated from the respiratory tract. To our knowledge, this is the first study to report functional genomic features of B. contaminans SK875 for understanding the pathogenic characteristics. In addition, comparative genomic analysis for five B. contaminans genomes was performed to provide comprehensive information on the disease potential of B. contaminans species. Analysis of average nucleotide identity (ANI) showed that the genome has high similarity (> 96%) with other B. contaminans strains. Five B. contaminans genomes yielded a pangenome of 8832 coding genes, a core genome of 5452 genes, the accessory genome of 2128 genes, and a unique genome of 1252 genes. The 186 genes were specific to B. contaminans SK875, including toxin higB-2, oxygen-dependent choline dehydrogenase, and hypothetical proteins. Genotypic analysis of the antimicrobial resistance of B. contaminans SK875 verified resistance to tetracycline, fluoroquinolone, and aminoglycoside. Compared with the virulence factor database, we identified 79 promising virulence genes such as adhesion system, invasions, antiphagocytic, and secretion systems. Moreover, 45 genes of 57 QS-related genes that were identified in B. contaminans SK875 indicated high sequence homology with other B. contaminans strains. Our results will help to gain insight into virulence, antibiotic resistance, and quorum sensing for B. contaminans species.
We first report the genome characteristics of B. contaminans SK875.
The B. contaminans SK875 genome carries virulence and quorum sensing-related genes.
The SK875 has 186 unique genes, such as toxin higB, betA, and hypothetical proteins
Burkholderia cepacia complex (BCC) is a group of genetically distinct, phenotypically similar Gram-negative bacteria (Mahenthiralingam et al. 2005). The prevalence of BCC species varies geographically. Burkholderia cenocepacia is the most predominant species in North American cystic fibrosis (CF) centers, while Burkholderia multivorans are the most common species in European CF centers (Govan et al. 2007; Sousa et al. 2011). Nevertheless, outbreaks caused by other BCC species have occurred worldwide (Sousa et al. 2011). The BCC is a group of 20 closely-related bacterial species that share up to 78% of their genes (Holden et al. 2009). These bacteria have large genomes ranging from 7 to more than 9 Mb, generally arranged in three chromosomes and large plasmids (Ussery et al. 2009; Holden et al. 2009). Recently, these bacteria were recognized as a threat to hospitalized patients being affected by other diseases, notably oncological ones (Wong and Evans 2017). The BCC species have been extensively studied and differentiated regarding their virulence and transmissibility (McClean and Callaghan 2009). Since the precise mechanisms by which they spread among patients or which of the natural BCC reservoirs pose the greatest risk to cystic fibrosis patients are still unknown, the BCC continues to be a very problematic CF pathogen (Mahenthiralingam et al. 2005). Currently, 17 species have been officially designated as members of the complex, including Burkholderia contaminans (Rose et al. 2009). Nevertheless, because not all species in this group of closely-related species are equally transmissible and dispersed throughout the environment, it follows that there should be differences in the genome. Researchers face challenges that Burkholderia species are extensive from taxonomic and genetic perspectives.
Despite the clear genetic diversity within the Burkholderia genus, a common characteristic is that they may use quorum sensing (QS) as a part of their colonization and invasion strategies (Choudhary et al. 2013). Processes controlled by QS include activating bacterial defense mechanisms, including the synchronized production of virulence factors and biofilm (Parsek and Greenberg 2005). QS systems appear crucial in governing overall colonization and niche invasion (Ng and Bassler 2009). These reactions are triggered by the extracellular concentration of bacterially produced and secreted small soluble autoinducer signal molecules (Ng and Bassler 2009). Interestingly, bacteria usually do not rely on a single signal molecule; however, within a single organism, different QS systems may operate either in parallel or hierarchically (Papenfort and Bassler 2016).
Gram-negative bacteria’s most prevalent QS system relies on synthesizing and reacting to N-acylated homoserine lactones (AHLs). Production is catalyzed by an AHL synthase belonging to the LuxI-family of proteins (Papenfort and Bassler 2016). The LuxIR homolog CepIR was the first QS system to be identified in a B. cenocepacia strain (Jacobs et al. 2008; McClean and Callaghan 2009; Vanlaere et al. 2009). The CepIR system relies on the AHL synthase CepI and the transcriptional regulator CepR that binds explicitly to AHL, becoming active (Gotschlich et al. 2001). Additionally, the QS system based on the fatty acid molecule cis-2-dodecenoic acid as the signaling molecule was identified for the first time in B. cenocepacia J2315 and was named Burkholderia diffusible signal factor (BDSF) (Deng et al. 2011). The RpfFR QS system, which is highly conserved within BCC, uses this molecule as its signaling molecule. The RpfFR system relies on the biosynthesis of BDSF by the bifunctional crotonase RpfF and the BDSF receptor protein RpfR containing PAS-GGDEF-EAL domains (Yang et al. 2017). The signaling molecule BDSF binds to RpfR, stimulating the cyclic dimeric guanosine monophosphate (c-di-GMP) phosphodiesterase activity of the protein, thus, lowering the intracellular c-di-GMP levels (Deng et al. 2012; Schmid et al. 2012). Many genes positively regulated by RpfFR are also controlled by the CepIR QS system (Suppiger et al. 2013). Although their roles appear parallel, it was discovered that each QS system’s contribution to the regulation of target genes was variable.
Therefore, we should understand the complicated QS systems in Burkholderia, particularly the genetic basis upon which they operate. Here, we analyzed the entire genome of B. contaminans SK875, which was initially isolated from the respiratory tract of swine, to identify antibiotic resistance and virulence loci. Additionally, we analyzed the phylogenetic relatedness of SK875 to 144 other Burkholderia species with other four B. contaminans species, including plant pathogens, CF opportunists, plant growth-promoting strains, and other soil isolates. The findings provide essential information for evaluating Burkholderia species’ virulence according to their secondary metabolite production and virulence markers. We compared two QS systems using bioinformatic analysis on B. contaminans species genome, and QS-related genes screened in the previous study were mapped on the B. contaminans SK875 genome.
Materials and methods
Complete genome sequence of B. contaminans SK875
B. contaminans SK875 were initially isolated from the respiratory tract of swine (Jung et al. 2017), but it was not the causative agent of the respiratory disease of the swine. The detailed information has been reported previously (Jung et al. 2020). Briefly, the genomic DNA of the B. contaminans SK875 strain was sequenced using the Illumina HiSeq 2000 platform (Illumina, San Diego, CA, USA) and PacBio RS II system (Pacific Bioscience, Menlo Park, CA, USA). De novo assembly of B. contaminans SK875 was performed using the hierarchical genome assembly process v.2.3. Finally, three chromosomes and one plasmid were produced for the B. contaminans SK875 strain. Rapid Prokaryotic Genome Annotation was used for the genome annotation (Prokka) v.1.10 (Seemann 2014).
In silico taxonomy identification
For the analysis of phylogeny comparison, 80 complete genome sequences of Burkholderia species, including 3 B. ambifaria, 20 B. cenocepacia, 13 B. cepacia, 5 B. contaminans, 2 B. dolosa, 3 B. lata, 15 B. multivorans, 2 B. anthina, 2 B. pyrrocinia, 2 B. stabilis, 6 B. ubonensis, and 7 B. vietnamiensis, were collected from the National Center for Biotechnology Information (NCBI) (Additional file 1: Table S1).
The average nucleotide identity (ANI) was conducted using the JSpeciesWS (Richter et al. 2016). The value was determined using the ANIb algorithm with the constructed sequences as input. With the aid of the bacterial pangenome analysis (BPGA) tool, an evolutionary study based on binary pan-matrix (binary gene presence/absence matrix) and concatenated core gene alignments was conducted (Chaudhari et al. 2016). Furthermore, the pan and core genomes were aligned using MUSCLE, and a neighbor-joining tree was constructed. The tree was visualized using iTOL (Letunic and Bork 2016).
Pangenome analysis of B. contaminans
Five complete genome sequences of B. contaminans, including SK875, MS14, ZCC, XL73, and FL-1-2-30-S1-D0, were used for the pangenome analysis. Phylogeny analysis based on the pangenome of five B. contaminans genomes was performed using the Anvi’o pangenome pipeline version 6.0 (Eren et al. 2015). The “anvi-gen-genomes-storage” tool was used to create genome storage databases containing information about the genomes being studied for phylogeny research. Using the “anvi-pangenome” tool, the produced genome storage was submitted to pan-genomic analysis. Subsequently, the pangenome was shown using the “anvi-display-pan” program and constructed following gene cluster frequencies.
Pangenome analysis was conducted to determine genomes’ accessory, core, and unique genes. The BPGA tool was used as the pipeline for pangenome analysis of the five B. contaminans genomes. For pangenome analysis, protein sequences of each whole-genome sequence were used. All analyses were performed using default parameters with an identity cut-off value = 0.5. Using the pangenome functional analysis module in BPGA, the orthologous protein clusters were allocated to the clusters of orthologous groups (COGs) and Kyoto Encyclopedia of Genes and Genomes (KEGG) categories.
Antimicrobial and virulence genes
Resistance gene identifier (RGI) software v.5.1.1 (Alcock et al. 2020) was used to detect intrinsic or acquired antimicrobial genes in five B. contaminans genomes. For this purpose, FASTA assembled files were used as inputs and identified with a comprehensive antibiotic resistance database (CARD) 3.1.1 using DIAMOND. Antimicrobial genes were detected using criteria of perfect and strict hits only, high sequence quality, and coverage, excluding nudging of ≥ 95% identity loose hits to severe. The possible virulence factors in the five B. contaminans genomes were identified by generating orthologous groups with VFanalyzer and then comparing them to reference genomes from the virulence factors database (VFDB) (Liu et al. 2019).
Identification of CRISPR region, phage, and secretion system
Prophage elements in the five B. contaminans genomes were searched using the phase search tool enhanced release (PHASTER) tool (Arndt et al. 2016). Clustered, regularly interspaced short palindromic repeats (CRISPR) loci were identified using the CRISPRCasFinder (version CRISPR-Cas + + 1.1.2.) (Couvin et al. 2018).
The pathway for the QS system in five B. contaminans genomes was explored using the KEGG database (https://www.kegg.jp/). Genes associated with the CepI/CepR and RpfF/RpfR systems were evaluated by the BlastKOALA search tool v.2.2 in the KEGG database. Sequences were compared using Easyfig version 2.2.5 (BLASTn, default setting).
General genome feature
B. contaminans SK875 strain has published genome sequence in the public database without being deposited in the publicly accessible culture collection. The entire genome of B. contaminans SK875 included three circular chromosomes of 1528467 to 3,618903 bp with GC contents of 65.8 to 66.4% and one plasmid of 200961 bp with a GC content of 61.7%. The entire genome harbored 7625 proteins, 18 rRNAs, and 83 tRNAs. The genomic characteristics of B. contaminans SK875 and the other four B. contaminans strains are presented in Table 1. The average complete genome length of the five B. contaminans was 8.59 Mb ranging from 8.17 to 9.00 Mb, and the moderate GC content was 66.31% ranging from 66.06 to 66.53%. Among these strains, B. contaminans FL-1-2-30-S1-D0 strain indicated high GC content (66.53%), and the B. contaminans ZCC strain demonstrated lower GC content (66.06%).
In the B. contaminans SK875 genome, a high proportion of genes in COG functional categories were allocated to the common function prediction only (R, 14.15%), amino acid transport and metabolism (E, 11.06%), and transcription (K, 10.87%) (Additional file 1: Table S2). Because of mapping the KEGG pathway database to the B. contaminans SK875 genome, coding genes were allocated to 43 functional categories and 235 pathways, mainly functioning in the ABC transporters (ko:02010), the biosynthesis of amino acids (ko:01230), carbon metabolism (ko:01200), and two-component system (ko:02020) (Additional file 1: Table S3).
Previous studies found that B. multivorans strains were augmented in genes associated with translation (J) and replication (L). In contrast, genes related to transcription (K) were deprived and thus had lower adaptability of them to varying environments (Peeters et al. 2017). Furthermore, numerous studies have shown that the proportion of genes engaged in translation and replication negatively affect genome size, whereas transcription positively correlates with genome size (Konstantinidis and Tiedje 2004; Peeters et al. 2017). B. contaminans, including SK875 strain, have a larger genome size than other Burkholderia species, including B. multivorans, and harbor a relatively high proportion of genes involved in transcription, implying that they can adapt well to different environments.
Taxonomic position of the B. contaminans SK875 strain
With the advancement in sequencing technology, many whole-genome sequences are now available in publicly accessible databases, and genome analysis can be used to identify a novel strain (Liang et al. 2019). Bacterial species determination and categorization using ANI analysis provides a higher resolution than other identification techniques and can prevent bias due to sequence selection (Han et al. 2016). Our study used ANI, an in silico method for pairwise comparisons of all sequences, to categorize B. contaminans SK875 strain species. ANI analysis is conducted to study species’ genetic and evolutionary distance, and values of > 95% are the accepted cut-off threshold for species delineation (Chua et al. 2019).
Based on the ANI calculation, B. contaminans were most closely associated with B. lata. B. contaminans SK875 strain shared 96.14% to 99.99% sequence similarities with five B. contaminans strains (Fig. 1). B. contaminans SK875 strain showed the closest relationship with the ZCC strain (99.99% identity) among the B. contaminans genomes. B. contaminans ZCC strain was first isolated from mining soil and is a promising cadmium-resistant strain that enhances the growth of soybeans in the presence of cadmium (You et al. 2021). B. contaminans SK875 strain shared 84.99 to 94.57% low sequence identities with other Burkholderia species.
A phylogenetic comparison was performed using pan- and core-genomes to infer the phylogenetic relationship between B. contaminans SK875 and other Burkholderia species with completed genome sequences. The pan phylogenetic tree was constructed based on a binary pan-matrix (presence or absence of genes) (Chaudhari et al. 2016). All genomes showed the same phylogeny, depending on the species. The B. contaminans SK875 strain was clustered with B. contaminans strains (Fig. 2A). The conclusions of the phylogenetic tree based on the core genome were congruent with the findings of the pangenome analysis (Fig. 2B). In the phylogenetic tree according to the pan- and core-genomes, B. contaminans SK875 strain was categorized as B. contaminans and demonstrated the closest relationship with XL73 and ZCC strains.
Pangenome analysis of B. contaminans

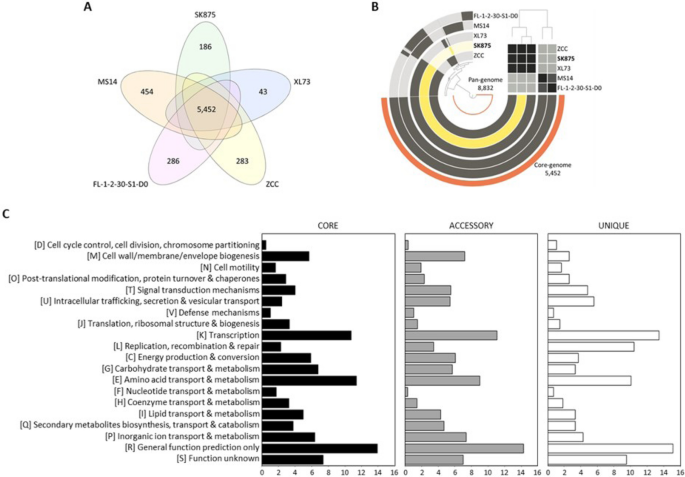

Pangenome analysis can be used to investigate the core, auxiliary, and unique genes in pathogenic bacterial genomes (Liang et al. 2019). The core gene is frequently found in all strains, the accessory gene is present in two or more strains, and the unique gene is unique to individual members of a species (Bosi et al. 2016; Li et al. 2020). Five B. contaminans genomes yielded a pangenome size of 8832 genes; of these, the core genome is composed of 5452 genes (61.73%), and the accessory genome is composed of 2128 genes (24.09%). The unique genome is composed of 1252 genes (14.18%) (Fig. 3). Mainly, the core and individual genes of the B. contaminans SK875 strain consist of 5452 (71.50%) and 186 (2.44%) out of a total of 7625 orthologous genes.
The COG database functional annotation of pan genes revealed a heterogeneous distribution of categories across three pangenome sets. The 8832 pan gene clusters could be allocated in 20 COG categories (Fig. 3). Functional analysis showed that most core gene and accessory gene families were related to standard function prediction only (R, 13.92% and 14.26%), amino acid transport and metabolism (E, 11.40% and 9%), and transcription (K, 10.75% and 11.07%). The unique genome was primarily discovered in the general function prediction only (R, 15.11%), transcription (K, 13.43%), and replication, recombination, and repair (L, 10.45%).
Functional analysis by COGs in five B. contaminans genomes showed that most core and accessory gene families were related to metabolism, and the unique gene families were associated with information storage and processing. This finding is similar to a previous study that the individual genome of Elizabethkingia, pathogenic bacteria, had the highest proportion of genes in information storage and processing associated with intercellular survival. However, the exact reason for the high proportion of genes with this function in a unique gene is unclear (Liang et al. 2019). Compared with the previous studies, it was confirmed that B. contaminans contained less gene involvement in defense mechanisms than the B. cenocepacia and B. multivorans genomes (Peeters et al. 2017). This result implies that B. contaminans is generally less virulent than other Burkholderia species.
The number of strain-specific genes ranged from 43 genes only discovered in the MS14 strain to 454 genes unique to the XL73 strain. B. contaminans SK875 possessed 186 unique genes, including 22 proteins with known functions and 164 proteins with unknown functions of hypothetical proteins (Additional file 1: Table S4). COG analysis was used to further study the functioning of proteins encoded by unique genes in the SK875 genome. The SK875 genome contains 186 distinct genes, 32 of which have been classified into 14 COG functional categories (Additional file 1: Table S5). Functional analysis revealed that unique gene families were related to replication, recombination, and repair (L), transcription (K), energy production and conversion (C), amino acid transport and metabolism (E), and secondary metabolites biosynthesis, transport, and catabolism (Q). The classes general function prediction only (R) and function unknown (S) were represented in the unique genome, indicating that additional effort will be necessary to discover the potential functions of unique genes.
Mobile gene elements in B. contaminans
Horizontal gene transfer mediated by transposons, phages, or plasmids is considered a mechanism responsible for the broad distribution of biodegradative pathways in pathogenic bacterial strains (Wu et al. 2019). Pathogenic bacterial strains have evolved both offensive (i.e., toxin and secretion systems) and defensive (i.e., phase variation and serum resistance) pathways (Yu et al. 2006). Prophages were found using the PHASTER across five B. contaminans genomes. Overall, 14 prophages were identified (Additional file 1: Table S6). There was only one intact prophage (score > 90), while two were questionable (score 70–90), and 11 were incomplete phages (score < 70). Each strain had an average of two or three prophages. Except for the SK875 strain, all strains included three prophages, while the SK875 strain contained two prophages. Two prophages were present in chromosome 1 of the SK875 genome. The prophage 1 region extended from 270930 to 279358 bp with a GC content of 61.69% and contained eight coding genes. The prophage 2 region extended from 2586105 to 2592869 bp with a GC content of 66.03% and contained eight coding genes. Prophage 1 and 2 regions demonstrated high homologous with phi92 found in Enterobacteria and RP12 found in Ralstonia, respectively.
There were often two or three prophages for each strain. All strains had three prophages, except for the SK875 strain, which had only two (Hu et al. 2019). It has been reported that CRISPR may be involved in the improvement of pathogenicity and regulation of virulence gene expression (Hu et al. 2019). A comparative analysis of five B. contaminans strains showed that most genomes contained more than one CRISPR (Additional file 1: Table S7). All strains had one to four CRISPR motifs without the cas operon. This is consistent with previous studies showing that deletion events of cas proteins have occurred in many Burkholderia strains such as B. glumae and B. gladioli (Seo et al. 2015). The maximum number of CRISPR (n = 4) was identified in the XL73 strain, whereas only one was detected in the MS14 and ZCC strains. B. contaminans SK875 genome contained two CRISPR loci. CRISPR1 and CRISPR2 were located nucleotides at 2456771 to 2457221 bp with five spacers and 2981872 to 2982191 bp with four spacers, respectively. Our results propose that, like other pathogenic bacteria, the B. contaminans could initiate a defense mechanism against foreign gene invasion to maintain the stability of the genetic structure during evolution (Li et al. 2020). Moreover, the results indicated that most mobile gene elements were distributed on chromosomes within the B. contaminans.
Virulence genes and antimicrobial resistance genes
Genomic analysis of virulence genes showed similar virulence profiles among the B. contaminans strains (Additional file 1: Table S8). The significant virulence genes found in all genomes were related to the adhesion, invasion, antiphagocytic, and secretion systems. B. contaminans SK875 possessed boaA, boaB, and Type IV pili genes related to adherence to the human intestinal cells. Genomes of five B. contaminans had many capsules of synthesis-related and flagella-related genes. The expression of diverse virulence factors controlled by the secretion system is critical for bacterial pathogenesis (Rutherford and Bassler 2012). For secretion systems, Burkholderia secretion apparatus (Bsa) type III secretion system (T3SS) and type VI secretion system (T6SS-I) were commonly found in five B. contaminans genomes. The effector proteins that elude the immune system and cause disease are delivered into host cells with the aid of the T3SS system (Kendall 2017). Within the Burkholderia family, there are unique effector proteins such as bsaQ, bsaS, and bsaX (Vander Broek and Stevens 2017). Of these, the bsaQ gene (SK875_B00413) was present in the B. contaminans SK875 genome. The effector protein is located on the chromosomal pathogenicity island in chromosome SK875-2, so it can be transmitted to other cells by horizontal gene transfer (Brown and Finlay 2011). The protein transport mechanism from Gram-negative bacteria to eukaryotic cells was described as T6SS (Yang et al. 2018). These results suggest that five B. contaminans genomes, similar to other Burkholderia species, have the basic pathogenic mechanisms necessary to cause different infections regardless of the isolation environment (Peeters et al. 2017).
Antibiotic resistance is one of the standard features of the Burkholderia genus. Possessing multiple efflux pumps can increase the viability of bacterial strains in various ecological niches (Deng et al. 2016). The CARD and RGI databases were used to forecast the antibiotic resistance genes that five B. contaminans genomes contained. At least five or more antibiotic resistance genes were present in every genome (Additional file 1: Table S9). The resistance genes detected in five B. contaminans strains were similar. All strains had genes associated with aminoglycosides, fluoroquinolone/tetracycline, and tetracycline. B. contaminans SK875 strain showed seven antibiotic resistance genes conferring resistance to three various groups of antibiotics, including tetracycline (tet(D)), fluoroquinolone/tetracycline (afeF), and aminoglycoside (amrA). Overall, to other Burkholderia species, all strains of B. contaminans possess multiple antibiotic resistance and virulence-related genes (Deng et al. 2016). Therefore, our findings may provide genetic data to understand pathogenic Burkholderia had multiple antibiotic resistance and virulence mechanisms to survive and adapt to various environments.
Quorum sensing-related genes
The B. contaminans SK875 genome was mapped using the KEGG pathway database (Fig. 4). The identified QS signaling networks included the cepIR, AI-1, BDSF, and AI-3 systems; however, the AI-2 system was not detected. The KEGG QS pathway showed the rpfFR, a significant regulatory gene of the BDSF system that directly affects the c-di-GMP level. In this pathway, rpfF is expressed in response to a BDSF signal. Furthermore, a BDSF signal binds rpfR and regulates c-di GMP levels (Schmid et al. 2017; Richter et al. 2019).
The local topology of QS genes frequently provides continuities that enable researchers to relate genes, proteins, genomes, and characteristics across species and genera using comparative biological analysis (Choudhary et al. 2013; Prescott and Decho 2020). In this study, two quorum-sensing systems were compared by examining the local topology of QS genes in five B. contaminans strains. Analysis of the map positions of the cepIR and rpfFR genes, which regulate the AHL and BDSF signaling systems, showed that five B. contaminans species, including B. contaminans SK875, were similar regarding their respective gene positions (Fig. 5). The cepIR and rpfFR genes were located on chromosome 2 in five B. contaminans strains. The cepI and cepR genes are, respectively, indicated by yellow and blue arrows with the adjacent genes (Fig. 5A). The red and green arrows represent the orientation and position of rpfF and rpfR genes, respectively (Fig. 5B). When comparing the B. contaminans SK875 and other strains, gene inversion in QS regulatory system was observed in B. contaminans FL-1-2-30-S1-D0 and XL73. In the genus Burkholderia, genomic rearrangements involving inversions or translocations were previously reported (Seo et al. 2015). Rearrangements of bacterial genes are common and have occurred at the strain level as well as species level. Since that gene or genome rearrangements are related to adaptation, it is not surprising that some genes in B. contaminans exhibit rearrangements (Siqueira et al. 2014). The transcriptional direction of cepR gene was opposite to the transcriptional orientation of cepI gene on the genome in five B. contaminans strains. The rpfR gene is also opposite to the transcriptional direction of the rpfF gene in five B. contaminans strains. The chemical structure of QS signals, the local topology of QS genes, and the location of QS systems within the chromosomes are slightly conserved throughout the genus (Choudhary et al. 2013). The ability to produce AHL signals is widespread in the genus Burkholderia. Two QS system genes, including cepIR and rpfFR in Burkholderia, are generally situated on chromosome 2, which includes most genes associated with virulence and secretory systems. This coincides with the result that QS genes regulate pathogenesis and virulence in several species of Burkholderia (Whitlock et al. 2007).
Previously, we screened and characterized transposon (Tn5) insertion mutants with longer life spans in C. elegans (Jung et al. 2017) and investigated decreased autoinducer (AI) secretion in the Tn library of B. contaminans SK875 (unpublished). B. contaminans SK875 showed 57 quorum sensing-related genes, and 45 of them were also present in other B. contaminans genomes (Fig. 6). These genes demonstrated high sequence homology in all strains. Six genes, such as glutathione transport system permease protein GsiD, limonene 1,2-monooxygenase, HTH-type transcriptional regulator DmlR, phytochrome-like protein, and two hypothetical proteins, were present in only B. contaminans SK875, ZCC, and XL73 strains. A glycine cleavage system transcriptional activator, multidrug efflux pump subunit AcrB and xanthine dehydrogenase molybdenum-binding subunit showed high sequence homology in all strains except for the B. contaminans ZCC strain. Phytochrome-like protein (Accession No. QFR09347.1) and a hypothetical protein (QFR14107.1) were found only in the B. contaminans SK875 strain. In conclusion, five B. contaminans strains indicted a generally high degree of genetic similarity in QS systems and their related genes.
Burkholderia species has increasingly been reported as opportunistic pathogens cause respiratory diseases by following ingestion and inhalation (Mahenthiralingam et al. 2005). Burkholderia colonizes rather than immediate respiratory tract infections and causes sepsis in patients with respiratory disease (Mahenthiralingam et al. 2008; Sousa et al. 2011). Burkholderia species can produce a wide variety of potential virulence factors, although not all have yet been shown to have a role in the pathogenesis of human disease (Sousa et al. 2011). The genome sequencing is a powerful tool for bacterial taxonomy, antibiotic resistance prediction, and pathogenicity prediction. In this study, we sequenced and analyzed the complete genome sequence of B. contaminans SK875 strain found in the respiratory tract of a pig with a respiratory disease to understand the pathogen characteristics of B. contaminans.
By comparing the B. contaminans SK875 strain and four other strains of B. contaminans worldwide, we found that SK875 strain was most similar to ZCC strain derived from mining soil sample, which was consistent with the results of phylogeny analysis and ANI analysis. This result suggests that B. contaminans SK875 could harbor biological characteristics that are similar to those of ZCC strain derived from Chinese environment.
Although the process by which the B. contaminans genes causes human disease is not well understood, several virulence factors either contributing to growth in adhesion or invasion could be found in the genome of the B. contaminans SK875 strain, such as boaA, boaB, Type IV pili, capsules of synthesis-related and flagella-related genes. Also, B. contaminans SK875 strain had a large number of antibiotic-related genes. Both boaA and boaB genes are related to adherence function through their role as adhesions in vitro, thus conferring the ability to replicate inside macrophage-like cells (Balder et al. 2010; Campos et al. 2013). Type IV pili genes are important for the virulence of many gram-negative bacteria and also play a role in adherence, a vital virulence mechanism resolved by carbohydrate molecules, pilus, and non-pilus adhesins (Carbonnelle et al. 2005). B. contaminans SK875, FL-1-2-30-S1-D0, and XL73 harbor all of these genes, but MS14 and ZCC lacked adherence-related genes, such as boaA or Type IV pili. The lack of these genes in some genomes demonstrates their inability to attach to the host cells to initiate infection (Deng et al. 2016). The capsule and flagella are also considered an important virulence factor in bacteria (Reckseidler et al. 2001). Flagella are correlated with the ability of an organism to cause disease in the motility phenotype imparted by these organelles (Duan et al. 2013). The loss of capsule production was shown to attenuate bacterial infections (Drysdale et al. 2005). Genomes of five B. contaminans possessed various capsules and flagella genes. This fact indicates that B. contaminans strains have the strategies to infect mammalian hosts.
B. contaminans SK875 has a variety of secretion systems that control the expression of virulence factor genes for bacterial pathogenesis (Rutherford and Bassler 2012). The cepIR gene of SK875 is able to produce AHL QS molecules, while BsaT3SS system helps to deliver the effector proteins which manipulate host cell functions, thereby evading the immune system and causing diseases into host cells (Kendall 2017). Several studies have identified T6SS as a key virulence determinant that is expressed by a variety of bacterial pathogens, and recently characterized as the mechanism of protein transport from gram-negative bacteria to eukaryotic cells (Ho et al. 2014; Yang et al. 2018). Interestingly, the conserved patterns of QS-related gene neighborhoods in SK875 are apparently at odds with the general view that gene arrangements in prokaryotes are evolutionarily volatile and may change substantially even on short evolutionary scales when gene sequences diverge minimally (Choudhary et al. 2013; Prescott and Decho 2020). From this evolutionary perspective we speculate that the appearance of a novel QS system may cause a major change in the lifestyle of a bacterial species (Choudhary et al. 2013).
In conclusion, genome analysis provided a comprehensive analysis of the disease promising of B. contaminans SK875. Comparative genomic analysis revealed that the genomes of B. contaminans were similar regardless of the isolated source, except that B. contaminans SK875 had some QS-related genes different from the other B. contaminans genomes. Therefore, our data will be valuable for understanding genetic characteristics, including the QS system in B. contaminans SK875.
Availability of data and materials
The assembled genome has been deposited at the NCBI database under the Accession Number CP028807.1–CP028810.1.
Alcock BP, Raphenya AR, Lau TTY, Tsang KK, Bouchard M, Edalatmand A, Huynh W, Nguyen ALV, Cheng AA, Liu S, Min SY, Miroshnichenko A, Tran HK, Werfalli RE, Nasir JA, Oloni M, Speicher DJ, Florescu A, Singh B, Faltyn M, Hernandez-Koutoucheva A, Sharma AN, Bordeleau E, Pawlowski AC, Zubyk HL, Dooley D, Griffiths E, Maguire F, Winsor GL, Beiko RG, Brinkman FSL, Hsiao WWL, Domselaar GV, McArthur AG (2020) CARD 2020: Antibiotic resistome surveillance with the comprehensive antibiotic resistance database. Nucleic Acids Res 48:D517–D525. https://doi.org/10.1093/nar/gkz935
Arndt D, Grant JR, Marcu A, Sajed T, Pon A, Liang Y, Wishart DS (2016) PHASTER: a better, faster version of the PHAST phage search tool. Nucleic Acids Res 44:W16–W21. https://doi.org/10.1093/nar/gkw387
Balder R, Lipski S, Lazarus JJ, Grose W, Wooten RM, Hogan RJ, Woods DE, Lafontaine ER (2010) Identification of Burkholderia mallei and Burkholderia pseudomallei adhesins for human respiratory epithelial cells. BMC Microbiol 10:250. https://doi.org/10.1186/1471-2180-10-250
Bosi E, Monk JM, Aziz RK, Fondi M, Nizet V, Palsson BØ (2016) Comparative genome-scale modelling of Staphylococcus aureus strains identifies strain-specific metabolic capabilities linked to pathogenicity. Proc Natl Acad Sci 113:E3801–E3809. https://doi.org/10.1073/pnas.1523199113
Brown NF, Finlay B (2011) Potential origins and horizontal transfer of type III secretion systems and effectors. Mob Genet Elements 1:118–121. https://doi.org/10.4161/mge.1.2.16733
Campos CG, Byrd MS, Cotter PA (2013) Functional characterization of Burkholderia pseudomallei trimeric autotransporters. Infect Immun 81:2788–2799. https://doi.org/10.1128/IAI.00526-13
Carbonnelle E, Hélaine S, Prouvensier L, Nassif X, Pelicic V (2005) Type IV pilus biogenesis in Neisseria meningitidis: PilW is involved in a step occurring after pilus assembly, essential for fibre stability and function. Mol Microbiol 55:54–64. https://doi.org/10.1111/j.1365-2958.2004.04364.x
Chaudhari NM, Gupta VK, Dutta C (2016) BPGA-an ultra-fast pan-genome analysis pipeline. Sci Rep 6:24373. https://doi.org/10.1038/srep24373
Choudhary KS, Hudaiberdiev S, Gelencsér Z, Coutinho BG, Venturi V, Pongor S (2013) The organization of the quorum sensing luxI/R family genes in Burkholderia. Int J Mol Sci 14:13727–13747. https://doi.org/10.3390/ijms140713727
Chua K-O, See-Too W-S, Ee R, Lim Y-L, Yin W-F, Chan K-G (2019) In silico analysis reveals distribution of quorum sensing genes and consistent presence of LuxR solos in the Pandoraea species. Front Microbiol 10:1758. https://doi.org/10.3389/fmicb.2019.01758
Couvin D, Bernheim A, Toffano-Nioche C, Touchon M, Michalik J, Néron B, Rocha EPC, Vergnaud G, Gautheret D, Pourcel C (2018) CRISPRCasFinder, an update of CRISRFinder, includes a portable version, enhanced performance and integrates search for Cas proteins. Nucleic Acids Res 46:W246–W251. https://doi.org/10.1093/nar/gky425
Deng Y, Wu J, Tao F, Zhang LH (2011) Listening to a new language: DSF-based quorum sensing in gram-negative bacteria. Chem Rev 111:160–179. https://doi.org/10.1021/cr100354f
Deng Y, Schmid N, Wang C, Wang J, Pessi G, Wu D, Lee J, Aguilar C, Ahrens CH, Chang C, Song H, Eberl L, Zhang LH (2012) Cis-2-dodecenoic acid receptor RpfR links quorum-sensing signal perception with regulation of virulence through cyclic dimeric guanosine monophosphate turnover. Proc Natl Acad Sci USA 109:15479–15484. https://doi.org/10.1073/pnas.1205037109
Deng P, Wang X, Baird SM, Showmaker KC, Smith L, Peterson DG, Lu S (2016) Comparative genome-wide analysis reveals that Burkholderia contaminans MS14 possesses multiple antimicrobial biosynthesis genes but not major genetic loci required for pathogenesis. Microbiologyopen 5:353–369. https://doi.org/10.1002/mbo3.333
Drysdale M, Heninger S, Hutt J, Chen Y, Lyons CR, Koehler TM (2005) Capsule synthesis by Bacillus anthracis is required for dissemination in murine inhalation anthrax. EMBO J 24:221–227. https://doi.org/10.1038/sj.emboj.7600495
Duan Q, Zhou M, Zhu L, Zhu G (2013) Flagella and bacterial pathogenicity. J Basic Microbiol 53:1–8. https://doi.org/10.1002/jobm.201100335
Eren AM, Esen OC, Quince C, Vineis JH, Morrison HG, Sogin ML, Delmont TO (2015) Anvi’o: an advanced analysis and visualization platformfor ’omics data. PeerJ 3:e1319. https://doi.org/10.7717/peerj.1319
Gotschlich A, Huber B, Geisenberger O, Togl A, Steidle A, Riedel K, Hill P, Tümmler B, Vandamme P, Middleton B, Camara M, Williams P, Hardman A, Eberl L (2001) Synthesis of multiple N-Acylhomoserine lactones is wide-spread among the members of the Burkholderia cepacia complex. Syst Appl Microbiol 24:1–14. https://doi.org/10.1078/0723-2020-00013
Govan JRW, Brown AR, Jones AM (2007) Evolving epidemiology of Pseudomonas aeruginosa and the Burkholderia cepacia complex in cystic fibrosis lung infection. Future Microbiol 2:153–164. https://doi.org/10.2217/174609184.108.40.206
Han N, Qiang Y, Zhang W (2016) ANItools web: a web tool for fast genome comparison within multiple bacterial strains. Database. https://doi.org/10.1093/database/baw084
Ho BT, Dong TG, Mekalanos JJ (2014) A view to a kill: The bacterial type VI secretion system. Cell Host Microbe 15:9–21. https://doi.org/10.1016/j.chom.2013.11.008
Holden MTG, Seth-Smith HMB, Crossman LC, Sebaihia M, Bentley SD, Cerdeño-Tárraga AM, Thomson NR, Bason N, Quail MA, Sharp S, Cherevach I, Churcher C, Goodhead I, Hauser H, Holroyd N, Mungall K, Scott P, Walker D, White B, Rose H, Iversen P, Mil-Homens D, Rocha EPC, Fialho AM, Baldwin A, Dowson C, Barrell BG, Govan JR, Vandamme P, Hart CA, Mahenthiralingam E, Parkhill J (2009) The genome of Burkholderia cenocepacia J2315, an epidemic pathogen of cystic fibrosis patients. J Bacteriol 91:261–277. https://doi.org/10.1128/JB.01230-08
Hu S, Cao L, Wu Y, Zhou Y, Jiang T, Wang L, Wang Q, Ming D, Chen S, Wang M (2019) Comparative genomic analysis of Myroides odoratimimus isolates. Microbiologyopen 8:e00634. https://doi.org/10.1002/mbo3.634
Jacobs JL, Fasi AC, Ramette A, Smith JJ, Hammerschmidt R, Sundin GW (2008) Identification and onion pathogenicity of Burkholderia cepacia complex isolates from the onion rhizosphere and onion field soil. Appl Environ Microbiol 74:3121–3129. https://doi.org/10.1128/AEM.01941-07
Jung HI, Kim YJ, Lee YJ, Lee HS, Lee JK, Kim SK (2017) Mutation of the cyclic di-GMP phosphodiesterase gene in Burkholderia lata SK875 attenuates virulence and enhances biofilm formation. J Microbiol 55:800–808. https://doi.org/10.1007/s12275-017-7374-7
Jung H-I, Lee S-W, Kim S-K (2020) Complete genome sequence of Burkholderia contaminans SK875, isolated from the respiratory tract of a pig in the Republic of Korea. Microbiol Resour Announc 9:e00642-e720. https://doi.org/10.1128/mra.00642-20
Kendall MM (2017) Extra! extracellular effector delivery into host cells via the type 3 secretion system. Mbio 8:e00594-e617. https://doi.org/10.1128/mBio.00594-17
Konstantinidis KT, Tiedje JM (2004) Trends between gene content and genome size in prokaryotic species with larger genomes. Proc Natl Acad Sci USA 101:3160–3165. https://doi.org/10.1073/pnas.0308653100
Letunic I, Bork P (2016) Interactive tree of life (iTOL) v3: an online tool for the display and annotation of phylogenetic and other trees. Nucleic Acids Res 44:W242–W245. https://doi.org/10.1093/nar/gkw290
Li J, Gu T, Li L, Wu X, Shen L, Yu R, Liu Y, Qiu G, Zeng W (2020) Complete genome sequencing and comparative genomic analyses of Bacillus sp S3, a novel hyper Sb(III)-oxidizing bacterium. BMC Microbiol 20:106. https://doi.org/10.1186/s12866-020-01737-3
Liang C-Y, Yang C-H, Lai C-H, Huang Y-H, Lin J-N (2019) Comparative genomics of 86 whole-genome sequences in the six species of the Elizabethkingia genus reveals intraspecific and interspecific divergence. Sci Rep 9:19167. https://doi.org/10.1038/s41598-019-55795-3
Liu B, Zheng D, Jin Q, Chen L, Yang J (2019) VFDB 2019: A comparative pathogenomic platform with an interactive web interface. Nucleic Acids Res 47:D687–D692. https://doi.org/10.1093/nar/gky1080
Mahenthiralingam E, Urban TA, Goldberg JB (2005) The multifarious, multireplicon Burkholderia cepacia complex. Nat Rev Microbiol 3:144–156. https://doi.org/10.1038/nrmicro1085
Mahenthiralingam E, Baldwin A, Dowson CG (2008) Burkholderia cepacia complex bacteria: opportunistic pathogens with important natural biology. J Appl Microbiol 104:1539–1551. https://doi.org/10.1111/j.1365-2672.2007.03706.x
McClean S, Callaghan M (2009) Burkholderia cepacia complex: epithelial cell-pathogen confrontations and potential for therapeutic intervention. J Med Microbiol 58:1–12. https://doi.org/10.1099/jmm.0.47788-0
Ng WL, Bassler BL (2009) Bacterial quorum-sensing network architectures. Annu Rev Genet 43:197–222. https://doi.org/10.1146/annurev-genet-102108-134304
Papenfort K, Bassler BL (2016) Quorum sensing signal-response systems in gram-negative bacteria. Nat Rev Microbiol 14:576–588. https://doi.org/10.1038/nrmicro.2016.89
Parsek MR, Greenberg EP (2005) Sociomicrobiology: The connections between quorum sensing and biofilms. Trends Microbiol 13:27–33. https://doi.org/10.1016/j.tim.2004.11.007
Peeters C, Cooper VS, Hatcher PJ, Verheyde B, Carlier A, Vandamme P (2017) Comparative genomics of Burkholderia multivorans, a ubiquitous pathogen with a highly conserved genomic structure. PLoS One 12:e0176191. https://doi.org/10.1371/journal.pone.0176191
Prescott RD, Decho AW (2020) Flexibility and adaptability of quorum sensing in nature. Trends Microbiol 28:436–444. https://doi.org/10.1016/j.tim.2019.12.004
Reckseidler SL, DeShazer D, Sokol PA, Woods DE (2001) Detection of bacterial virulence genes by subtractive hybridization: Identification of capsular polysaccharide of Burkholderia pseudomallei as a major virulence determinant. Infect Immun 69:34–44. https://doi.org/10.1128/IAI.69.1.34-44.2001
Richter M, Rosselló-Móra R, Oliver Glöckner F, Peplies J (2016) JSpeciesWS: A web server for prokaryotic species circumscription based on pairwise genome comparison. Bioinformatics 32:929–931. https://doi.org/10.1093/bioinformatics/btv681
Richter AM, Fazli M, Schmid N, Shilling R, Suppiger A, Givskov M, Eberl L, Tolker-Nielsen T (2019) Key players and individualists of Cyclic-di-GMP signaling in Burkholderia cenocepacia. Front Microbiol 9:3286. https://doi.org/10.3389/fmicb.2018.03286
Rose H, Baldwin A, Dowson CG, Mahenthiralingam E (2009) Biocide susceptibility of the Burkholderia cepacia complex. J Antimicrob Chemother 63:502–510. https://doi.org/10.1093/jac/dkn540
Rutherford ST, Bassler BL (2012) Bacterial quorum sensing: Its role in virulence and possibilities for its control. Cold Spring Harb Perspect Med 2:a012427. https://doi.org/10.1101/cshperspect.a012427
Schmid N, Pessi G, Deng Y, Aguilar C, Carlier AL, Grunau A, Omasits U, Zhang LH, Ahrens CH, Eberl L (2012) The AHL- and BDSF-dependent quorum sensing systems control specific and overlapping sets of genes in Burkholderia cenocepacia H111. PLoS One 7:e49966. https://doi.org/10.1371/journal.pone.0049966
Schmid N, Suppiger A, Steiner E, Pessi G, Kaever V, Fazli M, Tolker-Nielsen T, Jenal U, Eberl L (2017) High intracellular c-di-GMP levels antagonize quorum sensing and virulence gene expression in Burkholderia cenocepacia H111. Microbiol 163:754–764. https://doi.org/10.1099/mic.0.000452
Seemann T (2014) Prokka: Rapid prokaryotic genome annotation. Bioinformatics 30:2068–2069. https://doi.org/10.1093/bioinformatics/btu153
Seo YS, Lim JY, Park J, Kim S, Lee HH, Cheong H, Kim SM, Moon JS, Hwang I (2015) Comparative genome analysis of rice-pathogenic Burkholderia provides insight into capacity to adapt to different environments and hosts. BMC Genom 16:349. https://doi.org/10.1186/s12864-015-1558-5
Siqueira AF, Ormeño-Orrillo E, Souza RC, Rodrigues EP, Almeida LGP, Barcellos FG, Batista JSS, Nakatani AS, Martínez-Romero E, Vasconcelos ATR, Hungria M (2014) Comparative genomics of Bradyrhizobium japonicum CPAC 15 and Bradyrhizobium diazoefficiens CPAC 7: elite model strains for understanding symbiotic performance with soybean. BMC Genom 15:420. https://doi.org/10.1186/1471-2164-15-420
Sousa SA, Ramos CG, Leitão JH (2011) Burkholderia cepacia complex: Emerging multihost pathogens equipped with a wide range of virulence factors and determinants. Int J Microbiol 2011:1–9. https://doi.org/10.1155/2011/607575
Suppiger A, Schmid N, Aguilar C, Pessi G, Eberl L (2013) Two quorum sensing systems control biofilm formation and virulence in members of the Burkholderia cepacia complex. Virulence 4:400–409. https://doi.org/10.4161/viru.25338
Ussery DW, Kiil K, Lagesen K, Sicheritz-Pontén T, Bohlin J, Wassenaar TM (2009) The genus burkholderia analysis of 56 genomic sequences genome dynamics. KARGER, Basel
Vander Broek CW, Stevens JM (2017) Type III secretion in the melioidosis pathogen Burkholderia pseudomallei. Front Cell Infect Microbiol 7:255. https://doi.org/10.3389/fcimb.2017.00255
Vanlaere E, Baldwin A, Gevers D, Henry D, De Brandt E, LiPuma JJ, Mahenthiralingam E, Speert DP, Dowson C, Vandamme P (2009) Taxon K, a complex within the Burkholderia cepacia complex, comprises at least two novel species, Burkholderia contaminans sp. nov. and Burkholderia lata sp. nov. Int J Syst Evol Microbiol 59:102–111. https://doi.org/10.1099/ijs.0.001123-0
Whitlock GC, Mark Estes D, Torres AG (2007) Glanders: off to the races with Burkholderia mallei. FEMS Microbiol Lett 277:115–122. https://doi.org/10.1111/j.1574-6968.2007.00949.x
Wong JL, Evans SE (2017) Bacterial pneumonia in patients with cancer: novel risk factors and management. Clin Chest Med 38:263–277. https://doi.org/10.1016/j.ccm.2016.12.005
Wu X, Wu X, Shen L, Li J, Yu R, Liu Y, Qiu G, Zeng W (2019) Whole genome sequencing and comparative genomics analyses of Pandoraea sp XY-2, a new species capable of biodegrade tetracycline. Front Microbiol. https://doi.org/10.3389/fmicb.2019.00033
Yang C, Cui C, Ye Q, Kan J, Fu S, Song S, Huang Y, He F, Zhang LH, Jia Y, Gao YG, Harwood CS, Deng Y (2017) Burkholderia cenocepacia integrates cis-2-dodecenoic acid and cyclic dimeric guanosine monophosphate signals to control virulence. Proc Natl Acad Sci USA 114:13006–13011. https://doi.org/10.1073/pnas.1709048114
Yang X, Long M, Shen X (2018) Effector–immunity pairs provide the T6SS nanomachine its offensive and defensive capabilities. Molecules 23:1009. https://doi.org/10.3390/molecules23051009
You LX, Zhang RR, Dai JX, Lin ZT, Li YP, Herzberg M, Zhang JL, Al-Wathnani H, Zhang CK, Feng RW, Liu H, Rensing C (2021) Potential of cadmium resistant Burkholderia contaminans strain ZCC in promoting growth of soy beans in the presence of cadmium. Ecotoxicol Environ Saf. https://doi.org/10.1016/j.ecoenv.2021.111914
Yu Y, Kim HS, Hui HC, Chi HL, Siew HS, Lin D, Derr A, Engels R, DeShazer D, Birren B, Nierman WC, Tan P (2006) Genomic patterns of pathogen evolution revealed by comparison of Burkholderia pseudomallei, the causative agent of melioidosis, to avirulent Burkholderia thailandensis. BMC Microbiol 6:46. https://doi.org/10.1186/1471-2180-6-46
This study was supported by Konkuk University in 2022.
Ethics approval and consent to participate
Consent for publication
The authors declare no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Genome features of Burkholderia species. Table S2. COG distribution of the genes in B. contaminans SK875. Table S3. KEGG distribution of the genes in B. contaminans SK875. Table S4. List of unique genes of B. contaminans SK875. Table S5. COG distribution of the unique genes in B. contaminans SK875. Table S6. Prophage regions of the B. contaminans genomes. Table S7. The CRISPR loci of the five B. contaminans genomes. Table S8. Putative virulence genes in five B. contaminans genomes predicted by VFDB. Table S9. Antibiotic resistance genes in five B. contaminans genomes.
