Use of GC-IMS for detection of volatile organic compounds to identify mixed bacterial culture medium
AMB Express volume 12, Article number: 31 (2022)
In order to explore the possibility to identify common wound infection bacteria in mixed culture with gas chromatograph-ion migration spectroscopy (GC-IMS), the headspace gas of single and mixed cultures of Escherichia coli, Staphylococcus aureus and Pseudomonas aeruginosa were detected and analyzed by GC-IMS system. The bacteria were cultured in thioglycolate medium tubes then transferred to the sampling bottles (indirect method), or directly cultured in the sampling bottles (direct method) to allow accumulation of volatile compounds and facilitate automation. The specific microorganism volatile organic compounds (mVOCs) of the three bacteria were obtained. Some of them have been known to certain substance, for example, ethanol, isoamyl acetate, Phenylacetaldehyde, 2-heptanone etc., while others have not. Principal component analysis (PCA) showed that a higher separability can be achieved with direct method than indirect method. This work indicated that it is possible to identify compound bacteria by detecting specific mVOCs with GC-IMS, and the specific mVOCs should be medium-dependent.
Wound infection is defined as the presence of replicating microorganisms within a wound leads to tissue injury, pain, or even septic death in severe cases (Haesler and Ousey 2018; White 2009). Some chronic wound infections can also bring more hurt and outcomes to patients (Cutting et al. 2004). With the increase of antibiotic resistance, the key to treatment is timely use of the right antibiotics for the specific infecting microorganism. Therefore, early and rapid identification of the infecting microorganism is crucial for the opportune implementation of appropriate treatment (Cadogan et al. 2011).
Conventional procedures for identifying pathogenic microorganisms rely on reactions in tubed medium and observation of physical characteristics, such as colonial morphology and odor, coupled with results of Gram staining, agglutination tests, and anti-microbial susceptibility profiles, etc. (Carter and Cole 2012; Jorgensen et al. 2015). New technologies relying on microorganisms’ biochemical characteristics, fatty acid patterns, and/or other metabolic properties further accelerated identification of pathogenic microorganisms (Jorgensen et al. 2015). Since 2010, matrix assisted laser desorption/ionization-time of flight mass spectrometry (MALDI-TOF MS) has become a common method for microbial identification in many advanced clinical laboratories for its advantages of rapidness, usually takes only a few minutes to identify species of different microorganisms (Carbonnelle et al. 2011; Li et al. 2019; Váradi et al. 2017). In addition, nucleic acid-based approaches, typically used for bacterial and fungal identification when biochemical and/or proteomic strategies failed. Current clinical procedures to identify microorganism are mainly based on available instruments, type of infection, and type of specimen. These procedures have been greatly simplified and automated in recent decades, yet the time required for microorganism amplification and biochemical reactions remains significant. Although some of these tests are performed within minutes, complete identification mostly takes over 18 h as culture is needed for a large number of cases (Váradi et al. 2017), during which, the infection may greatly aggravate and become much more difficult to control.
Over the years, several technologies have been tried for rapid identification of microorganisms by detecting their volatile organic compounds (VOCs), including electronic nose (Seesaard et al. 2020; Yusuf et al. 2015), high field asymmetric ion mobility spectrum (FAIMS) (Sun et al. 2019), multi-capillary column-ion mobility spectrometry (MCC-IMS) (Jünger et al. 2012; Kunze et al. 2013; Perl et al. 2011), gas chromatograph-ion migration spectroscopy (GC-IMS) (Daulton et al. 2019; Drees et al. 2019; Langejuergen et al. 2015; Sethi et al. 2013), etc. Among them, MCC-IMS and GC-IMS are especially useful for their extremely high sensitivity to identify and quantify specific VOCs. Compared to MCC, GC uses one single long chromatographic column instead of multiple capillary columns for pre-separation, which is slower but has higher resolution. The microorganism characteristic volatile organic compounds (mVOCs) spectrum may be used for their identification of the microorganisms (Perl et al. 2011). For example, MCC-IMS has been used to test the head-space air of various bacterial cultures, and successfully identified the bacteria within 24 h (Jünger et al. 2012). When MCC-IMS is used to analyze the head-space air of pathogen cultures, it would be most likely to identify the pathogens during their later stages of growth (Kunze et al. 2013). Gas chromatograph coupled to an ion mobility spectrometer (GC-IMS) has also been successfully used for identification of three bacteria cultured in blood cultures (BC) based on their mVOCs spectrum (Drees et al. 2019). The identification was done before colorimetric indicators were available, suggesting the potential application of mVOCs for rapid identification of blood stream infection (BSI). The high sensitivity of GC-IMS even made it possible to use wound swabs instead of wound culture for analysis of mVOC, which greatly accelerates the identification process (Daulton et al. 2019). Their method could detect the presence of infection; however, they did not attempt to separate the different wound infection types.
The above studies suggested that with the high sensitivity of GC-IMS, it’s possible to obtain specific mVOCs patterns of some common wound infection bacteria. However, clinical infections are often complex, involving multiple bacteria, and the mVOCs patterns of the bacteria may be affected by each other, adding an extra level of complexity to identification of infecting bacteria with this method.
In this study, the headspace of mixed bacterial cultures was analyzed with GC-IMS system. For sampling of the headspace, we used both the conventional way-fill some of the culture into the sampling tube, and a more direct way-culture the bacteria in the sampling tube. As far as we know, this is the first study on the possibility to identify common wound-infecting bacteria in mixed culture using GC-IMS.
Materials and methods
GC-IMS combines the high resolution of GC for pre-separation and high sensitivity of IMS. Molecules are first separated by the GC component due to differences in their interaction with the stationary phase coating on the wall of the chromatographic column. The separated molecules are then ionized (in this case by a tritium source) and are moved along the drift tube by an electric field and the drift gas is blown into the drift tube from the opposite direction, molecules with different mass and charge will take different time to travel to the faraday plate. The retention time in GC part and the drift time in the IMS part, together, describe each unique molecule (Daulton et al. 2019). The schematic diagram of GC-IMS is shown in Fig. 1.

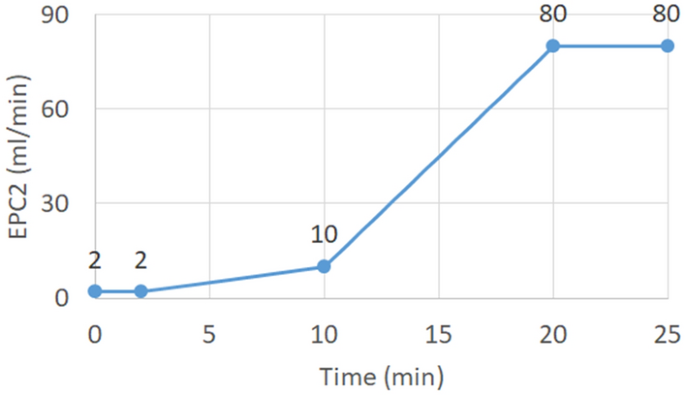

The GC-IMS system used in this paper included a core component (G.A.S, Dortmund, Germany) equipped with a wide bore GC column (mxt-5 15 m × 0.53 mm × 1 μm, RESTEK, USA), an automatic sampler (G.A.S, Dortmund, Germany) that integrated incubating, shaking, and heating functions for easier mVOCs sampling, and a nitrogen generator (G.A.S, Dortmund, Germany) to provide carrier gas. Experimental parameters used are shown in Table 1.
The sampling bottles (20 ml) containing the test culture medium were put into the incubator and shaken at 60 °C for 10 min, and then the injection needle takes 1 ml headspace gas from the sampling bottle and injects the sample into the device.
Culture of bacteria
The three most common bacteria in clinical practice, Escherichia coli (ATCC25922, EC), Staphylococcus aureus (ATCC25923, SA) and Pseudomonas aeruginosa (ATCC27853, PA) were selected as test subjects in this study, which were provided by the clinical laboratory of Daping Hospital, Army Medical University, China. The original bacterial culture solution was properly diluted, applied to the blood agar plate, and cultured for 12-18 h at 37 °C, and then one bacterial colony of each bacterium was picked and cultured in thioglycolate (TH) medium for 12-15 h at 37 °C without agitation before sampling. All 7 combinations of the three bacteria were prepared (EC, SA, PA, EC + SA, EC + PA, SA + PA, EC + SA + PA). TH medium, which was produced by Chongqing Pangtong Medical Instrument Co., Ltd, contains L-cystine, sodium chloride, glucose, yeast extract, casein, trypsin digest and sodium mercaptoglycolate.

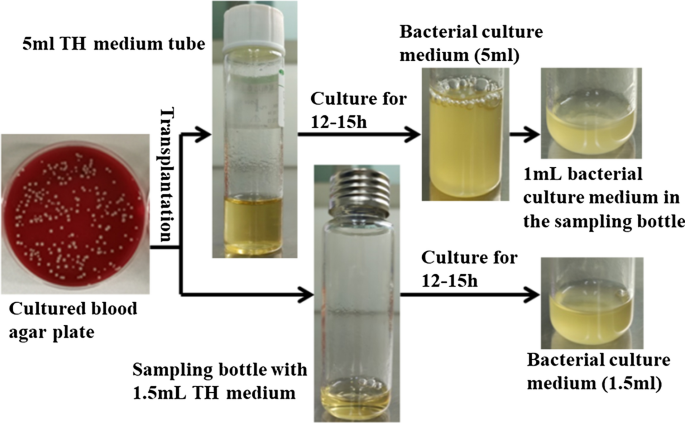

Two sampling methods were used in this study. Initially, the culture was performed in a 5 mL TH medium tube and 1 mL of the culture was transferred to the sampling bottle (20 ml) for detection. The culture was then performed directly in the sampling bottle with 1.5 mL TH medium to facilitate accumulation of mVOCs. Ten tests were conducted for each type of sample. The two culture processes are shown in Fig. 3.
Spectrum of samples

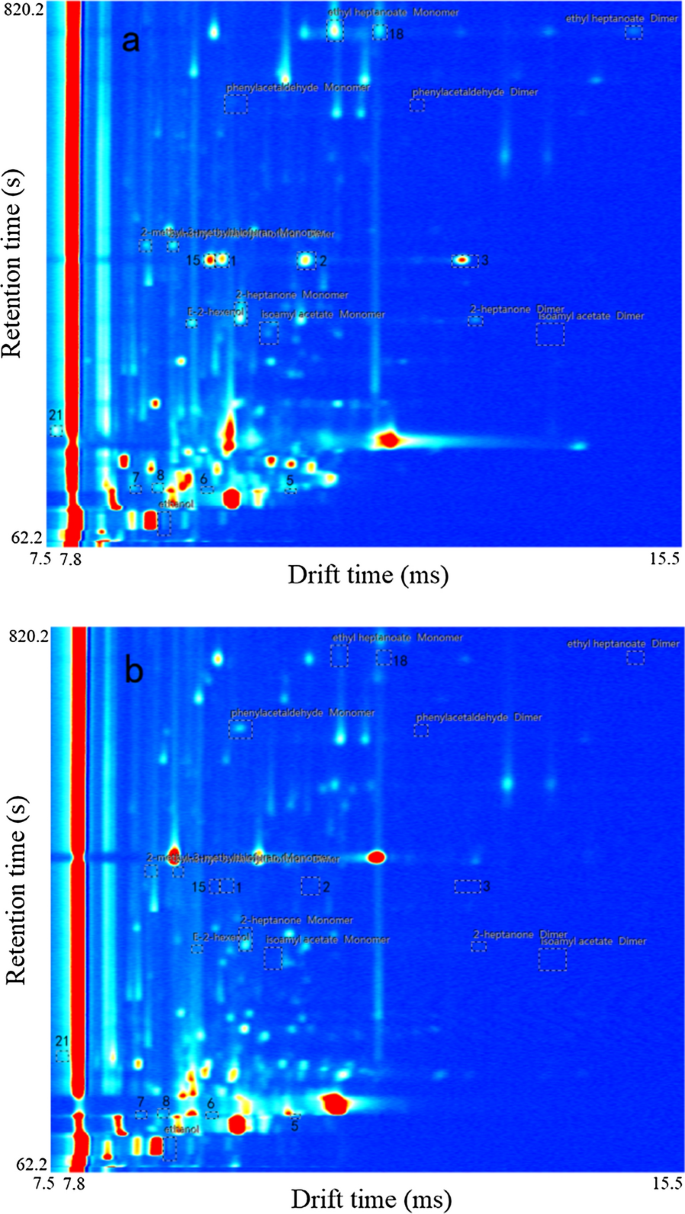

LAV 2.2.1 (G.A.S, Dortmund, Germany) was used for data analysis. GC-IMS spectra were recorded for all culture samples, with the abscissa for drift time and the ordinate for retention time. Take sterile TH medium and P. aeruginosa culture medium as examples (Fig. 4) for GC-IMS spectra. Each bright dot in the blue background represents a volatile organic compound in the sample, and extra-bright areas are represented in yellow and red (see Fig. 4 for example) which mean the higher concentration. The dots are selected in boxes for further statistical analysis. Dots that have been identified were represented by the name of the substances they represent, while the unidentified dots were represented by index numbers. Compared to the background of sterile TH medium, extra characteristic points appeared in all bacterial cultures.
After the significant dots were marked, the following specific mVOCs of bacterial samples can be obtained by comparison with each other and the sterile TH medium (Figs. 5 and 6). To avoid taking too much space, four samples of each type were selected for display. GC × IMS Library Search 1.0.3 (G.A.S, Dortmund, Germany) was used to analyze the characteristic dots qualitatively by comparing with the system database which GC retention time and IMS drift time were both used.
The position of these specific mVOCs can be described by their drift time (Dt) and retention time (Rt), as shown in Table 2. “×” represents that the substance has been detected in this type of sample. For each characteristic dot, peak height (difference between max and min within the box) can be calculated. Based on visual observation, we selected peak height > 0.1 to judge the presence of certain VOC dots. And an mVOC dot is considered present in a type of sample if it is present in any of the 10 repeats. However, some dots with peak height > 0.1 were still excluded since it’s visually clear that the signal was actually from some other substances near the target on the spectrum (Dot #21 in the spectrum of TH, for example). Therefore, the presence of substances should be determined in combination with the peak heights and the GC-IMS spectra.
The drift time of the mVOCs may slightly vary in each test. So the reactive ion peak (RIP, background peak) was used as a reference to normalize the drift time of other mVOCs. Using the representation method in the previous study, the mVOCs that cannot be determined qualitatively is represented by P_x_y in which ‘x’ represents the retention time, and ‘y’ represents the relative drift time.
To evaluate the statistical value of a certain mVOC to identify certain bacteria, for example, EC, we compared the peak values of that mVOC in cultures containing EC and those just short of EC (EC vs. TH, EC + SA vs. SA, EC + PA vs. PA, EC + SA + PA vs. SA + PA) by Kruskal-Walis test (the distribution of sample data does not conform to normal distribution and homogeneity of variance). The mVOC is considered of statistical value if all four comparisons were statistically significant (P < 0.05), the dot ID and the largest P value are listed in Table 3.
Principal component analysis (PCA)
Principal component analysis was performed using selected specific mVOCs, as shown in Fig. 7. The font of loading plot cannot be enlarged. Therefore, to facilitate viewing, an enlarged version of this area placed on the right. It can be seen that the separability of the bacterial cultures was higher when the bacteria was cultured directly in the sampling bottle than when it’s cultured initially in TH medium tube then transferred to the sampling bottle. And we can see which substance results in the most variance and which substances are highly correlated.
The purpose of this study was to explore the possibility of rapid identification of compound wound infection bacteria culture according to the mVOCs detected by GC-IMS. Intuitively, for E.coli, when cultured directly in the sampling bottle, five mVOCs (#4-#8) increased significantly when E.coli was present (Fig. 5). But, if the indirect sampling method was used, the differences were not so obvious. Among them, ethanol (#4) has been reported (Kunze et al. 2013) to reflect its facultative anaerobic metabolism (decomposing glucose by anaerobic fermentation and producing lactic acid, ethanol, etc. as end products) (Clark et al. 1989; Eisenberg et al. 1967). S. aureus, an aerobic or facultative anaerobic bacterium (Ezra et al. 1983), can also decompose glucose to produce ethanol, but at a much lower level. Four mVOCs (#9-#12, monomers and dimers of isoamyl acetate and phenylacetaldehyde) seem to be specific for S. aureus when the direct sampling method was used. When the indirect sampling method was used, another ten specific mVOCs for S. aureus (#26-#35) appeared. However, these 10 mVOCs appeared only in some of the tests and it’s not clear why they didn’t appear in other repeats. As for P. aeruginosa, when using the direct sampling method, thirteen mVOCs (#1-#3, #13-#22) clearly differentiate samples containing P. aeruginosa from those not. But when the indirect sampling method was used, four mVOCs (#13, #14, #16 and #22) no longer showed significant differences among the types of samples, but another three mVOCs (#23-#25) specific for P. aeruginosa appeared.
Results of statistical analysis in Table 3 generally confirmed our intuitive observation in Figs. 5 and 6, but excluded some mVOCs due to high variance in repeated experiments, especially when the indirect method was used. And it should be noted that some mVOCs dimers showed no significant difference in our paired comparisons above, but they shall also have positive diagnostic value if their corresponding monomers do, as these dimmers only appear when the corresponding monomers reach high level.
Acetone (Bunge et al. 2008) and Dimetyl sulphide (Umber et al. 2013) are considered to be specific mVOCs of E. coli. However, in our study, acetone was detected in all bacteria samples at similar concentrations, which is consistent with the results of the previous study (Drees et al. 2019). Dimetyl sulphide was not detected by the device in the positive model in our study, but it has been detected using the same device in negative mode (Drees et al. 2019). In addition, indole is generally considered to be the specific mVOC of E. coli (Chen et al. 2016; Drees et al. 2019; Kunze et al. 2013), but was not detected in this study. This was likely due to absence of tryptophan in our culture medium, as suggested that E. coli produced indole by decomposing tryptophan (Wang et al. 2001).
Several studies identified 3-methyl-butanal as the specific mVOC of S. aureus (Drees et al. 2019; Lawal et al. 2018; Thorn et al. 2011). In this study, 3-methyl-butanal was also detected in other samples, even in sterile TH medium, but the concentration was much higher when S. aureus was present.
Acetone, azane, dodecane and 2-ethylhexan-1-ol were found related to P. aeruginosa (Kunze et al. 2013). As mentioned earlier, under our conditions, acetone cannot be regarded as a specific mVOC. Azane and dodecane could not be detected by our system in principle; while 2-ethylhexan-1-ol appeared in all species without significant differences in concentrations among the samples. The presence of 2-pentanone in the headspace of E. coli and S. aureus has been reported (Hettinga et al. 2008). In this study, 2-pentanone also appeared in sterile TH medium but only as monomer. When P. aeruginosa was present, the concentration of 2-pentanone increased significantly and an obvious dot of its dimer appeared.
Such inconsistency between previous researches can be attributed to differences in culture media, as bacteria may produce different mVOCs when different nutrients were provided. With the medium used in this study, specific mVOCs for identification of the three bacteria were detected. These results suggest the possibility to identify certain bacteria in mixed bacteria by detecting the mVOCs with GC-IMS. The specific mVOCs may depend on the culture medium used in each microbial laboratory.
On the other hand, the sampling bottle is capped with a soft plug, through which, the sampling needle get access to the headspace gas, and 1 mL of the headspace gas is sucked in for detection. Proper amount of sample is added to the sampling bottle so that sufficient amount of bacteria can grow. The liquid level is well below the inserted sampling needle. Initially, the bacteria were cultured in a 5 ml TH medium tube and 1 mL of the culture was transferred to the sampling bottle for detection. It was found during the experiment that mVOCs accumulate in the headspace and some may escape during the transfer, making it more difficult to detect low-concentration mVOCs. So, the bacteria were cultured in the sampling bottle itself for direct sampling. In this way, it is expected that the accumulated mVOCs can be largely retained. It can be seen from the PCA spectra that the direct culture way had higher separability. This indicates that an effective culture method is conducive to the search for bacterial mVOCs. It would be expected that direct culture would have more mVOCs detected than the indirect culture, but the results were on the contrary. It seems that the indirect method was not so stable, as some mVOCs may appear occasionally in 10 repeats. We speculated that moving the culture from TH tube to sample bottle exposes the sample to external environment and brings uncertainty.
In conclusion, GC-IMS technology was used to detect cultures of E. coli, S. aureus and P. aeruginosa alone and in their mixtures. The data were analyzed with the softwares of the system, and the specific mVOCs useful for identification of the three kinds of bacterium were obtained. When using the system for bacterial identification and analysis, better results were achieved by culturing the bacteria directly in the sampling bottle to distinguish the three kinds of bacterium, as suggested by the PCA results. In addition, culturing the bacteria directly in the sampling bottle also facilitates automation with the automatic sampler.
In this study, we have preliminarily investigated the possibility for rapid identification of certain bacterium in mixed culture of up to three bacteria, and the results was encouraging. However, clinical wound infections are often more complex, with diverse sample types, much more bacteria strains, and much more influencing factors (such as medication, nutritional and immuno status). The discriminative power we have achieved is far from enough. Sampling methods and experimental condition shall be investigated to better differentiate the bacteria and to better resemble clinical situation. Furthermore, human samples from clinic should be collected and detected to find the characteristic mVOCs that can distinguish microorganism types. In addition, GC-IMS produce tremendous amount of data that may hide valuable information about bacteria in the sample, but we have only taken a little portion that are obvious, more delicate data analysis may reveal extra information about the sample. Meanwhile, the system was slightly affected by carry over, more accurate data processing methods may eliminate its influence. Last, GC-IMS currently can’t identify several characteristic VOCs and can’t detect some substances in principle (for example, alkanes), which may be solved by GC-MS.
Availability of data and materials
The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.
Gas chromatograph-ion migration spectroscopy
Microorganism volatile organic compounds
- MALDI-TOF MS:
Matrix assisted laser desorption/ionization-time of flight mass spectrometry
Volatile organic compounds
High field asymmetric ion mobility spectrum
Multi-capillary column-ion mobility spectrometry
Blood stream infection
Principal component analysis
Reactive ion peak
Bunge M, Araghipour N, Mikoviny T, Dunkl J, Schnitzhofer R, Hansel A, Schinner F, Wisthaler A, Margesin R, Märk TD (2008) On-Line monitoring of microbial volatile metabolites by proton transfer reaction-mass spectrometry. Appl Environ Microbiol 74:2179–2186
Cadogan J, Baldwin D, Carpenter S, Davey J, Harris H, Purser K, Wicks G (2011) Identification, diagnosis and treatment of wound infection. Nurs Stand 26:44–48
Carbonnelle E, Mesquita C, Bille E, Day N, Dauphin B, Beretti JL, Ferroni A, Gutmann L, Nassif X (2011) MALDI-TOF mass spectrometry tools for bacterial identification in clinical microbiology laboratory. Clin Biochem 44:104–109
Carter GR, Cole JR (2012) Diagnostic procedure in veterinary bacteriology and mycology. Academic Press, New York
Chen J, Tang JN, Shi H, Tang C, Zhang R (2016) Characteristics of volatile organic compounds produced from five pathogenic bacteria by headspace-solid phase micro-extraction/gas chromatography-mass spectrometry. J Basic Microbiol 9999:1–10
Clark DP (1989) The fermentation pathways of Escherichia coli. FEMS Microbiol Rev 63:223–234
Cutting KF, White R (2004) Defined and refined-criteria for identifying wound infection revisited. Br J Community Nurs 9:6–15
Daulton E, Wicaksono A, Bechar J, Covington JA, Hardwicke J (2019) The detection of wound infection by ion mobility chemical analysis. Biosensors 10:19
Drees C, Vautz W, Liedtke S, Rosin C, Althoff K, Lippmann M, Zimmermann S, Legler TJ, Yildiz D, Perl T, Szikszay NK (2019) GC-IMS headspace analyses allow early recognition of bacterial growth and rapid pathogen differentiation in standard blood cultures. Appl Microbiol Biotechnol 103:9091–9101
Eisenberg RC, Dobrogosz WJ (1967) Gluconate metabolism in Escherichia colil. J Bacteriol 93:941–949
Ezra FS, Lucas DS, Mustacich RV, Russell AF (1983) Phosphorus-31 and carbon-13 nuclear magnetic resonance studies of anaerobic glucose metabolism and lactate transport in Staphylococcus aureus cells. Biochemistry 22:3841–3849
Haesler E, Ousey K (2018) Evolution of the wound infection continuum. Wound Int 9:6–10
Hettinga KA, van Valenberg HJF, Lam TJGM, van Hooijdonk ACM (2008) Detection of mastitis pathogens by analysis of volatile bacterial metabolites. J Dairy Sci 91:3834–3839
Jorgensen JH, Pfaller MA (2015) Manual of clinical microbiology, eleventh. American Society for Microbiology, Washington DC
Jünger M, Vautz W, Kuhns M, Hofmann L, Ulbricht S, Baumbach JI, Quintel M, Perl T (2012) Ion mobility spectrometry for microbial volatile organic compounds: a new identification tool for human pathogenic bacteria. Appl Microbiol Biotechnol 93:2603–2614
Kunze N, Göpel J, Kuhns M, Jünger M, Quintel M, Perl T (2013) Detection and validation of volatile metabolic patterns over different strains of two human pathogenic bacteria during their growth in a complex medium using multi-capillary column-ion mobility spectrometry (MCC-IMS). Appl Microbiol Biotechnol 97:3665–3676
Langejuergen J, Wagner C, Beutel S, Hopmeier T, Scheper T, Zimmermann S (2015) Non-invasive monitoring of bacterial growth and auto-induced protein production in a bioreactor with a closed-loop GC-IMS. Int J Ion Mobil Spec 18:9–15
Lawal O, Muhamadali H, Ahmed WM, White IR, Nijsen TME, Goodacre R, Fowler SJ, on behalf of the BreathDx consortium (2018) Headspace volatile organic compounds from bacteria implicated in ventilator-associated pneumonia analysed by TD-GC/MS. J Breath Res 12:026002
Li Y, Shan MZ, Zhu ZB, Mao XH, Yan MJ, Chen Y, Zhu QJ, Li HC, Gu B (2019) Application of MALDI-TOF MS to rapid identification of anaerobic bacteria. BMC Infect Dis 19:941
Perl T, Jünger M, Vautz W, Nolte J, Kuhns M, Zepelin MB, Quintel M (2011) Detection of characteristic metabolites of Aspergillus fumigatus and Candida species using ion mobility spectrometry-metabolic profiling by volatile organic compounds. Mycoses 54:828–837
Seesaard T, Thippakorn C, Kerdcharoen T, Kladsomboon S (2020) A hybrid electronic nose system for discrimination of pathogenic bacterial volatile compounds. Anal Methods 47:5671–5683
Sethi S, Nanda R, Chakraborty T (2013) Clinical application of volatile organic compound analysis for detecting infectious diseases. Clin Microbiol Rev 26:462–475
Sun T, Tian FC, Bi YT, Zhong XZ, He J, Yang TC, Guo QS, Lei Y, Lu YY, Zeng L, He QH (2019) Local warning integrated with global feature based on dynamic spectra for FAIMS data analysis in detection of clinical wound infection. Sens Actuators B Chem 298:126926
Thorn RMS, Reynolds DM, Greenman J (2011) Multivariate analysis of bacterial volatile compound profiles for discrimination between selected species and strains in vitro. J Microbiol Methods 84:258–264
Umber BJ, Shin HW, Meinardi S, Leu SY, Zaldivar F, Cooper DM, Blake DR (2013) Gas signatures from Escherichia coli and Escherichia coli-inoculated human whole blood. Clin Transl Med 2:13
Váradi L, Luo JL, Hibbs DE, Perry JD, Anderson RJ, Orenga S, Groundwater PW (2017) Methods for the detection and identification of pathogenic bacteria-past, present, and future. Chem Soc Rev 46:4818–4832
Wang DD, Ding XD, Rather PN (2001) Indole can act as an extracellular signal in Escherichia coli. J Bacteriol 183:4210–4216
White RJ (2009) Wound infection-associated pain. J Wound Care 18:245–249
Yusuf N, Zakaria A, Omar MI, Shakaff AYM, Masnan MJ, Kamarudin LM, Rahim NA, Zakaria NZI, Abdullah AA, Othman A, Yasin MS (2015) In-vitro diagnosis of single and poly microbial species targeted for diabetic foot infection using e-nose technology. BMC Bioinform 16:158
This work was supported by National International Science and Technology Cooperation Project of China [grant number: 2014DFA31560] and China-Canada Medical Intelligent E-nose Center of Chongqing [grant number: cstc2013gjhz10003].
