Egg yolk immunoglobulin interactions with Porphyromonas gingivalis to impact periodontal inflammation and halitosis

Contributed equally
AMB Express20188:176

  • Received: 12 July 2018
  • Accepted: 23 October 2018
  • Published:


Porphyromonas gingivalis is a pathogenic Gram-negative anaerobic bacterium that colonizes the subgingival region of gums. These bacteria can invade periodontal tissues, form plaques, and produce volatile sulfur compounds (VSC) and volatile organic compounds (VOC). Egg yolk immunoglobulin (IgY) that was specifically produced in egg yolks after chickens were challenged with P. gingivalis could control and prevent oral diseases caused by P. gingivalis. The releases of P. gingivalis offensive metabolic odors in vitro and in vivo were determined using a Halimeter and GCMS. With IgY bacterial growth was inhibited, and the relative amounts of VOC and VSC were decreased. The scores for the oral health index and the levels of IL-6 and TNF-α are also decreased. All treatment groups showed significant anti-inflammatory effects, which strongly suggests that specifically IgY against P. gingivalis may be an effective treatment for the prevention and protection of periodontal inflammation and halitosis.


  • Egg yolk immunoglobulin
  • Porphyromonas gingivalis
  • Periodontal inflammation
  • Halitosis
  • Volatile sulfur compounds
  • Volatile organic compounds


About 700 different microbial species cause a number of different infections and inflammation in the oral cavity (Kuramitsu et al. 2007; Tsuzukibashi et al. 2014). The most common microbial oral diseases are periodontal inflammation (Ke et al. 2016) and halitosis (Tanda et al. 2015). These diseases may be caused by various anaerobic bacteria such as Streptococcus mutans, Porphyromonas gingivalis, Prevotella intermedia, and Fusobacterium nucleatum (Zhen et al. 2008; Patra et al. 2014). P. gingivalis is one of the major pathogen that colonizes the subgingival region of gums. These bacterial can produce compounds that contribute to dental plaque, acquired immune response and release of unpleasant odor, such as protein adhesins, hemin binding proteins, proteinases, volatile sulfur compounds (VSC) and volatile organic compounds (VOC) (Holt et al. 1999; Lamont and Jenkinson 2000). The immune response results in tissue destruction and loss of alveolar bone and connective tissue, eventually leading to periodontal inflammation (Larsson 2017). VSC and VOC cause the unpleasant odors, which are referred to as halitosis (Lee et al. 2014).

Some approaches have been reported and applied to avoid oral diseases caused by P. gingivalis. They included inhibition of cell growth and initial cell adhesion, and degradation of odors emitted using antibacterial agents, and polyclonal and monoclonal antibodies. Honey as a therapeutic option in periodontitis treatment acted as an antibacterial against P. gingivalis, but did not inhibited the formation of biofilms in an in vitro study (Eick et al. 2014). P. gingivalis was found at a frequency of 35% in patients with chronic periodontitis and clinical isolates were highly sensitive to metronidazole and tetracycline (Gamboa et al. 2014). However, antibiotic resistance attributed to the use of metronidazole and tetracycline has become an increasing problem (Patil et al. 2013). Parenteral or intraoral administration of KAS2-A1-specific polyclonal antibodies protected against the development of P. gingivalis-induced bone resorption and inhibited proteolytic activity, binding to host cells/proteins and co-aggregation with other periodontal bacteria (O’Brien-Simpson et al. 2016). VSC were produced primarily by anaerobic bacteria that produced large amounts of proteinases, many trypsin-like (van den Velde et al. 2007). And oral malodors were reduced by inhibition of P. gingivalis growth and neutralization of VSC (Lee and Baek 2014). Streptococcus thermophilus, a probiotic bacterium, inhibited growth of P. gingivalis, and reduced P. gingivalis-producing VSC emissions. Nevertheless, S. thermophilus showed different antibacterial activity with different culture-conditions. A possible reason may be that P. gingivalis can inhibit the activity of antibacterial agents of S. thermophilus or has weak resistance for the antibacterial agent (Lee and Baek 2014).

Recently, chicken egg yolk immunoglobulin, referred to as immunoglobulin Y (IgY), has been shown to be a specific antibody that was produced in egg yolks after chickens were challenged with bacteria, viruses, or parasites. Thus, IgY could specifically control and prevent diseases caused by their corresponding antigen (Li et al. 2012). These may be a convenient and economical alternative to antibiotics to give passive immunization (Horie et al. 2004; Chalamaiah et al. 2017). IgY against Pseudomonas aeruginosa therapy facilitated rapid bacterial clearance and moderated inflammation in P. aeruginosa lung infections. It may serve as an adjunct to antibiotics in reducing early colonization (Thomsen et al. 2016). IgY against Solobacterium moorei significantly inhibited growth and biofilm formation of S. moorei and decreased the bacterial level in the oral cavity of mice after infection with S. moorei (Lee and Baek 2014). IgY against P. gingivalis inhibited dental plaque formation (Hamajima et al. 2007) and hemagglutinating activity of P. gingivalis (Tezuka et al. 2006) in vitro, which may be useful in developing passive immunization against periodontal diseases caused by P. gingivalis infection.

Because of rats’ periodontal anatomy similar to humans they are often used in the study of periodontal diseases (Helieh and David 2011). In addition, rodent models reflect the state of the periodontal more sensitively. Therefore, periodontal diseases commonly have been induced by placing a bacterial plaque retentive ligature in the gingival sulcus around the molar teeth in animal models (Breivik et al. 2000). The purpose of this study was to evaluate the effect of IgY against P. gingivalis on the growth of P. gingivalis, emission of VSC and VOC in vitro and in vivo, the scores for oral health indexes and the levels of IL-6 and TNF-α to determine if IgY might be an effective treatment for the prevention of periodontal inflammation and halitosis caused by P. gingivalis.

Materials and methods


This study used IgY against P. gingivalis (25,600 titer, 370 mmol/l, according to the manufacturer) from Maxam Ltd. (Shanghai, China), and P. gingivalis (ATCC33277) was purchased from American Type Culture Collection (Manassas, VA, USA). All other chemicals were analytical reagent grade or better from Chinese suppliers.

The simple preparing process of P. gingivalis as an antigen: P. gingivalis was maintained on Brain Heart Infusion Broth (BHI) supplemented with 10% sheep blood. Stable-phase P. gingivalis was dissolved in PBS (0.05 M, pH7.4) and stored at 4 °C. The solution mixed with Freund’s adjuvant in a ratio of 1:1 was used as the antigen.

Growth inhibition

The artificial saliva was prepared using a method reported previously (Saunders et al. 2000; Bjorklund et al. 2011). Briefly, the artificial saliva was supplemented with mucin from porcine stomach (Sigma Chemical Co., St. Louis, MO, USA) 2500 mg/l. The saliva also contained KCl 1160 mg/l, NaHCO3 375 mg/l, KH2PO4 355 mg/l, NH4Cl 235 mg/l, KSCN 220 mg/l, CaCl2 210 mg/l, urea 175 mg/l, MgCl2 45 mg/l, thiamine 0.007 mg/l, riboflavin 0.05 mg/l, folic acid 0.0001 mg/l, nicotinic acid 0.03 mg/l, pyridoxine 0.6 mg/l, pantothenic acid 0.08 mg/l, biotin 0.0008 mg/l, B12 (cyanocobalamin) 0.003 mg/l, vitamin K (menaphthone) 0.015 mg/l, bovine serum albumin (Sinopharm Chemical Reagent Co., Shanghai, China) 25 mg/l, choline 15 mg/l, uric acid 10 mg/l, alanine 3.3 mg/l, arginine 1.9 mg/l, aspartic acid 1.6 mg/l, glutamic acid 3.9 mg/l, glycine 8.9 mg/l, histidine 1.0 mg/l, leucin 2.9 mg/l, iso-leucine 2.9 mg/l, lysine 2.7 mg/l, methionine 0.03 mg/l, phenylalanine 2.9 mg/l, proline 0.2 mg/l, serine 2.1 mg/l, threonine 2.9 mg/l, tyrosine 2.1 mg/l, valine 1.8 mg/l, creatinine 0.1 mg/l, and α-amylase 3 × 105 U/l (Sigma). It was sterilized by passing through a 0.22 μm-filter (50 ml, Thermo Fisher Scientific, Shanghai, China). P. gingivalis were cultured in brain heart infusion broth (BHI) (Shandong Haibo Technology Information System Co., Ltd., Qingdao, Shandong, China). Colonies were counted using a hemocytometer (Shanghai Refined Biochemical Reagent Instrument Co., Ltd., Shanghai, China). Bacterial liquid (0.5 ml) was added to 4.5 ml artificial saliva at a final concentration of 108 CFU/ml. Then 10 μl of IgY at concentrations of 370, 7.4 and 0.0037 mmol/l (diluted using 0.9% NaCl) was put into 5 ml tubes and were identified as the high-dose, mid-dose, and low-dose group, respectively. The mixtures without IgY were used as a control. These tubes were placed into an anaerobic package (Anaero Pack, Mitsubishi Gas Chemical Co., Tokyo, Japan), and incubated at 37 °C. OD600 of the suspensions was measured using a spectrophotometer (T6, Persee Ltd., Beijing, China) at 2 h intervals (Hou et al. 2014). The growth inhibition on P. gingivalis with IgY treatment was measured as OD650.

Measurement of VSC in artificial saliva using a Halimeter

A portable sulphide monitor (Halimeter, Interscan Co., Chatsworth, CA, USA) was used to assess the VSC levels. Samples in sequence connect to the sampling tube of the Halimeter for 30 s according to the manufacturer’s instructions and three different readings were recorded per sample from the instrument without external calibration.

Measurement of VOC in artificial saliva using GCMS

The artificial saliva was concentrated by putting 6 ml on a Poly-Sery Hydrophile Lipophilic Balance Solid Phase Extraction Cartridge (500 mg, Anpel, Shanghai, China) followed by passing dry nitrogen (99.9%, Linde, Shanghai, China) through the cartridge for 2 min. The sample was eluted with 1 ml methanol.

The gas chromatograph was a model: HP-6890N, interfaced with a mass selective detector HP-5973 (Agilent, Santa Clara, CA, USA). A fused silica capillary column HP-5MS (60 m × 0.32 mm × 1 μm, Agilent) was used with helium (99.999%, Linde) as the carrier gas (1 ml/min). The injection volume for each sample was 1 μl (Wang et al. 2018). The temperatures used were 250 °C for the detector, and 50–250 °C for the column with a heating rate of 8 °C/min. Peak identifications were done using the National Institute of Standards and Technology (NIST) electronic library (access provided by Agilent). The estimation of the approximate amounts of odor chemicals was based on the area under the peaks according to the software provided with the instruments and the determination of each peak’s proportional area of the total observed peak areas.

Animal studies

Healthy male Wistar rats (n = 9, weight 160 ± 10 g) purchased from Slac Laboratory Animal Co., Ltd. (Shanghai, China) were housed 3/cage upon arrival in 3 standard ventilated cages for 1 week before experimental procedures began. All rats had ad libitum access to the rat feed and water throughout all experiments and were maintained on a 12 h light cycle with lights on at 8:00. The testing was performed between 8:00 and 16:00. The use of animals, ethical clearance, and the study protocol were duly approved by the U.K. Animals (Scientific Procedures) Act and User Committee of Shanghai ocean University (China). Maxillary second molars of the rats were ligated with 5-0 silk thread and inoculated with freshly prepared P. gingivalis (106 CFU/ml). The rats were challenged with P. gingivalis eight times at 2-day intervals (Hou et al. 2014). The infected rats were randomly divided into three groups (n = 3). After the last infection, 6 rats were smeared using a syringe with different doses of 0.2 ml IgY against P. gingivalis solutions, and three rats served as a control group to which 0.2 ml non-specific IgY was applied each day in the oral cavity for up to 28 days. IgY at concentrations of 370 and 7.4 mmol/l (diluted using 0.9% NaCl) were identified as the high-dose and low-dose group, respectively.

Measurement of VOC in the oral cavity using GCMS

The samples were obtained using swabs that were wiped for 30 s in the oral cavity. Then the swabs were placed at the bottom of a headspace vial with a screw top lid (20 ml, Supelco, Bellefonte, PA, USA) and extracted with a coated micro extraction fiber (65 μm, PDMS/DVB, Supelco) for 30 min at 65 °C. The desorption time of the extraction was 5 min according to the manufacturer’s instructions.

Oral test

The plaque index (PI), gingival index (GI), and halitosis index (HI) were measured before and after treatment. The PI and GI were recorded using a periodontal probe (Pancer et al. 2016; Liu et al. 2012). Briefly, the periodontal pockets or gingival crevices of the selected tooth were probed and graded as follows: Score 0: Gingival margin and gingival papilla (GM&P) are healthy, and no bleeding is observed after a slight probe. Score 1: GM&P are mildly inflamed; and changes in color, absence of edema, and occurrence of punctate hemorrhages are observed after a slight probe. Score 2: GM&P are moderately inflamed; changes in color, severe edema, and bleeding are observed after a slight probe while the blood is still in the gingival crevice. Score 3: GM&P are severely inflamed; changes in color, severe edema, ulcer, and bleeding are observed after a slight probe; or spontaneous bleeding, and blood is observed flowing out of the gingival crevice. The HI was assessed by direct sniffing (score 0–4) done by only one person, and the scores reflected the degree of the odor (Hu et al. 2007).

IL-6 and TNF-α assays in serum

The blood samples were taken from the heart after cervical dislocation. The serum was cleared from cellular components of the blood by centrifugation at 12,000 rpm for 10 min at 4 °C and stored at − 80 °C until use. IL-6 and TNF-α levels were measured using an enzyme-linked immunosorbent assay following the manufacturer’s instructions (Nanjing Jiancheng Bioengineering Institute, Nanjing, China). A blank hole without sample only adding chromogenic agent and terminated liquid were used for zero. Optical density (OD) at 450 nm was read using a Microplate Reader (Corona Electric, Hitachinaka, Japan).

Statistical analysis

Statistical analysis was done using SPSS 11.0 for Windows (SPSS, Chicago, IL, USA). Data were shown as mean ± standard deviation. The student t-test was used to quantify data for the microbial experiments. While Mann–Whitney U test (a non-parametric statistical) analysis was used to quantify data for the animals experiments. The differences were considered significant at the level of p < 0.05.


Effect of IgY on growth inhibition

Upon addition of IgY in artificial saliva, bacterial cells formed complexes with IgY that precipitated to the bottom of the culture tubes, and the artificial saliva became clear (Zhen et al. 2008). Bacterial counts increased rapidly in the control (Fig. 1). However, the growth rate was significantly (p < 0.05) inhibited by the addition of IgY with each response significantly stronger than from the previous level.
Fig. 1
Fig. 1

The inhibitory effect of IgY on the growth of P. gingivalis. P. gingivalis was cultured in artificial saliva medium containing 0 (control), 0.0037 (low-dose), 7.4 (mid-dose) or 370 (high-dose) mmol/l of IgY. Data were obtained using three independent experiments with three measurements in each experiment, and are shown as mean ± SD (n = 3). *Means different at p < 0.05, and **Means different at p < 0.01. p = 0.038 vs. the control and low-dose, p = 0.016 vs. the control and middle-dose, p = 0.008 vs. the control and high-dose

Effect of IgY on VSC inhibition

The VSC values are shown in Fig. 2. All three doses reduce VSC significantly (p < 0.05) from the control but not significantly different from each other (p ≥ 0.05).

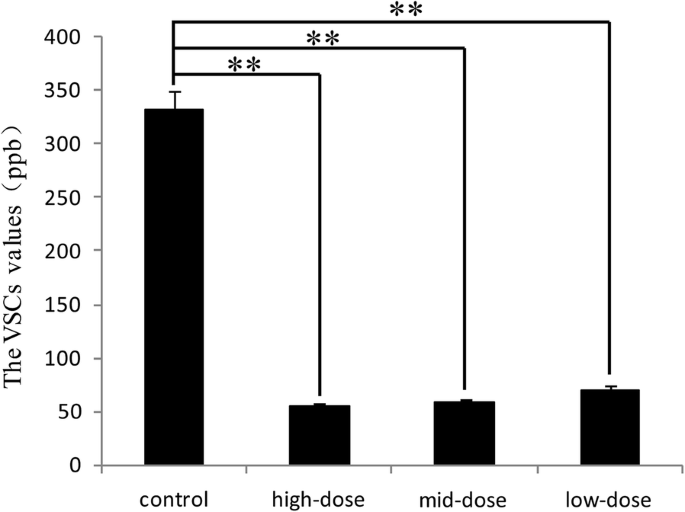

Fig. 2
Fig. 2

The VSC values of artificial saliva. The VSC values were recorded directly as the readings from the Halimeter, and the unit is ppb (ug/l). **Means different at p < 0.01. p = 0.007 vs. the control and low-dose, p = 0.006 vs. the control and middle-dose, p = 0.003 vs. the control and high-dose

Effect of IgY on VOC inhibition in artificial saliva

VOC are products of P. gingivalis metabolism. The major classes produced are: alcohols (A1), aldehydes (A2), ketones (A3), carboxylic acids (A4), esters (A5), phenyl compounds (B), nitrogen compounds (C), sulfur-containing compounds (D), and alkanes (E) (Xia et al. 2008). In the artificial saliva, 16 chemicals were detected (Table 1). The relative contents of VOC were reduced before and after treatment with IgY (Fig. 3). The reduction of hydroxylamine was highest compared with control. The reductions of 3-bromo-5-chloro-1-tosyl-1H-pyrrolo[2,3-b] pyridine, benzeneacetaldehyde, 1,4-dioxoperhydropyrrolo[1,2-a]pyrazine, methyl elaidate, 2,4-Di-tert-butylphenol, methyl hexadecanoate, and methyl stearate were also significant (p < 0.05). The difference values between the control and treatment groups were multiplied by the corresponding proportion (Table 1, Fig. 4). The proportion of VOC were different depending on themselves odor (Outhouse et al. 2006). The relative content of 2,4-di-tert-butylphenol, hydroxylamine, 1,4-dioxoperhydropyrrolo [1,2-a] pyrazine, trans-13-docosenamide, 3-bromo-5-chloro-1-tosyl-1H-pyrrolo[2,3-b]pyridine, and undecane were also significantly reduced suggesting that IgY could reduce VOC by inhibiting bacterial growth.
Table 1

Chemical composition of VOC produced by P. gingivalis in artificial saliva detected using GCMS


Retention time

CAS no




Proportion of odor (%)a





Nitrogen compounds (C-1)





Benzene acetaldehyde

Aldehydes (A2)






Alkanes (E)






Phenyl compounds (B-1)






Nitrogen compounds (C-2)





Diisobutyl phthalate

Phenyl compounds (B-2)





Methyl 14-methylpentadecanoate

Esters (A5-1)





Methyl hexadecanoate

Esters (A5-2)






Sulfur-containing compounds (D)





Hexadecenoic acid

Carboxylic acids (A4-1)





Hexadecanoic acid

Carboxylic acids (A4-2)





Methyl elaidate

Esters (A5-3)





Methyl stearate

Esters (A5-4)





Elaidic acid

Carboxylic acids (A4-3)





Stearic acid

Carboxylic acids (A4-4)






Nitrogen compounds (C-3)


aAccording to the contribution to the VOC each chemical’s proportion represents its relative area under the peak without further calibration

Fig. 3
Fig. 3

The reduction of VOC in artificial saliva. In artificial saliva 16 chemicals were detected (Table 1) using GCMS. Negative numbers represent an increase. The contents of VOC reduction are shown as mean with SD error bars (n = 3). *Means that the contents of the control group continued to increase, while the contents of the treatment group decreased significantly after administration. The p values are, in order, 0.027, 0.042, 0.033, 0.036, 0.034, 0.021, 0.030, 0.027 compared the control with the treatment groups

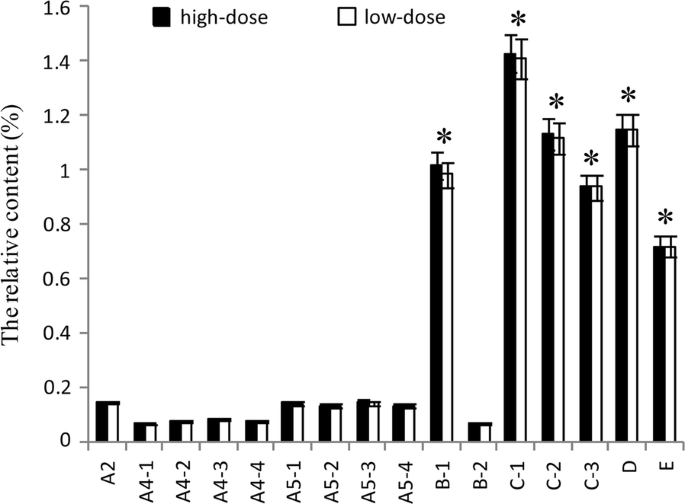

Fig. 4
Fig. 4

The proportional reduction of VOC with artificial saliva. According to distribute the proportion (Table 1), 16 chemicals were multiplied by corresponding proportion, and results are shown as mean ± SD (n = 3). *Means that the difference values between the treatment and control groups are more significant compare with another chemicals. The p values are, in order, 0.026, 0.017, 0.023, 0.031, 0.027, 0.035

Effect of IgY on VOC inhibition in the oral cavity of rats

Data from GCMS suggested that the bad breath of rats mainly was due to 9 classes of compounds with 20 specific chemicals involved (Table 2). After treatment with IgY for 4 wks, the relative contents of VOC were significantly reduced compared with control. The relatively higher reductions occurred with hexanal, 3,4,4-trimethylcyclopent-2-en-1-one, trans-2-octen-1-al, methyl isohexenyl ketone, and isooctyl alcohol (Fig. 5). The difference values between the control and treatment groups were multiplied by the corresponding proportion (Table 2, Fig. 6). The relative contents of hexanal, dimethylfuranone, acetic acid, hexanoic acid, ammonia, and 2-(vinyloxy) propane were significantly decreased (Fig. 6) suggesting that the odor compounds in the oral cavity are mainly composed of aldehydes, ketone, carboxylic acid, nitrogen compounds, and alkanes. The treatment with IgY can effectively inhibit the relative contents of these metabolites produced by P. gingivalis.
Table 2

Chemical composition of VOC produced by P. gingivalis in the oral cavity of the rats detected using GCMS


Retention time

CAS no




Proportion of odor (%)a





Nitrogen compounds (C)






Alkanes (E)





Acetic acid

Carboxylic acids (A4-1)






Aldehydes (A2-1)






Alcohols (A1-1)






Aldehydes (A2-2)






Ketones (A3-1)






Alcohols (A1-2






Alcohols (A1-3)





Methyl isohexenyl ketone

Ketones (A3-2)





Octyl aldehyde

Aldehydes (A2-3)





Hexanoic acid

Carboxylic acids (A4-2)





Isooctyl alcohol

Alcohols (A1-4)






Esters (A5-1)






Aldehydes (A2-4)






Ketones (A3-3)





Decyl aldehyde

Aldehydes (A2-5)






Ketones (A3-4)





Amyl caproate

Esters (A5-2)






Ketones (A3-5)


aAccording to the contribution to the VOC each chemical’s proportion represents its relative area under the peak without further calibration

Fig. 5
Fig. 5

The reduction of VOC in the oral cavity of the rats. In the oral cavity of the rats, 20 chemicals were detected (Table 2) using GCMS. Negative numbers represent an increase. The contents of VOC reduction are shown as mean with SD error bars (n = 3). *Means that the contents of the control group continued to increase, while the contents of the treatment group decreased significantly after administration. The p values are, in order, 0.033, 0.028, 0.043, 0.026, 0.037 compared the control with the treatment groups

Fig. 6
Fig. 6

The reduction of VOC with a proportion in the oral cavity of the rats. Negative numbers represent an increase. According to distribute the proportion (Table 2), 16 chemicals were multiplied by corresponding proportion, and results are shown as mean ± SD (n = 3). *Means that the difference values between the treatment and control groups are more significant compare with another chemicals. The p values are, in order, 0.036, 0.022, 0.042, 0.035, 0.023, 0.018

Microbial degradation is the main cause of oral malodor (Bollen and Beikler 2012). Combining the results of the Halimeter and GCMS assays in vitro and in vivo, the metabolites produced by P. gingivalis included VSC, aldehydes, ketones, carboxylic acids, esters, phenyl compounds, nitrogen compounds, and alkanes. After treatment with IgY, these metabolites were significantly reduced compared with control. Previous reports indicated that the main volatile molecules contributing to oral malodor included VSC, diamines, phenyl compounds, alcohols, alkanes, short-chain fatty acids, nitrogen compounds, and ketones (Bollen and Beikler 2012; Krespi et al. 2006). In addition, hexanal was detected in the experiment associated with halitosis. However, it is likely according to two reports that the hexanal may be a reaction intermediate. Because hexanal can generate hexanedione (Nomeir and Abou-Donia 1985) or hexanediol (Taher et al. 2009) with appropriate reaction conditions.

Effect of IgY on oral health indexes

The gingival of rats were red and swollen after 8 challenges with P. gingivalis, and the subgingival plaque and bad breath were obvious in most rats. The scores for GI, PI, and HI decreased significantly after treatment with IgY for 4 wks (Fig. 7). For PI, the three treatment groups’ scores were significantly lower than the control. For GI, the high-dose group’s scores were lower than the other treatment groups, and were higher than the positive control group. Thus, the scores of the high-dose group and positive control group were significantly decreased. For HI, the high-dose and mid-dose groups’ scores were significantly lower than control, while the low-dose group’s scores were higher than the positive control.

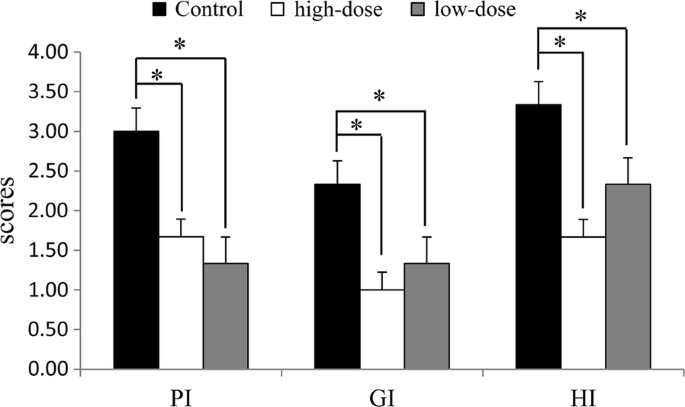

Fig. 7
Fig. 7

Effect of IgY on rat gingivitis and bad breath induced by P. gingivalis. The scores for oral health index are shown as mean ± SD (n = 3). *Means different at p < 0.05. For PI, p = 0.027, 0.025 compared the control with the high-dose and low-dose, respectively. For GI, p = 0.011, 0.032 compared the control with the high-dose and low-dose, respectively. For HI, p = 0.029, 0.036 compared the control with the high-dose and low-dose, respectively

The PI and GI were used to diagnose periodontal disease and monitor traditional parameters (Bolerazska et al. 2016). The HI is an organoleptic parameter. The perception of odor is dependent of the olfactory response, the threshold concentration, the strength of the odor and the volatility of the molecules. When organoleptic scoring is done, a well-trained clinician determines if the odor samples smells bad or not, giving a score to the intensity (Hu et al. 2007). These oral health indicators in rats reflected the success of P. gingivalis infection (Pancer et al. 2016). After treatment with IgY for 4 weeks, these indicators showed statistically significant differences compared with controls, similar to previous research (Bostanci et al. 2013).

Effect of IgY on levels of IL-6 and TNF-α in serum

Abnormally high levels of inflammatory factors were seen in the control (Fig. 8). After treatment with IgY for 4 weeks, the levels of IL-6 and TNF-α in the low-dose group decreased significantly (p < 0.05). At the high-dose, the level of IL-6 was significantly (p < 0.01) lower as was the level of TNF-α (p < 0.05) compared to control. IL-6 and TNF-α in rat serum promote the production of inflammatory factors (Pan et al. 2017). These markers can be studied both in vitro and in vivo to learn more about the impact of the treatment. The experimental rats’ serum stimulated a pro-inflammatory response induced by infection of P. gingivalis, while the treatment with IgY decreased the levels of IL-6 and TNF-α and shifted the immune response towards an anti-inflammatory response (Bollen and Beikler 2012).

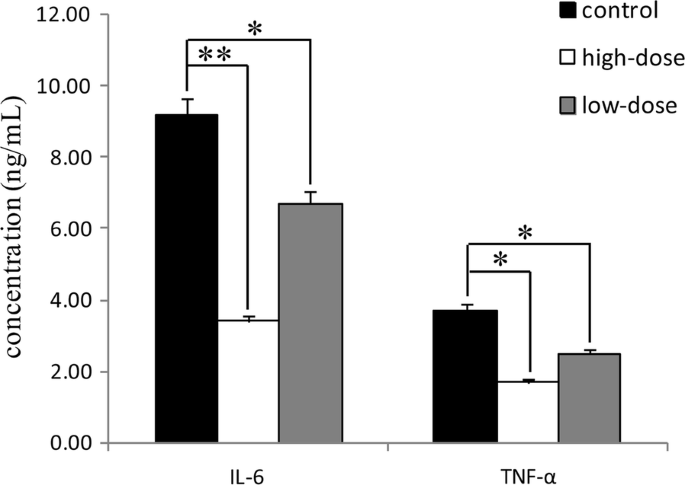

Fig. 8
Fig. 8

The levels of IL-6 and TNF-α in serum rats. The levels of IL-6 and TNF-α was measured using an ELISA Kit. Data are shown as mean ± SD (n = 3). *Means different at p < 0.05, **Means different at p < 0.01. For IL-6, p = 0.007, 0.038 compared the control with the high-dose and low-dose, respectively. For TNF-α, p = 0.032, 0.045 compared the control with the high-dose and low-dose, respectively


In the present study, IgY showed significant inhibitory effects on the bacterial growth of P. gingivalis (Fig. 1) and the production of bacterial metabolites under in vitro (Figs. 2, 3 and 4) and in vivo (Figs. 5 and 6) conditions, as well as moderate inhibitory effects on the development of periodontal inflammation and halitosis. IgY both reduced the growth speed of P. gingivalis and decreased the concentrations of their metabolites to a greater degree than non-specific IgY, whereas the clinical symptoms of periodontal inflammation and halitosis were also suppressed (Fig. 7). These results suggest that IgY has multiple suppressive effects on periodontal inflammation and halitosis induced by P. gingivalis.

The chronic periodontal inflammation appears to increase the patients’ risk for cardiovascular diseases (Genco and Van Dyke 2010), diabetes (Simpson et al. 2015), cancer (Babic et al. 2015), chronic respiratory diseases (Cardoso et al. 2018), adverse pregnancy outcomes (Parihar et al. 2015), and possibly rheumatoid arthritis (Kharlamova et al. 2016). Indeed, conventional periodontal treatment is often not enough by itself to treat destructive inflammation. Developing innovative adjunctive therapeutic strategies in chronic periodontitis is becoming an urgent need. Some projects have been successfully tested to inhibit periodontitis in animal models including counteracting immune evasion (McIntosh and Hajishengallis 2012) or anti-cytokine therapy (Cui et al. 2017). Another approach to treating periodontitis is to the use of agents that promote the resolution of inflammation by major periodontal pathogens.

Some experiments revealed specific IgY can promote the resolution of inflammation in the pathogens infection diseased. Specific anti-Vibrio anguillarum IgY administration in fish tissues could reduce bacterial number and inflammatory cytokine expression, and enhanced the phagocytic activity of macrophages against V. anguillarum in vitro (Li et al. 2014). In the present study, two inflammatory cytokine expressions also were inhibited in the serum of rats by IgY against P. gingivalis (Fig. 8). IgY against Escherichia coli inhibited the growth of the pathogen in a dose-dependent manner and enhanced the phagocytosis of E. coli (Zhen et al. 2008). In the cystic fibrosis (CF) setting, entering Pseudomonas aeruginosa may be rapidly killed due to IgY against P. aeruginosa heightened local host response, reimbursing the compromised mucosal immunity and provides CF patients with immediate resistance to infection that reduces early colonization with P. aeruginosa and hamper the destructive progression into chronic infection (Thomsen et al. 2016). Specific anti-Staphylococcus aureus IgY between clinical and experimental mastitis caused by S. aureus can improve the milk quality and decrease bacterial counts in milk, moreover, the cure rates of mastitis by S. aureus mastitis were higher than that by penicillin (Zhen et al. 2009).

IgY was a potential alternative for therapy of the pathogen infection disease, which can stop the major periodontal pathogen from breaking gingival tissue and promote the resolution of inflammation. In the in vitro study, IgY obtained from hens immunized with Solobacterium moorei inhibited the growth of S. moorei and biofilm formation, meanwhile, in the in vivo study, it had ability to decrease the level of bacteria in the oral cavity of mice (Li et al. 2012). The IgY against P. gingivalis 122k-hemagglutinin A, which was one of the virulence factors of P. gingivalis could be useful in assessing the treatment of periodontal diseases induced by P. gingivalis (Tagawa et al. 2004). Anti-130k haemagglutinin IgY significantly inhibited P. gingivalis-associated haemagglutinating activity (Hamajima et al. 2007). P. gingivalis were able to evade immune surveillance and avoid clearance, which facilitates local invasions of periodontal tissues; while the host also generated immune responses to the bacterial challenge, which contributed to a bactericidal effect but may also lead to periodontal destruction (Ke et al. 2016), which may develop into periodontitis and halitosis. Treatments of periodontitis and halitosis were based on mechanical debridement of infectious sites and pharmacological antibacterial therapy (Huang et al. 2013). The treatments were costly and time consuming for the patient. Within the limitations of the present study, in the treatment of oral diseases infected by these pathogens specific IgY against oral pathogen was shown to be an effective immunotherapeutic substance that P. gingivalis is rigidified by combining with IgY.

In most cases, halitosis comes from the mouth itself. About 700 species of microbes collectively populate all human mouths. Some studies had shown that the periodontal microflora could be involved in the formation of halitosis, as they had the necessary enzymes and would have access to sulfur-containing peptides and amino acids in vivo (Loesche and Kazor 2002). We also performed metabolomics evaluations to elucidate the molecular basis of the effects of IgY against P. gingivalis. In the presence of IgY, a large number of metabolites showed changed concentrations, especially those in the VSC and VOC biodegradation, which were significantly decreased in a dose-dependent manner. VSC are produced by P. gingivalis from sulphur amino acids (Bollen and Beikler 2012) in the artificial saliva. Some researchers have found that intraoral bacteria metabolise desquamated epithelial cells and blood cells, leading to the production of VSC from cysteine and methionine and thus increasing the VSC values parallel to an increase in the scores for PI and GI (Migliario and Rimondini 2011). Previous work showed that tongue cleaning could be used to reduce bacteria as a treatment for halitosis in adults (Outhouse et al. 2006). Essentially any oral site in which microbial accumulation and putrefaction could occur may be an origin for oral malodor (Krespi et al. 2006). The methods to reduce halitosis included mechanical and chemotherapeutical. Mechanical reduction of malodor and of the intraoral bacterial count may be achieved by disrupting the tongue and tooth surface biofilm, thus decreasing the production of VSC and other VOC (Aung et al. 2015). Another method, reduction of oral malodor may be aided by the use of active antimicrobial compounds which decrease the bacterial load and thus decrease the VSC and VOC production (Bollen and Beikler 2012). However, the reduction was nonspecific, in other words, all bacterial types were reduced. From an immunological point of view, IgY produced by Helicobacter pylori whole-cell lysate had been reported to specificity prevent H. pylori infection (Horie et al. 2004). It was demonstrated that IgY was highly specific and had a significant effectiveness against pathogen. The advantages of IgY in the application included non-invasive during production, inexpensive, convenience of animal handling and cost effective regarding the high IgY concentration within the egg yolk (Muller et al. 2015).

Although the animals and their surroundings are specific pathogen free, and the models of periodontal diseases are typical in this study. However, behavioral difference (e.g., exercise, diet, cleanliness) between individuals and variability in host responses to bacterial infection may still lead to increased standard deviation of results. Because of drinking and eating after administration, the duration of action of IgY and changes in the oral environments such as pH and salivation may also result in differences in the efficacy of IgY. Nonetheless, we always strictly control these influences during the experimental operation, and try to be uniformity.

In conclusion, with IgY bacterial growth was inhibited, and the relative contents of VOC and VSC were decreased in vitro and in vivo. The scores for the oral health indexes and the levels of IL-6 and TNF-α were also decreased in the animal experiments. All treatment groups showed significant anti-inflammatory effects suggesting that IgY may be an effective treatment for the prevention of periodontal inflammation and halitosis.




egg yolk immunoglobulin


volatile organic compounds


volatile sulfur compounds


gas chromatography mass spectrometry


plaque index


gingival index


halitosis index




tumor necrosis factor α


cystic fibrosis


Authors’ contributions

WQ: Data collection and statistical analysis; FW: Study design, data collection, statistical analysis, manuscript preparation and literature search; XX: Literature search and funds collection; SW and JMR: Literature search and funds collection; BB and MM: Study design, literature search and funds collection. All authors read and approved the final manuscript.


The authors would like to thank Shanghai Maxam Ltd. for their material support for the project.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

Not applicable.

Consent for publication

Not applicable.

Ethics approval and consent to participate

All applicable international, national, and/or institutional guidelines for the care and use of animals were followed.


Not applicable.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

College of Food Science and Technology, Shanghai Ocean University, No. 999 Hucheng Ring Road, Pudong New Area, Shanghai, 201306, China
Shanghai University of Medicine & Health Sciences, Shanghai, 201318, China
Shanghai MAXAM Company Limited, Shanghai, 200333, China
Co-Innovation Center of Jiangsu Marine Bio-industry Technology, Huaihai Institute of Technology, Lianyungang, 222005, China
Department of Food Science, Cornell University, Ithaca, NY 14853-7201, USA
Laboratory of Quality and Safety Risk Assessment for Aquatic Products on Storage and Preservation (Shanghai), Ministry of Agriculture, Shanghai, 201306, China
