Cloning a novel endo-1,4-β-d-glucanase gene from Trichoderma virens and heterologous expression in E. coli
AMB Express volume 6, Article number: 108 (2016)
Endo-1,4-β-d-glucanase (EG), as a key constituent of cellulase taking the responsibility of cutting β-1,4 glycosidic bonds, plays the essential role in the process of degrading cellulose by cellulase. Cloning and expressing the EG gene is important to the cellulase research and application. In this work, a novel EG gene was cloned from Trichoderma virens ZY-01, which was a cellulase secreting microbe isolated by our laboratory. The DNA sequence showed that the length of the cloned EG is 1069 bp, which had 95.2% similarity to the EG IV from T. viride AS 3.3711. Further, the expression vector pET-32a-EG was constructed and was successfully heterologously expressed in Escherichia coli. The expression product was purified with Ni2+ affinity chromatography and its enzymatic properties were investigated. The SDS-PAGE showed the target protein is 39 kDa, which is consistent with the translated result from the DNA sequence. The kinetic parameter for the expression product was Km = 13.71 mg/mL and Vmax=0.51 μmol/min·mL. The optimal reaction pH and temperature was pH = 7.0 and T = 40 °C, which is similar to the native EG produced by Trichoderma virens ZY-01. It provides the foundation for the endo-1,4-β-d-glucanase further evolution and application.
Cellulose, as a kind of renewable bioresource, is the most abundant biomass in nature. In the global world, the output of cellulose and hemicellulose is over 75 billion ton each year (Fang and Xia 2015a; Yücel and Aksu 2015). Hydrolysis of cellulose and hemicellulose to fermentable sugars is an economical and promising route for cellulose biomass utilization. Cellulase plays the key role in the route of cellulose utilization with biological technology (Fang and Xia 2015a). It is helpful to solve energy crisis, food shortage and environmental pollution.
Endo-1,4-β-d-glucanase (or endoglucanase, EG) is the major constituent of cellulase, which catalyzes the hydrolysis of the 1,4-β-d-glycosidic linkages in cellulose, hemicellulose, lichenin, and cereal β-d-glucans (Karlsson et al. 2001). The species of EG family is very numerous. In previous, some EG and its gene from various microbe were reported (Fang and Xia 2015b; Lhotak et al. 1988; Murray et al. 2003). Some EG gene was further overexpressed in Saccharomyces cerevisiae since S. cerevisiae preliminary post modification ability (Akcapinar et al. 2011; Huang et al. 2010; Qin et al. 2008; Wang and Zhang 2003). Also, some other constituent of cellulase have also been expressed in yeast system to improve its productivity (Barros and Thomson 1987; Fang and Xia 2013; Haan et al. 2007; Tang et al. 2009; Teng et al. 2007). However, discovery novel enzyme is always the eternal theme to enzyme research. In our previous work, we have isolated a novelty Trichoderma virens ZY-01, which can secrete high activity cellulase (Zeng et al. 2016). Especially, the EG enzyme activity is very outstanding. To clone the EG gene and express it in conventional heterologous host cell is very helpful to the cellulase research and its application.
In this work, an EG gene was cloned from the T. virens ZY-01 mRNA. Furthermore, it was expressed in Escherichia coli with pET-32a plasmid. Also, the enzymatic properties of the expression product (EG) were further investigated.
Materials and methods
Fungus Trichoderma virens ZY-01 (China patent ZL. 201210295819.6) was used for extract the total mRNA. This strain was isolated by our laboratory, which was collected in China Center for Type Culture Collection (CCTCC) with numbered M2012205 (Zeng et al. 2016). E. coli DH5α and E. coli BL21 (DE3) were respectively used for plasmid amplification and expression host cell. The pET-32a plasmid with ampicillin resistance was used as the cloning and expression vector. The modified Czapek medium was used for T. virens ZY-01 culture with composition as: NaNO3 3 g, K2HPO4 1 g, MgSO4 0.5 g, KCl 0.5 g, FeSO4 0.01 g, sucrose 20 g, CMC-Na 5 g, water 1 L. The Luria–Bertani medium was used for E. coli DH5α and E. coli BL21 (DE3) culture with composition as: tryptone 10 g, yeast extract 5 g, NaCl 10 g, water 1 L. The agar plate medium was the corresponding liquid medium with addition of 1.5% agar.
Total RNA extraction from T. virens ZY-01
The total RNA of T. virens ZY-01 was extracted from its spores. The T. virens ZY-01 was inoculated on Czapek medium agar plate and incubated at 30 °C for 2–3 days. When the mycelium turn green and abundant spores appear, the green spores were collected and washed with ddH2O treated by DEPC. The collected spores were grinded in liquid nitrogen, and the mRNA of T. virens ZY-01 was extracted with RNAprep Pure Plant Kit (Tiangen Biotech, Beijing) according to the kit manual.
EG gene clone from T. virens ZY-01
The EG gene was obtained by RT-PCR amplification using cDNA as the template,the corresponding signal peptide was removed. The cDNA was synthesized from the mRNA extracted from T. virens ZY-01 with the RevertAid First Strand cDNA Synthesis Kit (Thermo Scientific™). The primers for EG PCR were: Forward primer 5′-GCCATGGCTGATATCGGATCCCTGCTGGTTAC CGCTCTGGC-3′ (with BamHI cleavage sites) and Reverse primer 5′-CTCGAGTGCGGCCGC AAGCTTGTTCAGGCACTGAGCGTAG-3′ (with HindIII cleavage sites). The PCR reaction conditions were: prepared denaturation at 95 °C for 5 min, 94 °C denaturation for 1 min, 59 °C annealing for 45 s, 72 °C extension for 90 s, repetition for 34 cycles, followed by final 72 °C extension for 10 min. The cloned EG gene was sequenced by Sangon Biotech (Shanghai) Co., Ltd and the EG gene nucleotide sequence was deposited in GenBank® database with an accession number KX931112.
Construction of E. coli BL21(DE3)/pET-32a-EG recombinant heterologous expression systems
The EG gene was inserted into plasmid pET-32a with ligation reaction between the digested EG PCR fragment and pET-32a by BamHI and HindIII. After the insertion of EG gene into pET-32a, the recombinant plasmid pET-32a-EG was obtained, this was the expression vector. The expression vector pET-32a-EG was verified with colony PCR and double restriction endonuclease digestion. Furthermore, the EG gene was sequenced. To express EG gene, the vector pET-32a-EG was transformed into E. coli BL21(DE3) with electroporation, then the recombinant E. coli BL21(DE3)/pET-32a-EG was obtained.
Expression and purification of recombinant EG in E. coli BL21(DE3)/pET-32a-EG
The E. coli BL21(DE3)/pET-32a-EG was inoculated in Luria–Bertani medium containing 100 μg/ml ampicillin and incubated at 37 °C. When OD600nm reached to 0.4–0.6, IPTG (Isopropyl β-d-Thiogalactoside) was added to induce EG expression at 30 °C for 6 h. After culture, the cell was collected from the culture broth by centrifuge (10,000×g for 10 min). The cell sludge was washed with Tris–HCl buffer. To release the expression product, the cell was lysed sonication. After remove the cell debris with centrifuge, the crude EG enzyme solution was prepared. The EG was further purified by affinity chromatography with Ni2+ affinity resin (Profinity IMAC Resins, Bio-rad Shanghai, China).
Evaluation of enzymatic properties
The following enzymatic properties of the EG expressed by the E. coli BL21(DE3)/pET-32a-EG were evaluated. The optimum pH, temperature and effects of metal ions to the enzyme activity were investigated. Also, the Michaelis–Menten kinetic constants (Km) and maximum velocity (Vmax) for substrate CMC-Na were determined based on the initial reaction rate and the model was fit with least squares. The general procedure for enzymatic properties investigation as following: 1 mL of enzyme solution was added into 1 mL reaction mixture containing 0.5% CMC-Na (Carboxymethylcellulose sodium) in citrate buffer (pH = 7.0), and incubated for 1 h at a given temperature 45 °C. After incubation, the reducing sugar (product) was measured and the EG enzyme activity was assayed. To evaluate the various effect factors on the enzyme activity, the corresponding factor was changed. The temperature range was from 30 to 90 °C, and pH was range from 2 to 12, the buffering systems at various pH were acetate buffer (pH 2.0–3.0), citrate buffer (pH 4.0–6.0), phosphate buffer (pH 6.0–8.0), Tris–Hcl buffer (pH 8.0–10.0), Glycine-NaoH buffer (pH 10.0), Kcl–NaoH buffer (pH 11.0–12.0), and the concentration of metal ions was 1 mmol/L. All of the above experiments were completed in triplicate, and average values were calculated based on results from the three independent experiments.
EG activity assay
EG activity assay was based on the ability of catalyzing the hydrolysis of standard CMC-Na to reducing sugar (Dashtban et al. 2010). The assay for EG activity was carried out with mixing 1 mL of reaction mixture (containing 0.1% (w/v) CMC Na with pH 5.0 citric acid buffer) and 1.0 mL of enzyme solution and incubating at 50 °C for 1 h. Then the reducing sugar produced by the reaction was determined by 3,5-Dinitrosalicylic acid (DNS) method (Miller 1959). One unit of the EG enzyme activity was defined as the amount of enzyme that catalyzed to produce 1 μmol of reduced sugar per minute with the reduction of CMC-Na. The corresponding experiments were conducted in triplicate, and average values were calculated based on results from the three independent experiments.
Cloning and sequence analysis of EG gene from T. virens ZY-01
The total RNA was extracted from the T. virens ZY-01 spores with RNAprep Pure Plant Kit after lysis the spores in liquid nitrogen. The RNA sample was detected with agarose gel electrophoresis, and the results indicated that the total RNA was pure and intact (the photography of T. virens ZY-01 spores and agarose gel of total RNA was respectively given in Additional file 1: Figures S1, S2).
The EG gene was cloned from T. virens ZY-01 total RNA by RT-PCR. The RT-PCR product was determined by agarose gel electrophoresis. The gel result, which given in Fig. 1, showed that the PCR product was single band and the product size was about 1010 bp. The DNA was sequenced by Sangon Biotech (Shanghai) Co., Ltd. The sequence result showed that the length of EG gene is 1069 bp, which encoded 356 aa. The nucleotide sequence was deposited in GenBank with an accession number KX931112. We conducted the BLAST on NCBI and found that this EG gene was very similar to the EG IV gene from Trichoderma viride strain AS 3.3711. The similarity for DNA was 95.2% (the detail information was given in Additional file 1: Figure S3). So it can be deduced that the cloned gene from T. virens ZY-01 is EG IV.
Construction of E. coli BL21(DE3)/pET-32a-EG recombinant heterologous expression systems
To express the EG in E. coli, an efficient expression vector containing the EG gene is essential. The corresponding vector was constructed through insertion of the EG gene fragment into pET-32a with ligase using the digested EG gene fragment and plasmid by BamHI and HindIII. To verify the recombinant plasmid pET-32a-EG, it was used to transform E. coli DH5α for plasmid amplification. The clony PCR for the transformant was used to preliminarily verify the plasmid pET-32a-EG. The agarose gel for the clony PCR was shown in Additional file 1: Figure S4. It showed that the EG gene was insert into E. coli DH5α. In order to further confirm the pET-32a-EG vector, the plasmid was extracted from the transformant and double digested with BamHI and HindIII. Figure 2 was the agarose gel for the digestion product. The gel showed that there were two bands, one was about 5900 bp, and the other was about 1060 bp, they were respectively for the plasmid pET-32a and EG gene. This evidenced that the expression vector pET-32a-EG was successfully constructed.
To express the EG, the vector pET-32a-EG was transformed into E. coli BL21(DE3) by electroporation. The transformant, E. coli BL21(DE3)/pET-32a-EG, was selected with LB medium agar plate with ampicillin.
Expression of EG IV gene in E. coli BL21(DE3)/pET-32a-EG

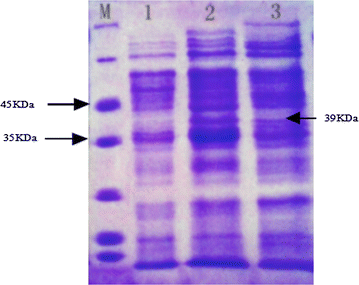

The EG was expressed by E. coli BL21(DE3)/pET-32a-EG in Luria–Bertani medium with IPTG. The supernatant and cell was collected from the culture broth by centrifugation. The supernatant and sediment were respectively disposed with SDS-PAGE loading buffer and boiled at 100 °C for 5 min. Then they were detected with SDS-PAGE. The results were given in Fig. 3. Based the EG gene DNA sequence, the aa of EG can be deduced. The expression product would be about 39 kDa. The SDS-PAGE showed that the EG was expressed in E. coli BL21(DE3)/pET-32a-EG was also about 39 kDa. The supernatant and cell debris of recombinant cells after lysing were detected by SDS-PAGE, Fig. 4 is the gel results. Comprehensive analyzing of the results Figs. 3 and 4, it verified that the target protein is an intracellular enzyme. It was not secreted to the extracellular broth. Overcoming the solubility problem of expression eukaryotes protein in E. coli is always a challenge (Correa and Oppezzo 2015). In the paper, we adopted a soluble vector pET-32a, and the target protein was detected in supernatant after lysing cells. This verified that pET-32a is a suitable vector for T. virens EG expression.
In order to purify the recombinant EG, the affinity chromatography with Ni2+ affinity resin was used since the expression product with pET-32a contains a His-tag. The EG was collected from the eluent. Figure 5 is the SDS-PAGE for the purified product. The targeted band was a single band with 39 kDa, which is consistent with the result deduced from the DNA sequence. Li et al. reported cloning EG I gene from T. viride and expressed in Bombyx Mori, the target protein was about 49 kDa (Li et al. 2010). Huang et al. reported an EG VIII from T. viride AS3.3711, encoding a 438 amino acid protein with 46.86 kDa of molecular mass (Huang et al. 2010). This shows that the similar constituent of EG was with different molecular mass.
Properties of EG expressed by E. coli BL21(DE3)/pET-32a-EG
The enzymatic properties are the fundamental enzymology data to an enzyme research and application. They are essential to its application. Firstly, the enzymatic properties such as effect of reaction temperature, pH and metal ions to enzyme activity were investigated. Furthermore, the kinetic parameters of the EG expressed by E. coli BL21(DE3)/pET-32a-EG was also determined. The results of reaction temperature, pH, metal ions to enzyme activity and the enzymatic stability were presented in Fig. 6. The relative enzyme activity was applied to indicate the effect, which was defined as the highest enzyme as 100% relative enzyme activity.
The results showed that the EG activity was highest at 40 °C, which was lower than the EG gene expressed in silkworm cell line (Li et al. 2010). When further increased the reaction temperature, the enzyme activity would sharply decrease due to the EG thermal inactivation. To pH condition, the EG can obtain the highest enzyme activity at pH 7.0, so the optimum reaction pH is 7.0, which was same to the EG expressed in silkworm cell line (Li et al. 2010). The metal ions and its concentration may influence the enzyme activity, the research result showed that the Mn2+ and Fe3+ could significantly activate the EG activity, while Ni2+ slightly inhibit the enzyme activity. The appropriate Mn2+ concentration was 2.5 mmol/L, with this concentration the highest EG activity can reached.
The kinetic parameters of the EG expressed by E. coli BL21(DE3)/pET-32a-EG was evaluate based on Michaelis–Menten model. The Km and Vmax to substrate CMC-Na was calculated by fitting the model with least squares. Vmax is 0.51 μmol/min·mL and Km is 13.71 mg/mL. The fitting curve was showed in Additional file 1: Figure S5.
In order to find another more effective gene encoding endoglucanase, a novel endo-β-1, 4-glucanase gene from T. virens was cloned and successfully expressed in E. coli BL21 (DE3) in this paper. Nowadays, it is very important to produce bioethanol as a fuel from recycling of biomass resources. To exploit large quantities of cellulase with high bioactive efficiency is important to the bioethanol industry, which can efficiently hydrolyze cellulose biomass to fermentable sugar (Zaldivar et al. 2001). The cellulase was mainly secreted from eukaryotic microbe. Heterologous expression is an efficient route to improve cellulase productivity. There may be many problems to express gene from eukaryotic organism in procaryotic organism (Barros and Thomson 1987) especially applying the most common E. coli as the host cell (Akcapinar et al. 2011). However, prokaryotic expression system is a mature system; also it is easy to be cultured and high productivity (Tang et al. 2009). However, we adopted the plasmid pET-32a, which contained an extra label encoding thioredoxin to help disulfide bond folded correctly.
The enzymatic properties are the fundamental bioinformation for enzyme production and application. Temperature could speed up the reaction, but the activity of recombinant endoglucanase would fade along with the increasing temperature (Andreaus et al. 1999). The results showed that the optimal temperature for EG in this work is about 40 °C, it was lower than the endoglucanase expressed in silkworm cell line (Li et al. 2010). But the optimal temperature is obvious higher than the crude enzyme production by Trichoderma reesei on straw substrate, which was about 27 °C (Rosyida et al. 2015). The pH value can affect the enzyme structure and its activity, the optimal pH value for the EG expressed in this work is same to which expressed in silkworm cell line (Li et al. 2010).
In summary, we have successfully cloned the EG gene from T. virens ZY-01 through RT-PCR, and constructed the expression vector plasmid pET32a-EG. The EG was effectively expressed in E. coli BL21(DE3)/pET32a-EG. The SDS-PAGE result showed that the target protein was soluble intracellular enzyme. The EG enzyme activity in various condition was determined. In present paper, the recombinant EG exhibited a high specificity and hydrolysis capacity against CMC. These advantages make it a very potential application in industry.
