Effects of NaCl concentration on anode microbes in microbial fuel cells
AMB Express volume 5, Article number: 34 (2015)
Understanding of how operational parameters affect the composition of exoelectrogenic microbes is an important step in the development of efficient microbial fuel cells (MFCs). In the present study, single-chamber MFCs were inoculated with rice paddy-field soil and continuously supplied with an acetate medium containing different concentrations of NaCl (0–1.8 M). Polarization analyses showed that power output increased as the NaCl concentration increased to 0.1 M, while it was markedly diminished over 0.3 M. The increase in power output was associated with an increased abundance of anode microbes as assessed by protein assays. Notably, the power increase was also accompanied by an increase in the abundance ratio of Geobacter bacteria to total anode bacteria as assessed by pyrosequencing of 16S rRNA gene amplicons and specific quantitative PCR. Although most Geobacter species are known to exhibit high growth rates in freshwater media without NaCl, the present study shows that 0.1 M NaCl facilitates the growth of Geobacter in MFC anode biofilms. This result suggests that the optimum salt concentration in MFC is determined by the balance of two factors, namely, the solution conductivity and salt tolerance of exoelectrogens.
Microbial fuel cells (MFCs) are devices that use living microbes for the generation of electricity coupled to the decomposition of organic matter (Logan et al. 2006; Watanabe 2008; Pant et al. 2010). Owing to the great diversity of microbial metabolic capacities, MFCs are capable of generating electricity from a wide range of organic and inorganic compounds. Furthermore, MFCs can generate electricity from biomass waste and pollutants in wastewater by exploiting naturally occurring microbial communities as self-organizing anode catalysts (Rozendal et al. 2008; Lefebvre et al. 2011). Due to these advantageous properties, extensive efforts are being made to develop MFCs as energy-saving and cost-efficient options for wastewater treatment (Du et al. 2007; Lefebvre et al. 2011).
For MFCs to be practically applied to renewable energy generation, several factors need to be improved, particularly power outputs. Power outputs from MFCs are affected by numerous factors, including cell configuration, electrode materials, microbial inocula, substrates, and electrolyte compositions (Kim et al. 2007; Rinaldi et al. 2008). Among these factors, the composition of electrolyte has been shown to critically affect various aspects of MFC performance. For instance, proton carriers, such as phosphate and carbonate ions, improve the kinetics of proton transfer, resulting in enhanced power output (Fan et al. 2007). Electrolyte salt concentrations (correlated with ionic strength) have also been shown to affect MFC power output (Liu et al. 2005; Heilmann and Logan 2006; Mohan and Das 2009; Lefebvre et al. 2012; Rousseau et al. 2013). The findings from these studies are useful for the development of MFCs for wastewater treatment, as wastewater salinity varies markedly depending on the geographical region (Lefebvre and Moletta 2006; Lefebvre et al. 2012). In addition, the salt concentration of the aqueous phase may influence microbial metabolic activities (McCarty and McKinney 1961). Although the potential effects of salt concentration on microbes, including exoelectrogens, in MFCs have previously been discussed (Lefebvre et al. 2012), no studies have examined the effects of salt concentration on anode microbes in MFCs.
The present study was undertaken to examine the effects of different concentrations of NaCl on anode microbes and power generation of MFCs. MFCs were inoculated with rice paddy-field soil and operated at NaCl concentrations ranging from 0 to 1.8 M for examining potential interdependencies among NaCl concentration, power output, and anode microbes.
Materials and methods
Reactor configuration and operation
The MFCs used in the present study are shown in Figure 1. Three MFC units were housed in a single MFC box but were operated independently. Each unit was equipped with a cassette electrode (Shimoyama et al. 2008) which consisted of two sets of air cathodes (Cheng et al. 2006), separators and graphite felt anodes (5-mm thickness; Sohgoh Carbon, Yokohama, Japan) and were prepared as described previously (Miyahara et al. 2013). The anode and cathode had projected areas of 68 and 65 cm2, respectively. The liquid capacity of each unit was approximately 300 mL. The liquid surface was covered with a polystyrene board, and the reactor boxes were placed in a water bath at 30°C during operation. MFCs were continuously supplied with an acetate medium (pH 7.0) containing (per liter) 820 mg sodium acetate (10 mM), 50 mg BBL yeast extract, 175 mg NH4Cl, 5.26 mg KH2PO4, 22.05 mg CaCl2·2H2O, 0.43 mg MgSO4·7H2O, 21.3 mg KCl, 8.76 mg NaHCO3, and 1 mL of trace element solution (DSMZ 663; Deutsche Sammlung von Mikroorganismen und Zellkulturen GmbH).
The operation of MFCs was initiated by inoculating each reactor with 1 g rice paddy-field soil (collected from Noda, Chiba, Japan) and supplying the acetate medium at a flow rate of 300 ml day−1, corresponding to a hydraulic retention time of 1 day, using peristaltic pumps (SJ1220, Atto, Tokyo, Japan). The anodes and cathodes of each unit were connected via an external resister (R ext [Ω]), and the voltage across the resister (E [V]) was monitored using a data logger (GL820, Graphtec, Yokohama, Japan). Current (I [A]) was calculated from R ext and E according to the Ohm’s law (I = E/R ext).
Chemical analyses and evaluation of MFC performance
Polarization curves were measured by linear sweep voltammetry (LSV) using a potentiostat (HZ-5000, Hokuto Denko, Tokyo, Japan) at a scan rate of 0.5 mV s−1, and power curves were generated based on the polarization curves (Logan et al. 2006). In these analyses, current and power densities (J [A m−2] and P [W m−2], respectively) were calculated based on the projected anode area. Open-circuit voltage (E op [V]), maximum power density (P max), and internal resistance (R int [Ω]) were then determined from the polarization and power curves. Acetate was measured using a high performance liquid chromatograph (1100 series; Agilent Technologies, Tokyo, Japan) equipped with a Zorbax SB-Aq column (Agilent Technologies) as described elsewhere (Newton et al. 2009).
Analyses of anode microbiomes
Pieces of graphite felt were cut from anodes on both sides of the cassette electrode on day 82 of MFC operation and were stored at −20°C. To determine the total protein content of anode to estimate the total microbial biomass, proteins were extracted from the anode pieces (0.5 cm2) using B-PERII reagent (Pierce, Rockford, IL, USA) and were quantified using a BCA protein kit (Pierce) as described previously (Shimoyama et al. 2009).
DNA was extracted from the pieces of graphite-felt anodes (0.5 cm × 0.5 cm) using a Fast DNA Spin Kit for Soil (Q-Bio, Carlsbad, CA, USA) according to the manufacturer’s instruction and was finally dissolved in 50 μl of the DES solution supplied in the kit. For sequence analyses, PCR amplification of 16S rRNA gene fragments (V1–V3 region) was performed using primers ad-tag-8F (5′-CGTATCGCCTCCCTCGCGCCATCAGXXXXXXGAGTTTGATCMTGGCTCAG-3′) and ad-533R (5′-CTATGCGCCTTGCCAGCCCGCTCAGTTACCGCKRCTGCTGRCAC) (Watanabe et al. 2004), in which the underlined sequences are adaptors added for pyrosequencing and XXXXXX represents an arbitrary tag sequence for sample identification (Dowd et al. 2008). The PCR conditions were as described elsewhere (Miyahara et al. 2013), and amplicons were purified using a QIAquick PCR Purification Kit (Qiagen K. K., Tokyo, Japan). Amplicons from different samples were mixed at the same concentration (1 ng μl−1 each) and then subjected to pyrosequencing using a Genome Sequencer FLX system (Roche Applied Science, Tokyo, Japan). Phylogenetic analyses were conducted using the Silva rRNA database (http://www.arb-silva.de/), and a tree was constructed by the neighbor-joining method using MEGA5 (Tamura et al. 2011). Nucleotide sequences determined in the present study were deposited into the DDBJ Sequence Read Archive Database (accession numbers: DRX025202 to DRX025213 and DRR027607 to DRR027618).
The abundance ratio of Geobacteraceae bacteria to total bacteria in the anode microbes was evaluated by quantitative real-time PCR (qPCR), as described previously (Kato et al. 2010). Briefly, real-time PCR was performed using a LightCycler system and LightCycler DNA Master SYBR Green I kit (Roche Applied Science) according to the manufacturer’s instructions. 16S rRNA genes of Geobacteraceae bacteria were amplified using the primer pair Geo494F and Geo825R (Holmes et al. 2002), while those of total bacteria were amplified using the primer pair 341f and 534r (Watanabe et al. 2001). Standard curves for Geobacteraceae and total bacteria were generated using serially diluted genomic DNA extracted from Geobacter sulfurreducens (10 pg µl−1 to 100 ng µl−1). The abundance ratio was calculated by dividing the 16S rRNA gene copy number of Geobacteraceae bacteria by that for total bacteria.
Effects of NaCl concentration on power output
We examined the power outputs from MFCs supplied with the acetate medium containing NaCl at concentrations of 0, 0.05, 0.1, 0.3, 0.6 and 1.8 M (0M-MFC, 0.05M-MFC, 0.1M-MFC, 0.3M-MFC, 0.6M-MFC and 1.8M-MFC, respectively). These NaCl concentrations were selected to mimic freshwater (0 M), brackish water (0.05–0.3 M), seawater (0.6 M) and hyper-saline lakes (1.8 M). Since concentrations of other electrolyte ions were low (sodium acetate [10 mM] was the highest), NaCl was the major determinant of ionic strength in the electrolyte.
The operation of MFCs was initiated with R ext of 10,000 Ω, and it was decreased when E exceeded 600 mV (Figure 2a, d). In 0M-, 0.05M- and 0.1M-MFCs, E relatively rapidly increased (Figure 2b) and R ext was finally maintained at 300 Ω (Figure 2a). In contrast, E slowly increased in 0.3M-MFC (Figure 2e), but I only reached 0.04 mA during the 100-day operation (Figure 2f). Furthermore, E only slightly increased in 0.6M- and 1.8M-MFCs and did not exceed 100 mV (Figure 2e). In all of the MFCs, the acetate concentration in the reactor effluent was between 1 and 5 mM; it is noteworthy that the removal of organics was partially attributable to oxygen respiration in air–cathode MFCs (Shimoyama et al. 2008). Taken together, these results indicate that the NaCl concentration largely influenced the MFC performance and should be below 0.1 M for electricity generation in MFCs inoculated with paddy-field soil.

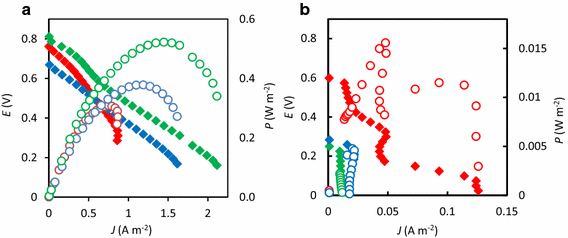

Polarization analyses were conducted once electric output of these MFCs became stable (after day 60), and representative data are presented in Figure 3. Mean polarization parameters estimated for these MFCs during day 60–100 are summarized in Table 1. Although typical polarization and power curves were obtained for the 0M-, 0.05M- and 0.1M-MFCs (Figure 3a), those for the other MFCs operated at higher NaCl concentrations were atypical (Figure 3b). In addition, E op values of 0.3M-, 0.6M- and 1.8M-MFCs were low, suggesting that these MFCs operated poorly as fuel cells. The polarization data (Table 1) show that the MFC performance of 0M-, 0.05M to 0.1M-MFC increased with increasing NaCl concentration.
Effects of NaCl on anode microbes

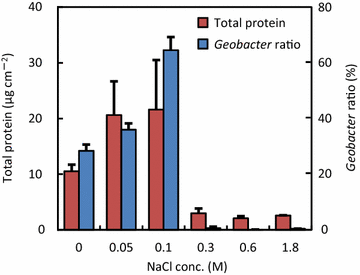

To examine the effects of NaCl concentration on anode microbes in MFCs, we first analyzed the total protein content of anode samples as a surrogate measure of the abundance of microbes attached to the anodes. We found that microbes were the most abundant on the anodes of the 0.05M- and 0.1M-MFCs, followed by the 0M-MFC (Figure 4), whereas anode microbes in the 0.3M-, 0.6M- and 1.8M MFCs were only one tenth to one-fifth as abundant as those in the 0.1M-MFC (Figure 4). Interestingly, these findings suggest that there is a threshold NaCl concentration between 0.1 and 0.3 M that determines the growth of anode microbes in MFCs.
Analyses of MFC anode-associated microbial communities frequently detect bacteria affiliated with the family Geobacteraceae which includes well-characterized exoelectrogens, such as Geobacter (Logan 2009). In the present study, qPCR was used to examine if Geobacteraceae bacteria were present among anode-associated microbes in the MFCs (Figure 4). Geobacteraceae bacteria were substantially detected in the 0M-, 0.05M-, and 0.1M-MFCs, and their abundance ratio relative to total bacteria increased with increasing NaCl concentration, reaching over 60% in the 0.1M-MFC. However, Geobacteraceae bacteria were not substantially detected in MFCs with NaCl concentrations of 0.3M or higher.
To confirm that the observed effects of NaCl on electricity generation were associated with the growth of anode-associated Geobacteraceae bacteria, the abundance of Geobacteraceae bacteria as expressed by the Geobacteraceae protein content were estimated from the total-protein content and their abundance ratio, and the estimated values are compared with P max values at the different NaCl concentrations (Figure 5). A close correlation was clearly detected between these values, confirming that Geobacteraceae bacteria were responsible for the MFC power generation.
To further characterize anode-associated microbes in the MFCs, we conducted pyrosequencing and phylogenetic analyses of PCR-amplified 16S rRNA gene fragments. Figure 6 presents the abundance ratios of bacterial groups classified at the class level in each MFC. As expected, the relative abundance of the class Deltaproteobacteria, which includes the family Geobacteraceae, increased as the NaCl concentration increased from 0 to 0.1 M; this class comprised over 60% of the total bacteria in the 0.1M-MFC. However, the community structure dramatically differed at NaCl concentrations of 0.3 M and higher; members of the class Gammaproteobacteria were the most abundantly detected at 0.3 and 0.6 M, whereas Bacilli was the most abundant at 1.8 M.
In order to show what sequences constituted the major class-level taxonomic groups in Figure 6, major sequences (>1% to the total sequence in each library) are listed in Table 2. It is shown that the Deltaproteobacteria detected at 0–0.1 M NaCl are comprised of several major sequences affiliated with the genus Geobacter, the Gammaproteobacteria detected at 0.3 and 0.6 M includes major sequences affiliated with Pseudomonas and Aeromomas, while the Bacilli detected at 1.8 M NaCl was Staphylococcus. The major Geobacter sequences (MFC1 to MFC4) were further analyzed to identify exact phylogenetic positions (Figure 7); in this figure, Geobacter sequences are divided into three clades according to a previous study (Holmes et al. 2007). This analysis shows that MFC1 affiliated with the G. metallireduces clade was seen only at 0 M NaCl, while MFC2, the most abundant sequence at 0.05 M and 0.1 M NaCl, is affiliated with the subsurface clade 2. It is suggested that the high power density observed in 0.1M-MFC was attributed to the preferential growth of subsurface clade 2 Geobacter at 0.1 M NaCl.
The present study shows that interdependencies exist among salt concentration, power outputs, and anode exoelectrogens in MFCs. Clear correlation was detected between the power output and abundance of Geobacteraceae bacteria (Figure 5), suggesting that NaCl affects the physiology and growth of these exoelectrogens.
The abundance of Geobacter bacteria increased as the NaCl concentration increased from 0 to 0.1 M, while these were markedly decreased above 0.3 M NaCl (Figures 5, 6). This trend is consistent with the fact that members of this family have mostly been isolated from freshwater environments and preferentially grow in freshwater media without NaCl (Lovley et al. 2011). In addition, physiological characterization of Geobacter isolates has demonstrated that they tolerate up to 10 g NaCl per liter (0.17 M) (Nevin et al. 2005). Given these features of Geobacter bacteria, the low electric outputs at 0.3 M NaCl and higher are likely attributable to the inability of these exoelectrogens to grow at these NaCl concentrations. In contrast, the finding that anode-associated Geobacteraceae bacteria preferentially grow at 0.1 M NaCl is notable, and this feature may be specific for those growing by anode respiration in MFCs. This clearly demonstrates that a certain level of the ionic strength (corresponding to the solution conductivity) is required for anode respiration by exoelectrogens. Although a salt-tolerant strain of Geobacter that can generate electricity in an MFC at 0.65 M NaCl was recently isolated and characterized (Sun et al. 2014), this strain also preferentially generates electricity at ionic strengths corresponding to 0.1 M NaCl or lower. These observations suggest that the optimum NaCl concentration (0.1 M NaCl in the present study) is determined by the balance of the two factors, namely, the solution conductivity and salt tolerance of exoelectrogens. Future research will examine transcriptomic responses of Geobacter exoelectrogens to different concentrations of NaCl.
At NaCl concentrations of 0.3 M and higher, bacteria affiliated with Gammaproteobacteria and Bacilli were abundantly detected (Figure 6). Major genera in these phyla are Pseudomonas, Aeromomas and Staphylococcus; among these, Pseudomonas (Boon et al. 2008) and Aeromomas (Pham et al. 2003) are known to include exoelectrogens, while direct electricity generation by species of Staphylococcus has not been reported. Although electric outputs at these NaCl concentrations were low, it may be interesting to isolate these bacteria for examining their abilities to generate electricity in MFCs at high salt concentrations.
Boon N, De Maeyer K, Höfte M, Rabaey K, Verstraete W (2008) Use of Pseudomonas species producing phenazine-based metabolites in the anodes of microbial fuel cells to improve electricity generation. Appl Microbiol Biotechnol 80:985–993
Cheng S, Liu H, Logan BE (2006) Increased performance of single-chamber microbial fuel cells using an improved cathode structure. Electrochem Commun 8:489–494
Dowd SE, Callaway TR, Wolcott RD, Sun Y, McKeehan T, Hagevoort RG et al (2008) Evaluation of the bacterial diversity in the feces of cattle using 16S rDNA bacterial tag-encoded FLX amplicon pyrosequencing (bTEFAP). BMC Microbiol 8:125
Du Z, Li H, Gu T (2007) A state of the art review on microbial fuel cells: a promising technology for wastewater treatment and bioenergy. Biotechnol Adv 25:464–482
Fan Y, Hu H, Liu H (2007) Sustainable power generation in microbial fuel cells using bicarbonate buffer and proton transfer mechanisms. Environ Sci Technol 41:8154–8158
Heilmann J, Logan BE (2006) Production of electricity from proteins using a microbial fuel cell. Water Environ Res 78:531–537
Holmes DE, Finneran KT, O’Neil RA, Lovley DR (2002) Enrichment of members of the family Geobacteraceae associated with stimulation of dissimilatory metal reduction in uranium-contaminated aquifer sediments. Appl Environ Microbiol 68:2300–2306
Holmes DE, O’Neil RA, Vrionis HA, N’guessan LA, Ortiz-Bernad I, Larrahondo MJ et al (2007) Subsurface clade of Geobacteraceae that predominates in a diversity of Fe(III)-reducing subsurface environments. ISME J 1:663–677
Kato S, Nakamura R, Kai F, Watanabe K, Hashimoto K (2010) Respiratory interactions of soil bacteria with (semi)conductive iron-oxide minerals. Environ Microbiol 12:3114–3123
Kim BH, Chang IS, Gadd GM (2007) Challenges in microbial fuel cell development and operation. Appl Microbiol Biotechnol 76:485–494
Lefebvre O, Moletta R (2006) Treatment of organic pollution in industrial saline wastewater: a literature review. Water Res 40:3671–3682
Lefebvre O, Uzabiaga A, Chang I, Kim BH, Ng H (2011) Microbial fuel cells for energy self-sufficient domestic wastewater treatment—a review and discussion from energetic consideration. Appl Microbiol Biotechnol 89:259–270
Lefebvre O, Tan Z, Kharkwal S, Ng HY (2012) Effect of increasing anodic NaCl concentration on microbial fuel cell performance. Biores Technol 112:336–340
Liu H, Cheng S, Logan BE (2005) Power generation in fed-batch microbial fuel cells as a function of ionic strength, temperature, and reactor configuration. Environ Sci Technol 39:5488–5493
Logan BE (2009) Exoelectrogenic bacteria that power microbial fuel cells. Nat Rev Microbiol 7:375–381
Logan BE, Hamelers B, Rozendal R, Schröder U, Keller J, Freguia S et al (2006) Microbial fuel cells: methodology and technology. Environ Sci Technol 40:5181–5192
Lovley DR, Ueki T, Zhang T, Malvankar NS, Shrestha PM, Flanagan KA et al (2011) Geobacter: the microbe electric’s physiology, ecology, and practical applications. Adv Microb Physiol 59:1–100
McCarty PL, McKinney RE (1961) Salt toxicity in anaerobic digestion. J Wat Poll Cont Fed 33:399–415
Miyahara M, Hashimoto K, Watanabe K (2013) Use of cassette-electrode microbial fuel cell for wastewater treatment. J Biosci Bioeng 115:176–181
Mohan Y, Das D (2009) Effect of ionic strength, cation exchanger and inoculum age on the performance of microbial fuel cells. Int J Hydrog Energy 34:7542–7546
Nevin KP, Holmes DE, Woodard TL, Hinlein ES, Ostendorf DW, Lovley DR (2005) Geobacter bemidjiensis sp. nov. and Geobacter psychrophilus sp. nov., two novel Fe(III)-reducing subsurface isolates. Int J Syst Evol Microbiol 55:1667–1674
Newton GJ, Mori S, Nakamura R, Hashimoto K, Watanabe K (2009) Analyses of current-generating mechanisms of Shewanella loihica PV-4 and Shewanella oneidensis MR-1 in microbial fuel cells. Appl Environ Microbiol 75:7674–7681
Pant D, Van Bogaert G, Diels L, Vanbroekhoven K (2010) A review of the substrates used in microbial fuel cells (MFCs) for sustainable energy production. Bioresour Technol 101:1533–1543
Pham CA, Jung SJ, Phung NT, Lee J, Chang IS, Kim BH et al (2003) A novel electrochemically active and Fe(III)-reducing bacterium phylogenetically related to Aeromonas hydrophila, isolated from a microbial fuel cell. FEMS Microbiol Lett 223:129–134
Rinaldi A, Mecheri B, Garavaglia V, Licoccia S, di Nardo P, Traversa E (2008) Engineering materials and biology to boost performance of microbial fuel cells: a critical review. Energy Environ Sci 1:417–429
Rousseau R, Dominguez-Benetton X, Délia ML, Bergel A (2013) Microbial bioanodes with high salinity tolerance for microbial fuel cells and microbial electrolysis cells. Electrochem Commun 33:1–4
Rozendal RA, Hamelers HVM, Rabaey K, Keller J, Buisman CJN (2008) Towards practical implementation of bioelectrochemical wastewater treatment. Trends Biotechnol 26:450–459
Shimoyama T, Komukai S, Yamazawa A, Ueno Y, Logan BE, Watanabe K (2008) Electricity generation from model organic wastewater in a cassette-electrode microbial fuel cell. Appl Microbiol Biotechnol 80:325–330
Shimoyama T, Yamazawa A, Ueno Y, Watanabe K (2009) Phylogenetic analyses of bacterial communities developed in a cassette-electrode microbial fuel cell. Microbes Environ 24:188–192
Sun D, Call D, Wang A, Cheng S, Logan BE (2014) Geobacter sp. SD-1 with enhanced electrochemical activity in high-salt concentration solutions. Environ Microbiol Rep 6:723–729
Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S (2011) MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol Biol Evol 28:2731–2739
Watanabe K (2008) Recent developments in microbial fuel cell technologies for sustainable bioenergy. J Biosci Bioeng 106:528–536
Watanabe K, Kodama Y, Harayama S (2001) Design and evaluation of PCR primers to amplify bacterial 16S ribosomal DNA fragments used for community fingerprinting. J Microbiol Methods 44:253–262
Watanabe K, Hamamura N, Kaku N (2004) Molecular identification of microbial populations in petroleum-contaminated groundwater. In: Spencer JFT, Spencer AL (eds) Environmental Microbiology; methods and protocols. Humana Press, Totowa, NJ, pp 237–244
MM carried out the reactor operation and molecular genetic analyses. AK participated in the design of the study and helped to draft the manuscript. KW designed the study and wrote the manuscript. All authors read and approved the final manuscript.
We thank Ayako Matsuzawa for technical assistance. This work was supported by the New Energy and Industrial Technology Development Organization (NEDO) of Japan.
