Antimicrobial activity of novel nanostructured Cu-SiO2 coatings prepared by chemical vapour deposition against hospital related pathogens

Abstract

There is increasing recognition that the healthcare environment acts as an important reservoir for transmission of healthcare acquired infections (HCAI). One method of reducing environmental contamination would be use of antimicrobial materials. The antimicrobial activity of thin silica-copper films prepared by chemical vapour deposition was evaluated against standard strains of bacteria used for disinfectant testing and bacteria of current interest in HCAI. The structure of the coatings was determined using Scanning Electron Microscopy and their hardness and adhesion to the substrate determined. Antimicrobial activity was tested using a method based on BS ISO 22196:2007. The coatings had a pale green-brown colour and had a similar hardness to steel. SEM showed nano-structured aggregates of Cu within a silica matrix. A log10 reduction in viability of >5 could be obtained within 4 h for the disinfectant test strains and within 6 h for producing Acinetobacter baumannii, Klebsiella pneumoniae and Stenotrophomonas maltophilia. Activity against the other hospital isolates was slower but still gave log10 reduction factors of >5 for extended spectrum β-lactamase producing Escherichia coli and >3 for vancomycin resistant Enterococcus faecium, methicillin resistant Staphylococcus aureus and Pseudomonas aeruginosa within 24 h. The results demonstrate the importance of testing antimicrobial materials destined for healthcare use against isolates of current interest in hospitals as well as standard test strains. The coatings used here can also be applied to substrates such as metals and ceramics and have potential applications where reduction of microbial environmental contamination is desirable.

Introduction

It is now accepted that environmental contamination plays a key role in the transmission of infectious diseases in the healthcare setting (Hota, 2004; Boyce, 2007; Bartley and Olmsted, 2008; Dancer, 2009; Weber et al., 2010; Otter et al., 2011). There is a higher risk of acquiring a HCAI if the previous room occupant had such an infection (Shaughnessy et al., 2011). Pathogens can survive on surfaces for prolonged periods of time depending on the organism and environmental conditions (Kramer et al., 2006; Neely and Maley, 2000; Wagenvoort et al., 2011) and can be transmitted to hands from the environment (Bhalla et al., 2004). Enhanced environmental cleaning has been shown to reduce rates of infection (Dancer et al., 2009; Kochar et al., 2009; Carling et al., 2010; Kleypas et al. 2011). However, the environment rapidly becomes recontaminated following disinfection (Hardy et al., 2007).

One possible approach to controlling environmental contamination has been the reintroduction of copper (Cu) into hospitals (Sasahara et al., 2007; Casey et al., 2010; Mikolay et al., 2010; Espirito Santo et al., 2011; Schmidt et al., 2012) and other healthcare settings (Marais et al. 2010). Cu is widely used for its antimicrobial properties (Borkow and Gabbay, 2009; Grass et al., 2011). Cu and Cu alloy surfaces have been shown to kill a variety of pathogens including Salmonella enterica and Campylobacter jejeuni (Faundez et al., 2004), Listeria monocytogenes ( Wilks et al., 2006), methicillin resistant Staphylococcus aureus (MRSA; Noyce et al., 2006a; Gould et al., 2009; Michels et al., 2009; Weaver et al., 2010), Escherichia coli O157 (Wilks et al., 2005; Noyce et al., 2006b), Mycobacterium tuberculosis (Mehtar et al., 2008), Clostridium difficile (Wheeldon et al., 2008; Weaver et al., 2008), Pseudomonas aeruginosa (., Gould et al 2009) and enterococci (Gould et al., 2009; Warnes and Keevil, 2011). A crossover study compared conventional surfaces for a toilet seat, tap handles and a ward entrance door push plate with Cu containing items (Casey et al., 2010). The study showed reduced (>90%) bacterial counts on the items containing Cu and no indicator pathogens (e.g. VRE) were isolated during the 5 week study period on the copper whereas they were detected on control surfaces. A further longer study in an intensive care unit showed a sustained reduction of 83% in microbial surface counts on six commonly touched Cu containing surfaces and numbers on control surfaces were also reduced (Schmidt et al., 2012). This was accompanied by a reduction in the rates of infection on the unit (Salgado et al., 2013). Recolonisation of Cu surfaces following cleaning has been shown to be delayed compared to control surfaces (Mikolay et al., 2010). However, Cu surfaces may become conditioned allowing colonisation following cleaning (Airey and Verran, 2007) possibly by retention and survival of organisms in surface scratches (Verran et al., 2010).

Sol–gel methods can be used to producing durable Cu containing glasses but these have not been investigated for their antimicrobial properties (Perez-Robles et al., 1999; Tohidi et al., 2010). Coatings with antimicrobial activity containing Cu nanoparticles have been prepared by surface coating with a powder mixture followed by heat treatment to fuse the particles into a glass-like coating (Esteban-Tejeda et al., 2012). In the present study chemical vapour deposition (CVD) was used to produce thin film coatings. In this process a reactive gas mixture containing coating precursors is introduced into a coating region and a source of energy e.g. heat applied to initiate (or accelerate) decomposition of the precursor and growth of the coating on the target substrate (Choy, 2003). Atmospheric Pressure CVD (APCVD) has been widely used e.g. for production of self-cleaning coatings for glass which generally have excellent hardness and durability. We have previously reported the use of CVD to produce antimicrobial SiO2 (silicon dioxide) coatings containing silver (Ag; Cook et al., 2011; Varghese et al., 2013). In this report we describe the activity of similar coatings but containing Cu instead of Ag as the antimicrobial component. The activity of these Cu-SiO2 (copper-silicon dioxide) coatings against hospital related pathogens that are of current interest was investigated.

Materials and methods

Microorganisms and growth conditions

Escherichia coli ATCC 8739, and Staphylococcus aureus ATCC6538 were obtained from the American Type Culture Collection. Pseudomonas aeruginosa 10421 was obtained from the National Collection of Industrial and Marine Bacteria, Aberdeen U.K. and strain AOH1 was a wild isolate recovered from the river Tame downstream from Greenfield Wastewater Treatment Works. Extended spectrum β-lactamase (ESBL)+ Acinetobacter baumannii, KPC+ (carbapenemase) Klebsiella pneumoniae, ESBL+ Escherichia coli, EMRSA15, two recent isolates of MRSA, MRSA 1599 and MRSA 1665, MRSA NCTC10492, Stenotrophomonas maltophilia, and vancomycin resistant Enterococcus faecium (VRE) were obtained from the Health Protection Agency, Manchester, U.K. and sub-cultured onto Nutrient Agar (NA, Oxoid, Basingstoke, UK) and incubated at 37°C for 24 h. Cultures were resuspended in Nutrient Broth (NB, Oxoid) and kept on Microban® beads (TCS Ltd Merseyside, UK) at −70°C. Prior to use, one bead was sub-cultured onto NA and incubated at 37°C for 24 h.

Production of coatings

Cu-SiO2 coatings were deposited on 1 mm borosilicate glass (Dow Corning) using flame assisted chemical vapour deposition (FACVD). The FACVD system was of in-house design and construction and consisted of a brass burner head above a translational stage and a precursor delivery system of ultrasonic nebuliser, bubbler and mass flow controllers (Cook et al., 2011). Tetraethylorthosilicate was carried to the burner head using a nitrogen flow rate of 0.5 lmin-1 from a heated and stirred bubbler (75°C ± 3°C, stirred at 120 rpm). An aqueous solution of copper sulphate (0.25 M) was used as the copper precursor and simultaneously delivered to the burner head by ultrasonically nebulising the aqueous solution prior to carriage by nitrogen at 0.6 lmin-1. The number of passes under the burner head was 6 equating to a residence time in the flame of approximately 12 sec and gave a film approx 25 nm thick.

In the later stages of the study a new coating head was used which was capable of coating 10 cm wide substrates. Copper content of the films was varied by changing the concentration of the precursor and the flow rate to the coating head. The different conditions for the coatings are shown in Table 1.

Table 1 Coating conditions used in this study and their physical characteristics

Characterisation of coatings

To assess the hardness of the deposited coatings, films were scratch tested using a constant load scratch hardness tester. A diamond tipped scribe was moved through 50 mm over the surface with a 100 g load. The mean width of the resulting scratch over 6 points was then measured under 200× optical magnification and compared to similar data from materials of known Mohs hardness ( aluminium, steel, copper, glass and quartz) and Mohs hardness values of the deposited films were calculated. Results are the means of three determinations.

Adhesion of the coating to the substrate was determined by Scotch tape testing. The coating was cross hatched every 5 mm with a diamond scribe, the adhesive tape was then applied and pressed firmly to ensure consistent contact with the coating. On removal the tape was observed visually and then under a microscope to determine if the integrity of the film had been maintained.

Appearance of the films

Transmission of the coatings in visible light was measured using an Aquilla NKD7000 spectrometer using plane polarized light source and transmission averaged over 400-700 nm and measured at a 30° angle.

Surface morphology was investigated using Scanning Electron Microscopy (SEM; Philips XL30) with samples sputter coated with a 2–3 nm layer of Pt/Pd to provide a conductive surface.

Testing for antimicrobial activity

Antimicrobial activity was tested based on BS ISO 22196:2007 (Anon. 2007) except that glass covers were used rather than plastic, the test was done at 20-25°C rather than 35°C (see discussion) and samples were tested after different times rather than just after 24 h as specified in the test. Twenty mm square samples of coated and control glass were sterilized by placing in 90% methanol for 20 min. The squares were transferred to a sterile Petri dish and left for at least 1 h to allow the methanol to evaporate. Colonies were resuspended in a 1:500 dilution of NB and adjusted to OD 0.01-0.02 at 600 nm in a spectrophotometer (Camspec, M330, Cambridge, UK) to give approx. 2×107 colony forming units (cfu) cm-3. Fifty μl was inoculated on to each test sample and covered with an 18 mm square of 1 mm borosilicate glass to ensure close contact between the culture and the film. The samples were placed in 50 mm diameter Petri dishes containing moistened filter paper to prevent drying out of the suspensions. Plain borosilicate glass was used for controls. Samples were removed after 0, 1, 2, 4, 6 and 24 h and immersed in 20 cm3 of sterile Tryptone Soy broth (Oxoid) together with the cover glass and vortexed for 60 sec to resuspend the bacteria. A viability count was performed by dilution and plating on NA in triplicate and incubation at 37°C for up to 48 h. TSB had previously been shown to inactivate copper released from the surfaces at up to 1 mM by incubation of cultures in TSB supplemented with CuSO4.5H2O (data not shown).

In order to determine the effects of protein on antimicrobial activity, bovine serum albumen (BSA: Sigma-Aldrich, Poole, Dorset, UK) was added to the 1:500 NB used for production of the test culture suspensions before inoculation onto test and control surfaces at a final concentration of 10 gl-1.

Statistical analysis

Where possible each experiment was done in triplicate and means and standard deviations calculated using Microsoft Excel. Survival curves were plotted as the means with standard deviations as error bars. In order to allow plotting survival curves on a logarithmic scale, because zero cannot be plotted on a logarithmic scale, one was added to each mean viable count. In some cases error bars were obscured by the graph symbols and in others only upper error bars were plotted.

Results

The films had a pale brown-green tinge which was darker with the higher Cu content (Figure 1). Transmission in the visible range was 88-91% compared to 91.5% for the control glass (Table 1). The Cu incorporation reduced the transmission as expected especially with higher concentrations of Cu. SEM showed an amorphous background with evenly distributed aggregates which increased in size and number with higher concentrations of Cu (Figure 2).

Figure 1
figure 1

Visual appearance of coated glass. (a) Coating 1, (b) coating 2, (c) control glass

Figure 2
figure 2

SEM analysis of CuO-SiO 2 coated glass. (a) coating 1 (b) Coating 2.

The Mohs hardness of films were 5.6 for coating 1 and 3.6 for coating 2 giving a hardness comparison to stainless steel for coating 1 (stainless steel = 5.5). For all films the coating remained intact in the Scotch tape test showing a good adhesion to the substrates. Coating 1 was used in most subsequent experiments, coating 2 was only used to study the effects of protein on antimicrobial activity.

The antimicrobial activity of coating 1 against the standard test strain of E. coli (ATCC8739) is shown in Figure 3a. There was a log10 reduction factor of >5 after 4 h. The ESBL producing E. coli was more resistant and it took 24 h to obtain a similar reduction. The standard strain of P. aeruginosa was reduced by a log10 reduction factor of 5 after 6 h but the wild isolate AOH1 was only reduced by a factor of 3.5.

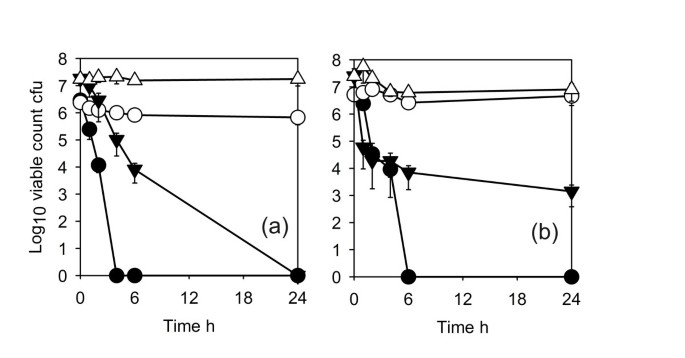

Figure 3
figure 3

Antimicrobial activity of Cu-SiO 2 coating against Escherichia coli and Pseudomonas aeruginosa (d) . (a) Escherichia coli ATCC8739 (disinfectant test strain) test; , ATCC8739 control; , ESBL E. coli test; , ESBL E. coli control . (b); Pseudomonas aeruginosa 10421 (disinfectant test strain) test; , P. aeruginosa 10421 control, , P. aeruginosa AOH1 (wild isolate) test; , P. aeruginosa AOH1 control. Coating 1.

The activity against the Gram-negative clinical isolates is shown in Figure 4. ESBL producing A. baumannii and S. maltophilia (Figure 4a) and K. pneumoniae (Figure 4b) all had log10 reduction factors of >5 in 4–6 h. The activity of the coatings against Gram-positive organisms is shown in Figure 5. The disinfectant test strain of S.aureus (ATCC9538) was reduced by a log10 reduction factor of >5 after 6 h (Figure 5a). MRSA strains were more resistant with a log10 reduction factors of >5 for the type strain NCTC10492 after 24 h (Figure 5a) and approx. 3 after 24 h for EMRSA15 and the two recent clinical isolates MRSA1595 and 1669 (Figures 5a, b). The vancomycin resistant E. faecium gave a similar reduction (Figure 5b).

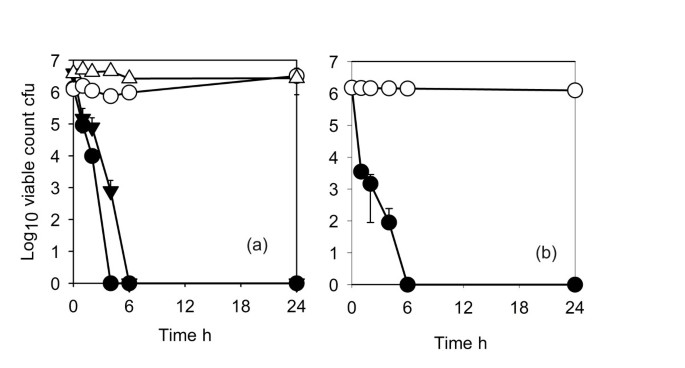

Figure 4
figure 4

Antimicrobial activity of CuO-SiO 2 coating against Gram-negative pathogens. (a), ESBL+ Acinetobacter baumannii test; , A.baumannii control; Stenotrophomonas maltophilia test; , S.maltophilia control. (b), KPC+ Klebsiella pneumoniae test; , K. pneumoniae control. Coating 1.

Figure 5
figure 5

Antimicrobial activity of Cu-SiO 2 coating against Staphylococcus aureus and vancomycin resistant Enterococcus faecium . (a), Staphylococcus aureus ATCC 9538 (methicillin sensitive disinfectant test strain) test; , Staphylococcus aureus ATCC 9538 control; ■, EMRSA15 test; □, EMRSA15 control; Staphylococcus aureus NCTC 12493 (reference MRSA) test; Staphylococcus aureus NCTC 12493 control. (b) □ Vancomycin resistant Enterococcus faecium test; ■, Vancomycin resistant E. faecium control; , MRSA1599 test; , MRSA1599 control; MRSA 1669 test; , MRSA1669 control. Coating 1.

The effects of addition of protein on the antimicrobial activity against E. coli ATCC9739 are shown in Figure 6. With coating 1 the activity was completely inhibited and there was no killing even after 24 h. With coating 2, which had a higher Cu content, the activity was slowed but there was a log10 reduction factor of >5 after 6 h.

Figure 6
figure 6

Effects of protein on antimicrobial activity of Cu-SiO 2 coating against Escherichia coli ATCC 10536. (a) Coating 1 , no protein; , 10gl-1 bovine serum albumen; , control. (b) coating 2 , No protein; , 10gl-1 bovine serum albumen; , control.

Discussion

The structure of the films under SEM suggests that there are islands of Cu which extend above the surface of the film. This is consistent with our previous observations of Ag containing CVD coatings where a clear island structure was observed for Ag only films and in Ag-SiO2 composite films we identified embedded silver nano-particles which demonstrated a degree of crystallinity (Cook et al., 2011). The scotch tape test and scratch testing showed that the coatings were well attached to the substrate and had abrasion resistance equivalent to steel. This is important in the resistance to wear during the expected lifetime of the products (10–15 y). The benefit of using CVD is that good properties are achievable with a relatively simple process. Capital costs for equipment are also relatively low. These points are a significant advantage versus, for example, sputtering processes. Although we did consider some other ceramics (e.g. tungsten oxide, molybdenum oxide) we chose to use silica because we had done a lot of previous work on this matrix by FACVD (Cook et al., 2011, Varghese et al, 2013) and silica and silica precursors are compatible with FACVD.

The results show that organisms such as ESBL producing K. pneumoniae and A. baumannii were killed relatively quickly on the Cu-SiO2 coating. ESBL E. coli was more resistant than the standard test strain but was still effectively killed within 24 h. The MRSA strains were much more resistant than the Gram-negative bacteria and were also more resistant than the standard test strain of S. aureus or even than a type strain of MRSA used for testing methicillin resistance. A similar result was obtained for MRSA with titanium dioxide-copper coatings (Foster et al., 2012) and may reflect increased resistance of MRSA to killing by copper. It should be noted that the numbers or organisms used in the BS ISO method are much higher than have been reported in environmental contamination during outbreaks of MRSA (2.5 × 105 vs 500 cfu cm-2; Otter et al., 2011) although in the latter case the organisms may not have been evenly distributed. The activity detected would still reduce the MRSA to less than 1 cfu cm-2 as suggested/recommended by Dancer (2011) within 6 h provided that the activity determined here was maintained in real use situations. The other Gram-positive bacterium tested was a vancomycin resistant E. faecium strain (VRE). This proved as resistant to the CuO-SiO2 coatings as the MRSA although the reduction was equivalent to a 99.8% reduction after 24 h. Preliminary tests with extended incubation showed a log 10 reduction of >5 after 48 h for MRSA and VRE. VRE have been shown to be capable of persisting in the environment for months and even years (Neely and Maley, 2000; Wagenvoort et al., 2011). The use of antimicrobial coatings in a healthcare setting should help to reduce this persistence.

Preliminary studies showed that Cu did elute from the Cu-SiO2 coated surfaces (as Cu ions) and reached 20–70 μM in the thin liquid films formed during the antimicrobial testing (determined by ICPMS, M. Abohtera and H.A. Foster unpublished). Relatively few studies report the bactericidal concentrations for Cu against bacteria and the value varies depending on medium composition and time of exposure. The minimum inhibitory concentration (MIC) for copper sulphate for several species of bacteria isolated from food animals was 20 mM for the majority of strains of E. coli and from 2–12 mM for S. aureus and Staphylococcus hyicus. Enterococcus spp. had a bimodal distribution with MIC from 2–24 mM (Aarestrup and Hasman 2004). Concentrations of eluted Cu2+ from the CVD coated surfaces are therefore much lower than MIC but there may be locally higher concentrations near to the surface of the coating. Alternatively, contact between the bacterium and the copper islands may allow diffusion of Cu2+ directly into the cell wall/membrane. Various mechanisms have been suggested for the antimicrobial activity of Cu including membrane damage, inhibition of respiration, protein inactivation and damage to DNA (Borkow and Gabbay, 2009; Grass et al., 2011). The mechanism may be different for bacteria with different cell-wall structure with membrane damage predominant in Gram-negative bacteria and inhibition of respiration and DNA damage in Gram-positive bacteria (Warnes and Keevil, 2011 2012). This may in part explain the differences in rates of killing seen here.

Interfering agents e.g. protein may be present in real use situations and even the low concentrations used here reduced the activity. Inhibition by amounts of protein that may be present in e.g. serum or food may be much higher. These surfaces will need to be cleaned to remove any such contamination but this is true of copper surfaces which can become conditioned in actual use (Airey and Verran, 2007). Increasing the amount of copper in the coating reduces the inhibitory effect of protein but the hardness of the coating is also reduced. The nature of the coatings used for in situ applications will need to be a compromise between durability and activity.

We used a modification of the BS ISO 22196 method to allow determination of the rates of killing and we used room temperature to reflect activity at normal temperatures. Preliminary results suggested that activity was increased at higher temperatures giving an inflated impression of activity compared to room temperature. This method does not reflect the natural contamination that may occur in situ and there is an urgent need for standardised methods that reflect this as has been suggested by previous authors (O’Gorman and Humphreys 2012; Grass et al., 2011). However, the test does give information on the relative antimicrobial activity of the films against different organisms. A true test will be to determine the performance of the coatings in situ and also long term tests of durability and activity e.g. when subjected to washing and disinfection will need to be confirmed and these are currently under investigation.

The results suggest that application of the coatings to surfaces in the Healthcare setting may provide a useful background antimicrobial activity which functions continually and which may help reduce the inevitable recontamination which occurs following even the most penetrating disinfection treatments e.g. hydrogen peroxide vapour fogging (Hardy et al., 2007). Environmental contamination has been shown to be important in transmission of a number of organisms including A. baumannii (Aygün et al., 2002) and VRE (Martinez et al., 2003; Hayden et al., 2008). The coatings may therefore have a role in reduction of transmission of such organisms in the healthcare setting, particularly as they can be applied to different materials e.g. glass, ceramic tiles and metals. Indeed the surfaces that could be coated are only limited by the temperature reached during the coating process (approx 150°C) substrates would have to withstand this temperature. This will provide a range of materials for different uses which will be complementary to the use of copper and copper alloys and should contribute to the overall reduction in microbial contamination of the hospital environment with an associated reduction in transmission of infections. Used together with antimicrobial paints, fabrics, plastics and floor-coverings they may help to make the dream expressed by Bennett (2008) of a “self-disinfecting ward” a closer reality. These surfaces will not replace the normal cleaning and disinfection regimes but they will provide additional protection between such treatments. They may also find applications in other situations where control of microbial contamination is important e.g. in the food industry. Increased use of copper may lead to an increase in copper resistance in bacteria. However, copper and copper alloys have been used for many years without widespread increases in the reported incidence of copper resistant pathogens.

References

  • Aarestrup FM, Hasman H: Susceptibility of different bacterial species isolated from food animals to copper sulphate, zinc chloride and antimicrobial substances used for disinfection. Vet Microbiol 2004, 100: 83–89. 10.1016/j.vetmic.2004.01.013

    Article  CAS  PubMed  Google Scholar

  • Airey P, Verran J: Potential use of copper as a hygienic surface; problems associated with cumulative soiling and cleaning. J Hosp Infect 2007, 67: 271–277. 10.1016/j.jhin.2007.09.002

    Article  CAS  PubMed  Google Scholar

  • Anon: BS ISO 22196:2007 plastics - measurement of antibacterial activity on plastics surfaces. British Standards Institute, London; 2007.

    Google Scholar

  • Aygün G, Demirkiran O, Utku T, Metez B, Urkmez S, Yilmaz M, Yasar H, Dikmen Y, Ozturk R: Environmental contamination during a carbapenem-resistant Acinetobacter baumannii outbreak in an intensive care unit. J Hosp Infect 2002, 52: 259–262. 10.1053/jhin.2002.1300

    Article  PubMed  Google Scholar

  • Bartley JM, Olmsted RN: Reservoirs of pathogens causing health care-associated infections in the 21st century: is renewed attention to inanimate surfaces warranted? Clin Microbiol News 2008, 30: 113–117. 10.1016/j.clinmicnews.2008.07.001

    Article  Google Scholar

  • Bennett PM: Plasmid encoded antibiotic resistance: acquisition and transfer of antibiotic resistance genes in bacteria. Br J Pharmacol 2008, 153: S347-S357. 10.1038/sj.bjp.0707569

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Bhalla A, Pultz NJ, Gries DM, Ray AJ, Eckstein EC, Aron DC, Donskey CJ: Acquisition of nosocomial pathogens on hands after contact with environmental surfaces near hospitalised patients. Infect Control Hosp Epidemiol 2004, 25: 164–167. 10.1086/502369

    Article  PubMed  Google Scholar

  • Borkow G, Gabbay J: Copper, an ancient remedy returning to fight microbial, fungal and viral infections. Curr Chem Biol 2009, 3: 272–278.

    CAS  Google Scholar

  • Boyce J: Environmental contamination makes an important contribution to hospital infection. J Hosp Infect 2007, 65: 50–54.

    Article  PubMed  Google Scholar

  • Carling PC, Parry MF, Bruno-Murtha LA, Dick B: Improving environmental hygiene in 27 intensive care units to decrease multidrug resistant bacterial transmission. Crit Care Med 2010, 38: 1054–1059. 10.1097/CCM.0b013e3181cdf705

    Article  PubMed  Google Scholar

  • Casey AL, Adams D, Karpanen TJ, Lambert PA, Cookson BD, Nightingale P, Miruszenko L, Shillam R, Christian P, Elliott TSJ: Role of copper in reducing hospital environment contamination. J Hosp Infect 2010, 74: 72–77. 10.1016/j.jhin.2009.08.018

    Article  CAS  PubMed  Google Scholar

  • Choy KL: Chemical vapour deposition of coatings. Prog Mat Sci 2003, 48: 57–170. 10.1016/S0079-6425(01)00009-3

    Article  CAS  Google Scholar

  • Cook I, Sheel DW, Foster HA, Varghese S: Durability of silver nanoparticulate films within a silica matrix by flame assisted chemical vapour deposition for biocidal applications. J Nanosci Nanotechnol 2011, 11: 1–6. 10.1166/jnn.2011.3839

    Article  Google Scholar

  • Dancer SJ: The role of environmental cleaning in the control of hospital-acquired infection. J Hosp Infect 2009, 73: 378–385. 10.1016/j.jhin.2009.03.030

    Article  CAS  PubMed  Google Scholar

  • Dancer SJ: Hospital cleaning in the 21st century. Eur J Clin Microbiol Infect Dis 2011, 30: 1473–1481. 10.1007/s10096-011-1250-x

    Article  CAS  PubMed  Google Scholar

  • Dancer SJ, White JF, Lamb JE, Girvan K, Robertson C: Measuring the effect of enhanced cleaning in a UK hospital: a prospective cross-over study. BMC Med 2009, 7: 28. doi:10.1186/1741–7015–7-28 10.1186/1741-7015-7-28

    Article  PubMed Central  PubMed  Google Scholar

  • Espirito Santo C, Lam EW, Elowsky CG, Quaranta D, Domaille DW, Chang CJ, Grass G: Bacterial killing by dry metallic copper surfaces. Appl Environ Microbiol 2011, 77: 794–802. 10.1128/AEM.01599-10

    Article  PubMed  Google Scholar

  • Esteban-Tejeda L, Malpartida F, Díaz LA, Torrecillas R, Rojo F, Serafín JM: Glass-(nAg, nCu) biocide coatings on ceramic oxide substrates. PLoS One 2012, 7: e33135. 10.1371/journal.pone.0033135

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Faundez G, Troncoso M, Navarrete P, Figueroa G: Antimicrobial activity of copper surfaces against suspensions of Salmonella enterica and Campylobacter jejuni . BMC Microbiol 2004, 4: 19. 10.1186/1471-2180-4-19

    Article  PubMed Central  PubMed  Google Scholar

  • Foster HA, Sheel DW, Evans P, Sheel P, Varghese S, Elfakhri SO, Hodgkinson JL, Yates HM: Antimicrobial activity of dual layer CuO-TiO 2 coatings prepared by CVD against hospital related pathogens. Chem Vap Depos 2012, 18: 140–146. 10.1002/cvde.201106978

    Article  CAS  Google Scholar

  • Gould SWJ, Fielder MD, Kelly AF, Morgan M, Kenny J, Naughton DP: The antimicrobial properties of copper surfaces against a range of important nosocomial pathogens. Ann Microbiol 2009, 59: 151–156. 10.1007/BF03175613

    Article  CAS  Google Scholar

  • Grass G, Rensing C, Solioz MA: Metallic copper as an antimicrobial surface. Appl Environ Microbiol 2011, 77: 1541–1547. 10.1128/AEM.02766-10

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Hardy KJ, Gossain S, Henderson N, Drugan C, Oppenheim BA, Gaob F, Hawkey PM: Rapid recontamination with MRSA of the environment of an intensive care unit after decontamination with hydrogen peroxide vapour. J Hosp Infect 2007, 66: 360–368. 10.1016/j.jhin.2007.05.009

    Article  CAS  PubMed  Google Scholar

  • Hayden MK, Blom DW, Lyle EA, Moore CG, Weinstein RA: Risk of hand or glove contamination after contact with patients colonized with vancomycin-resistant Enterococcus or the colonized patients’ environment. Infect Cont Hosp Epidemiol 2008, 29: 149–154. 10.1086/524331

    Article  Google Scholar

  • Hota B: Contamination, disinfection, and cross-colonization: are hospital surfaces reservoirs for nosocomial infection? Clin Infect Dis 2004, 39: 1182–1189. 10.1086/424667

    Article  PubMed  Google Scholar

  • Kleypas Y, McCubbin D, Curnow ES: The role of environmental cleaning in health care-associated infections. Crit Care Nurs Q 2011, 34: 11–17.

    Article  PubMed  Google Scholar

  • Kochar S, Sheard T, Sharma R, Hui A, Tolentino E, Allen G, Landman D, Bratu S, Augenbraun M, Quale J: Success of an infection control program to reduce the spread of carbapenem resistant Klebsiella pneumonia e. Infect Control Hosp Epidemiol 2009, 30: 447–452. 10.1086/596734

    Article  PubMed  Google Scholar

  • Kramer A, Schwebke I, Kampf G: How long do nosocomial pathogens persist on inanimate surfaces? a systematic review. BMC Infect Dis 2006, 6: 130. 10.1186/1471-2334-6-130

    Article  PubMed Central  PubMed  Google Scholar

  • Marais F, Mehtar S, Chalkley L: Antimicrobial efficacy of copper touch surfaces in reducing environmental bioburden in a South African community healthcare facility. J Hosp Infect 2010, 74: 80–95. 10.1016/j.jhin.2009.07.010

    Article  CAS  PubMed  Google Scholar

  • Martinez JA, Ruthazer R, Hansjosten K, Barefoot L, Snydman DR: Role of environmental contamination as a risk factor for acquisition of vancomycin-resistant enterococci in patients treated in a medical intensive care unit. Arch Int Med 2003, 163: 1905–1912. 10.1001/archinte.163.16.1905

    Article  Google Scholar

  • Mehtar S, Wiid I, Todorov SD: The antimicrobial activity of copper and copper alloys against nosocomial pathogens and Mycobacterium tuberculosis isolated from healthcare facilities in the Western Cape: an in-vitro study. J Hosp Infect 2008, 68: 45–51. 10.1016/j.jhin.2007.10.009

    Article  CAS  PubMed  Google Scholar

  • Michels HT, Noyce JO, Keevil CW: Effects of temperature and humidity on the efficacy of methicillin-resistant Staphylococcus aureus challenged antimicrobial materials containing silver and copper. Lett Appl Microbiol 2009, 49: 191–195. 10.1111/j.1472-765X.2009.02637.x

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Mikolay A, Huggett S, Tikana L, Grass G, Braun J, Nies DH: Survival of bacteria on copper surfaces in a hospital trial. Appl Microbiol Biotechnol 2010, 87: 1875–1879. 10.1007/s00253-010-2640-1

    Article  CAS  PubMed  Google Scholar

  • Neely AN, Maley MP: Survival of enterococci and staphylococci on hospital fabrics and plastic. J Clin Microbiol 2000, 38: 724–726.

    CAS  PubMed Central  PubMed  Google Scholar

  • Noyce JO, Michels H, Keevil CW: Potential use of copper surfaces to reduce survival of epidemic meticillin-resistant Staphylococcus aureus in the healthcare environment. J Hosp Infect 2006a, 63: 289–297. 10.1016/j.jhin.2005.12.008

    Article  CAS  Google Scholar

  • Noyce JO, Michels H, Keevil CW: Use of copper cast alloys to control Escherichia coli O157 cross-contamination during food processing. Appl Environ Microbiol 2006b, 72: 4239–4244. 10.1128/AEM.02532-05

    Article  CAS  Google Scholar

  • O’Gorman J, Humphreys H: Application of copper to prevent and control infection. Where are we now? J Hosp Infect 2012, 81: 217–223. 10.1016/j.jhin.2012.05.009

    Article  PubMed  Google Scholar

  • Otter JA, Yezli S, French GL: The role played by contaminated surfaces in the transmission of nosocomial pathogens. Infect Control Hosp Epidemiol 2011, 32: 687–699. 10.1086/660363

    Article  PubMed  Google Scholar

  • Perez-Robles JF, Garcıa-Rodrıguez FJ, Yanez-Limona JM, Espinoza-Beltranac FJ, Vorobiev YV, Gonzalez-Hernandez J: Characterization of sol–gel glasses with different copper concentrations treated under oxidizing and reducing conditions. J Phys Chem Solid 1999, 60: 1729–1736. 10.1016/S0022-3697(99)00035-9

    Article  CAS  Google Scholar

  • Salgado CD, Sepkowitz KA, John JF, Robert Cantey J, Attaway HH, Freeman KD, Sharpe PA, Michels HT, Schmidt MG: Copper surfaces reduce the rate of healthcare-acquired infections in the intensive care unit. Infect Cont Hosp Epidemiol 2013, 34: 479–486. 10.1086/670207

    Article  Google Scholar

  • Sasahara T, Niiyama N, Ueno M: Use of copper and its alloys to reduce bacterial contamination in hospitals. J JRICu 2007, 46: 1–6.

    Google Scholar

  • Schmidt MG, Attaway HH, Sharpe PA, John J Jr, Sepkowitz KA, Morgan A, Fairey SE, Singh S, Steed LL, Cantey JR, Freeman KD, Michels HT, Salgadof CD: Sustained reduction of microbial burden on common hospital surfaces through introduction of copper. J Clin Microbiol 2012, 50: 2217–2223. 10.1128/JCM.01032-12

    Article  PubMed Central  PubMed  Google Scholar

  • Shaughnessy MK, Micielli RL, DePestel DD, Arndt J, Strachan CL, Welch KB, Chenoweth CE: Evaluation of hospital room assignment and acquisition of Clostridium difficile infection. Infect Control Hosp Epidemiol 2011, 32: 201–206. 10.1086/658669

    Article  PubMed  Google Scholar

  • Tohidi SH, Grigoyou V, Sarkeziyan V, Ziaie F: Effect of concentration and thermal treatment on the properties of sol–gel derived CuO/SiO 2 nanostructure. Iran J Chem Chem Eng 2010, 29: 27–35.

    CAS  Google Scholar

  • Varghese S, Elfakhri S, Sheel DW, Sheel P, Bolton FJ, Foster HA: Novel antibacterial silver-silica surface coatings prepared by chemical vapour deposition for infection control. J Appl Microbiol 2013. doi:10.1111/jam.12308

    Google Scholar

  • Verran J, Packer A, Kelly P, Whitehead KA: The retention of bacteria on hygienic surfaces presenting scratches of microbial dimensions. Lett Appl Microbiol 2010, 50: 258–263. 10.1111/j.1472-765X.2009.02784.x

    Article  CAS  PubMed  Google Scholar

  • Wagenvoort JHT, De Brauwer EIGB, Penders RJR, Willems RJ, Top J, Bonten MJ: Environmental survival of vancomycin-resistant Enterococcus faecium . J Hosp Infect 2011, 77: 274–283. 10.1016/j.jhin.2010.11.009

    Article  Google Scholar

  • Warnes SL, Keevil CW: Mechanism of copper surface toxicity in vancomycin-resistant enterococci following ‘wet’ or ‘dry’ contact. Appl Environ Microbiol 2011, 77: 6049–6059. 10.1128/AEM.00597-11

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Warnes SL, Keevil CW: Mechanism of copper surface toxicity in Escherichia coli O157:H7 and Salmonella involves immediate membrane depolarization followed by slower rate of DNA destruction which differs from that observed for Gram-positive bacteria. Environ Microbiol 2012, 14: 1730–1743. 10.1111/j.1462-2920.2011.02677.x

    Article  CAS  PubMed  Google Scholar

  • Weaver L, Michels HT, Keevil CW: Survival of clostridium difficile on copper and steel: futuristic options for hospital hygiene. J Hosp Infect 2008, 109: 1–7.

    Google Scholar

  • Weaver L, Noyce JO, Michels HT, Keevil CW: Potential action of copper surfaces on meticillin-resistant Staphylococcus aureus . J Appl Microbiol 2010, 109: 2200–2205. 10.1111/j.1365-2672.2010.04852.x

    Article  CAS  PubMed  Google Scholar

  • Weber DJ, Rutala WA, Miller MB, Huslage K, Sickbert-Bennett E: Role of hospital surfaces in the transmission of emerging health care-associated pathogens: norovirus, Clostridium difficile and Acinetobacter spp. Am J Infect Control 2010,38(Suppl):S25-S33.

    Article  PubMed  Google Scholar

  • Wheeldon LJ, Worthington T, Lambert PA, Hilton AC, Lowden CJ, Elliott TSJ: Antimicrobial efficacy of copper surfaces against spores and vegetative cells of Clostridium difficile : the germination theory. J Antimicrob Chemother 2008, 62: 522–525. 10.1093/jac/dkn219

    Article  CAS  PubMed  Google Scholar

  • Wilks SA, Michels HT, Keevil CW: The survival of Escherichia coli O157 on a range of metal surfaces. Int J Food Microbiol 2005, 105: 445–454. 10.1016/j.ijfoodmicro.2005.04.021

    Article  CAS  PubMed  Google Scholar

  • Wilks SA, Michels HT, Keevil CW: Survival of Listeria monocytogenes Scott A on metal surfaces: implications for cross-contamination. Int J Food Microbiol 2006, 111: 93–98. 10.1016/j.ijfoodmicro.2006.04.037

    Article  PubMed  Google Scholar

Download references

Acknowledgements

This work was partly supported by Framework 7 grant FP7 NMP CP-IP 214134–2 “Flexible production technologies and equipment based on atmospheric pressure plasma processing for 3D nano-structured surfaces (acronym N2P)”. S. O. Elfakhri was sponsored by the Ministry of Education, Libya.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Howard A Foster.

Additional information

Competing interests

CVD Technologies Ltd develop and install CVD coating equipment. The authors declare that they have no other competing interests.
