Sensitivity to electrical stimulation of human immunodeficiency virus type 1 and MAGIC-5 cells

AMB Express volume 1, Article number: 23 (2011) Cite this article

Abstract

To determine the sensitivities to low electrical potential of human immunodeficiency virus type 1 (HIV-1) and its target cells, HIV-1 and MAGIC-5 cells were directly stimulated with a constant direct current potential of 1.0 V (vs. Ag/AgCl). HIV-1 was incubated for 3 h at 37°C on a poly-L-lysine-coated indium-tin oxide electrode, and then stimulated by an electrical potential. MAGIC-5 cells were seeded onto the electrically stimulated HIV-1 and cultured for 3 days at 37°C. HIV-1-infected cells were measured by multinuclear activation via a galactosidase indicator assay. MAGIC-5 cells were also stimulated by an electrical potential of 1.0 V; cell damage, proliferation and apoptosis were evaluated by trypan blue staining, cell counting and in situ apoptosis detection, respectively. HIV-1 was found to be damaged to a greater extent by electrical stimulation than the cells. In particular, after application of a 1.0-V potential for 3 min, HIV-1LAI and HIV-1KMT infection were inhibited by about 90%, but changes in cell damage, proliferation and apoptosis were virtually undetectable. These results suggested that HIV-1 is significantly more susceptible to low electrical potential than cells. This finding could form the basis of a novel therapeutic strategy against HIV-1 infection.

Introduction

Infection with human immunodeficiency virus type 1 (HIV-1), the causative agent of acquired immunodeficiency syndrome (AIDS), leads to depressed cellular immunity and can result in co-infection with opportunistic pathogens and severe disease (Gottlie et al. 1981; Masur et al. 1981; Aboulafia 2000; Picker et al. 2006). The available treatments for HIV infection include anti-HIV-1 therapy that inhibits the growth of the virus and prevents or reduces infection caused by various opportunistic pathogens. By using highly active anti-retroviral therapy, the morbidity and mortality rates in HIV-1-infected individuals have dramatically declined (Hogg et al. 1997; Palella et al. 1998). However, such intensive anti-retroviral therapy has several drawbacks, including drug side-effects, the complexity of the therapeutic regimen and the appearance of resistant HIV-1 strains (Carr et al. 1998; Colgrove et al. 1998; Samati et al. 2002). In 2010, human monoclonal antibodies, neutralizing over 90% of circulating HIV-1 isolates, were identified (Wu et al. 2010; Zhou et al. 2010). The therapeutic use of multiple broadly neutralizing human monoclonal antibodies to HIV-1 would therefore be expected to block HIV-1 infection. However, effective vaccines based on this strategy are yet to be developed and much interest remains in developing therapies based on novel principles.

The effects of electrical stimulation on living cells have been extensively studied since the 1970s, and changes in cellular responses have been observed. In fact, cell membrane damage (Tominaga et al. 2007), the regulation of cell proliferation (Kojima et al. 1991; Yaoita et al. 1990), gene expression of nerve growth factor (Koyama et al. 1996; Koyama et al. 1997) and neural and osteogenic differentiation (Kimura et al. 1998; Mie et al. 2003), have been reported in response to low potential loading. Furthermore, the combined effect of low potential stimulation and cisplatin administration caused cell death in HeLa cells (Manabe et al. 2004).

We are the only investigators to report of an electrical stimulation method as a means of protection against viral infection. One of our main findings was that the sensitivity to electrical stimulation was greater in chronically infected HIV-1LAI (a T-cell-tropic strain of HIV) HeLa cells compared with uninfected HeLa cells (Tominaga et al. 2003; Kumagai et al. 2004). Another finding has indicated that reactive oxygen species (ROS) induced by electrical stimulation play a role in inhibition of HIV-1 infection (Kumagai et al. 2007). Despite many reports regarding the effects of electrical stimulation on cells, no previous studies have examined the effects of electrical stimulation on viruses. It is possible that if HIV-1 has high sensitivity to a low-electric potential compared with host cells, HIV-1 could be specifically inactivated by this treatment without any damage to host cells.

Poly-L-lysine (PLL) is a nonspecific attachment factor for cells, useful in promoting cell adsorption to solid substrates (Yavin et al. 1974; McKeehan et al. 1984; Atashi et al. 2009). Because PLL is a cationic agent, it enhances electrostatic interaction between negatively-charged ions of the cell membrane and culture surface. Coating indium-tin oxide (ITO) electrode surfaces with PLL increases the number of positively charged ions on the ITO electrode surface, which might allow adsorption of virus on the ITO electrode.

To determine the low-electric potential sensitivity of HIV-1 and cells, HIV-1 and MAGIC-5 cells were adsorbed onto a PLL-coated ITO electrode and directly stimulated with a constant direct current (d.c.) potential of 1.0 V (vs. Ag/AgCl). HIV-1 infectivity, cell damage, cell proliferation and the numbers of apoptotic cells were then examined to determine the sensitivities of HIV-1 and cells to electrical stimulation.

Materials and methods

Preparation of virus

HIV-1LAI, a T-tropic HIV, was propagated in persistently infected Molt4 cells as previously described (Koyanagi et al. 1986), and HIV-1KMT, a dual-tropic HIV, was propagated in persistently infected CEM cells as previously described (Morikita et al. 1997). Cell-free viruses were obtained by filtration of the cell supernatants through 0.45-μm filters (Millipore, Bedford, UK). Viruses were then aliquoted and stored at -80°C prior to use. The concentration of HIV-1LAI and HIV-1KMT core p24 proteins were 211 ng/ml and 157 ng/ml, respectively.

Cells

MAGIC-5 cells (CCR5 expressing the HeLa-CD4/long terminal repeat-β-galactosidase cell line; Hachiya et al. 2001) were used as target cells for HIV-1. Cells were maintained in Dulbecco's modified Eagle's medium (ICN, Costa Mesa, CA, USA) supplemented with 10% heat-inactivated fetal bovine serum (Gibco BRL, Grand Island, NY, USA), 100 IU/ml penicillin and 0.1 mg/ml streptomycin.

Electrodes and the application of electrical potential

The application of electrical potential to HIV-1 was carried out with a three-electrode system using a potentiostat (Toho Technical Research, PS-06, Japan). The working electrode was an optically transparent glass plate (about 50 × 50 mm) sputtered with ITO (Kinoene Optics, Japan; Kumagai et al. 2007; Tominaga et al. 2007). The ITO electrode, with a glass ring (36 mm inner diameter, 15 mm in height) adhered to its surface, was cleaned by sonication in Contaminon N solution (Wako Chemicals, Japan), followed by rinsing with distilled water and autoclaving. A Ag/AgCl (saturated KCl) electrode and a platinum electrode were used as reference and counter electrodes, respectively. All potentials are reported with respect to the Ag/AgCl electrode.

Adsorption of HIV-1 onto the ITO electrode surface

To adsorb HIV-1 onto the ITO electrode surface, 500 μl of a 0.01% (w/v) of PLL solution (Sigma-Aldrich, P4832; the molecular weight of the polymer was 150,000-300,000 with an estimated1,026-2,052 repeating monomer units) was added and incubated for 5 min before removal by aspiration. The ITO electrode was thoroughly rinsed with sterile water and dried. Then, 1 ml of HIV-1LAI or HIV-1KMT solution was added to the PLL-coated ITO electrode and incubated for 3 h at 37°C/5% CO2.

Multinuclear activation of a galactosidase indicator (MAGI) assay

HIV-1LAI or HIV-1KMT that had adsorbed onto the PLL-coated ITO electrode surface was stimulated by a constant d.c. potential of 1.0 V (vs. Ag/AgCl) for 2-10 min. Then, MAGIC-5 cells (15 × 104 cells/dish) were seeded onto the electrically stimulated HIV-1LAI, and cultured for three days at 37°C/5% CO2. After removing the supernatant, the HIV-1-infected cells were fixed and stained according to a previously described MAGI assay (Kimpton and Emerman, 1992; Kumagai et al. 2007).

HIV-1 p24 antigen assay

HIV-1LAI (1 ml) solution was added to the PLL-coated ITO electrode, and incubated for 3 h at 37°C/5% CO2. After washing twice with PBS, HIV-1LAI that had adsorbed onto the ITO electrode surface was dissolved with 1% Triton X. The amount of viral core p24 antigen was measured using an HIV-1 p24 antigen ELISA Kit (ZeptoMetric, NY).

Measuring number of damaged cells

To calculate number of damaged cells among electrically stimulated cells, cells were stained with 0.4% trypan blue dye for 5 min. After the dye removal, the cells were washed three times with phosphate-buffered saline (PBS; pH7.2). The rate of cell damage was deduced after counting both stained (damaged) and unstained (undamaged) cells under a microscope.

Cell proliferation assay

To measure cell proliferation, a Cell Counting Kit (CCK; Dojindo, Kumamoto, Japan) was used. MAGIC-5 cells (15 × 104 cells/3 ml/dish) were seeded onto the PLL-coated ITO electrode and were cultured for 3 h at 37°C. After application of a 1.0-V potential for 2-7.5 min, the cells were cultured for three days in a 5% CO2 incubator at 37°C. CCK solution (300 μl) was added to each ITO electrode, and incubated for 40 min 37°C. Then, 100 μl of the supernatant was removed from each ITO electrode and placed in three wells of a 96-flat well plate (Iwaki, Tokyo, Japan), and the absorbance was measured immediately at 450 nm using a microplate reader.

Apoptosis assay

Electrically stimulated MAGIC-5 cells were fixed with 4% formalin neutral buffer solution for 10 min at room temperature. Fixed cells were then assessed for apoptosis using an Apoptosis In Situ Detection Kit (Wako Chemicals). This assay is based on the TdT-mediated dUTP nick end labeling method (TUNEL method).

Results

HIV-1 adsorption onto the ITO electrode

The amount of HIV-1 adsorption onto the PLL-coated ITO electrode surface was examined as a preliminary experiment. HIV-1LAI (p24 antigen level, 211 ng/ml) was added to four PLL-coated ITO electrodes and four PLL-uncoated ITO electrodes, and incubated for 3 h at 37°C. The mean and standard deviation (SD) of HIV-1LAI adsorbed onto four PLL-coated ITO electrode surface was 14.1 ± 0.6 ng/ml, and the rate of absorption was about 6.7%. When the electrode was not coated with PLL, HIV-1LAI did not adsorb onto the electrode surface.

HIV-1 infectivity after electrical stimulation

HIV-1LAI or HIV-1KMT were incubated for 3 h on the PLL-coated ITO electrode, which was stimulated by a constant d.c. potential of 1.0 V (vs. Ag/AgCl) for different time periods, ranging from 2-10 min. As shown in Figure 1, the rates of HIV-1LAI and HIV-1KMT infection progressively decreased with the duration of electrical stimulation, and both types of HIV-1 infection were virtually undetectable after 7.5 min of electrical stimulation.

Figure 1
figure 1

Effect of electrical stimulation on HIV-1 infectivity. HIV-1LAI or HIV-1KMT was incubated for 3 h at 37°C on PLL-coated ITO electrodes and then stimulated by a constant d.c. potential of 1.0 V (vs. Ag/AgCl) for 2 to 10 min. MAGIC-5 cells were then seeded onto the electrically stimulated virus. After culturing for 3 days at 37°C, HIV-1-infected cells were examined using a MAGI assay. More than 3,000 cells were counted under a microscope. The rates of HIV-1LAI and HIV-1KMT infection were defined as the number of stained cells divided by the total number of cells, as shown in the bar graph. The rates of HIV-1LAI and HIV-1KMT inhibition were derived from the infection rate of electrically stimulated and unstimulated virus, as shown in the polygonal line graph. Data represent the geometric mean ± standard deviation of duplicate determinations.

Full size image

The rates of HIV-1LAI and HIV-1KMT inhibition were obtained from the infection rate of electrically stimulated and unstimulated HIV-1, respectively. After application of an electrical potential at 1.0 V (vs. Ag/AgCl) for 2, 3 and 5 min, the rate of HIV-1LAI inhibition was approximately 51%, 85% and 91%, and the rate of HIV-1KMT inhibition was approximately 57%, 90% and 98%, respectively.

Cell damage induced by electrical stimulation

MAGIC-5 cells cultured for 3 h on the PLL-coated ITO electrode were stimulated by a constant d.c. potential of 1.0 V (vs. Ag/AgCl) for different time periods, ranging from 3 to 15 min. As shown in Figure 2, the rate of damage of MAGIC-5 cells progressively increased with the duration of electrical stimulation. After electrical stimulation for 3 and 5 min, the cells were barely damaged. However, about 91% of cells were damaged after 15 min stimulation.

Figure 2
figure 2

Rate of damage of MAGIC-5 cells in response to electrical stimulation. MAGIC-5 cells were cultured for 3 h at 37°C on PLL-coated ITO electrodes and then stimulated by a d.c. potential of 1.0 V (vs. Ag/AgCl) for 3 to 15 min. The cells were stained with 0.4% trypan blue dye for 5 min. More than 1,000 cells were counted under a microscope. Data represent the geometric mean ± standard deviation of duplicate determinations.

Full size image

Cell proliferation after electrical stimulation

Proliferation of MAGIC-5 cells after application of a 1.0 V (vs. Ag/AgCl) electrical potential is shown in Figure 3. Cell proliferation was unchanged in the presence of electrical stimulation at 1.0 V for 3 min, whereas proliferation of the cells was markedly decreased in the presence of electrical stimulation at 1.0 V for 5 min.

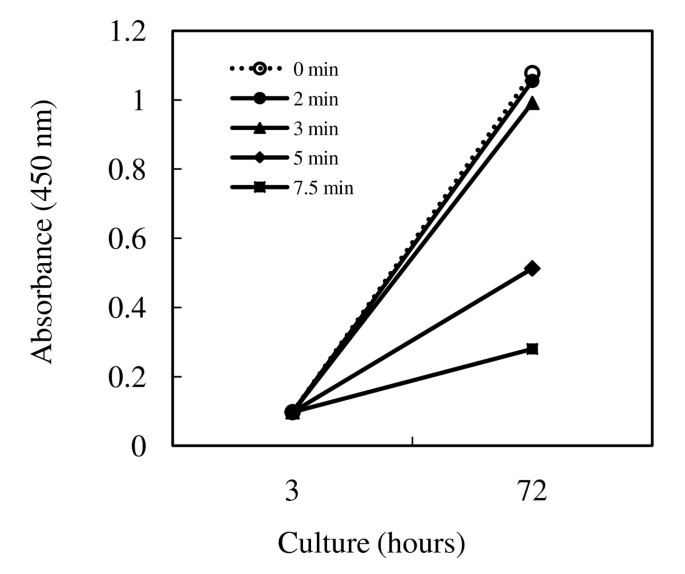

Figure 3
figure 3

Proliferation of MAGIC-5 cells in response to electrical stimulation. MAGIC-5 cells were cultured for 3 h at 37°C on PLL-coated ITO electrodes. The cells were stimulated by a d.c. potential of 1.0 V (vs. Ag/AgCl) for different time periods (2, 3, 5 and 7.5 min) and then cultured for 3 days. Proliferation of cells was measured using a Cell Counting Kit. Data represent the geometric means of triplicate determinations.

Full size image

Apoptotic cells after electrical stimulation

The apoptotic rate of MAGIC-5 cells after application of a 1.0 V (vs. Ag/AgCl) electrical potential is shown in Figure 4. After electrical stimulation at 1.0 V for 5, 7.5 and 15 min, the apoptotic rate of MAGIC-5 cells was about 0.1, 2.8 and 61%, respectively. These rates were lower than the rates of damage of cells stimulated under the same conditions.

Figure 4
figure 4

Apoptotic rate of MAGIC-5 cells in response to electrical stimulation. MAGIC-5 cells were cultured for 3 h at 37°C on PLL-coated ITO electrodes and then stimulated by a d.c. potential of 1.0 V (vs. Ag/AgCl) for 3 to 15 min. Apoptotic cells were measured using an Apoptosis In Situ Detection Kit. More than 1,000 cells were counted under a microscope. Data represent the geometric means of duplicate determinations.

Full size image

Discussion

A previous study reported that a lowering of cell membrane fluidity was caused not only by electrical stimulation (Kojima et al. 1991), but also by certain medicines and by changes in temperature. Another study demonstrated that use of the local anesthetic xylocaine affected the fluidity of the cell plasma membrane, in turn affecting HIV-1 infectivity (Harada et al. 2005). We predicted that the low potential sensitivity of HIV-1 would be higher than that of cells, because the fluidity of the viral envelope is lower than that of the plasma membrane (Harada et al. 2005).

To stimulate HIV-1 with a low potential, it is first necessary for the virus to be adsorbed onto an ITO electrode. However, HIV-1 does not possess the adhesion plaques exhibited by adherent cells, so was unable to adsorb onto the ITO electrode. Therefore, in our previous report (Kumagai et al. 2007), the effects of electrical stimulation on HIV-1LAI were indirectly examined. The research was carried out as follows: HIV-1LAI was adsorbed onto MAGIC-5 cells cultured on the ITO electrode, and then the HIV-1LAI-adsorbed cells were stimulated by a constant d.c. potential of 1.0 V (vs. Ag/AgCl). When the HIV-1LAI-adsorbed cells were stimulated at this potential for 5 min, infection was inhibited by about 37%, but the rate of damage of the HIV-1LAI-adsorbed cells was about 1%. After application of a potential of 1.0 V for 5 min, the mean fluorescence intensities of highly ROS and nitric oxide in the HIV-1NL43-Luc-adsorbed cells were significantly increased compared with those of unstimulated cells. These results suggested that the membrane of cells and virus envelopes were changed by electrical stimulation. As a result, the entry of viruses into cells might be blocked. However, it could not be completely ruled out that a few HIV-1 that had already entered cells at the point of stimulation might have been exposed to the effects of electrical stimulation. ROS that exhibit anti-viral activity (Corasaniti et al. 1995) might be involved in this process.

In the current study, HIV-1 and MAGIC-5 cells were directly stimulated with a constant d.c. potential of 1.0 V (vs. Ag/AgCl). The sensitivities of HIV-1 and the cells to electrical stimulation were then examined. PLL was used as an attachment factor for HIV-1 onto the ITO electrode, and about 7% of HIV-1LAI was adsorbed onto the electrode surface by coating it with PLL. After adsorption, HIV-1 was directly stimulated with a potential of 1.0 V, and then MAGIC-5 cells were seeded onto HIV-1. After culturing the cells at 37°C for three days, the rate of HIV-1 infection was examined. MAGIC-5 cells were also used as the target cells of HIV-1, as they are easily infected with HIV and their cell morphology is easy to observe.

By directly stimulating HIV-1LAI or HIV-1KMT adsorbed onto the PLL-coated ITO electrode with the potential of 1.0 V (vs. Ag/AgCl), the infectivity of both types of HIV-1 was remarkably inhibited. For example, HIV-1 (HIV-1LAI or HIV-1KMT) infection was inhibited by about 90% by electrical stimulation of 1.0 V for 3 min. By application of the potential for 5 min, the infection inhibition rate of HIV-1LAI (about 91%) was more than twice that of HIV-1LAI-adsorbed MAGIC-5 cells. The MAGI assay is a method for determining inactivation of the β-galactosidase gene when HIV-1 is integrated into the DNA of MAGIC-5 cells (Kimpton et al. 1992). The results of this assay indicated that lowering HIV-1 infectivity by electrical stimulation prevented HIV-1 from integrating into the DNA of the host cell. However, it remains unclear which part of this process, from adsorption of HIV-1 to cells to DNA integration, was damaged by electrical stimulation. With the currently available methodology, it is not possible to clarify this point. With future improvements in the ITO electrode, it may be possible to examine this is more detail.

Our results also demonstrated that there were no changes in the rate of cell damage, the apoptotic rate or the rate of cell proliferation in MAGIC-5 cells after electrical stimulation of 1.0 V (vs. Ag/AgCl) for 3 min, compared with unstimulated cells. After application of the potential for 5 min, damaged cells and apoptotic cells were virtually undetectable, however, the proliferation of cells also decreased by about 50%, so low levels of DNA damage not detected by the apoptosis assay might have influenced the proliferation of cells. Taken together, these findings suggested that HIV-1 was significantly more susceptible to the electrical potential of 1.0 V (vs. Ag/AgCl) than cells.

In conclusions, we have shown that HIV-1 is significantly damaged by a d.c. potential of 1.0 V compared with cells. This remarkable difference in sensitivity between HIV-1 and cells to electrical stimulation could be useful not only for the elucidation of HIV control mechanisms but also for the development of novel therapies for HIV-1.

References

  • Aboulafia DM: The epidemiologic, pathologic, and clinical features of AIDS-associated pulmonary Kaposi's sarcoma. Chest 2000, 117: 1128–1145. 10.1378/chest.117.4.1128

    Article  CAS  PubMed  Google Scholar

  • Atashi A, Nadri S, Hafizi M, Soleimani M: Role of poly- L -lysine-coated plates and fetal calf serum concentration in sheep chondroprogenitor cell culturing. J Artif Organs 2009, 12: 118–122. 10.1007/s10047-009-0450-y

    Article  CAS  PubMed  Google Scholar

  • Carr A, Samaras K, Burton S, Law M, Freund J, Chisholm DJ, Copper DA: A syndrome of peripheral lipodystrophy, hyperlipidaemia and insulin resistance in patients receiving HIV protease inhibitors. AIDS 1998, 12: F51-F58. 10.1097/00002030-199807000-00003

    Article  CAS  PubMed  Google Scholar

  • Colgrove RC, Pitt J, Chung PH, Welles SL, Japour AJ: Selective vertical transmission of HIV-1 antiretroviral resistance mutations. AIDS 1998, 12: 2281–2288. 10.1097/00002030-199817000-00009

    Article  CAS  PubMed  Google Scholar

  • Corasaniti MT, Melino G, Navarra M, Garaci E, Finazzi-Agro A, Nistico G: Death of cultured human neuroblastoma cells induced by HIV-1 gp120 is prevented by NMDA receptor antagonists and inhibitors of nitric oxide and cyclooxygenase. Neurodegeneration 1995, 4: 315–321. 10.1016/1055-8330(95)90021-7

    Article  CAS  PubMed  Google Scholar

  • Gottlie MS, Schroff R, Schanker HM, Weisman JD, Fan PT, Wolf RA, Saxon A: Pneumocystis carinii pneumonia and mucosal candidiasis in previously healthy homosexual men. Evidence of a new acquired cellular immunodeficiency. N Engl J Med 1981, 305: 1425–1431. 10.1056/NEJM198112103052401

    Article  Google Scholar

  • Hachiya A, Aizawa-Matuoka S, Tanaka M, Takahashi Y, Ida S, Gatanaga H, Hirabayashi Y, Kojima A, Tatsumi M, Oka S: Rapid and simple phenotypic assay for drug susceptibility of human immunodeficiency virus type 1 using CCR5-expressing Hela/CD4 cell clone 1–10 (MAGIC-5). Antimicrob Agents Chemother 2001, 45: 495–501. 10.1128/AAC.45.2.495-501.2001

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Harada S, Yusa K, Monde K, Akaike T, Maeda Y: Influence of membrance fluidity on human immunodeficiency. Biochem Biophys Res Commun 2005, 329: 480–486. 10.1016/j.bbrc.2005.02.007

    Article  CAS  PubMed  Google Scholar

  • Hogg RS, O'Shaughnessy MV, Gataric N, Yip B, Craib K, Schenchter MT, Montaner JSG: Decline in deaths from AIDS due to new antiretrovirals. Lancet 1997, 349: 1294.

    Article  CAS  PubMed  Google Scholar

  • Kimpton J, Emerman M: Detection of replication-competent and pseudotyped human immunodeficiency virus with a sensitive cell line on the basis of activation of an integrated β-galactosidase gene. J Virol 1992, 66: 2232–2239.

    CAS  PubMed Central  PubMed  Google Scholar

  • Kimura K, Yanagida Y, Haruyama T, Kobatake E, Aizawa M: Gene expression in the electrically stimulated differentiation of PC12 cells. J Biotechnol 1998, 63: 55–65. 10.1016/S0168-1656(98)00075-3

    Article  CAS  PubMed  Google Scholar

  • Kojima J, Shinohara H, Ikariyama Y, Aizawa M, Nagaike K, Morioka S: Electrically controlled proliferation of human carcinoma cells cultured on the surface of an electrode. J Biotechnol 1991, 18: 129–140. 10.1016/0168-1656(91)90241-M

    Article  CAS  PubMed  Google Scholar

  • Koyama S, Yanagida Y, Haruyama T, Kobatake E, Aizawa M: Molecular mechanisms of electrically stimulated NGF expression and secretion by astrocytes cultured on the potential controlled electrode surface. Cell Eng 1996, 1: 189–194.

    Google Scholar

  • Koyama S, Haruyama T, Kobatake E, Aizawa M: Electrically induced NGF production by astroglial cells. Nature Biotechnol 1997, 15: 164–166. 10.1038/nbt0297-164

    Article  CAS  Google Scholar

  • Koyanagi Y, Harada S, Yamamoto N: Establishment of a high production system for AIDS retroviruses with a human T-leukemic cell line MOLT-4. Cancer Lett 1986, 30: 299–310. 10.1016/0304-3835(86)90054-6

    Article  CAS  PubMed  Google Scholar

  • Kumagai E, Tominaga M, Harada S: Sensitivity of chronically HIV-1 infected HeLa cells to electrical stimulation. Appl Microbiol Biotechnol 2004, 63: 754–758. 10.1007/s00253-003-1410-8

    Article  CAS  PubMed  Google Scholar

  • Kumagai E, Tominaga M, Nagaishi S, Harada S: Effect of electrical stimulation on human immunodeficiency virus type-1 infectivity. Appl Microbiol Biotechnol 2007, 77: 947–953. 10.1007/s00253-007-1214-3

    Article  CAS  PubMed  Google Scholar

  • Manabe M, Mie M, Yanagida Y, Aizawa M, Kobatake E: Combined effect of electrical stimulation and cisplatin in HeLa cell death. Biotechnol Bioeng 2004, 86: 661–666. 10.1002/bit.20110

    Article  CAS  PubMed  Google Scholar

  • Masur H, Michelis MA, Greene JB, Onorato I, Stouwe RA, Holzman RS, Wormser G, Brettman L, Lange M, Murray HW, Cunningham-Rundles S: An outbreak of community-acquired Pneumocystis carinii pneumonia: initial manifestation of cellular immune dysfunction. New England Journal of Medicine 1981, 305: 1431–1438. 10.1056/NEJM198112103052402

    Article  CAS  PubMed  Google Scholar

  • McKeehan WL: Methods for Preparation of Media, Supplements, and Substrata for Serum-free Animal Cell Culture. A.R. Liss, NY; 1984:209.

    Google Scholar

  • Mie M, Endoh T, Yanagida Y, Kobatake E, Aizawa M: Induction of neural differentiation by electrically stimulated expression of NeuroD2. J Biotechnol 2003, 100: 231–238. 10.1016/S0168-1656(02)00284-5

    Article  CAS  PubMed  Google Scholar

  • Morikita T, Maeda Y, Fujii S, Matsushita S, Obaru K, Takatsuki K: The V1/V2 region of human immunodeficiency virus type 1 modulates the sensitivity to neutralization by soluble CD4 and cellular tropism. AIDS Res Hum Retroviruses 1997, 13: 1291–1299. 10.1089/aid.1997.13.1291

    Article  CAS  PubMed  Google Scholar

  • Palella FJ, Delaney KM, Moorman AC, Loveless MO, Fuhrer J, Satten GA, Aschman DJ, Holmberg SD: Declining morbidity and mortality among patients with advanced human immunodeficiency virus infection. N Engl J Med 1998, 338: 853–860. 10.1056/NEJM199803263381301

    Article  PubMed  Google Scholar

  • Picker LJ: Immunopathogenesis of acute AIDS virus infection. Curr Opin Immunol 2006, 18: 399–40. 10.1016/j.coi.2006.05.001

    Article  CAS  PubMed  Google Scholar

  • Sarmati L, Nicastri E, Parisi SG, d'Ettorre G, Mancino G, Narciso P, Vullo V, Andreoni M: Discordance between genotypic and phenotypic drug resistance profiles in human immunodeficiency virus type 1 strains isolated from peripheral blood mononuclear cells. J Clin Microbiol 2002, 40: 335–340. 10.1128/JCM.40.2.335-340.2002

    Article  PubMed Central  PubMed  Google Scholar

  • Tominaga M, Kumagai E, Harada S: Effect of electrical stimulation on HIV-1 infected HeLa cells cultured on electrode surface. Appl Microbiol Biotechnol 2003, 61: 447–450.

    Article  CAS  PubMed  Google Scholar

  • Tominaga M, Nagaishi S, Kirihara M, Kumagai E, Harada S, Taniguchi I: Frequency change-induced alternative potential waveform dependence of membrane damage to cells cultured on an electrode surface. J Biotechnol 2007, 129: 498–501. 10.1016/j.jbiotec.2007.01.026

    Article  CAS  PubMed  Google Scholar

  • Wu X, Yang ZY, Li Y, Hogerkorp CM, Schief WR, Seaman MS, Zhou T, Schmidt SD, Wu Longo NS, Mckee K, O'Dell S, Louder MK, Wycuff DL, Feng Y, Nason M, Doria-Rose N, Connors M, Kwong PD, Roederer M, Wyatt RT, Nabel GJ, Mascola JR: Rational design of envelope identifies broadly neutralizing human monoclonal antibodies to HIV-1. Sience 2010, 329: 856–861. 10.1126/science.1187659

    Article  CAS  Google Scholar

  • Yaoita M, Ikariyama Y, Aizawa M: Electrical effects on the proliferation of living HeLa cells cultured on optically transparent electrode surface. J Biotechnol 1990, 14: 321–332. 10.1016/0168-1656(90)90116-S

    Article  CAS  PubMed  Google Scholar

  • Yavin E, Yavin Z: Attachment and culture of dissociated cells from rat embryo cerebral hemispheres on polylysine-coated surface. J Cell Biol 1974, 62: 540–546. 10.1083/jcb.62.2.540

    Article  CAS  PubMed Central  PubMed  Google Scholar

  • Zhou T, Georgiev l, Wu X, Yang ZY, Dai K, Finzi A, Kwon YD, Schied JF, Shi W, Xu L, Yang Y, Zhu J, Nussenzweig MC, Sodroski J, Chapiro L, Nabel GJ, Mascola JR, Kwong PD: Structural basis for broad and potent neutralization of HIV-1 by antibody VRC01. Science 2010, 329: 811–817. 10.1126/science.1192819

    Article  CAS  PubMed Central  PubMed  Google Scholar

Download references

Acknowledgements

We thank Dr. M. Tatsumi for supplying the MAGIC-5 cells. We also thank S. Harima and H. Terasawa for their technical assistance.
