The influence of moisture content variation on fungal pigment formation in spalted wood
© Tudor et al.; licensee Springer. 2012
Received: 4 December 2012
Accepted: 5 December 2012
Published: 17 December 2012
Eight fungal species known to produce wood pigmentation were tested for reaction to various moisture contents in two hardwood species. Fungal pigmentation by Trametes versicolor and Xylaria polymorpha was stimulated at low water concentrations in both Acer saccharum (sugar maple) and Fagus grandifolia (American beech), while Inonotus hispidus and Polyporus squamosus were stimulated above 22-28% and 34-38% moisture content in beech and in sugar maple respectively. Fomes fomentarius and Polyporus brumalis produced maximum pigmentation in beech at 26 - 41% and in sugar maple at 59 - 96% moisture content. The pink staining Scytalidium cuboideum pigmented both wood species at above 35% moisture content. This research indicates that controlling the moisture content values of wood substrates can stimulate the intensity of pigmentation of specific fungi when spalting wood for decorative and commercial purpose.
KeywordsFungal melanin Pigment Moisture content Spalting
Moisture content of the substrate is not entirely dependent on the environmental conditions. It is known that wood-inhabiting fungi can influence the microclimatic regime in dead wood. Some fungi are able to regulate the moisture content of a substrate to ensure the optimal water availability, or as a strategy in antagonistic reactions, to create an environment stressful for fungal competitors, thereby avoiding combative exclusion (Boddy and Heilmann-Clausen 2008). Miller (1932) demonstrated that wood decomposer fungi like Serpula lacrymans (Wulfen) J. Schröt., Schizopora paradoxa (Schrad.) Donk and Coniophora puteana (Schumach.) P. Karst., could regulate the water content of the colonized habitat. During the initial stages of colonization, the dry conditions are improved for optimal growth by the mean of cellulose and polysaccharide decomposition, while at higher levels of humidity the water surplus is extracted from wood substrate into aerial mycelium, to ensure the optimal moisture content. By virtue of pigmented zonation lines that they produce, fungi from Xylaria species seem to maintain wood drier than ambient conditions (Boddy et al. 1989; Heilmann-Clausen 2001), while Armillaria species occupy wood wetter than ambient (Lopez-Real and Swift 1975; Chapela and Boddy 1988). As reported by Humar et al. (2001), moisture content of wooden blocks inoculated with Trametes versicolor (L.) Lloyd rose from 10 % to 57 % above the fiber saturation point after 12 weeks of exposure to decay, and opportunistic mold fungi like Penicillium spp. can ensure fungal succession on various wood substrates by improving moisture content in decayed wood (Dix 1985). However, various water content levels determine the prevalence of fungal species inhabiting the wood substrate. Based on the moisture content preference, Käärik (1974) indicate three distinctive groups that colonize wood: fungi that occupy wood at 37 – 47 % moisture content, fungi that prefer a drier part of the wood of 17-23% MC, and fungi that had no restriction in terms of water availability.
There are 44 species of basidiomycetes and 10 species of ascomycetes that have been reported to form dark zone lines (Lopez-Real and Swift 1975). Research by Hubert(1924) indicated that fungal melanin deposition in spatial demarcation could be triggered by limited water availability. The anticipation of desiccation might cause fungal species like Xylaria polymorpha (Pers.) Grev., Bjerkandera adusta (Willd.) P. Karst., Phellinus igniarius (L.) Quél. and Porodaedalea pini (Brot.) Murrill to develop an effective strategy to ensure the survival of the colonies. They produce high resistance, melanin-type pigment that surrounds the fungal community like a barrier, blocking the water exchange within the wood substrate. This may appear as fine delimitation lines in section. Campbell (1933), in his study on zone line formation by X. polymorpha, refers to desiccation as the cause of a particular kind of zone lines, as well as for Armillaria mellea (Vahl) P. Kumm (Campbell 1934).
Laboratory studies by Lopez-Real and Swift (1975, 1977) indicate that melanized mycelium formation by A. mellea and Stereum hirsutum (Willd.) Pers., is considered as a normal morphogenetic process, and occurs at any moisture content when growth is possible, except for S. hirsutum at low humidity (< 35% MC), when pigmentation is inhibited at early stages of growth. Studies by Campbell (1933, 1934), Lopez-Real (1975), Rayner and Todd (1979), Boddy (1986), and Boddy et al. (1989) describe the formation of melanized mycelium in zone lines, in inter- and intraspecific antagonistic reactions, and offer a perspective on substrate and environmental conditions that influence such formations in natural settings. Lopez-Real and Swift (1975) indicated the existence of a relationship between the moisture content of the substrate during the initial period of colonization and the ability of Armilaria mellea to form melanin. For Stereum hirsutum, only high moisture content of the substrate may be a critical factor determining pigment formation. Campbell (1933, 1934) studied in vitro zonation of A. mellea and X. polymorpha, mentioning that optimum moisture is necessary to produce pigmentation; however no specific values were indicated. Rishbeth (1951) studied the behavior of Heterobasidion annosum (Fr.) Bref. indicating that infection is critical in freshly cut stumps. Hopp (1938) investigated pigmentation of Ganoderma applanatum (Pers.) Pat. and Phellinus igniarius (L.) Quél. and found that moisture content strongly influences the antagonistic reactions with pigment production in wood. However, research under laboratory conditions is limited, and a more elaborate and consistent investigation was necessary to determine the optimal conditions for pigmentation for given wood species by fungal species utilized in spalting. This study investigates the direct influence of moisture content of specific wood substrates on fungal pigmentation, and the results are important for manipulating fungal pigmentation for spalting production. The ability to manipulate fungal reactions through moisture content changes in wood, offers a chance to enhance the pigmentation intensity and patterns currently available with spalted woods. It also offers an opportunity to add considerable value to underutilized hardwood species.
Material and Methods
Wood and fungal species selection
Two common wood species from southern Ontario, sugar maple (Acer saccharum Marsh) and beech (Fagus grandifolia L.) were selected for testing, based on their contrasting natural spalting prevalence. The average oven-dry specific gravity (SG) of the tested wood species was SG=0.68 for sugar maple and SG=0.74 for beech.
Wood and fungal species selection
Wood species/specific gravity (SG)
Fungal species/Culture collection number
Other fungal species, one strain per species, were used for additional experiments: Polyporus squamosus (Huds.) Fr. UAMH 11653 isolated from beech in Toronto, ON, Canada, Polyporus brumalis (Pers.) Fr. UAMH 11652 isolated from unidentified dead wood in Toronto area, ON, Canada, Fomes fomentarius (L.) J.J. Kickx UAMH 11654 isolated from birch in Toronto, ON, Canada, Inonotus hispidus (Bull.) P. Karst. F2037 of unknown origin, Piptoporus betulinus UAMH 11651 (Bull.) P. Karst., isolated from sugar maple in Toronto, ON, Canada. One staining fungus investigated for pigment formation was Scytallidium cuboideum (Sacc. & Ellis) Sigler & Kang UAMH 4802 isolated from Na-pentachlorophenate-dipped red oak lumber.
Fungal cultures used for inoculation were grown on 95x15 mm Petri dishes with 2% malt extract agar at room temperature for two weeks prior inoculation.
Moisture content test preparation
The moisture content test was performed using a modified decay jar test with vermiculite instead of soil, as outlined in Robinson et al. (2009, 2012), to avoid eventual influence of soil substrates on pigment formation. Jars with plastic lids (250 ml) were prepared with 15g vermiculite and variable amounts of distilled water per set. According to AWPA (2009) Standards, the amount of water added in the jars should be 130% of the water-holding capacity (WHC) of the substrate, in our case vermiculite, for optimum condition of decay. Based on vermiculite WHC, our calculations indicate that 30g of distilled water should be added in each cultured jar for standard incubation conditions. Nine levels of water availability was tested, modifying the amount of water added to each jar, in increments of 5g, five levels under and three levels above the standard conditions for decay (5g, 10g, 15g, 20g, 25g, 30g, 35g, 40g, and 45g).
Inoculation and incubation
Culture jars with vermiculite and the specified amount of distilled water were autoclaved for 30 minutes at 121°C. Five replicates per set of 14 mm wood cubes, preconditioned at 50°C to provide an initial dry weight, were surface steam sterilized for 30 minutes under atmospheric pressure at 100°C. After cooling, the wood samples were placed in culture jars, and inoculated with a 0.5x2 cm strip of fungal inoculum. Culture jars were incubated at 27°C ± 2°C and 80% ± 5% relative humidity in the inoculation chamber, for eight weeks for T. versicolor and F. fomentarius and ten weeks for the remaining fungi. At the end of the period of incubation, blocks were removed from jars, gently cleaned at surface to remove mycelium and any traces of vermiculite, and weighed before and after overnight oven drying to determine final moisture content and mass loss. To avoid changes of fungal pigment colors, the drying temperature was modified to 50°C instead of 103°C standard for MC testing.
Dried wood samples were scanned externally and internally with Epson WorkForce 500 scanner at 2400 dpi. The obtained images were analyzed for pigment evaluation with Scion Image software, following the protocol described in Robinson et al. (2009a).
To analyze the importance of moisture content for fungal pigment formation, a one-way ANOVA was run, followed by Tukey’s HSD at α = 0.05, using SAS, version 9.2, with fungal inoculation and induced conditions as independent variables, for each wood species.
Estimation of initial conditions and changes of substrate moisture content

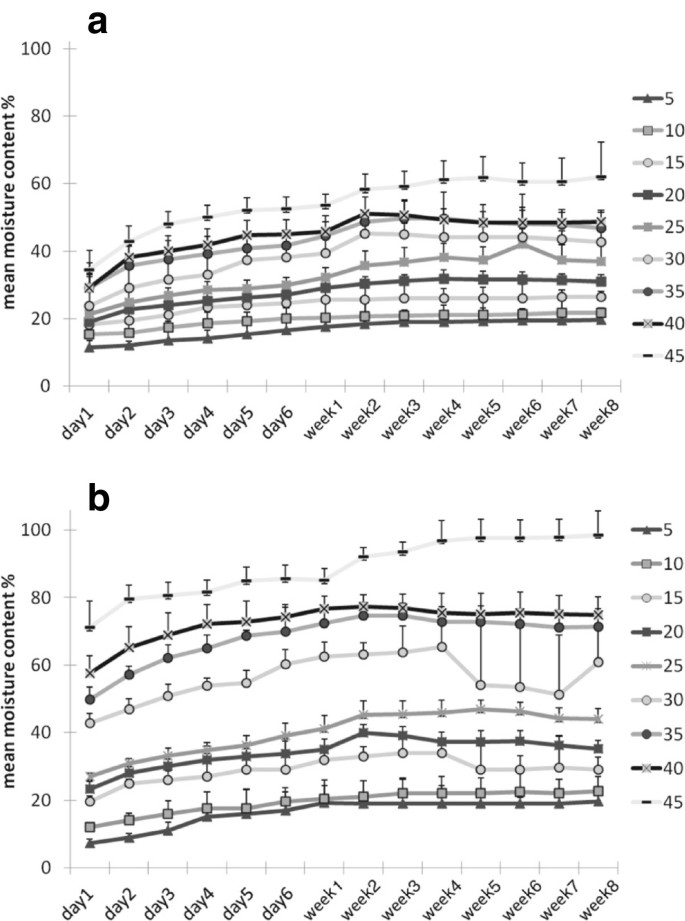

To estimate the wood moisture content in conditions simulated in the experiment, two sets of tests were run for eight weeks, without fungal inoculation, under identical conditions as the main test. Five replicates of wood samples per treatment, initially oven-dried conditioned, were weighed every day for the first week and once every week for the following period, to monitor changes of moisture content in wood samples. To minimize mold contamination, wood samples were manipulated and weighted in a sterile laminar flow hood. However, for comparison, wood samples from a second set were kept in sterile conditions and weighed only at the end of the eight-week incubation period. Wood moisture content was calculated based on the final oven-dry weight.
Final moisture content in wood samples (five replicates per set) incubated with various fungal species: tv = T. versicolor (average of three strains); xp = X. polymorpha (average of three strains) ; ih = I. hispidus ; pbr = P. brumalis ; pbt = P. betulinus; ff = F. fomentarius ; psq = P. squamosus ; sc = S. cuboideum ; - = no fungal inoculation
Treatment g water/jar
Mean % moisture content /standard deviation

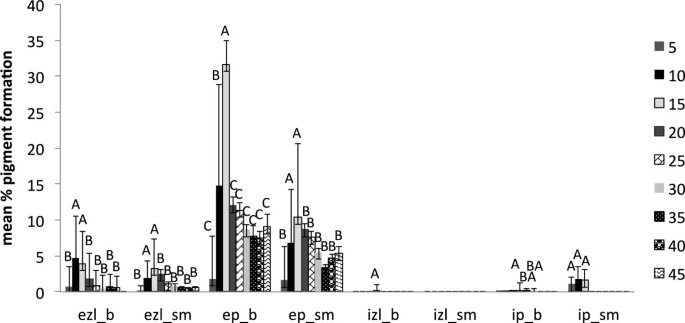

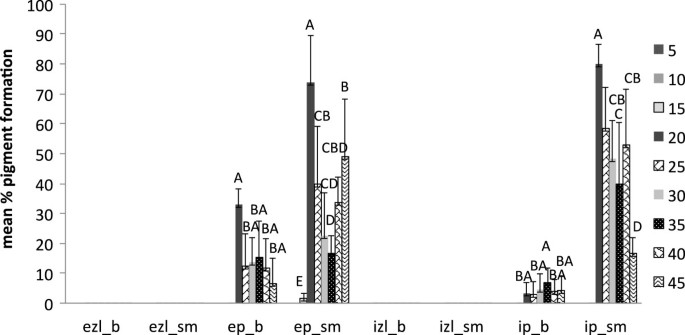

Influence of induced condition on pigment formation
For commercial and artistic purposes, spalting should result in a high intensity of wood pigmentation, while minimizing the loss in strength and integrity of the wood after exposure to fungal activity. The natural wood resistance to decay is influenced by many other factors such as wood extractives and ambient temperature. In our tests, wood integrity was reflected by mass loss measurements at the end of period of incubation. As expected, based on the specific gravity of the wood species tested, sugar maple samples proved to have higher degradability than beech, with few exceptions. Polyporus brumalis and S. cuboideum degraded both wood species at the same rate, and F. fomentarius was more effective for beech degradation, within the same treatments of water availability. However, sugar maple is more prone to spalting, as the occurrence of fungal pigmentation and zone line is much higher than in beech.
The moisture content in wood substrates can fluctuate considerably, and is influenced by the relative humidity of the microclimate, the substrate hygroscopicity, and fungal decomposition activity (Chapela and Boddy 1988; Boddy et al. 1989; Heilmann-Clausen 2001; Boddy and Heilmann-Clausen 2008). From the analysis of moisture content of wood samples exposed to the same testing condition, without fungal inoculation, it was determined that sugar maple was more hygroscopic than beech (Figure 2), suggesting higher hemicelluloses, lower lignin and/or lower extractive content (Rowell 2012). For the present study, it was also important to establish the predicted value of the initial moisture content that the wood substrate was able to achieve for each treatment (see Table 2).
Due to periodic removal of wood samples for weighing, the measured MC of the wood samples varied over the experiment period. This variation could be explained either by loss of moisture through evaporation, or by changes to the position of the wood samples in the vermiculite. However, comparison of final results of this experiment with another set of sterile wood samples, kept in the same condition and measured only for final moisture content after eight weeks, indicates that the final MC of the two sets of wood samples are comparable (results not shown).
The most favorable condition for the growth of fungi in wood is slightly above the fiber saturation point (FSP: 25-30% MC), when free diffusion of enzymes can take place within the film of liquid water that coat the cell walls, but where some air spaces remain for gas diffusion (Cartwright & Findlay 1958). According to Lopez-Real and Swift (1975), the formation of black pigmented delimitation zones requires a similar situation, where free water still exists in the lumina of the wood cells, and the levels of concentration of CO2 are above atmospheric conditions, with the presence of atmospheric levels of oxygen at least for the initial exposure.
However, the present study shows that the reaction of fungal species investigated at different values of water availability varied considerably, even between the two wood species studied. Trametes versicolor produced pigmentation at a lower moisture content equivalent of 18–35 % for sugar maple, and 26–32 % for beech (Figure 4), with no inhibition of mass loss. The ascomycete X. polymorpha preferred a moisture content that was more consistent between the two wood species studied, producing maximum pigmentation at 29–33 % in sugar maple and 29–32 % initial moisture content in beech (Figure 5). However, the same moisture content that stimulated pigmentation in beech, also resulted in the highest mass loss (Figure 3a). In the case of I. hispidus the pigmentation was inhibited at low moisture contents, under 22-28% in beech and 34-38% in sugar maple (Figure 5), and no treatment had a significant influence on mass loss. The same trend can be recognized in P. squamosus (Figure 7), while F. fomentarius and P. brumalis both show a completely different tendency, with maximum pigmentation in beech at 26–41 % and in sugar maple at 59- 96% (Figures 8 and 9). The pink staining fungus S. cuboideum developed more pigmentation at an the initial moisture content above 35 % for both wood species (Figure 10). The differences in the reaction among fungal species to various moisture contents might be the outcome of fungal specificity to certain conditions and substrate constraints, as part of successional colonization that ensure wood decomposition (Boddy 1983a; Boddy and Rayner 1983; Cooke and Rayner 1984; Boddy 1986; Rayner 1986; Boddy et al. 1989). It is also known that many of the studied fungi produce different types of black pigmentation, using various phenolic compounds from wood substrates as precursors for melanin biosynthesis (Bell and Wheeler 1986; Butler et al. 2001). Those cumulative observations emphasize once more the complex interactions of fungal species in wood decay.
This research indicates that spalting could be stimulated by controlling moisture content of the substrate, and optimal conditions are specific to wood and fungal species. Pigmentation was stimulated at low water concentrations in the case of T. versicolor and X. polymorpha for both wood species tested, while I. hispidus, P. squamosus, P. brumalis and S. cuboideum showed a tendency of enhanced pigmentation at higher levels of moisture content (35%-55%). Moisture content amounts tested did not significantly affect wood mass loss.
For direct applicability in industrial spalting production, fungal strains used in production should be carefully tested to assess the maximum pigmentation ability in regard with MC. Pairing of fungal strains should be considered based on their similarity of pigment production at proximate MC values. A special consideration should be given to fungi like X. polymorpha that produce maximum pigmentation at lower values of MC, and proved to be more consistent in strain variation. To overcome the limited surface that fungi can inhabit at low water availability due to restrained growth, a MC optimal for growth should be initially induced, followed by a drying period to stimulate pigmentation.
The research was financially supported by the Natural Resources of Canada (Value-to-Wood Program).
- American Wood Protection Association: E10–06. Standard method of testing wood preservatives by laboratory soil-block cultures. AWPA Book of Standards, Birmingham, AL; 2009.Google Scholar
- Bell AA, Wheeler MH: Biosynthesis and function of fungal melanins. Ann Rev Phytopathol 1986, 24: 441–451.View ArticleGoogle Scholar
- Boddy L: Effect of temperature and water potential on growth rate of wood-rotting basidiomycetes. Trans Br Mycol Soc 1983, 80: 141–149. 10.1016/S0007-1536(83)80175-2View ArticleGoogle Scholar
- Boddy L: Carbon dioxide release from decomposing wood: effect of water content and temperature. Soil Biol Biochem 1983, 15: 501–510. 10.1016/0038-0717(83)90042-1View ArticleGoogle Scholar
- Boddy L: Water and decomposition processes in terrestrial ecosystems. In Water, Fungi and Plants. Edited by: Ayres PG, Boddy L. Cambridge University Press, Cambridge; 1986:375–398.Google Scholar
- Boddy L, Owens EM, Chapela IH: Small scale variation in decay rate within logs one year after felling: effect of fungal community structure and moisture content. Fed Eur Microbiol Soc 1989, 62: 173–184. 10.1111/j.1574-6968.1989.tb03691.xView ArticleGoogle Scholar
- Boddy L, Heilmann-Clausen J: Basidiomycete community development in temperate angiosperm wood, In: Boddy L, Frankland JC, West P (eds) Ecology of Saprotrophic Basidiomycetes. British Mycological Society Symposia Series, Academic Press 2008, 28: 211–237.View ArticleGoogle Scholar
- Boddy L, Rayner ADM: Origins of decay in living deciduous trees: the role of moisture content and reappraisal of the expanded concept of tree decay. New Phytol 1983, 94: 623–641. 10.1111/j.1469-8137.1983.tb04871.xView ArticleGoogle Scholar
- Butler MJ, Day AW: Fungal Melanins: a Review. Can J Microbiol 1998, 44: 1115–1136. 10.1139/w98-119View ArticleGoogle Scholar
- Butler MJ, Day AW, Henson JM, Money NP: Pathogenic Properties of Fungal Melanins. Mycol 2001,93(1):1–8. 10.2307/3761599View ArticleGoogle Scholar
- Campbell AH: Zone lines in plant tissue. I. The black zones formed by Xylaria polymorpha (Pers.) Grev. in hardwoods. Ann Appl Biol 1933,20(1):123–145. 10.1111/j.1744-7348.1933.tb07431.xView ArticleGoogle Scholar
- Campbell AH: Zone lines in plant tissue. II. The black zones formed by Armillaria mellea (Vahl)Quel. Ann Appl Biol 1934, 21: 1–22. 10.1111/j.1744-7348.1934.tb06887.xView ArticleGoogle Scholar
- Cartwright KSTG, Findlay WPK: Decay of timber and its prevention. HMSO, London; 1958.Google Scholar
- Chapela IH, Boddy L: Fungal colonisation of attached beech branches, II. Spatial and temporal organization of communities arising from latent invaders in bark and functional sapwood under different moisture regimes. New Phytol 1988, 110: 47–57. 10.1111/j.1469-8137.1988.tb00236.xView ArticleGoogle Scholar
- Cooke RC, Rayner ADM (Eds): Ecology of saprotrophic fungi. Longman, London; 1984.Google Scholar
- Dix NJ: Changes in relationship between water content and water potential after decay and its significance for fungal successions. Trans Br Mycol Soc 1985, 85: 649–653. 10.1016/S0007-1536(85)80259-XView ArticleGoogle Scholar
- Donovan GH, Nicholls D: Estimating consumer willingness to pay a price premium for Alaskan secondary wood products. Gen. Tech. Note. PNW:RP-553. USDA Forest Serv., Pacific Northwest Res. Sta, Portland, OR; 2003b.Google Scholar
- Donovan G, Nicholls D: Consumer preferences and willingness to pay for character-marked cabinets from Alaska birch. Forest Prod J 2003,53(11/12):27–32.Google Scholar
- Duran N, Teixeira MFS, De Conti R, Esposito E: Ecological-friendly pigment from fungi. Cr Rev Food Sci Nutr 2002, 42: 53–66. 10.1080/10408690290825457View ArticleGoogle Scholar
- Heilmann-Clausen J: A gradient analysis of communities of macrofungi and slime moulds ondecaying beech logs. Mycol Res 2001, 105: 575–596. 10.1017/S0953756201003665View ArticleGoogle Scholar
- Henson JM, Butler MJ, Day AW: The Dark Side Of The Mycelium: Melanins of Phytopathogenic Fungi. Ann Rev Phytopathol 1999, 37: 447–471. 10.1146/annurev.phyto.37.1.447View ArticleGoogle Scholar
- Hopp H: The formation of coloured zones by wood-destroing fungi in culture. Phytopathol 1938, 28: 601–620.Google Scholar
- Hubert EE: The diagnosis of decay in wood. Agr Res J 1924,29(11):523–569.Google Scholar
- Humar M, Petric M, Pohleven F: Changes of the pH value of impregnated wood during exposure to wood-rotting fungi. Holz Roh-Werkstoff 2001, 59: 288–293. 10.1007/s001070100207View ArticleGoogle Scholar
- Käärik : Decomposition of wood. In Biology of Plant Litter Decomposition. Edited by: Dickinson CH, Pugh GJF. Academic Press, London; 1974:129.View ArticleGoogle Scholar
- Lopez-Real JM: Formation of pseudosclerotia (‘zone lines’) in wood decayed by Armillaria mellea and Stereum hirsutum. I. Morphological aspects. Trans Br Mycol Soc 1975, 64: 465–471. 10.1016/S0007-1536(75)80145-8View ArticleGoogle Scholar
- Lopez-Real JM, Swift JM: The formation of pseudosclerotia (‘zone lines’) in wood decayed by Armillaria mellea and Stereum hirsutum, II. Formation in relation to the moisture content of the wood. Trans Br Mycol Soc 1975, 64: 473–481. 10.1016/S0007-1536(75)80146-XView ArticleGoogle Scholar
- Lopez-Real JM, Swift JM: Formation of pseudosclerotia (‘zone lines’) in wood decayed by Armilllaria mellea and Stereum hirsutum, III. Formation in relation to composition of gaseous atmosphere in wood. Trans Br Mycol Soc 1977, 68: 321–325. 10.1016/S0007-1536(77)80183-6View ArticleGoogle Scholar
- Margalith PZ (Ed): Pigment Microbiology. Chapman & Hall Publ, New York; 1992.Google Scholar
- Miller VV: Points in the Biological Diagnosis of House Fungi I. The rotting process as a source of self-wetting for timber. Leningrad State Forestal Technical Publishing Office, Leningrad; 1932.Google Scholar
- Nicholls D: Evaluation of the retail market potential for Locally Produced Paper Borch Lumber in Alaska. In General Technical Report PNW-GTR-493. USDA Forest Serv., Pacific Northwest Res. Sta, Portland, OR; 2002.Google Scholar
- Pearce RB: Reaction zone relics and the dynamics of fungal spread in the xylem of woody angiosperms. Phys Mol Plant Pathol 1991, 39: 41–55. 10.1016/0885-5765(91)90030-LView ArticleGoogle Scholar
- Rayner ADM: Water and the origins of decay in trees. In Water, fungi and plants. Edited by: Ayrcs PG, Boddy L. Univ Press, Cambridge; 1986:32l.Google Scholar
- Rayner ADM, Todd NK: Population and community structure and dynamics of fungi in decaying wood. Adv Bot Res 1979, 7: 333–420.View ArticleGoogle Scholar
- Rishbeth J: Observation on the biology of Fomes annosus with particular reference to East Anglican pine plantations. II. Spore production, stump infection and saprophytic activity in stump. Ann Bot 1951, 15: 1–21.Google Scholar
- Robinson SC, Richter DL, Laks PE: Colonization of sugar maple by spalting fungi. For Prod J 2007,57(4):24–32.Google Scholar
- Robinson SC, Laks PE, Turnquist EJ: A method for digital color analysis of spalted wood using Scion Image software. Materials 2009, 2: 62–75. 10.3390/ma2010062View ArticleGoogle Scholar
- Robinson SC, Tudor D, Cooper PA: Promoting fungal pigment formation in wood by utilizing a modified decay jar method. Wood Sci Technol 2012, 46: 841–849. 10.1007/s00226-011-0453-8View ArticleGoogle Scholar
- Rowell RM: Moisture Properties. In Handbook of Wood Chemistry and Wood Composites. 2nd edition. Edited by: Rowell RM. CRC Press, New York; 2012.View ArticleGoogle Scholar
- Taylor R, Dashek WV, Williams AL, Llewellyn GC, Shortle WC, O'Rear CE, Mayficid JE: Ultrastructure of the wood-decay fungus, Coriolus versicolor, in relation to a catechol-induced bimodal growth response. Int Biodet 1988, 24: 343–358. 10.1016/0265-3036(88)90020-6View ArticleGoogle Scholar
- Schmidt O (Ed): Wood and tree fungi. Springer-Verlag, Berlin; 2006.Google Scholar
