Nano-encapsulation of essential amino acids: ruminal methane, carbon monoxide, hydrogen sulfide and fermentation
AMB Express volume 14, Article number: 109 (2024)
Abstract
This study aimed to evaluate the effect of nano-encapsulation of four essential amino acids (AA), threonine, methionine, tryptophan, and lysine on in vitro ruminal total gas, methane, carbon monoxide, and hydrogen sulfide production as well as the rumen fermentation profile in cattle. The highest (P < 0.001) rate and asymptotic gas production after 48 h of incubation was observed in the diets that had threonine, followed by lysine, methionine, and tryptophan. Asymptotic methane gas production decreased in the following order: threonine > lysine > tryptophan > methionine (P < 0.0001) and the rate of production per hour followed the same trend (P = 0.0259). CH4 parameters showed that in 4 h, 24 h, and 48 h of incubation the lowest methane production was obtained in the diet with methionine (P < 0.05) and the highest one in diet supplemented with threonine. Methane fractions showed that methionine-containing diets resulted in more (P < 0.05) metabolizable energy versus methane, followed by tryptophan-containing, and then lysine-containing diets. Methionine-fortified diets seem to be the most eco-friendly among those studied regarding methane output. However, based on methane, CO, and H2S output as well as the rumen fermentation profile nano-encapsulated lysine is recommended for use in ruminant nutrition.
Introduction
The supply of protein and its amino acid constituents is very important in animal diets, and appropriate amino acid additives can greatly improve animal production (Ren et al. 2019). Adequate amino acid supply for high-producing ruminants is challenging, and to improve amino acid availability to animals it is necessary to protect these nutrients (Albuquerque et al. 2020). The limiting amino acid from plant ingredients and the need to protect amino acids from rumen microbes deamination, especially in high-producing animals necessitates the need to supply exogenous amino acids and protect them with modern techniques to reduce nitrogen excretion. Inefficient use of excess dietary protein brings a metabolic burden and pollutes the environment. Optimizing the use of nutrients has become a top priority due to environmental protection issues (Chen et al. 2021). Therefore, several technologies aiming to protect amino acids from microbial degradation in the rumen were developed (Van den Bossche et al. 2023), to avoid microbial amino acid degradation (Firkins and Mitchell 2023). Various studies reported positive effects on animal performance, nutrient digestibility, and nitrogen metabolism, of supplementary dietary amino acids, in particular methionine and lysine, in ruminant and monogastric diets in their free form as well as in a form for protecting them from microbial degradation (Tsiplakou et al. 2017; Teixeira et al. 2019; Chen et al. 2021). Furthermore, Liu et al. (2021) observed a positive effect of amino acids protected from microbial degradation on the rumen fermentation profile.
However, to the best of our knowledge, no study has considered the effect of amino acid supplementation in ruminant diets on the production of greenhouse gases such as methane and other gases such as CO and H2S. Furthermore, no other study has considered the need to add other essential amino acids besides methionine and lysine, for example, threonine and tryptophan leading to little information on their impact on ruminant metabolism and no study has compared these four essential amino acids in the rumen environment. In addition, there is little information on the role of nano-encapsulated amino acids on enteric ruminal methane, H2S and the fermentation profile. Thus, this study aims to evaluate the effect of four essential amino acids, namely methionine, lysine, threonine, and tryptophan in their free and nano-encapsulated form on ruminal total gas, methane (CH4), carbon monoxide (CO), and hydrogen sulfide (H2S) production as well as rumen fermentation profile and CH4 conversion efficiency in cattle.
Materials and methods
Amino acids
Amino acids (methionine, lysine, threonine and tryptophan) were obtained from Evonik México S.A. de C.V., México. Mesquite gum powder from Prosopis laevigata trees was provided by the Universidad Autónoma Metropolitana-Iztapalapa. Gum powder is a highly branched complex polyelectrolyte formed mainly by L-arabinose and D-galactose, and minor proportions of 4-O-methyl-D-glucuronate and L-rhamnose, in a 2:4:1:1 ratio, and a protein content of around 4.8% db (dry basis), which is responsible for its excellent emulsifying properties (Roman-Guerrero et al., 2009). Soybean oil was purchased from a local supermarket (Toluca, State of Mexico, Mexico). Tween 20™ and sodium alginate were acquired from Sigma Aldrich, S.A. de C.V. (Toluca, State of Mexico, Mexico). Distilled water was produced in the lab by reverse osmosis.
Experimental diet
An experimental diet was formulated to cover the nutritional requirements of cattle in the finishing stage. The composition of the diet was determined in the Bromatology laboratory of the Faculty of Veterinary and Zootechnics of the Universidad Autónoma del Estado de México (Table 1). Representative samples of the experimental diets were taken and dehydrated at 60 °C for 72 h. The dry residues were ground in a hammer mill (Thomas Wiley® Laboratory Mill model 4, Swedesboro, NJ, USA), with a 1 mm sieve. The percentages of moisture, dry matter, ash, nitrogen and ether extract were determined according to the respective AOAC methodologies (1997). The analysis of neutral and acid detergent fiber was performed in an ANKOM200 fiber analyzer (ANKOM Technology Corp, Macedon, NY, USA) with alpha-amylase and sodium sulfite according to Van Soest et al. (1991). The determination of organic matter was calculated by subtracting the ash content. The percentage of protein was determined by multiplying the nitrogen content by 6.25.
Preparation of nano encapsulation of the amino acids
Preparation of W1/O emulsion
The amino acids were dissolved in distilled water at a 1:1 (w/v) ratio. Tween 20 (6% by weight) was added to the soybean oil at 60 °C and stirred at 800 rpm for 15 min to ensure complete dissolution. Then, the W1/O emulsion (i.e. water, phase 1, is dispersed in oil) was prepared by slowly adding the amino acid solution to the oil phase in a 1:1 (w/w) ratio and mixing using an Ultra-Turrax T50 homogenizer (IKA®-WERKE Works Inc., Wilmington, NC, USA) at 8000 rpm for 6 min (Su et al. 2022)
Preparation of W1/O/W2 double emulsion
For the external aqueous phase (W2), mesquite gum (10% by weight) and sodium alginate (2% by weight) were dissolved in distilled water. This was then mixed with the freshly prepared W1/O at 25 °C. The W1/O/W2 emulsions were mixed in a (1:2, w/w) ratio with an Ultra-Turrax T50 homogenizer (IKA®-WERKE Works Inc., Wilmington, NC, USA) at 8000 rpm for 5 min. The emulsions were stored at 4 °C after preparation (Su et al. 2022).
Characterization of the emulsion
Droplet size measurement
For the measurement of droplet size, the method of Liu et al. (2020) with some modifications was used. The evaluation of the size distribution and the volume-weighted mean diameter of the droplets in the double emulsion was determined using a static light scattering instrument (Mastersizer 3000, Malvern Instruments, Worcestershire, UK).
Zeta potential measurement
To measure the zeta potential of the droplets, a particle electrophoresis instrument (Zetasizer Nano ZS, Malvern Instruments, Worcestershire, UK) was used (Mikulcova et al. 2018). The samples were diluted 1:100 (w/v) in deionized water under agitation.
Microstructure of the W1/O/W2 double emulsion
To observe the microstructure of the W1/O/W2 double emulsions, an optical microscope with a 100× oil immersion objective and a confocal laser scanning microscope were used. The W1/O/W2 double emulsions were stained using Nile Red (0.1 mg/mL) and Fluorescein-FITC (0.1 mg/mL), respectively. A 5 µL sample was spread on the microscope slide with a coverslip at 25 °C.
Encapsulation efficiency
The W1/O/W2 emulsion was mixed with distilled water in a 1:3 (w/w) ratio, then centrifuged at 6500 rpm for 15 min, and the supernatant was collected using a syringe and subsequently filtered using a drain membrane (pore size: 0.45 μm) and stored at 4 °C until analysis.
Amino acid content was determined by high-performance liquid chromatography (Agilent HPLC 1100, USA) using an Agilent Hypersil ODS column (5 μm, 4.0 mm × 250 mm) and a UV detector (λ = 338 nm). The mobile phases consisted of A: 27.6 mmol/L sodium acetate-triethylamine-tetrahydrofuran (500/0.11/2.5, v/v/v) and B: 80.9 mmol/L sodium acetate-methanol-acetonitrile (1/2/2, v/v/v). Elution was performed at a flow rate of 1.0 mL/min with a gradient of 8 to 100% of mobile phase B for 20 min, followed by 100 to 0% of mobile phase B for 4 min. The encapsulation efficiency of the double emulsion was calculated using the following equation:
\({\text{EE}}\;\left( \% \right)=\left( {{\text{M}}0 - {\text{M}}} \right)/{\text{M}}0 \times {\text{1}}00\% \)
Where EE is the encapsulation efficiency (%), M0 is the weight (mg) of the amino acids initially dissolved in the internal aqueous phase (W1) of the W1/O/W2 emulsions, and M is the weight (mg) of the amino acids released to the external aqueous phase (W2) after centrifugation.
Storage stability of the W1/O/W2 double emulsion
The W1/O/W2 emulsions containing encapsulated lysine, methionine, threonine, and tryptophan were stored at 4 °C after preparation. The external phase was collected every 7 days for a period of 28 days to determine the encapsulation efficiency of the amino acids.
In vitro ruminal incubation
Ruminal contents were obtained from four slaughtered cattle (350–450 kg live weight) at slaughterhouse in the municipal of Toluca, Mexico, mixed and strained through 4 layers of cheesecloth into a flask with O2 free headspace. The rumen contents were transferred in an airtight thermos to the Bromatology laboratory of the Faculty of Medicine, Veterinary and Zootechnics of the Autonomous University of the State of Mexico, Toluca, Mexico. Samples of 500 mg of the diet as a substrate (previously ground and weighed) were weighed into 160 ml serum bottles. After that, 10 ml of particle-free ruminal fluid was added to each bottle, and 40 ml of the buffer solution of Goering and Van Soest (1970), with no trypticase added, was immediately added in a 1:4 (v/v) proportion. The different amino acids (free form, nano-encapsulated) were added to the glass vials in their respective concentrations (lysine: 0, 0.2, 0.4, 0.6 g/g diet DM; methionine: 0, 0.15, 0.3, 0.6 g/g diet DM; threonine: 0, 0.1, 0.15, 0.2 g/g diet DM; tryptophan: 0, 0.08, 0.1, 0.12 g/g diet DM).
A total of 288 bottles (3 bottles of each triplicate sample within each of the 4 amino acids with 4 different levels and in two forms (free and nano- encapsulated), in 3 runs on different weeks, with 3 bottles as blanks (i.e., rumen fluid only), were incubated for 48 h. Once all bottles were filled, they were immediately closed with rubber stoppers, shaken and placed in the incubator at 39 °C. The volume of gas produced, methane, carbon monoxide and hydrogen sulfide production were recorded at 2, 4, 6, 24, 28, 30 and 48 h of inoculation.
At the end of incubation (i.e., 48 h), bottles were uncapped, pH was measured immediately with a pH meter (GLP 22, Crison Instruments, Barcelona, Spain), and fermentation was stopped by swirling the bottles in ice. The contents of each bottle were transferred as filtered fermentation residue to determine the apparently degraded substrate.
Total gas, methane, carbon monoxide and hydrogen sulfide production
Total gas volume was measured in PSI (pounds per square inch) at 2, 4, 6, 24, 28, 30 and 48 h of incubation as described by Theodorou et al. (1994) using a digital manometer with an accuracy of 2% (Manometer model 407910, Extech® Instruments, Nashue, NH, USA). CH4, CO and H2S were quantified according to Acosta et al. (2022). At the end of each measurement, the gas accumulated at the top of the vials was released with a syringe without a plunger to avoid further gas accumulation and partial dissolution of the evaluated gases (Tagliapietra et al. 2010).
Rumen pH and dry matter degradability
After 48 h of incubation, the contents of the glass vials were filtered through 25 mm porosity bags (Filter bag F57, ANKOM Technology Corp., Macedon, NY, USA). The liquor (filtrate) was collected in a glass beaker and the pH was measured immediately using a glass electrode potentiometer (Hanna® Instruments model HALO® HI11102). The residues adhering to the walls of the glass vials were removed by rinsing with distilled water and collected in the same bags as used for the initial filtration. The residues were dried at 60 °C for 72 h. Dry matter digestibility (DMD) was calculated considering the initial weight of the diets and the weight of the obtained dried residues.
Calculations and statistical analysis
The kinetics of total gas, CH4, CO and H2S production were estimated by adjusting the gas volume with the NLIN procedure of SAS (2002) according to the model proposed by France et al. (2000):
\({\text{y}}={\text{b}} \times [{\text{1}}-{{\text{e}}^{ - {\text{c}}({\text{t}} - {\text{Lag}})}}]\)
where y = volume (ml) of total gas, CH4, CO and H2S at time t (h). b = asymptotic production of total gas, CH4, CO and H2S (ml/g DM). c = production rate of total gas, CH4, CO and H2S (ml/h). Lag = initial lag time before total gas, CH4, CO and H2S production starts (h).
Metabolizable energy (ME) (MJ/kg DM) was estimated according to the equation proposed by Menke et al. (1979):
\({\text{ME}}={\text{2}}.{\text{2}}0+\left( {0.{\text{136}} \times {\text{GP}}} \right)+\left( {0.0{\text{57}} \times {\text{CP}}} \right)\)
where CP = crude protein (g/kg DM). GP = total gas production (ml/200 mg DM) at 24 h of incubation.
Total short-chain fatty acid concentrations (SCFA) (mmol/200 mg DM) were calculated according to Getachew et al. (2002) as:
\({\text{SCFA}}=\left( {0.0{\text{222}} \times {\text{GP}}} \right) - 0.00425\)
where GP = total gas production (ml/200 mg MS at 24 h of incubation).
In addition, the ratio of CH4 to SCFA (CH4: SCFA; mmol mmol-1), ME (CH4: ME; g MJ-1) and OM (CH4: OM; mL/g) were calculated.
The experimental design was completely randomized with a 4 × 2 × 4 factorial arrangement (4 amino acids – methionine, lysine, threonine, and tryptophan), 2 forms (free and nano-encapsulated), and (4 doses). The data from the three replicates of each treatment were averaged in each run and the averages obtained, for each run, were used as the experimental unit. The analysis was performed using the GLM procedure of SAS (2002) with the following statistical model:
\({{\text{Y}}_{{\text{ijk}}}}=\mu +{{\text{A}}_{\text{i}}}+{\text{ }}{{\text{F}}_{\text{j}}}+{\text{ }}{{\text{D}}_{\text{k}}}+{\text{ }}+{\text{ }}{\left( {{\text{A }} \times {\text{ F }} \times {\text{ D}}} \right)_{{\text{ijk}}}}+{\varepsilon _{{\text{ijk}}}}.\)
where, Yijk is the response variable, µ is the general mean, Ai is the effect of the dietary type of amino acid, Fj is the effect of the form of amino acid (free and nano), Dk is the effect of extract doses, and (A × F × D)ijk is the effect of the interaction between the type of amino acid, forms (free and nano-encapsulated) and their doses used, and εijk is the experimental error. The comparison of means was performed using Tukey’s test, and they were considered significantly different when p ≤ 0.05.
Results

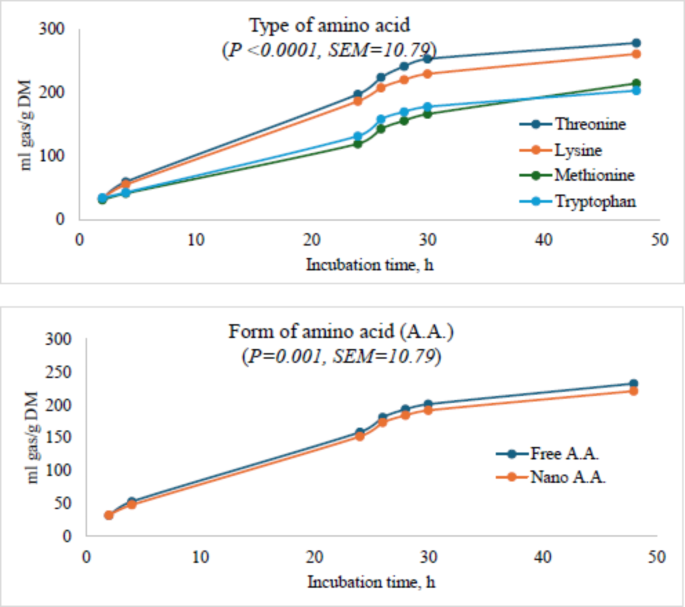

Total gas production
Regardless of the type and form of the amino acid used in this study, gas production increased throughout the 48-h incubation period (Table 2). Threonine-based diet produced the highest biogas while tryptophan-based diet produced the lowest. In addition, it was observed that gas production was higher in the presence of the free-form of amino acids compared to the respective nano-encapsulated amino acids.
The highest asymptotic gas at 48 h and also the highest (P < 0.001) rate of production per hour was observed with the threonine-containing diets, followed by lysine-containing, methionine-containing and tryptophan-containing diets. The highest gas production at 4, 24 and 48 h of incubation occured in the presence of threonine followed by lysine while in the presence of methionine, the lowest gas production at 4 h and 24 h was recorded. The form of AA (free vs. nano-encapsulated) did not affect gas production and its kinetics. However, the comparison between free, and nano-form of amino acid showed that 0.2 nano-threonine produced the highest total gas compared to the others. Similarly, 0.1 and 0.12 nano-tryptophan produced the highest total gas compared to other treatments. Furthermore, 0.4 and 0.6 nano-lysine produced more total gas than other doses and the free form of lysine. In contrast to others, 0 ml of free methionine produced higher total biogas than the nano-form of methionine or the other doses under free methionine (Fig. 1; Table 2).
Methane production
Addition of threonine amino acid resulted in the highest volume of methane produced per gram of dry matter, followed by lysine while methionine produced the least. The form of the amino acid used showed that amino acid in free form resulted in the highest methane production as opposed to the nano-encapsulated form. The following amino acid: threonine > lysine > tryptophan > methionine produced asymptotic methane gas in descending order (P < 0.0001) and the rate of production per hour followed the same trend (P = 0.0259). The diet containing lysine had the quickest time (P = 0.0021) for the first volume of methane produced followed by a threonine-containing diet, while the diet containing methionine had the longest delay before methane was produced. CH4 production parameters showed that in 4, 24 and 48 h of incubation, diet containing methionine produced the least (P < 0.05) methane and it had the lowest proportion of methane for every 100 ml of gas produced while the diet containing threonine did the exact opposite.
The form of AA did not significantly affect methane production kinetics and CH4 production. The interaction of AA, form of AA, and dose showed that there was a difference among treatments (P < 0.05). Under threonine, 0.1 free threonine produced the highest methane while 0.15 produced the lowest. However, in the Nano-threonine 0.15 produced the highest methane 0 threonine produced the lowest. Overall threonine performance showed that Nano-threonine led to the production of methane than free-threonine. In the diet containing lysine, 0.6 free lysine produced the lowest methane while the control produced the highest. Inversely, under nano-lysine, the control produced the lowest methane while 0.6-nano-lysine produced the highest. However, the overall trend showed that nano-lysine produced the lower methane which was 3.79-fold lower than the one produced under free-lysine. The general trend for methane production is that free-methionine produced less methane than nano-methionine, which was 2.2-fold lower than that produced by nano-methionine. Under free methionine, all methionine diet produced lower methane compared to the control, with 0.6 methionine producing the lowest. Under nano-methionine, 0.3 and 0.6 methionine produced the highest methane while the control produced the least. Free-tryptophan-containing diet produced the least methane while nano-tryptophan produced the most methane which was 1.82-fold higher. Under free-tryptophan, 0.08 g/g DM produced the highest while 0.1 produced the lowest. Under nano-tryptophan, 0.1 and 0.12 nano-tryptophane produced the highest while the control produced the lowest (Fig. 2; Table 3).

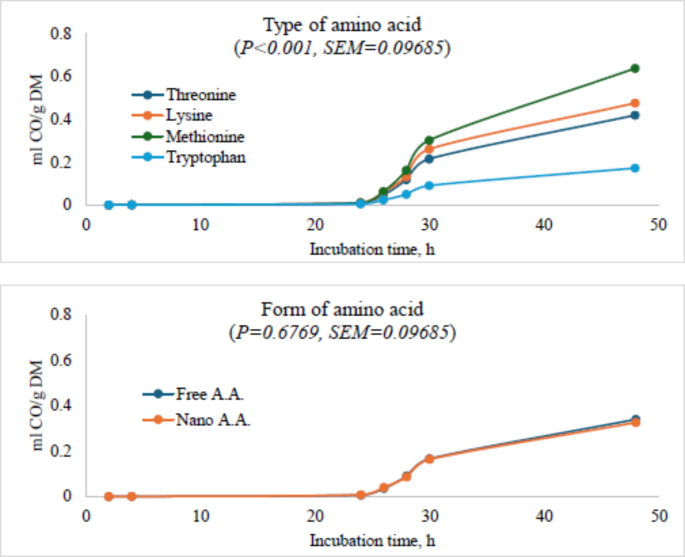

Carbon monoxide production
The highest carbon monoxide was produced in the diet containing methionine amino acid while the lowest was recorded in the diet with tryptophan amino acid. The form of amino acid showed that there was no difference between the carbon monoxide produced either the free or nano-encapsulated amino acid. However, the methionine-containing diet had the highest asymptotic CO followed by lysine, and threonine, while the least produced CO was recorded in the tryptophan-based diet. The form of AA did not significantly affect CO, while the dose significantly (P < 0.0001) affected CO. Both free and nano-treonine and lysine at 0.2 g/g DM had the highest CO level. In the methionine-based diet, 0.15 g/g DM produced the highest (P < 0. 05) CO while the control produced the lowest (P < 0. 05). In the free tryptophan-based diet, the highest level of CO was recorded in the control group while 0.12 g/g DM produced the lowest. Nano-tryptophan at 0.10 g/g DM produced the highest (P < 0. 05) CO while the control had the lowest (P < 0. 05) level of CO. The interaction of amino acid, form of amino acid, and dose of amino acid did not significantly affect the level of CO (Fig. 3; Table 4).

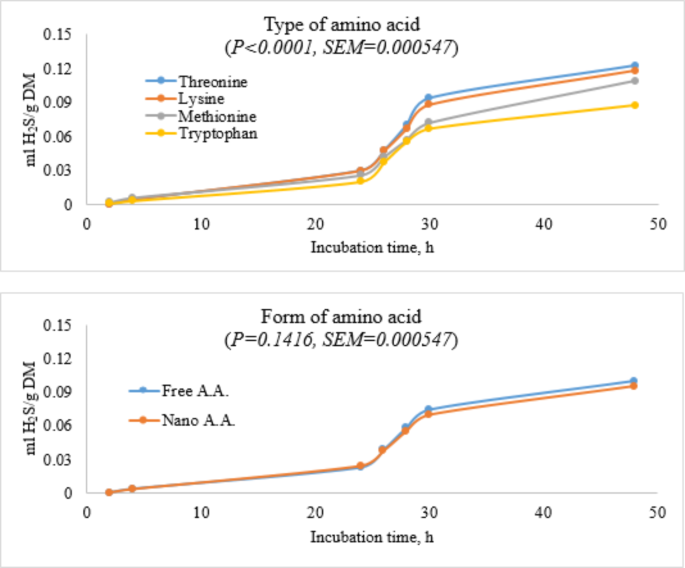

Hydrogen sulphide production
Threonine amino acid group had the highest H2S while the tryptophan group produced the lowest. The form of amino acids also showed that amino acids in free forms had higher H2S than those in nano-forms. Threonine-based diet had the highest (P < 0. 05) volume of H2S produced in 48 h of incubation, followed by lysine, methionine, and tryptophan. Asymptotic H2S showed that a methionine-based diet produced the highest (P < 0. 05) level of H2S, followed by lysine, then threonine while the tryptophan had the lowest value for asymptotic H2S. Nano-tryptophan diet produced more H2S than the free-tryptophan-free diet (Fig. 4; Table 5).
Rumen fermentation profile
Lysine-based diet had the lowest (P < 0.0001) rumen fluid pH, while the tryptophan-based diet had the highest value. Lysine-based diet yielded the highest SCFA, followed by threonine, and tryptophan and the least SCFA was found in the methionine-based diet. Threonine-based diet produced the highest ME followed by the lysine-based diet, followed by tryptophan, and the least was produced in the methionine-based diet. Methane fractions showed methionine based resulted in more ME being produced compared to methane, followed by the tryptophan-based diet followed by the lysine-based diet while the diet that produced the least ME compared to the methane it produced was threonine and the same pattern was followed for CH4:OM and CH4:SCFA. The rumen pH of Nano-amino acid is lower (P = 0.0367) than free amino acid, but it did not significantly affect other parameters such as DMD, SCFA, ME, CH4: ME, CH4:OM and CH4:SCFA. The interaction between amino acid and form of amino acid influenced (P < 0.05) rumen fluid pH. Nano-threonine and lysine reduced the rumen pH, while the Nano-form of methionine and tryptophan increased rumen pH. The interaction of AA, FA and dose did not significantly affect rumen fermentation profile and CH4 conversion efficiency (Table 6).
Discussion
Gas production
Amino acids (AA) are essential for the optimal performance of ruminants. Most of the dietary AA are extensively catabolized by the ruminal microbes to synthesize AAs and microbial proteins in the presence of sufficient carbohydrates, nitrogen, and sulfur (Gilbreath et al. 2021). Gas production volume during in vitro digestion can be used to predict the potential of a sample to be degraded when fed to a live animal. However, the use of amino acids was to see how important AA as an additive is to animals. The threonine-amino acid group producing the highest gas suggests that threonine supports the quick proliferation of rumen microbes which is even higher than popular amino acids such as methionine and lysine and led to the production of gases. Asymptotic gases are often used as indicators of fermentative activity, although the proportion of gases in the biogas might have different nutritional connotations. The form of amino acids is also important. Amino acids in free form produced more gases than those in nanoform. The reason for this is that nano-amino acid was protected and resisted digestion (Albuquerque et al. 2023). The protected nano-amino acid would be delivered intact to the intestine where it can be maximally absorbed. Meanwhile, the microbes in the free amino acid group will break down the amino acid to ammonia which will prevent it from being passed to the lower part of the gut for absorption in the intestine. In addition, nitrogen excretion increases energy inefficiency in animals, due to the conversion of ammonia to urea in the liver and its reduction allows its use for other productive purposes (Araújo et al. 2019).
Methane (CH₄) is a greenhouse gas, with a global warming potential higher than that of carbon dioxide (CO₂) over a relatively short time frame. The global warming potential of methane is significantly higher than that of carbon dioxide, but its impact diminishes over time. Reducing methane emissions is considered a crucial strategy for mitigating climate change, as it can have a significant impact on the Earth’s radiative balance, especially in the short term. In this study, the diet containing methionine seems to be eco-friendly because it produced the least methane gas and even of the total gas produced, its methane had the lowest proportion of the total gas while threonine-containing diet did the opposite. The possible reason for this is that since diets containing methionine were observed to have the highest carbon monoxide, there was an alteration in metabolic processes that favoured the accumulation of CO instead of CH4. Methionine-based diet had the highest level of CO and H2S, yet the lowest CH4, which suggests that there were limited activities of methanogen or protozoa to ensure their combination for CH4 formation. It is surprising in this study that the nano-form of amino acids produced more methane gas than the free-amino acids. However, there seem to be variations among each amino acid, for example, nano-lysine produced lower methane which was lower than the one produced under free-lysine while free-methionine produced less methane than nano-methionine, which was lower than that produced by nano-methionine. Therefore, individual amino acids can influence the effect amino acid form will have on greenhouse gases. The possible reason for high methane in the nano-amino acid group compared to the free-amino acid is that nano-form reduced amino acid available for microbes which reduced the substrates available for them to proliferate which slow down the rate of fermentation. Besides, one of the reasons for increased methane output from ruminants in Africa is low protein quality. Therefore, limiting amino acids caused the accumulation of methane gas. Carbon monoxide is produced by anaerobic microbes as an intermediate metabolic gas during organic matter degradation (Elghandour et al. 2024). Some of the CO dehydrogenase enzymes are capable of reducing carbon dioxide and oxidizing CO by utilizing their catalytic groups for electron transfer and can maintain redox homeostasis during digestion of the feed (Ragsdale 2008). The increase in CO observed in this study can be attributed to the accumulation of the gas as an alternative to its use for methanogenesis.
Dietary sulphur taken by ruminants through feed is converted by rumen microbes and this occurs with amino acids that contain S which ferment them to sulfate (Patra et al. 2017; Elghandour et al. 2014). This sulfate is used together with lactate as a substrate by sulfur-reducing bacteria to produce sulfide, which is combined with H2 to form hydrogen sulfide (H2S) (Castro et al. 2021). Methionine is a precursor for the synthesis of S-adenosyl methionine, a methyl donor in various methylation reactions. The higher H2S observed in a methionine-based diet compared to the other diet may be attributed to its sulfur-containing amino acids nature which donated sulphur for H2 resulting in reduced availability for methane formation.
Rumen fermentation profile
Rumen fermentation profile can be used to assess the influence of diet, substrate, and additive on the digestion, short-chain fatty acid, rumen pH, and digestibility, and metabolizable energy produced during fermentation either in vivo or in vitro. In this study, the rumen pH, may be used to describe the balance between bases and acids of the rumen environment (Laporte-Uribe 2016). Although lysine had the lowest pH, all the pH, in this experiment were within the range optimal for ruminants (Faniyi et al. 2019). Short-chain fatty acid (SCFA) and metabolizable energy (ME) are digestibility and energy value indicators. In this study, lysine-based sample had the highest SCFA which may be attributed to efficiently aided volatile fatty acid formation. This may be attributed to the ability of lysine to improve growth performance and feed efficiency (Yang et al. 2017). However, during gas production, lysine had the second highest gas which means that perhaps other groups were made up of other gases such as CH4, CO and H2S rather than gas increase related to adequate nutritional fermentation. Methionine had the lowest value for SCFA and ME which suggests that instead of supporting adequate fermentation, it led to the inhibition of methane production and accumulation of other gases such as CO and H2S which might have affected the SCFA and ME production. Despite this, the CH4 conversion efficiency showed that the methionine-based diet was efficient in producing more ME, SCFA compared to the CH4, and better OM digestibility compared to CH4 production.
Methionine was the most effective at reducing methane, tryptophan amino acid was most effective at reducing CO and H2S production. Methionine based diet produced 1.07% of methane for every 100 ml biogas compared to others like threonine, lysine and tryptophan which produced 4.13%, 2.9%, and 3.18% of 100 ml of biogas, respectively in 24 h. Methionine based diet produced the highest CO at the rate of 0.01 ml per gram DM while other produced less than this. However, based on methane, CO, and H2S output as well as the rumen fermentation profile it is recommended to use lysine in its nano-encapsulated form for ruminant nutrition.
Availability of data and materials
Raw data is available from the corresponding author upon reasonable request.
Code availability
Not applicable.
References
Acosta JAD, Elghandour MM, Mariezcurrena-Berasain MD, Adegbeye MJ, Fajemisin AN, Pliego AB, Salem AZ (2022) Effect of mid-term dietary administration of the Caesalpinia coriaria extract on the sustainable mitigation of equine fecal methane, carbon monoxide and hydrogen sulfide production. J Equine Vet 115:10402. https://doi.org/10.1016/j.jevs.2022.104021
Albuquerque J, Casal S, Jorge PR, Dorpe I, Fonseca A, JordãoCabrita R, Neves AR, Reis S (2020) Applying nanotechnology to increase the rumen protection of amino acids in dairy cows. Sci Rep 10:6830. https://doi.org/10.1038/s41598-020-63793-z
Albuquerque J, Neves A, Dorpe I, Fonseca J, Cabrita RJ, Reis S (2023) Production of rumen- and gastrointestinal-resistant nanoparticles to deliver lysine to dairy cows. Sci Rep 13:16667. https://doi.org/10.1038/s41598-023-43865-6
AOAC—Association of Official Analytical Chemists (1997) Official Methods of Analysis, 16th edn. AOAC: Arlington, VA, USA. https://doi.org/10.1093/jaoac/50.5.997
Araújo CM, Junior G, Oliveira KA, Varanis M, de Assis TS, Siqueira S (2019) Effect of the inclusion of lysine and methionine on the nutritional performance and ingestive behavior of lambs Semina: Ciências Agrárias, Londrina, vol 40, n. 2, pp 957–970. https://doi.org/10.5433/1679-0359.2019v40n2p957
Buttery PJ, D’Mello JPF (1994) Amino acid metabolism in farm animals: an overview. In: D’Mello JPF (ed) Amino acids in farm animal nutrition. CAB International, Wallingford, pp 1–10. https://www.cabidigitallibrary.org/doi/book/10.1079/9780851996547.0000
Castro DJ, Cerón-Cucchi ME, Ortiz-Chura A, Depetris GJ, Irazoqui JM, Amadio AF, Cantón GJ (2021) Ruminal effects of excessive dietary sulphur in feedlot cattle. J Anim Physiol Anim Nutr 106:978–987. https://doi.org/10.1111/jpn.13652
Chen J, Niu X, Li F, Li F, Guo L (2021) Replacing soybean meal with distillers dried grains with solubles plus rumen-protected lysine and methionine: effects on growth performance, nutrients digestion, rumen fermentation, and serum parameters in Hu Sheep. Animals 11:2428. https://doi.org/10.3390/ani11082428
Coetzee J, de Wet PJ, Burge WJ (1995) Effects of infused methionine, lysine and rumen-protected methionine derivatives on nitrogen retention and wool growth of Merino wethers. S Afr J Anim Sci 25(4):87–94. https://hdl.handle.net/10520/EJC-1f001e20a1
Coleman GS (1960) A sulfate-reducing bacterium from the sheep rumen. J Gen Microbiol 22:423–436. https://doi.org/10.1099/00221287-22-2-423
Elghandour MM, Chagoyán JCV, Salem AZ, Kholif AE, Castañeda JSM, Camacho LM, Cerrillo-Soto MA (2014) Effects of saccharomyces cerevisiae at direct addition or pre-incubation on in vitro gas production kinetics and degradability of four fibrous feeds. Ital J Anim Sci 13:3075. https://doi.org/10.4081/ijas.2014.3075
Elghandour MMMY, Pacheco EBF, Khusro A, Tirado-González DN, Lackner M, Ponce-Covarrubias JL, De Palo P, Maggiolino A, Salem AZM (2024) Deciphering the role of Moringa oleifera seeds and probiotic bacteria on mitigation of biogas production from ruminants. AMB Express 14:86. https://doi.org/10.1186/s13568-024-01744-x
Elghandour MMMY, Salem MZM, Greiner R, Salem AZM (2018) Effects of natural blends of garlic and eucalypt essential oils on biogas production of four fibrous feeds at short-term of incubation in the ruminal anaerobic biosystem. J Sci Food Agric 98:5313–5321. https://doi.org/10.1002/jsfa.9070
Faniyi TO, Adegbeye MJ, Elghandour MMY, Pilego AB, Salem AZM, Olaniyi TA, Adediran O, Adewumi MK (2019) Role of diverse fermentative factors towards microbial community shift in ruminants. J Appl Microbiol 127:2–11. https://doi.org/10.1111/jam.14212
Firkins JL, Mitchell KE (2023) Invited review: Rumen modifers in today’s dairy rations. J Dairy Sci 106:3053–3071. https://doi.org/10.3168/jds.2022-22644
France J, Dijkstra J, Dhanoa MS, López S, Bannink A (2000) Estimating the extent of degradation of ruminant feeds from a description of their gas production profiles observed in vitro: derivation of models and other mathematical considerations. Br J Nutr 83:143–150. https://doi.org/10.1017/s0007114500000180
Getachew G, Makkar HPS, Becker K (2002) Tropical browses: contents of phenolic compounds, in vitro gas production and stoichiometric relationship between short chain fatty acid and in vitro gas production. J Agric Sci 139:341–352. https://doi.org/10.1017/S0021859602002393
Gilbreath KR, Bazer FW, Satterfield MC, Wu G (2021) Amino acid nutrition and reproductive performance in ruminants. In: Wu G (ed) Amino acid in nutrition and health. advances in experimental medicine and biology, vol 1285. Springer, Cham. https://doi.org/10.1007/978-3-030-54462-1_4
Goering MK, Van Soest PJ (1970) Forage fibre analysis (apparatus, reagents, procedures and some applications). Agricultural Research Service USDA, Washington, pp 1–24. https://www.govinfo.gov/content/pkg/GOVPUB-A-PURL-gpo24229/pdf/GOVPUB-A-PURL-gpo24229.pdf
Izumi K, Kikuchi C, Okamoto M (2000) Effect of rumen protected methionine on lactational performance of dairy cows. Asian Australas J Anim Sci 13:1235–1238. https://doi.org/10.5713/ajas.2000.1235
Liu J, Hualu Z, Mundo JLM, Yunbing T, Hung P, McClements DJ (2020) Fabrication and characterization of W/O/W emulsions with crystalline lipid phase. J Food Eng 273:109826. https://doi.org/10.1016/j.jfoodeng.2019.109826
Li H, Jiang B, Zhou Y (2020) Effects of rumen-protected methionine supplementation on growth performance, nitrogen balance, carcass characteristics, and meat quality of lambs fed diets containing buckwheat straw. Can J Anim Sci 100:337–345. https://doi.org/10.1139/cjas-2018-0180
Liu Hu, Yang G, Degen A, Ji K, Jiao D, Liang Y, Xiao L, Long R, Zhou J (2021) Effect of feed level and supplementary rumen protected lysine and methionine on growth performance, rumen fermentation, blood metabolites and nitrogen balance in growing Tan lambs fed low protein diets. Anim Feed Sci Technol 279:115024. https://doi.org/10.1016/j.anifeedsci.2021.115024
Laporte-Uribe J (2016) The role of dissolved carbon dioxide in both the decline in rumen pH and nutritional diseases in ruminants. Anim Feed Sci Technol 219:268–279. https://doi.org/10.1016/j.anifeedsci.2016.06.026
Menke KH, Raab L, Salewski A, Steingass H, Fritz D, Schneider W (1979) The estimation of the digestibility and metabolizable energy content of ruminant feedingstuffs from the gas production when they are incubated with rumen liquor in vitro. J Agric Sci 93:217–222. https://doi.org/10.1017/S0021859600086305
Mikulcova V, Bordes R, Minarik A, Kasparkova V (2018) Pickering oil-in-water emulsions stabilized by carboxylated cellulose nanocrystals-effect of the pH. Food Hydrocolloids 80:60–67. https://doi.org/10.1016/j.foodhyd.2018.01.034
Obeidat BS, Abdullah AY, Awawdeh MS, Titi H, Qudsieh RI (2008) Effect of methionine supplementation on performance and carcass characteristics of Awassi ram lambs fed finishing diets. Asian Australas J Anim Sci 21:831–837. https://doi.org/10.5713/ajas.2008.70536
Papas A, Wu SH (1997) Rumen-stable delivery systems. Adv Drug Deliv Rev 28:323–334. https://doi.org/10.1016/s0169-409x(97)00087-2
Patra A, Park T, Kim M, Yu Z (2017) Rumen methanogens and mitigation of methane emission by anti-methanogenic compounds and substances. J Anim Biotechnol 8:1–18. https://doi.org/10.1186/s40104-017-0145-9
Ragsdale SW (2008) Enzymology of the Wood-Ljungdahl pathway of acetogenesis. Ann N Y Acad Sci 1125:129–136. https://doi.org/10.1196/annals.1419.015
Ren AO, Liang C, Zhiwei K, Bin Z, ChuanShe Z, Zhiliang T, Xiaoli Z, Teklebrhan T (2019) Effects of dietary methionine and lysine supplementation on growth performance, meat composition and rumen fermentation pattern in goats. Indian J Anim Res 53(12):1629–1634. https://doi.org/10.18805/ijar.B-1073
Román-Guerrero J, Orozco-Villafuerte JP, Pérez-Orozco F, Cruz-Sosa R, Jiménez-Alvarado EJ, Vernon-Carter S (2009) Application and evaluation of mesquite gum and its fractions as interfacial film formers and emulsifiers of orange peel-oil. Food Hydrocolloids 23(3):708–713. https://doi.org/10.1016/j.foodhyd.2008.06.005
Rulquin H, Delaby L (1997) Effects of the energy balance of dairy cows on lactational responses to rumen-protected methionine. J Dairy Sci 80:2513–2522
SAS (2002) Statistical analysis system. In User’s guide: statistics; Ver 9.0.; SAS Institute: Cary, NC, USA
Shan JG, Tan ZL, Sun ZH, Hu JP, Tang SX, Jiang HL, Zhou CS, Wang M, Tayo GO (2007) Limiting amino acids for growing goats fed a corn grain, soybean meal and maize stover based diet. Anim Feed Sci Technol 139:159–169. https://doi.org/10.1016/j.anifeedsci.2007.01.019
Storm E, Ørskov ER (1984) The nutritive value of rumen microorganisms in ruminants 4. The limiting amino acids of microbial protein in growing sheep determined by a new approach. Br J Nutr 52:613–620. https://doi.org/10.1079/bjn19840128
Su Y, Sun Y, McClements DJ, Chang C, Li J, Xiong W, Sun Y, Cai Y, Gu L, Yang Y (2022) Encapsulation of amino acids in water-in-oil-in-water emulsions stabilized by gum Arabic and xanthan gum. Int J Biol Macromol 220:1493–1500. https://doi.org/10.1016/j.ijbiomac.2022.09.150
Tagliapietra F, Cattani M, Bailoni L, Schiavon S (2010) In vitro rumen fermentation: effect of headspace pressure on the gas production kinetics of corn meal and meadow hay. Anim Feed Sci Technol 158:197–201. https://doi.org/10.1016/j.anifeedsci.2010.04.003
Teixeira PD, Tekippe JA, Rodrigues LM, Ladeira MM, Pukrop JR, Kim YHB, Schoonmaker JP (2019) Effect of ruminally protected arginine and lysine supplementation on serum amino acids, performance, and carcass traits of feedlot steers. J Anim Sci 97:3511–3522. https://doi.org/10.1093/jas/skz191
Theodorou MK, Williams BA, Dhanoa MS, McAllan AB, France J (1994) A simple gas production method using a pressure transducer to determine the fermentation kinetics of ruminant feeds. Anim Feed Sci Technol 48:185–197
Tsiplakou E, Mavrommatis A, Kalogeropoulos T, Chatzikonstantinou M, Koutsouli P, Sotirakoglou K, Labrou N, Zervas G (2017) The effect of dietary supplementation with rumen-protected methionine alone or in combination with rumen-protected choline and betaine on sheep milk and antioxidant capacity. J Anim Physiol Anim Nutr 101:1004–1013. https://doi.org/10.1111/jpn.12537
Van den Bossche T, Goossens K, Ampe B, Haeseart G, De Sutter J, De Boever JL, Vandaele L (2023) Effect of supplementing rumen-protected methionine, lysine, and histidine to low-protein diets on the performance and nitrogen balance of dairy cows. J Dairy Sci 106:1790–1802. https://doi.org/10.3168/jds.2022-22041
Van Soest PV, Robertson JB, Lewis BA (1991) Methods for dietary fiber, neutral detergent fiber, and non-starch polysaccharides in relation to animal nutrition. J Dairy Sci 74:3583–3597
Yang QQ, Suen PK, Zhang CQ, Mak WS, Gu MH, Liu QQ, Sun SS (2017) Improved growth performance, food efficiency and lysine availability in growing rats fed with lysine-biofortified rice. Sci Rep 7:1389–1400. https://doi.org/10.1038/s41598-017-01555-0
